Precision Airmotive RSA Fuel Systems Explained

When it comes to ensuring your aircraft's engine performs at its peak, the fuel injection system plays an absolutely pivotal role. Precision Airmotive is a name synonymous with reliable and efficient fuel delivery systems, particularly their widely used RSA fuel injection systems. These systems are designed to deliver a precise amount of fuel to each cylinder at the exact moment it's needed for combustion, a feat achieved through carefully calibrated components. This article delves into the workings of these systems, their servicing, and the importance of their proper functioning.

Understanding Continuous Flow Fuel Injection

The vast majority of fuel-injected engines in general aviation utilise a continuous flow fuel injection system. This design philosophy prioritises simplicity and reliability. In such a system, fuel, maintained under a specific pressure, is channelled through various components before ultimately reaching the cylinders as a metered pressure. The final delivery point for this meticulously managed fuel is the fuel nozzle.

The Crucial Role of the Fuel Nozzle

Fuel nozzles are typically constructed with brass housings, often incorporating either brass or stainless steel inserts. These inserts are not merely decorative; they function as calibrated orifices. The precise diameter of the hole within these inserts is critical, as it dictates the exact flow rate required for a specific engine. This calibration ensures that each cylinder receives the optimal fuel-air mixture for efficient combustion.

Nozzle Variations for Different Engine Types

The design of fuel nozzles can vary depending on the engine's configuration:

• Normally Aspirated Engines: These nozzles are equipped with a stainless steel air bleed screen and shroud. The screen's purpose is to filter the air entering the nozzle body. This filtered air then mixes with the fuel, aiding in the atomisation of the fuel charge before it enters the intake port. Effective atomisation is key to a clean and complete burn.
• Turbocharged Engines: In contrast, turbocharged engines do not feature this air bleed screen. Instead, they are fitted with a sealed "upper deck" shroud. This shroud allows "Hiflow" nozzles to mix turbo deck air with the fuel, again promoting superior fuel atomisation. This enhanced atomisation is vital for the increased performance demands of turbocharged powerplants.

Regardless of the specific design, the nozzle is strategically positioned upstream of the intake valve. This placement is a direct consequence of the continuous flow nature of the system – fuel is delivered consistently, irrespective of the piston's position or stroke.

The Impact of Spray Pattern on Performance

For engines that inject fuel directly into the combustion chamber, the resulting spray pattern from the nozzle has a profound impact on the burn rate and the overall efficiency of the combustion process. An ideal scenario involves the entire combustion chamber being saturated with a finely atomised fuel-air mixture. Even with a single-point nozzle, maintaining a consistent spray pattern is of paramount importance. Several factors influence this critical spray pattern:

• The shape and size of the nozzle orifice.
• The fuel pressure within the system.
• The amount of ambient or deck pressure air that mixes with the fuel at the nozzle.

A well-formed spray pattern promotes maximum atomisation, leading to smoother and more consistent engine operation. Conversely, issues such as a dirty shroud or deteriorated upper deck shroud seals can significantly degrade the spray pattern, even if the internal components are otherwise functional. Similarly, if the calibrated orifice itself becomes damaged, perhaps through rough handling or the insertion of foreign objects like safety wire, the spray pattern will be compromised, irrespective of the cleanliness of the screen or the condition of the seals.

Precision Airmotive: Overhaul and Testing Services

Ensuring the longevity and optimal performance of your Precision Airmotive RSA fuel injection system is paramount. Victor Aviation specialises in the overhaul and testing of these critical components. Their commitment to quality is evident in their use of state-of-the-art, computerised digital fuel flow equipment. This advanced technology employs twin-turbine electronic fuel flow meters to measure fuel flow with exceptional accuracy. This meticulous calibration process guarantees that your fuel system will be tested to the highest possible degree of precision.

Services Offered by Victor Aviation

Victor Aviation provides a comprehensive suite of services for fuel injection systems, including:

• Fuel injection servos
• Fuel pumps
• Fuel flow dividers
• Fuel metering units
• Fuel lines
• Fuel nozzles

Furthermore, Precision Airmotive RSA fuel injection systems are readily available for purchase outright or on an exchange basis, offering flexibility for aircraft owners and maintenance professionals.

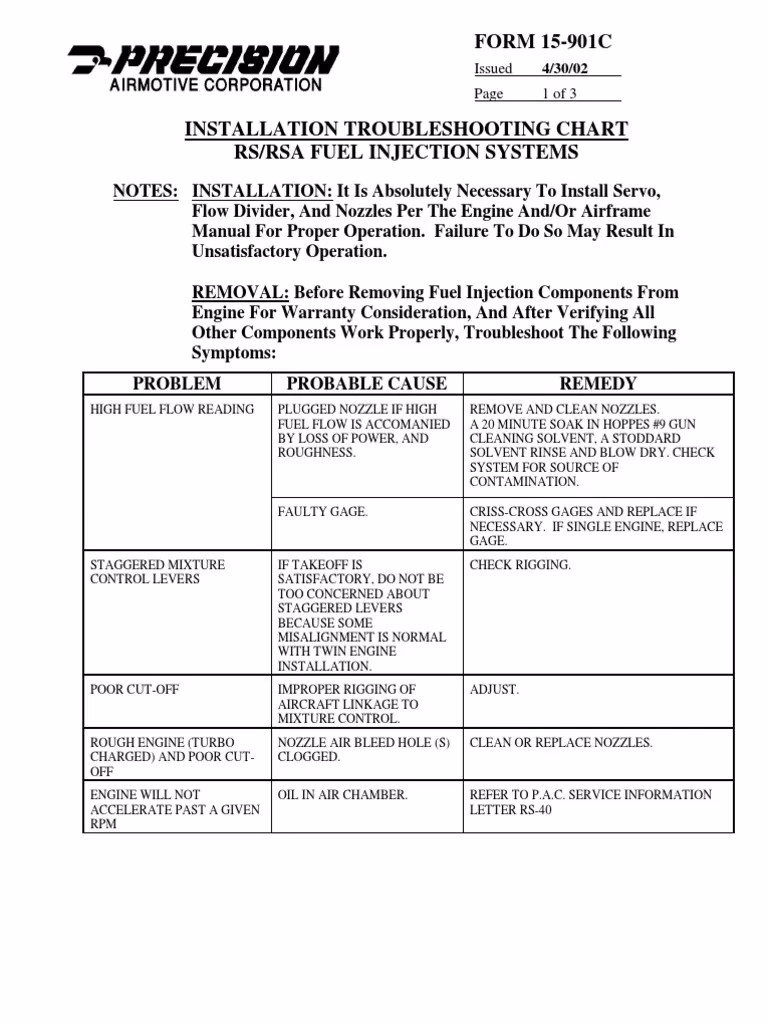

Service Information for Precision Airmotive Fuel Controls

Maintaining up-to-date service information is crucial for the proper overhaul and maintenance of any aircraft component. For Precision Airmotive fuel controls, including their RS/RSA and MSA series, it is essential to consult the latest published instructions. Victor Aviation's publications are based on the most current information available at the time of printing. They strongly recommend using their index as a guide to verify that your RS/RSA and MSA service information is complete and current. Staying informed with the latest technical directives ensures that maintenance procedures are performed correctly, safeguarding both performance and safety.

Key Takeaways for Precision Airmotive RSA Systems

To summarise the critical aspects of Precision Airmotive RSA fuel injection systems:

Frequently Asked Questions

Q1: Does Precision Airmotive support RSA fuel injection?

A1: Yes, Precision Airmotive is well-known for its RSA fuel injection systems. Victor Aviation, a specialist in these systems, offers overhaul, testing, and outright or exchange units for Precision Airmotive RSA fuel injection systems.

Q2: What makes the fuel nozzle so important in an RSA system?

A2: The fuel nozzle is the final stage of fuel delivery. Its calibrated orifice and spray pattern are critical for accurately metering fuel and ensuring proper atomisation of the fuel-air mixture, which directly impacts engine performance and smoothness.

Q3: How does Victor Aviation ensure accuracy in fuel system calibration?

A3: Victor Aviation utilises state-of-the-art computerized digital fuel flow equipment with twin-turbine electronic fuel flow meters for highly accurate measurement and calibration of fuel systems.

Q4: What is the difference between a nozzle for a normally aspirated engine and one for a turbocharged engine?

A4: Nozzles for normally aspirated engines typically have an air bleed screen for atomisation. Turbocharged engine nozzles often have an "upper deck" shroud to mix turbo deck air with fuel for improved atomisation under boost conditions.

Q5: Where can I find the latest service information for my Precision Airmotive fuel control?

A5: It is recommended to consult the latest published instructions from specialists like Victor Aviation, using their index to verify that your RS/RSA and MSA service information is complete and up to date.

In conclusion, the Precision Airmotive RSA fuel injection system is a sophisticated yet robust piece of engineering vital for the efficient operation of many general aviation aircraft. Understanding the function of each component, particularly the fuel nozzle, and adhering to proper maintenance and calibration procedures, as supported by specialists like Victor Aviation, is key to maximising engine performance, reliability, and safety.
