Optimising Rotax 912/914 Performance: The SDS Advantage

The Rotax 912 and 914 series engines have long been the backbone of light aviation, renowned for their reliability, efficiency, and compact design. Pilots and aircraft builders around the globe trust these powerplants to deliver consistent performance, whether for recreational flying or more demanding cross-country journeys. However, even with such a well-established foundation, there's always room for enhancement, particularly when it comes to engine management and electrical system optimisation. Understanding the intricacies of your Rotax engine's charging capabilities and how modern electronic systems integrate is paramount for ensuring both superior performance and unwavering reliability.

Understanding Your Rotax 912/914 Charging System

At the heart of every aircraft's electrical system lies its power generation unit. For the Rotax 912 and 914 engines, the stock charging system is designed to provide a robust supply of electricity to power not only the engine's essential components but also the myriad of avionics and accessories found in contemporary cockpits. It's a critical component, ensuring that your battery remains charged and that all electrical systems operate without interruption during flight.

Specifically, the stock Rotax 912 charging system boasts a maximum output of approximately 18 amps when the engine is operating at higher RPMs. This figure represents the total electrical energy the alternator can generate to meet the demands of the aircraft. This capacity is generally sufficient for standard engine operation and typical avionics suites. However, as technology advances and pilots integrate more sophisticated electronic systems – from advanced navigation aids to complex engine monitoring units – understanding the power budget becomes increasingly important. Any additional electrical load placed on the system must be carefully considered to avoid exceeding the alternator's capacity, which could lead to battery discharge or, worse, critical system failures.

Maintaining a healthy balance between power generation and consumption is key to long-term operational success and safety. A well-managed electrical system ensures that you have ample power for all flight phases, from engine start-up to cruise, and that your battery is always ready to provide backup should the primary charging system encounter an issue.

Elevating Performance with SDS EFI/EI Systems

For those looking to push the boundaries of their Rotax 912/914 engine's capabilities, or simply seeking enhanced reliability and efficiency, modern electronic engine management systems offer a compelling upgrade. SDS, a name synonymous with innovation in this field, has been at the forefront of supplying Electronic Fuel Injection (EFI) and Electronic Ignition (EI) systems for Rotax 912/914 engines since 2007. Their ethos is clear: Superior Design = Superior Performance, a principle that underpins every aspect of their product development.

Traditional carburettor systems, while robust, can often be temperamental, particularly with changes in altitude, temperature, or humidity. They require regular adjustments and can be less fuel-efficient. Electronic Fuel Injection, by contrast, offers precise fuel metering, optimising the air-fuel mixture for all operating conditions. This leads to smoother running, improved fuel economy, easier starting, and often, a noticeable increase in power output.

SDS has continuously refined its offerings, with their latest being the SDS EFI Gen 3 Rotax 912 Kits. These kits are designed to provide a comprehensive and integrated solution for modernising your engine's fuel delivery.

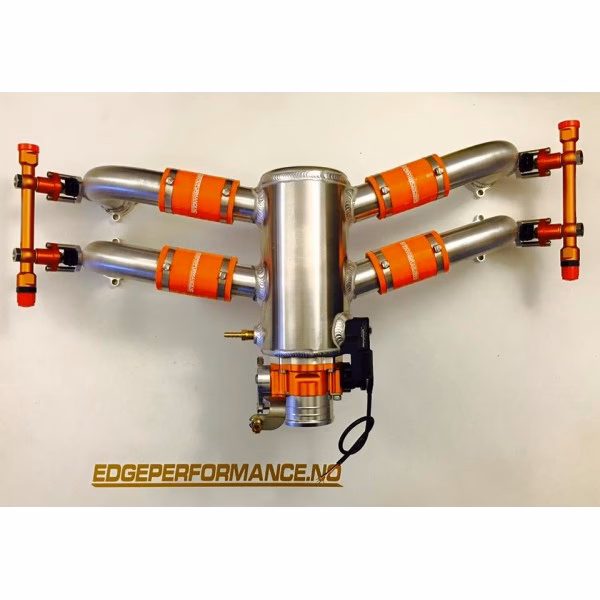

What's in the SDS EFI Gen 3 Rotax 912 Basic Kit?

The core SDS EFI Gen 3 Rotax 912 kit is engineered for simplicity and effectiveness, providing a solid foundation for electronic fuel management. The basic setup focuses on a fuel-only configuration, meaning it primarily manages the precise delivery of fuel to the engine. Key components include:

• Single ECU (Engine Control Unit): This is the brain of the system, a sophisticated computer that interprets data from various engine sensors (e.g., manifold pressure, engine speed, air temperature) and calculates the optimal amount of fuel to inject. Its intelligent control ensures the engine always runs at peak efficiency.
• Single Fuel Pump: A high-quality electric fuel pump ensures a consistent and pressurised supply of fuel to the injectors, a fundamental requirement for any EFI system.
• Fuel-Only Setup: This configuration focuses specifically on optimising fuel delivery, replacing the often less precise carburettor system with electronic injectors.
• Wiring Included: All necessary wiring harnesses are provided, designed for a straightforward installation, ensuring reliable communication between the ECU and the engine's components.

This basic kit represents a significant upgrade, offering enhanced reliability and performance over stock carburettor systems. It's a testament to SDS's commitment to providing robust, well-engineered solutions for the Rotax community.

Expanding Capabilities with Optional Enhancements

While the basic kit provides a substantial improvement, SDS also offers a range of optional items to further tailor the system to specific needs and preferences. These additions are designed to enhance safety, provide more detailed monitoring, and offer greater control over engine parameters:

• Second Fuel Pump: For pilots who prioritise redundancy and safety, adding a second fuel pump offers an invaluable layer of protection. In the unlikely event of a primary pump failure, the backup pump can be activated, ensuring continued fuel supply and mitigating the risk of engine stoppage. This provides immense peace of mind, especially during extended flights over challenging terrain.
• Fuel Trim: This feature allows for fine-tuning of the fuel mixture in real-time. It's particularly useful for optimising performance and efficiency across varying altitudes, temperatures, and fuel qualities. Pilots can achieve the perfect balance between power and economy, adapting the engine's behaviour to specific flight conditions.
• Digital Fuel Flow: Accurate fuel flow monitoring is crucial for flight planning and managing fuel reserves. A digital fuel flow sensor provides precise, real-time data on fuel consumption, allowing pilots to make more informed decisions and enhancing safety by preventing unexpected fuel shortages.
• Card Data Logging: This advanced feature records critical engine parameters during flight onto a data card. This logged data can then be analysed post-flight to diagnose potential issues, monitor engine health trends, and even optimise performance settings. It's an indispensable tool for proactive maintenance and performance tuning, offering deep insights into how your engine is performing under various conditions.

These optional components allow aircraft owners to build an EFI system that precisely matches their operational requirements and desired level of sophistication.

Power Consumption: A Key Consideration

One of the most frequently asked questions regarding electronic engine management systems pertains to their electrical draw. It’s a vital consideration, as any new system must integrate seamlessly with the aircraft's existing electrical infrastructure without overloading the alternator or draining the battery prematurely. SDS has meticulously engineered their EFI systems to be highly efficient in their power consumption.

During cruise flight, the current draw of an SDS EFI (fuel only) system is remarkably low, typically ranging from around 8 to 8.5 amps. When juxtaposed with the stock Rotax 912 charging system's maximum output of 18 amps, this leaves a significant headroom of approximately 9.5 to 10 amps. This substantial surplus capacity is crucial for several reasons:

1. Ample Power for Avionics: The remaining amperage is more than sufficient to power a wide array of modern avionics, lights, and other electrical accessories without stressing the charging system.
2. Battery Health: With the alternator comfortably handling the load, the battery remains well-charged, ensuring reliable engine starts and serving as a robust backup power source.
3. System Longevity: Operating the charging system well within its limits reduces wear and tear, contributing to its overall longevity and reliability.
4. Efficiency: The low power draw demonstrates the efficiency of the SDS design, ensuring that more of the engine's power is directed towards propulsion rather than generating excessive electricity.

This careful balance between power generation and consumption highlights the thoughtful engineering behind SDS systems, ensuring they are not only powerful but also practical and compatible with your Rotax-powered aircraft.

To better illustrate the efficiency of SDS EFI systems, consider this comparison:

Real-World Applications and Installations

The true measure of any advanced system lies in its real-world performance and the experiences of those who use it. SDS EFI/EI systems have been successfully integrated into a diverse range of aircraft, demonstrating their adaptability and robust design. The company often shares insights into these installations, showcasing the practical application of their technology.

One notable example is George Franco's installation, which features a custom carbon fibre manifold melded seamlessly with SDS hardware. This highlights the flexibility of the SDS system to integrate with unique aircraft configurations and demonstrates the level of craftsmanship and customisation possible. The detailed photos of the SDS magnet disc and Hall sensor mount, affixed to the rear of the engine, further illustrate the precision engineering involved in these components, ensuring accurate engine timing and sensor readings.

Another success story comes from Peter Cowans, who chose SDS for his Murphy Rebel aircraft. Such installations underscore the trust placed in SDS systems for reliable operation in popular homebuilt aircraft, where dependability is paramount for safe and enjoyable flying.

Perhaps one of the most compelling testimonials comes from Kasper Naef, whose supercharged Rotax 912, equipped with Gen 1 SDS fuel injection, has undertaken adventurous journeys, including a trip to the Yukon. Pictures of Kasper's plane beside the iconic Martin Mars water bomber on Evans Lake, BC, paint a vivid picture of the system's reliability in demanding environments and its ability to support enhanced engine performance, such as that provided by a supercharger. A supercharged engine places additional demands on fuel delivery, and the SDS system's ability to manage this effectively speaks volumes about its capabilities and robust design.

Upgrading Your Ignition with SDS CPI

Beyond fuel injection, ignition systems play an equally critical role in engine performance and reliability. Many stock Rotax ignitions, while functional, can be considered "crude" by modern standards, often relying on magneto-based designs that offer less precise timing control compared to electronic systems. These older systems can sometimes lead to harder starting, less smooth engine operation, and reduced efficiency.

SDS offers a compelling alternative with their SDS CPI (Controlled Performance Ignition) system. This modern and reliable electronic ignition system is designed to replace stock Rotax ignitions, bringing a host of benefits:

• Precise Timing: Electronic control allows for far more accurate ignition timing across the entire RPM range, optimising combustion for power and efficiency.
• Improved Starting: A stronger, more consistent spark often results in easier and quicker engine starts, particularly in cold weather.
• Smoother Operation: Precise timing and consistent spark lead to a smoother running engine, reducing vibrations and enhancing the overall flying experience.
• Enhanced Reliability: Modern electronic components are often less prone to wear and tear than mechanical magneto systems, contributing to greater long-term reliability and reduced maintenance.
• Better Fuel Economy: Optimised combustion can also lead to improved fuel efficiency, saving operational costs over time.

Upgrading to an SDS CPI system is a strategic move for any Rotax owner seeking to enhance their engine's overall performance, reliability, and ease of operation, transforming a good engine into a truly exceptional one.

Frequently Asked Questions About Rotax Engines and SDS Systems

What is the maximum charging output of a stock Rotax 912 engine?

The stock Rotax 912 charging system provides a maximum output of 18 amps, typically achieved at higher engine RPMs. This capacity is designed to power the engine's electrical needs and the aircraft's standard avionics.

How much electrical power does an SDS EFI system draw?

An SDS EFI (fuel only) system is highly efficient, drawing approximately 8 to 8.5 amps during cruise flight. This leaves significant headroom when compared to the 18-amp output of the stock Rotax charging system, ensuring ample power for other aircraft components.

Are SDS EFI systems suitable for supercharged Rotax engines?

Yes, SDS EFI systems have proven their capability in supercharged Rotax engines. The experience of Kasper Naef, who successfully operated a supercharged Rotax 912 with SDS Gen 1 fuel injection on an extensive trip to the Yukon, demonstrates the system's ability to manage the increased fuel demands and performance characteristics of forced induction engines.

What are the benefits of upgrading to an SDS CPI ignition?

Upgrading to an SDS CPI (Controlled Performance Ignition) system offers numerous benefits, including more precise ignition timing, improved engine starting, smoother engine operation, enhanced reliability due to modern electronic components, and potentially better fuel economy compared to traditional stock ignitions.

Does SDS sell complete Rotax 912/914 engines?

Based on the available information, SDS specialises in providing advanced EFI/EI systems and components for Rotax 912/914 engines, rather than selling the complete engines themselves. They focus on enhancing the performance and reliability of existing Rotax powerplants through their superior engine management solutions.

Conclusion

The Rotax 912 and 914 engines are outstanding powerplants, and with the right enhancements, their capabilities can be truly transformative. SDS has established itself as a leader in providing sophisticated EFI and EI systems that not only improve performance and fuel efficiency but also significantly bolster the reliability and operational smoothness of these beloved engines. By carefully managing electrical loads, as demonstrated by the efficient 8-8.5 amp draw of their EFI systems against the stock 18-amp charging capacity, SDS ensures that these upgrades integrate seamlessly without compromising the aircraft's electrical integrity.

From the precise fuel metering of the Gen 3 EFI kits to the advanced control offered by the CPI ignition, SDS solutions are designed with the pilot in mind, offering unparalleled control, diagnostics, and peace of mind. The real-world success stories, from custom installations to adventurous long-distance flights, stand as a testament to the quality and effectiveness of these systems. For any Rotax 912/914 owner seeking to optimise their engine for the ultimate flying experience, exploring the SDS advantage is a highly recommended course of action.
