Rohloff SPEEDHUB Oil Change: A Detailed Guide

The Rohloff SPEEDHUB 500/14 is an engineering marvel, renowned worldwide for its incredible durability, vast gear range, and low-maintenance design. Unlike traditional derailleur systems, this internal gear hub relies on a sealed, sophisticated oil lubrication system to keep its intricate gears and bearings running smoothly. While often described as 'fit and forget', understanding and performing its unique oil change procedure is absolutely critical to ensuring its legendary longevity and flawless operation. Neglecting this vital task can lead to premature wear, reduced efficiency, and potentially costly repairs. This guide will walk you through everything you need to know to confidently carry out a Rohloff SPEEDHUB oil change, safeguarding your investment and keeping your ride in prime condition.

The heart of the Rohloff SPEEDHUB's robust performance lies within its unique lubrication system. From the factory, each SPEEDHUB 500/14 is precisely filled with approximately 25ml of specialised Rohloff SPEEDHUB oil. This specific volume and type of oil are not arbitrary; they are meticulously chosen to provide the optimum lubrication for both the internal bearings and the complex gearing mechanisms. This ensures minimal friction, maximum power transfer, and a quiet, efficient ride right from the start.

Why a Regular Rohloff Oil Change is Non-Negotiable

While the Rohloff hub is designed to be incredibly resilient, its internal environment is not entirely impervious to the outside world. Over time, despite its sealed nature, microscopic particles and moisture can find their way in, compromising the integrity of the lubricating oil. This is where the importance of a regular oil change becomes paramount. The official recommendation is to complete an oil change every 5000km or once per Annum, whichever comes first. This isn't just a suggestion; it's a vital part of the hub's long-term health plan.

Combatting Contamination and Moisture

The primary reasons for this scheduled maintenance are twofold: to replenish the oil supply and to eliminate contaminants. Even the most robust seals can allow minute amounts of dirt, dust, and especially moisture to ingress over thousands of kilometres or a year of varying weather conditions. These contaminants, once inside, can degrade the oil's lubricating properties, leading to increased wear on internal components. The oil change process is designed to ensure that the critical 12.5ml quantity of fresh oil is always retained, flushing out any accumulated dirt or moisture.

Furthermore, the process specifically ensures that any penetrated moisture is effectively rinsed out. Moisture, if left unchecked, can lead to corrosion and significantly shorten the lifespan of your hub's precision components. The flushing action of the new oil helps to expel these damaging elements, preserving the hub's internal integrity and preventing long-term damage.

Addressing 'Sweat Oil'

It's also worth noting the phenomenon of 'sweat oil'. It's completely normal for a very small amount of oil to seep from the hub, particularly around the spoke flanges or the axle. This is simply the hub 'breathing' and is not indicative of a fault. However, this minor loss of oil over time means that the internal lubrication volume can decrease. The regular oil change ensures that the SPEEDHUB 500/14 will always contain enough oil for lubrication, regardless of any oil lost due to this natural 'sweating'.

Essential Tools and Materials for the Job

Before you begin, gather all the necessary items. Having everything to hand will make the process smoother and more efficient:

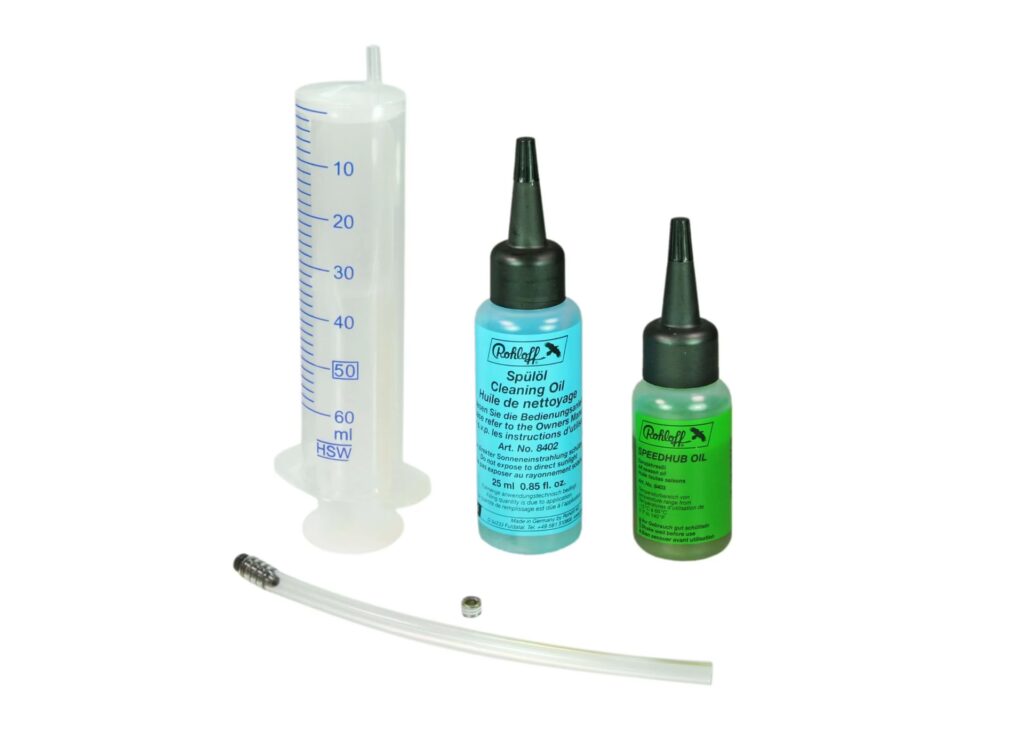

• Rohloff Oil Change Kit: This is indispensable. It typically includes the specific Rohloff SPEEDHUB oil (usually a 12.5ml bottle for maintenance changes), a syringe, and often a special drain plug tool.
• Clean Rags: Plenty of them, for cleaning up spills and wiping down the hub.
• Waste Oil Container: A small, shallow container to collect the old oil. An old plastic bottle cut in half or a dedicated oil pan works well.
• Torque Wrench (Recommended): While not strictly essential for the drain plug, using a torque wrench ensures you don't overtighten and damage the threads. The typical torque setting for the drain plug is low, usually around 10-12 Nm.
• Degreaser/Cleaner: For cleaning the hub exterior before and after the oil change.
• Bike Stand: Highly recommended for stability and ease of access to the hub.
• Gloves: To keep your hands clean.

Step-by-Step Guide to Changing Your Rohloff SPEEDHUB Oil

Follow these steps carefully to perform a thorough and effective oil change:

1. Preparation is Key

Begin by placing your bicycle securely in a bike stand. This provides stability and allows you to easily rotate the wheel and access the hub. Clean the area around the drain plug on the hub shell thoroughly with a rag and some degreaser. Any dirt or grit in this area could potentially enter the hub during the process.

2. Locating and Opening the Drain Plug

Identify the oil drain plug on your Rohloff SPEEDHUB. It's typically a small, recessed bolt located on one of the hub's spoke flanges. Use the special drain plug tool provided in your Rohloff kit to carefully loosen and remove the plug. Position your waste oil container directly underneath the drain hole. Rotate the wheel so the drain hole is at the 6 o'clock position (directly downwards) to allow for maximum drainage. Be prepared for a small amount of oil to drip out immediately.

3. The Flushing Process: Injecting New Oil to Expel Old

This is where the Rohloff oil change differs significantly from many other oil changes. Instead of simply draining all the old oil, you'll use the new oil to actively flush out the old. This is crucial for removing contaminants and moisture.

1. Attach the provided hose to the syringe and draw up the entire 12.5ml bottle of fresh Rohloff SPEEDHUB oil into the syringe.
2. With the drain plug still removed and the hub positioned for drainage, insert the tip of the syringe into the drain hole.
3. Slowly and steadily inject about half of the new oil (approx. 6-7ml) into the hub. You will immediately see old, discoloured oil, and potentially some grime, begin to drain out into your waste container.
4. Allow this initial flush to drain completely. You can gently rotate the wheel a few times to help dislodge any remaining contaminants.
5. Once the flow slows, inject the remaining new oil from the syringe. Again, watch as more old oil and debris are expelled. This second injection ensures a thorough rinse, leaving the internal components cleaner.
6. Allow the hub to drain thoroughly until only occasional drips are visible. This might take several minutes.

4. Refilling the Hub with Fresh Oil

Once the hub has drained completely, it's time to seal it up and ensure the correct oil level for optimal performance.

1. Reinsert the drain plug. Hand-tighten it first, then use your drain plug tool. If using a torque wrench, tighten to the manufacturer's specified torque setting (usually around 10-12 Nm). Do not overtighten, as this can damage the hub shell threads.
2. Clean any residual oil from the exterior of the hub using a clean rag.

It's important to understand that for a routine maintenance oil change, you are adding 12.5ml of fresh oil. The initial factory fill is 25ml, but the maintenance procedure is designed to replenish and rinse, not fully replace the entire original volume. The 12.5ml quantity is specifically chosen to maintain the optimal internal lubrication and facilitate the flushing action.

5. Final Checks and Disposal

After the oil change is complete, give the wheel a spin to ensure everything feels smooth. Wipe down any remaining oil residue on the hub or spokes. Finally, and perhaps most importantly, ensure you dispose of the old oil responsibly. Do not pour it down drains or into the environment. Take it to an authorised waste oil collection point or recycling centre. Environmental responsibility is just as important as mechanical maintenance.

Understanding Rohloff's Unique Lubrication System

The Rohloff SPEEDHUB's design is distinct from other internal gear hubs due to its reliance on a very specific, low-viscosity oil. This oil is engineered to penetrate every corner of the hub's intricate gear train, providing superior lubrication even under extreme loads and varying temperatures. The sealed nature of the hub, combined with this specialised oil, allows for its incredible service life and minimal maintenance requirements. The 'sweat oil' mentioned earlier is a testament to this unique design; the hub is designed to allow slight pressure equalisation, which can result in minor oil seepage, but this does not indicate a fault or significant oil loss beyond what the regular 12.5ml top-up addresses.

Benefits of Diligent Rohloff Maintenance

Adhering to the recommended oil change schedule offers numerous benefits:

• Extended Hub Lifespan: Regular oil changes remove abrasive contaminants, significantly prolonging the life of your hub's internal components.
• Consistent Performance: Fresh oil ensures smooth, precise, and quiet gear changes, maintaining the hub's renowned efficiency.
• Prevents Costly Repairs: Proactive maintenance is always cheaper than reactive repairs. A neglected hub can lead to significant internal wear, requiring expensive professional servicing or parts replacement.
• Warranty Compliance: Following the manufacturer's maintenance schedule is often a condition of your Rohloff warranty.
• Peace of Mind: Knowing your hub is properly cared for allows you to ride with confidence, no matter the terrain or conditions.

Troubleshooting Common Issues

While the Rohloff oil change is straightforward, a few issues might arise:

• Oil Not Draining Properly: Ensure the hub is positioned correctly (drain plug at 6 o'clock). The oil might also be thick from cold; riding the bike for a few minutes before the change can warm the oil and make it flow more easily.
• Air Bubbles During Injection: A few small bubbles are normal, but excessive air can indicate the syringe tip isn't fully seated or there's an air leak. Ensure a snug fit.
• Overfilling/Underfilling: Always use the exact 12.5ml quantity for maintenance changes. Overfilling can cause excessive 'sweat oil' or pressure build-up, while underfilling compromises lubrication.
• Stripped Drain Plug: This is rare if proper tools and torque are used. If it happens, stop immediately and seek professional assistance to avoid further damage to the hub shell.

Frequently Asked Questions (FAQs)

Can I use any other oil besides Rohloff SPEEDHUB oil?

Absolutely not. The Rohloff SPEEDHUB is designed to operate with its own specific oil, which has a unique viscosity and additive package. Using any other type of oil will void your warranty and can cause severe damage to the internal components, as it will not provide the correct lubrication or flushing properties.

What happens if I miss an oil change?

Missing an occasional oil change might not cause immediate catastrophic failure, but it significantly increases the risk of premature wear and damage to the internal components. Contaminants will build up, and the oil's lubricating properties will degrade, leading to reduced efficiency, increased noise, and ultimately, a shortened lifespan for your hub.

How do I know if the oil needs changing if I don't track kilometres or time?

While tracking 5000km or a year is the best guide, signs of severely degraded oil can include increased shifting resistance, a noticeable increase in hub noise, or a gritty feeling when pedalling. However, by the time these symptoms appear, some wear may have already occurred, so sticking to the recommended schedule is always best practice.

Is 'sweat oil' around the hub normal?

Yes, a small amount of oil seepage, often referred to as 'sweat oil', particularly around the spoke flanges or the axle, is completely normal for a Rohloff SPEEDHUB. It's part of the hub's design to allow for pressure equalisation. This is not a sign of a fault or significant oil loss, and the regular oil change accounts for this minimal seepage.

Do I need special tools for the oil change?

Yes, you will need the specific Rohloff oil change kit, which includes the correct syringe and the special drain plug tool. These are essential for safely and effectively performing the oil change without damaging the hub.

Conclusion

The Rohloff SPEEDHUB 500/14 is an investment in unparalleled cycling performance and reliability. Like any precision engineered component, it thrives on regular, specific maintenance. Performing a routine oil change every 5000km or once a year is not just a chore; it's a critical act of preventative care that directly translates into years of trouble-free riding, consistent shifting, and the preservation of your hub's incredible durability. By following this detailed guide, you're not just changing oil; you're actively extending the life and enhancing the performance of your Rohloff SPEEDHUB, ensuring it continues to deliver that legendary smooth, efficient ride for countless adventures to come. Embrace this simple maintenance task, and your Rohloff will reward you with exceptional service mile after glorious mile.
