Rohloff Speedhub Oil Change Guide

The Rohloff Speedhub is renowned for its robust build quality and exceptional reliability, making it a favourite among discerning cyclists tackling diverse terrains and demanding conditions. However, like any high-performance mechanical component, it requires regular maintenance to ensure it continues to operate at its peak. A key aspect of this maintenance is the regular changing of the gearbox oil. Neglecting this crucial step can lead to premature wear and a reduction in the smooth, precise shifting that the Rohloff is celebrated for. This guide will delve into the importance of oil changes, the recommended intervals, and a straightforward process to keep your Speedhub in prime condition.

Why is Rohloff Speedhub Oil So Important?

The Rohloff Speedhub is a complex piece of engineering, housing a sophisticated planetary gear system within its compact casing. This system relies on a specialised synthetic oil to perform several vital functions:

• Lubrication: The primary role of the oil is to lubricate all the moving parts within the hub, including gears, bearings, and seals. This lubrication reduces friction, minimising wear and tear and ensuring smooth operation. Without adequate lubrication, metal-on-metal contact can quickly lead to damage and a significant decrease in efficiency.
• Cooling: As the gears shift and the hub operates, friction generates heat. The oil circulates throughout the hub, absorbing this heat and dissipating it. This cooling effect prevents overheating, which can degrade lubricants and damage sensitive components.
• Cleaning: Over time, microscopic wear particles can be generated from the internal components. The oil acts as a carrier for these particles, suspending them and preventing them from accumulating and causing further damage. The oil change process effectively flushes these contaminants out of the system.
• Corrosion Prevention: The synthetic oil also contains additives that protect the internal metal components from corrosion and rust, especially in humid or wet conditions that cyclists frequently encounter.

How Often Should You Change the Rohloff Speedhub Oil?

Rohloff themselves provide clear recommendations for oil changes to ensure the longevity and optimal performance of their Speedhub. The general guideline is:

• Every 5,000 kilometres (approximately 3,100 miles)
• Annually

It is important to adhere to these intervals, regardless of whether you've reached the mileage or the annual mark. If you ride less than 5,000 km in a year, you should still change the oil at least once a year to remove any accumulated moisture or contaminants that may have entered the hub. Conversely, if you exceed 5,000 km within a year, it's advisable to perform an oil change sooner rather than later.

Consider your riding conditions. If you frequently ride in extremely dusty, muddy, or wet environments, or if you ride in areas with significant temperature fluctuations, it might be prudent to consider slightly more frequent oil changes. While the recommended intervals are generally sufficient, extreme conditions can accelerate oil degradation.

What You'll Need: The Essential Toolkit

Before you begin, ensure you have the necessary tools and supplies. Using the correct Rohloff-specific oil is paramount, as non-specific oils may not offer the required protection and could potentially damage the hub. Here’s a checklist:

Step-by-Step Guide to Changing Your Rohloff Speedhub Oil

The process of changing the oil in your Rohloff Speedhub is relatively straightforward, but precision is key. Follow these steps carefully:

Step 1: Prepare Your Bike

Ensure your bicycle is in a stable position. Ideally, it should be mounted on a workstand so the rear wheel can spin freely. If you don't have a workstand, you can lean the bike against a wall, but be mindful of stability. It's also beneficial to have the bike upright for the draining process to ensure all the old oil is removed.

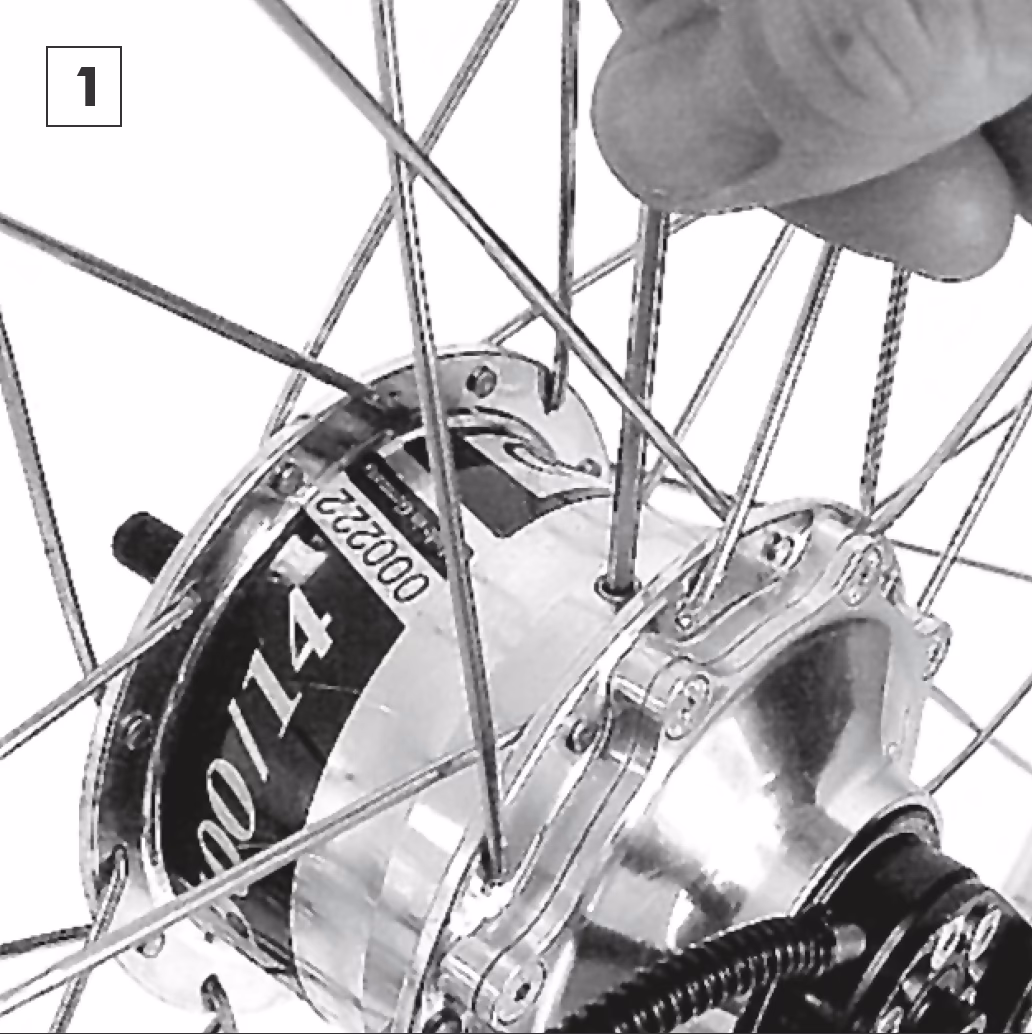

Step 2: Locate the Oil Plugs

On the Rohloff Speedhub, you'll find two plugs. The oil drain plug is typically located at the lowest point of the hub casing when the wheel is mounted. The oil fill plug is usually found on the opposite side, often near the axle or the cable entry point.

Step 3: Drain the Old Oil

Using your T25 Torx bit, carefully unscrew the oil drain plug. Have your container ready to catch the old oil. Allow the oil to drain completely. This might take a few minutes. You can gently rotate the hub to encourage any residual oil to flow out.

Important Note: The amount of oil that drains out should be approximately 20ml. If you get significantly more or less, it might indicate a leak or an issue with the hub, and you should consult a qualified mechanic.

Step 4: Replace the Drain Plug

Once all the old oil has drained, clean the drain plug and its surrounding area with a rag. Screw the drain plug back into place. If you have a torque wrench, tighten it to the manufacturer's specification (typically 3-5 Nm). Do not overtighten.

Step 5: Fill with New Oil

Attach the tubing to your syringe. Draw approximately 20ml of the fresh Rohloff Special Gear Oil into the syringe. Carefully remove the oil fill plug using your T10 Torx bit. Insert the tubing into the fill hole and slowly and steadily inject the new oil into the hub.

Tip: It's best to inject the oil slowly to allow it to permeate the internal mechanisms and avoid air bubbles. Ensure you inject the full 20ml.

Step 6: Replace the Fill Plug

Once the 20ml of new oil has been injected, clean the fill plug and its surrounding area. Screw the fill plug back into place. Again, if using a torque wrench, tighten it to the specified torque (typically 3-5 Nm).

Step 7: Clean Up and Test

Wipe away any residual oil from the hub casing. Dispose of the old oil responsibly; it is often accepted at local recycling centres or automotive service stations.

Now, spin the wheel and shift through all 14 gears several times. You should notice a smooth, positive engagement. It's a good idea to take your bike for a short test ride to ensure everything is functioning correctly.

Common Questions About Rohloff Oil Changes

Q1: Can I use a different type of oil?

A1: No, it is strongly recommended to only use the Rohloff Special Gear Oil. This oil is specifically formulated to meet the unique demands of the Speedhub's internal gearing and lubrication requirements. Using other oils can void your warranty and potentially damage the hub.

Q2: How much oil does the Speedhub take?

A2: The Rohloff Speedhub requires exactly 20ml of oil for a complete oil change. This precise amount is crucial for optimal performance and to prevent overfilling or underfilling.

Q3: What are the signs that my Speedhub needs an oil change?

A3: While adhering to the recommended intervals is best, signs that your oil may be degraded include a noticeable increase in noise or vibration from the hub, a less smooth shifting action, or a general decrease in efficiency. If you notice any of these, it's a good indicator to perform an oil change sooner rather than later.

Q4: Do I need to change the oil more often in winter?

A4: Rohloff oil is designed to perform across a wide temperature range. While extreme cold can slightly increase oil viscosity, the recommended intervals are generally sufficient. If you are consistently riding in sub-zero temperatures for extended periods, a slightly more frequent change might be considered, but for most users, the standard 5,000 km or annual interval is adequate.

Q5: My Rohloff hub feels stiff after the oil change. Is this normal?

A5: It's possible for the hub to feel slightly stiffer immediately after an oil change as the new, thicker oil circulates. This should dissipate after a short ride. If the stiffness persists, double-check that you used the correct oil and that the plugs are properly seated.

Conclusion

Regular oil changes are a simple yet vital part of maintaining your Rohloff Speedhub. By following the recommended intervals and using the correct procedure, you ensure the smooth operation, longevity, and ultimate performance of this exceptional gearbox. A small amount of effort invested in this maintenance task will pay dividends in reliable shifting and a truly enjoyable cycling experience for many miles to come. Remember, consistency is key to keeping your Rohloff hub running like new.
