Unveiling R-134a: The Robinair 34788's Refrigerant

The hum of a properly functioning air conditioning system in your vehicle is a small luxury that many of us take for granted, especially during warmer months. When that refreshing breeze turns into stale, warm air, it's often a sign that your AC system needs attention. At the heart of this system lies the refrigerant, a critical component responsible for cooling the air. For those in the automotive maintenance world, or simply car owners keen to understand their vehicle better, knowing the specific type of refrigerant your equipment handles is paramount. If you're working with a Robinair Model 34788 Recovery, Recycling, & Recharging Unit, you'll be dealing exclusively with R-134a refrigerant.

This dedicated unit is meticulously designed to work in harmony with R-134a, ensuring efficient service and adherence to stringent safety and environmental standards. Understanding R-134a, its role, and how the Robinair 34788 unit operates with it is crucial for effective and responsible automotive AC maintenance.

Understanding R-134a Refrigerant

R-134a, chemically known as 1,1,1,2-Tetrafluoroethane, is a hydrofluorocarbon (HFC) refrigerant that became the standard for automotive air conditioning systems in the mid-1990s. Its introduction marked a significant shift from its predecessor, R-12 (dichlorodifluoromethane), a chlorofluorocarbon (CFC) which was phased out due to its severe ozone-depleting potential. R-134a was developed as a more environmentally friendly alternative, playing a crucial role in reducing harm to the Earth's stratospheric ozone layer.

While R-134a still has a global warming potential (GWP), it is considerably lower than R-12, making it a responsible choice for vehicle manufacturers and service technicians for many years. Its thermodynamic properties make it an excellent medium for heat transfer, efficiently absorbing heat from the passenger compartment and releasing it to the outside atmosphere, thus providing that much-needed cooling effect. For any vehicle manufactured after 1994, it is highly probable that its AC system uses R-134a.

The transition to R-134a also brought about changes in AC system components, including different lubricants (typically PAG oil) and unique service fittings. These distinct fittings, as highlighted in the Robinair 34788 manual, are a critical safeguard against cross-contamination between R-12 and R-134a systems. Using the wrong refrigerant or mixing them can lead to severe damage to the AC system, expensive repairs, and could also be hazardous.

The Robinair 34788: A Specialist for R-134a

The Robinair Model 34788 is not just any AC service unit; it is a purpose-built piece of equipment specifically engineered for R-134a vehicles. This dedication ensures optimal performance, safety, and compliance with industry regulations. The unit is UL-listed and adheres strictly to SAE (Society of Automotive Engineers) specifications for recycled refrigerant, including SAE-J2211 for recommended service procedures and SAE J-2788 for adequate moisture and contaminant removal.

Its design to be compatible with existing R-134a service equipment and standard service procedures means that technicians can integrate it seamlessly into their workflow. The internal mechanisms, from its powerful 1.5 cfm (42 l/m) Robinair high vacuum pump for thorough evacuation to its robust recovery and recycling capabilities, are all calibrated and constructed with R-134a’s unique properties in mind. This specialisation is not a mere convenience; it’s a necessity to prevent system damage and ensure the longevity of both the vehicle's AC and the service unit itself.

A crucial warning from the manufacturer, and one that cannot be overstated, is to NEVER adapt your unit for a different refrigerant. The special fittings on R-134a systems are there for a reason, specifically to prevent cross-contamination with R-12 systems. Attempting to use the Robinair 34788 with any refrigerant other than R-134a will inevitably lead to system failure and potentially dangerous situations. This strict adherence to refrigerant type underscores the importance of specialised equipment in modern automotive maintenance.

Key Operations with the 34788 and R-134a

The Robinair 34788 unit facilitates a comprehensive suite of AC service operations, all centred around the efficient and safe handling of R-134a. These functions are designed to restore an AC system to optimal working condition, ensuring maximum cooling performance and system integrity.

Refrigerant Recovery

When an AC system needs servicing, the first step is typically to recover the existing R-134a refrigerant. The 34788 unit safely extracts the refrigerant from the vehicle's AC system, preventing its release into the atmosphere. This process is crucial not only for environmental protection but also for compliance with regulations governing refrigerant handling. The recovered R-134a is then stored within the unit’s internal storage vessel, ready for recycling or disposal.

Recycling and Purification

Once recovered, the R-134a undergoes a rigorous recycling process within the 34788. This involves removing moisture, particulates, and acid from the refrigerant, ensuring it meets the high purity standards mandated by SAE specifications. A key component in this process is the filter-drier, which plays a vital role in trapping contaminants. Recycling allows for the reuse of refrigerant, which is both environmentally responsible and cost-effective.

System Evacuation and Leak Testing

Before recharging, the vehicle's AC system must be thoroughly evacuated. The Robinair 34788's high vacuum pump creates a deep vacuum, removing air and boiling off any moisture that may be present. This step is critical because air and moisture can significantly degrade the performance of the R-134a and lead to corrosive damage within the system. Following evacuation, the unit can perform a leak test, ensuring that the system is sealed and won't lose the newly charged refrigerant.

R-134a Recharging

Finally, the unit accurately recharges the vehicle's AC system with the precise amount of clean, recycled R-134a. The 34788 allows for both high-side and low-side charging, or a combination, depending on the vehicle's requirements and the technician's preference. Accurate charging is essential; too little refrigerant will result in poor cooling, while too much can over-pressurise the system, leading to inefficiency and potential component failure.

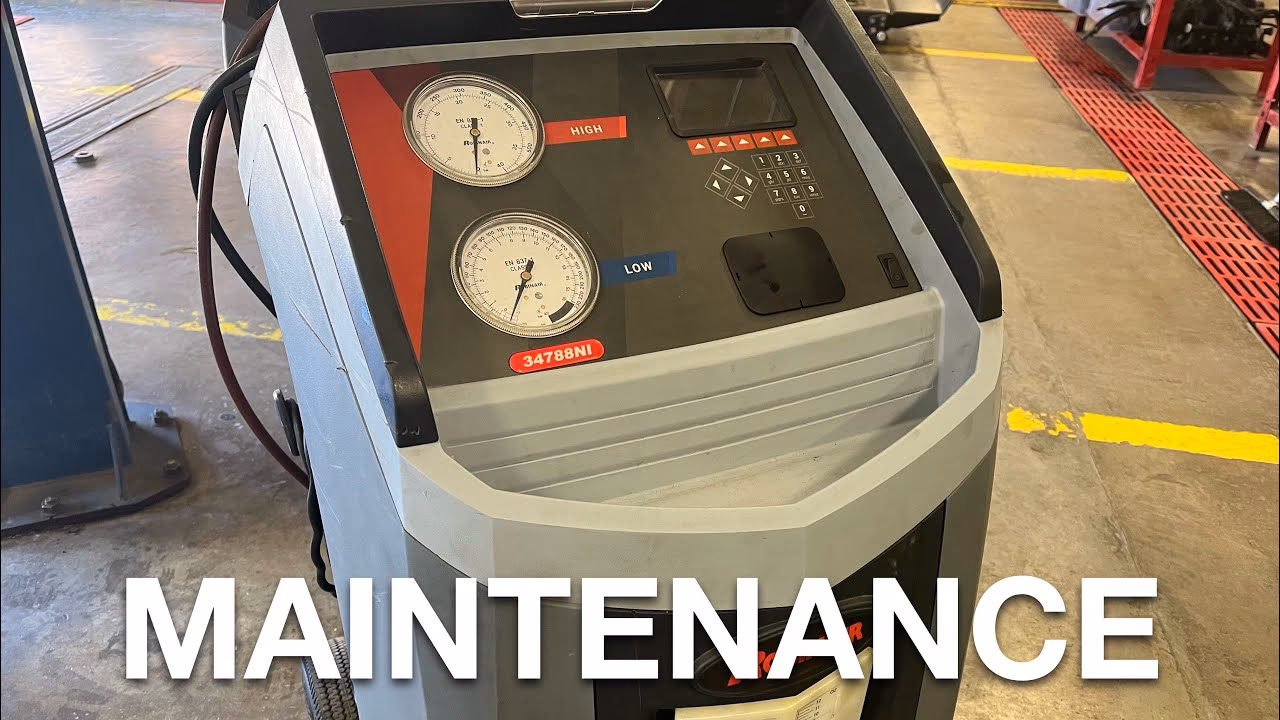

Maintaining Your R-134a System and Equipment

Proper maintenance of the Robinair 34788 unit and understanding its requirements for R-134a handling are key to its longevity and effective operation. Neglecting these aspects can lead to compromised performance, contamination, and costly repairs.

Filter-Drier Replacement

The filter-drier is arguably one of the most critical maintenance items on the 34788. It is specifically designed to trap acid and particulates and, crucially, to remove water from the R-134a refrigerant as it's recycled. To meet the demanding SAE J-2788 mandate for adequate moisture and contaminant removal, the filter-drier must be replaced after 150 lbs (approximately 68 kg) of refrigerant has been filtered. The unit provides warnings when 100 lbs of capacity have been used and locks down when the 150 lb limit is reached, making replacement mandatory to continue operation. Always ensure the new filter-drier has lubricated O-rings and is correctly threaded into place.

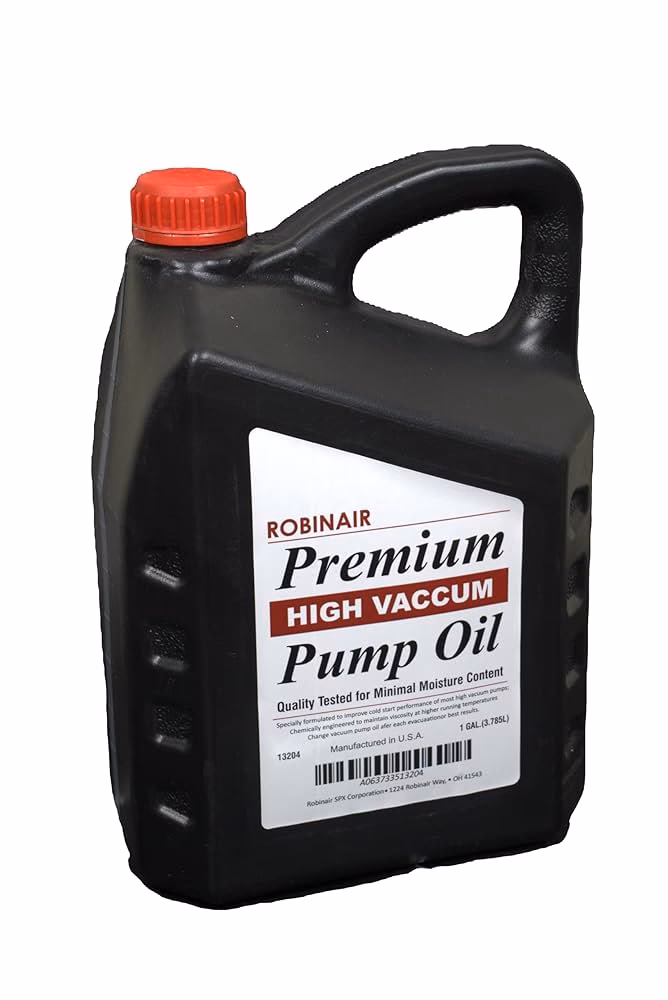

Vacuum Pump Oil Changes

The vacuum pump within the 34788 is essential for thoroughly evacuating vehicle AC systems. For maximum performance and to ensure it effectively removes moisture, the vacuum pump oil should be changed regularly, specifically after every 10 hours of operation. The unit will prompt you when an oil change is due, ensuring this vital maintenance step is not overlooked. Using clean, fresh vacuum pump oil is paramount for achieving a deep vacuum, which is critical for R-134a system integrity.

Hose Flushing

While the Robinair 34788 is dedicated to R-134a, vehicle AC systems can use different types of compatible oils. To prevent cross-contamination of oils between different vehicles, the unit offers a hose flush function. If the next vehicle to be serviced contains a different type of oil than the previous one, flushing the hoses of all residual oil is essential. This prevents the mixing of incompatible oils, which could lead to system damage or reduced performance in the vehicle's AC system.

General Cleanliness and Inspections

Regularly wiping down the unit with a clean cloth removes grease and dirt, keeping it in good condition. Periodically checking internal components for leaks and tightening any loose fittings or connections is also advised. Over time, movement and vibration can loosen connections, potentially leading to refrigerant leaks or reduced efficiency. A proactive approach to these simple maintenance tasks will extend the life of your Robinair 34788 and ensure it continues to handle R-134a effectively.

R-134a vs. R-12: A Comparative Overview

Understanding the difference between R-134a and its predecessor, R-12, helps illustrate why dedicated equipment like the Robinair 34788 is so important and why cross-contamination must be avoided at all costs.

This table clearly shows the significant environmental and technical differences that necessitated the shift from R-12 to R-134a. The distinct service fittings are a physical manifestation of this incompatibility, designed to prevent mistakes that could be detrimental to AC systems.

Frequently Asked Questions About the Robinair 34788 and R-134a

Can I use other refrigerants with my Robinair 34788 unit?

Absolutely not. The Robinair 34788 is exclusively designed for R-134a refrigerant. Attempting to use it with any other refrigerant, such as R-12 or the newer R-1234yf, will lead to system failure, potential damage to the unit, and severe cross-contamination. Always adhere to the manufacturer's specifications.

How often should I replace the filter-drier on my 34788?

The filter-drier must be replaced after 150 lbs (approximately 68 kg) of R-134a refrigerant has been filtered. The unit will provide warnings at 100 lbs and will lock down once the 150 lb limit is reached, requiring replacement to resume operation. This ensures the R-134a remains clean and free of moisture and contaminants.

Why are specific SAE standards important for the Robinair 34788?

SAE standards, such as J2211 and J2788, set benchmarks for automotive AC service equipment, particularly for R-134a. These standards ensure that units like the 34788 can effectively recover, recycle, and recharge refrigerant while maintaining specified purity levels and preventing environmental release. Compliance means reliable and safe operation.

What is the significance of preventing cross-contamination in AC systems?

Preventing cross-contamination, especially between R-12 and R-134a, is vital. Mixing refrigerants can create a hazardous blend, degrade system performance, cause severe damage to AC components, and necessitate costly repairs. The Robinair 34788's dedicated design and unique fittings are key to avoiding this issue.

How does the 34788 ensure the R-134a it uses is clean?

The Robinair 34788 employs a single-pass recycling system that includes a robust filter-drier. This filter-drier actively removes moisture, acid, and particulates from the recovered R-134a, ensuring that any refrigerant recharged into a vehicle meets the high purity standards required for optimal AC system performance and longevity.

Conclusion

The Robinair Model 34788 Recovery, Recycling, & Recharging Unit is a testament to specialised engineering in automotive maintenance. Its unequivocal dedication to R-134a refrigerant ensures that vehicle air conditioning systems are serviced with precision, safety, and environmental responsibility in mind. From meticulous recovery and recycling to thorough evacuation and accurate recharging, every function of the 34788 is tailored for optimal R-134a handling.

Understanding the significance of R-134a as the standard refrigerant for modern vehicles, coupled with the critical importance of using dedicated, compliant equipment like the Robinair 34788, is fundamental for anyone involved in AC system maintenance. Adhering to manufacturer guidelines, especially regarding refrigerant type and routine maintenance like filter-drier replacement, will guarantee the longevity of your equipment and the continued comfort of a perfectly cooled vehicle.
