Drum Brake Wheel Cylinder Replacement Guide

When it comes to the intricate workings of your vehicle's braking system, every component plays a crucial role in ensuring your safety on the road. Among these vital parts are the drum brake wheel cylinders, often overlooked but absolutely essential for the effective operation of drum brakes. These small but mighty components are responsible for pushing the brake shoes outwards, creating the friction needed to slow or stop your vehicle. However, like many automotive parts, they can wear out over time, leading to reduced braking performance and potential safety hazards. This guide will delve into the 'should you replace a drum brake wheel cylinder?' question, providing a comprehensive overview of why and how to undertake this repair, ensuring your vehicle remains safe and reliable.

Understanding the Role of a Wheel Cylinder

Before we discuss replacement, it's important to understand what a wheel cylinder does. Located behind each drum brake assembly, the wheel cylinder is a hydraulic actuator. When you press the brake pedal, brake fluid is forced from the master cylinder, through the brake lines, and into the wheel cylinder. Inside the cylinder are two opposing pistons, each connected to a brake shoe. The incoming brake fluid pressure pushes these pistons outwards, forcing the brake shoes against the inner surface of the brake drum. This friction is what slows and stops the vehicle. A typical wheel cylinder will have a rubber boot on each end to protect the pistons and seals from dirt and debris, and a spring mechanism to retract the pistons when brake pressure is released.

Signs of a Failing Wheel Cylinder

Recognising the symptoms of a faulty wheel cylinder is key to addressing the issue promptly. Several indicators suggest it might be time for a replacement:

• Leaking Brake Fluid: This is often the most obvious sign. Look for brake fluid leaks around the wheel cylinder itself or on the inside of the brake drum. The fluid might appear as a wet, oily residue.
• Soft or Spongy Brake Pedal: If your brake pedal feels mushy or sinks towards the floor when you apply pressure, it could indicate air in the brake lines or a leak, often stemming from a faulty wheel cylinder.
• Reduced Braking Effectiveness: You might notice that your vehicle takes longer to stop, or that you need to press the brake pedal harder than usual.
• Brake Warning Light: A persistent brake warning light on your dashboard can signal a problem within the braking system, including a leaking wheel cylinder.
• Brake Fluid Level Drop: If you find yourself having to top up your brake fluid reservoir more frequently than normal, it's a strong indication of a leak somewhere in the system.
• Uneven Braking: If one wheel cylinder is failing while others are functioning correctly, you might experience pulling to one side when braking.

Why Replace a Wheel Cylinder?

The decision to replace a drum brake wheel cylinder is not one to be taken lightly. The primary reasons for replacement are:

1. Leaks and Fluid Loss

Over time, the rubber seals within the wheel cylinder can degrade due to age, heat, and exposure to brake fluid. Once these seals fail, brake fluid can leak out. This not only reduces the hydraulic pressure needed for effective braking but can also contaminate the brake shoes and drum, further compromising stopping power. A leak can also lead to air entering the system, causing that dreaded spongy pedal feel.

2. Internal Corrosion and Wear

Brake fluid can absorb moisture from the atmosphere over time. This moisture can lead to corrosion of the internal cylinder walls and pistons. Rust and debris can cause the pistons to stick or the seals to be damaged, leading to leaks or reduced functionality. Even if there isn't a visible external leak, internal corrosion can prevent the cylinder from operating smoothly and efficiently.

3. Compromised Braking Performance and Safety

Ultimately, the most compelling reason to replace a worn or leaking wheel cylinder is safety. Your brakes are your vehicle's most critical safety system. Any component that impairs their ability to function correctly puts you, your passengers, and other road users at risk. Replacing a faulty wheel cylinder is a proactive measure to maintain optimal braking performance and ensure your vehicle stops reliably.

The Replacement Process: A Step-by-Step Guide

Replacing a drum brake wheel cylinder is a task that requires mechanical aptitude and the right tools. If you're not comfortable with brake system repairs, it's best to entrust this job to a qualified mechanic. However, for those with a good understanding of automotive mechanics, here's a general guide:

Tools and Materials You'll Need:

• New wheel cylinder (ensure it matches your vehicle's specifications)
• Brake fluid (correct type for your vehicle, usually DOT 3 or DOT 4)
• Brake cleaner
• Rags and shop towels
• Gloves
• Safety glasses
• Jack and jack stands
• Lug wrench
• Socket set and wrenches
• C-clamp or brake shoe spring pliers
• Brake bleeding kit (optional, but recommended)
• Wire brush
• Penetrating oil (e.g., WD-40)
• Container for old brake fluid

Step-by-Step Replacement:

1. Safety First: Park your vehicle on a level surface and engage the parking brake. Loosen the lug nuts on the wheel you'll be working on, but don't remove them yet.
2. Jack Up the Vehicle: Use your jack to lift the vehicle and secure it with jack stands. Never work under a vehicle supported only by a jack.
3. Remove the Wheel: Fully remove the lug nuts and take off the wheel.
4. Remove the Brake Drum: You may need to tap the drum with a hammer to loosen it. Some drums have retaining clips or screws that need to be removed first. If the drum is stuck, a drum puller might be necessary.
5. Inspect the Drum and Shoes: Before touching the wheel cylinder, inspect the brake drum for scoring or damage and the brake shoes for wear or contamination. If the shoes are contaminated with brake fluid, they must be replaced.
6. Remove Brake Shoes: This can be the trickiest part. You'll need to disengage the return springs and hold-down springs that keep the brake shoes in place. Brake shoe spring pliers are invaluable here. Note the exact placement of all springs and hardware for reassembly.

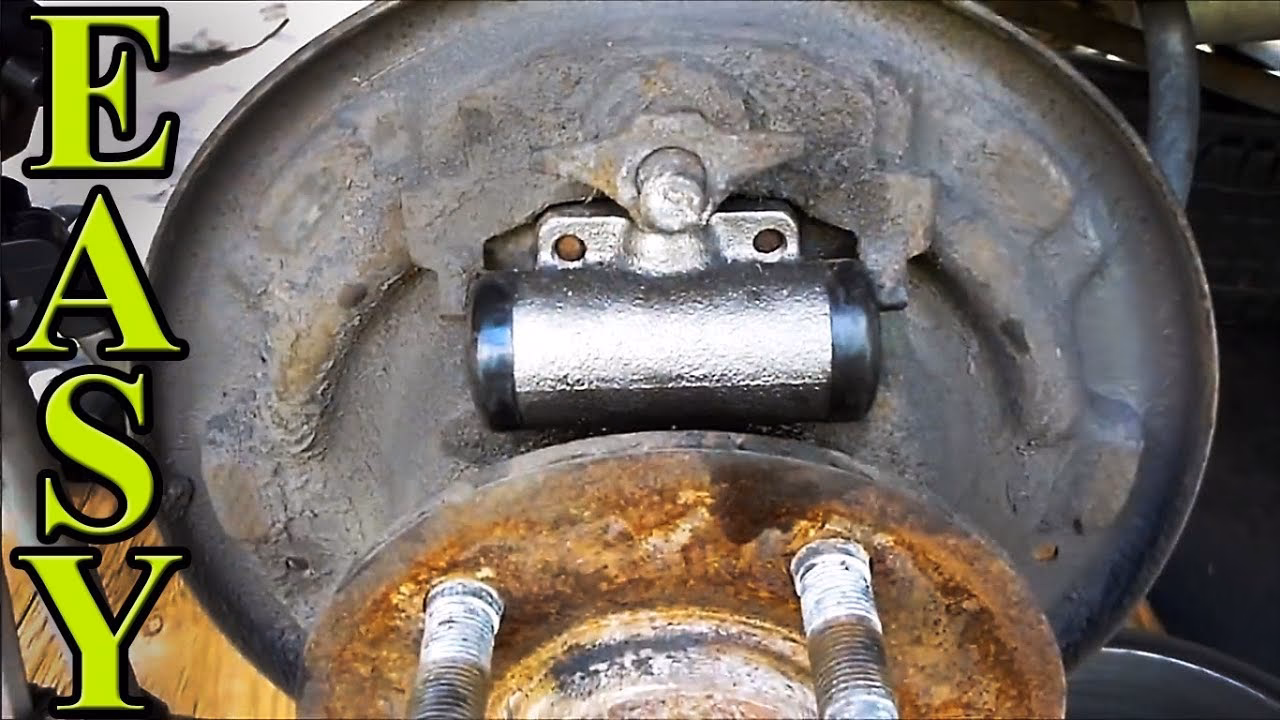

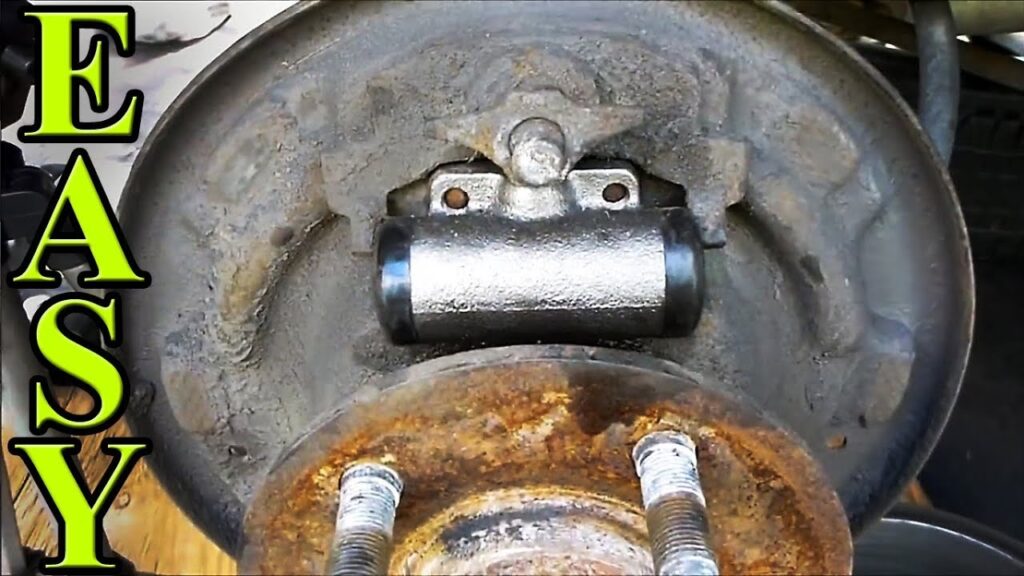

7. Access the Wheel Cylinder: The wheel cylinder is typically held in place by small retaining clips or bolts. Carefully remove these.
8. Disconnect Brake Line: Using the correct size wrench, carefully loosen and disconnect the brake line from the wheel cylinder. Be prepared for a small amount of brake fluid to leak out. Have a container ready to catch any drips.
9. Remove the Old Wheel Cylinder: Once the brake line is disconnected and any retaining clips are removed, you should be able to pull the old wheel cylinder out.
10. Clean the Area: Use a rag and brake cleaner to clean the mounting surface where the wheel cylinder attaches. Also, clean the end of the brake line. Use a wire brush to remove any rust or debris.
11. Install the New Wheel Cylinder: Position the new wheel cylinder and secure it with its retaining clips or bolts.
12. Reconnect Brake Line: Carefully thread the brake line into the new wheel cylinder and tighten it securely with your wrench. Do not overtighten, as this can damage the threads.
13. Reassemble Brake Shoes: This is the reverse of removal. Carefully reattach the brake shoes, making sure all springs and clips are properly seated. This requires patience and attention to detail.
14. Reinstall Brake Drum: Slide the brake drum back into place. If it's a tight fit, ensure the brake shoes are not expanded too much.
15. Reinstall Wheel: Put the wheel back on and tighten the lug nuts by hand.
16. Lower Vehicle: Remove the jack stands and carefully lower the vehicle.
17. Tighten Lug Nuts: Fully tighten the lug nuts in a star pattern.
18. Bleed the Brakes: This is a critical step. With the brake system opened, air will have entered. You must bleed the brake system to remove this air and restore proper hydraulic pressure. This typically involves having a helper press the brake pedal while you open and close a bleed screw on the wheel cylinder or caliper (depending on system configuration), allowing air and old fluid to escape. Repeat until only clear fluid emerges.
19. Test the Brakes: Before driving, pump the brake pedal several times to ensure it feels firm. Start the engine and test the brakes at low speed in a safe area.

Important Considerations and Tips

Replacing a wheel cylinder involves working with your vehicle's braking system, a critical safety component. Therefore, several points are worth noting:

• Always Replace in Pairs: It is highly recommended to replace wheel cylinders on the same axle (both front or both rear) at the same time. If one is failing, the other is likely to be close to failing as well. Replacing them in pairs ensures even braking performance.
• Use the Correct Parts: Ensure you purchase the correct wheel cylinder for your specific vehicle make, model, and year. Using the wrong part can lead to improper fitment and compromised braking.
• Brake Fluid is Corrosive: Brake fluid can damage paint and skin. Wear gloves and safety glasses, and use rags to protect painted surfaces. Clean up any spills immediately.
• Bleeding is Crucial: Do not skip the brake bleeding process. Air in the brake lines will render your brakes ineffective.
• Inspect Other Components: While the drum is off, take the opportunity to inspect brake shoes, springs, adjusters, and the brake drum itself for wear or damage. Replace any worn parts at this time.
• Torque Specifications: If possible, refer to your vehicle's service manual for specific torque specifications for lug nuts and brake line fittings to ensure proper tightness without over-tightening.

Table: Wheel Cylinder vs. Other Brake Components

To better understand the wheel cylinder's place in the braking system, here's a comparison:

Frequently Asked Questions (FAQs)

Q1: How often should I check my wheel cylinders?
It's good practice to inspect your wheel cylinders whenever you have your brake drums off for any reason, such as routine brake adjustments or shoe replacement. Look for any signs of leaks or corrosion.

Q2: Can I just replace the seals in a wheel cylinder?
While seal kits are sometimes available, it's generally not recommended for DIY repairs. The internal bore of the cylinder can become scored or corroded, which new seals won't fix. Replacing the entire unit is usually more cost-effective and ensures better performance and longevity.

Q3: What happens if I don't replace a leaking wheel cylinder?
A leaking wheel cylinder will lead to a gradual loss of braking ability, potentially causing the brake warning light to illuminate. It can also contaminate your brake shoes, requiring their replacement as well. In severe cases, a significant leak could lead to a complete loss of hydraulic pressure and brake failure.

Q4: How long does a wheel cylinder typically last?
The lifespan of a wheel cylinder can vary greatly depending on driving conditions, maintenance practices, and the quality of the original part. However, they are generally considered wear-and-tear items and may need replacement between 50,000 and 100,000 miles, or sooner if symptoms arise.

Q5: Is it safe to drive with a faulty wheel cylinder?
No, it is not safe to drive with a faulty wheel cylinder. Reduced braking performance significantly increases the risk of an accident. It's crucial to address this issue as soon as possible.

Conclusion

Replacing a drum brake wheel cylinder is a vital maintenance task that directly impacts your vehicle's safety and stopping power. By understanding the signs of failure, the importance of timely replacement, and following the correct procedures, you can ensure your braking system remains in optimal condition. Remember, when in doubt, always consult a professional mechanic to guarantee a safe and effective repair. Prioritising the health of your braking system is paramount for your peace of mind and the safety of everyone on the road.
