Bike Disc Brake Pad Replacement Guide

The question of whether bicycle disc brake pads need to be replaced is a fundamental one for any cyclist who relies on this increasingly popular braking system. Much like the brake pads in your car, bicycle disc brake pads are a consumable component designed to wear down over time. Their primary function is to create friction against the brake rotor, slowing your bicycle. This friction, while essential for stopping power, inevitably leads to wear and tear. Ignoring the need for replacement can have serious consequences, ranging from reduced braking performance to complete brake failure, jeopardising your safety on the road or trail. This article will delve into the reasons why disc brake pads wear out, the tell-tale signs that indicate they need replacing, the different types of pads available, and essential maintenance tips to ensure your braking system is always in top condition.

Understanding Disc Brake Pad Wear

Disc brake pads are subjected to significant forces and heat during braking. Every time you apply the brakes, a small amount of material is abraded from the pad and transferred to the rotor. This process is normal, but it means the pads will eventually become too thin to effectively grip the rotor. Several factors can accelerate this wear process:

• Riding Conditions: Riding in wet, muddy, or dusty environments significantly increases the rate at which brake pads wear. Grit and debris act like sandpaper, grinding away the pad material.
• Braking Habits: Frequent and aggressive braking, especially on descents, generates more heat and friction, leading to faster pad wear.
• Rider Weight and Terrain: Heavier riders or those who tackle steep terrain will naturally exert more force on the brakes, increasing wear.
• Pad Material: Different pad materials have varying wear rates. Organic (resin) pads generally wear faster than metallic (sintered) pads but offer better initial bite and quieter operation.

Signs Your Disc Brake Pads Need Replacing

Fortunately, there are several clear indicators that your disc brake pads are nearing the end of their life. Paying attention to these signs will help you maintain optimal braking performance and prevent potential safety issues:

1. Reduced Braking Power

This is often the most noticeable symptom. If you find yourself squeezing the brake levers harder than usual to achieve the same stopping power, your pads are likely worn. The reduced surface area of the worn pad makes less contact with the rotor, diminishing its effectiveness.

2. Squealing or Grinding Noises

While some brake noise can be normal, especially with new pads or in wet conditions, persistent high-pitched squealing or a harsh grinding sound is a strong indicator of worn pads. A grinding noise, in particular, can signal that the pad material has completely worn away, and the metal backing plate is now in contact with the rotor. This can damage both the pads and the rotor, leading to more expensive repairs.

3. Thinning Pad Material

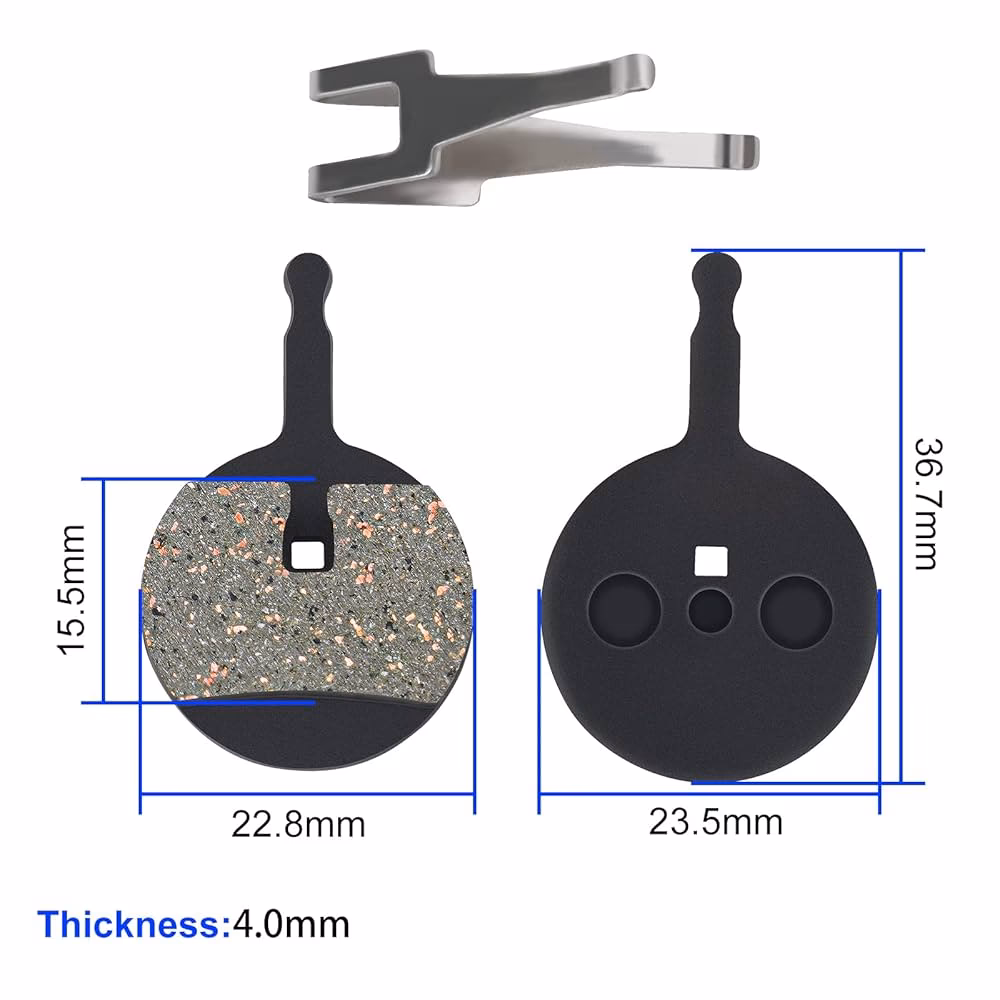

This is the most direct visual cue. Most disc brake pads have a visible wear indicator, often a small metal tab or a groove in the pad material. When the pad material wears down to this indicator, or is visibly thinner than the backing plate, it's time for a replacement. A general rule of thumb is to replace pads when the friction material is less than 1mm thick or is about the thickness of a credit card.

4. Lever Feel Changes

A spongy or soft lever feel, where the brake lever travels further towards the handlebar before engaging, can indicate worn pads or, more commonly, air in the brake lines. However, in conjunction with other symptoms, it can point to severely worn pads.

5. Contamination

While not directly a sign of wear, contaminated pads (e.g., with oil or grease) will lose their braking effectiveness and can sometimes mimic the symptoms of worn pads. If pads become contaminated, they often need to be replaced as cleaning them effectively can be difficult.

Types of Disc Brake Pads

Understanding the different types of brake pads available will help you choose the best option for your riding style and conditions:

Replacing Your Disc Brake Pads

Replacing disc brake pads is a relatively straightforward maintenance task that most cyclists can perform at home. The exact procedure can vary slightly depending on your brake manufacturer, but the general steps are as follows:

Tools You'll Need:

• New brake pads (ensure they are compatible with your brakes)
• Allen keys (usually 2mm, 3mm, or 4mm)
• Brake pad spreader tool (or a clean, flathead screwdriver)
• Rubbing alcohol or brake cleaner
• Clean rags or paper towels
• Gloves (optional, to keep pads clean)

Step-by-Step Replacement:

1. Remove the Wheel: Start by removing the wheel that contains the brake you're working on.
2. Remove the Caliper Bolts: Locate the two bolts that hold the brake caliper to the frame or fork. Loosen and remove these bolts. You may not need to remove the caliper entirely, but it often makes the job easier. If you do remove it, let it hang by the hose or secure it out of the way.
3. Remove the Old Pads: Once the caliper is accessible, you'll need to remove the old pads. This usually involves removing a retaining pin or clip that holds the pads in place. The pads then slide or pivot out. Note the orientation of the old pads for reference.
4. Spread the Pistons: Before inserting the new pads, you need to push the brake caliper pistons back into their housings. This creates space for the new, thicker pads. Use a brake pad spreader tool or a clean, flathead screwdriver, gently pushing the pistons back until they are flush with the caliper body. Be careful not to damage the pistons or seals.
5. Clean the Caliper: It's a good idea to clean the inside of the caliper and around the piston area with rubbing alcohol and a clean rag to remove any dirt or debris.
6. Insert New Pads: Place the new brake pads into the caliper, ensuring they are oriented correctly. They should slide or pivot into place, mimicking the position of the old pads. Reinstall the retaining pin or clip.
7. Reinstall the Caliper: If you removed the caliper, carefully reposition it over the rotor and reinsert and tighten the caliper mounting bolts. Ensure the rotor is centred between the pads.
8. Reinstall the Wheel: Put the wheel back onto the bike.
9. Bed In the New Pads: This is a crucial step for optimal performance. "Bedding in" transfers a thin layer of pad material to the rotor, ensuring good contact and preventing noise. Find a safe, open area. Accelerate to a moderate speed (e.g., 15-20 mph) and brake firmly, but without locking the wheels, until you slow down to a walking pace. Repeat this process 10-20 times. Allow the brakes to cool between applications.

Frequently Asked Questions (FAQs)

How often should I check my disc brake pads?

It's recommended to check your brake pads regularly, perhaps every few weeks or before any particularly long or demanding rides. Visual inspection is key.

Can I just replace one pad?

No, you should always replace both pads in a caliper at the same time. They wear at similar rates, and replacing them as a pair ensures consistent braking performance.

What happens if I don't replace my worn disc brake pads?

You'll experience significantly reduced braking power, which can be dangerous. In extreme cases, the pad material can wear away completely, leading to metal-on-metal contact with the rotor, which can cause costly damage to both components and complete brake failure.

Do I need to bleed my brakes after replacing pads?

Generally, no. If you are careful not to push fluid out of the system and don't disconnect the brake line, bleeding shouldn't be necessary. However, if you notice a spongy lever feel after replacement, you may need to bleed your brakes.

How long do disc brake pads typically last?

This varies greatly depending on riding style, conditions, and pad type. Organic pads might last anywhere from 500 to 1500 miles, while metallic pads can last 1500 to 3000 miles or even more. Regular checks are more important than a fixed mileage.

In conclusion, bicycle disc brake pads are a vital wear item that requires regular attention. By understanding the signs of wear, choosing the appropriate pad type for your needs, and performing timely replacements, you can ensure your disc brakes function at their best, providing you with the confidence and safety you need on every ride. Don't underestimate the importance of proper brake maintenance for a safe and enjoyable cycling experience.
