Mondeo Mk2 Braking System Explained

When you're behind the wheel of your trusty Ford Mondeo Mk2, the ability to stop safely and reliably is paramount. While often taken for granted, your car's braking system is a complex network of components working in harmony to convert kinetic energy into thermal energy, bringing your vehicle to a controlled halt. Understanding how your Mondeo Mk2's brakes function, what type of system it employs, and how to maintain it is crucial for both your safety and the longevity of your vehicle. Let's delve into the specifics of what keeps your Mondeo Mk2 firmly planted when you press that all-important pedal.

The Foundation: Disc Brakes Up Front

Virtually all modern vehicles, including the Ford Mondeo Mk2 (produced from 1996 to 2000), utilise disc brakes on the front axle. This is because the front wheels are responsible for the majority of the braking force – often around 70-80% – due to the forward weight transfer that occurs during deceleration. Disc brakes are highly effective at dissipating heat and providing consistent stopping power, making them the ideal choice for the primary braking duties.

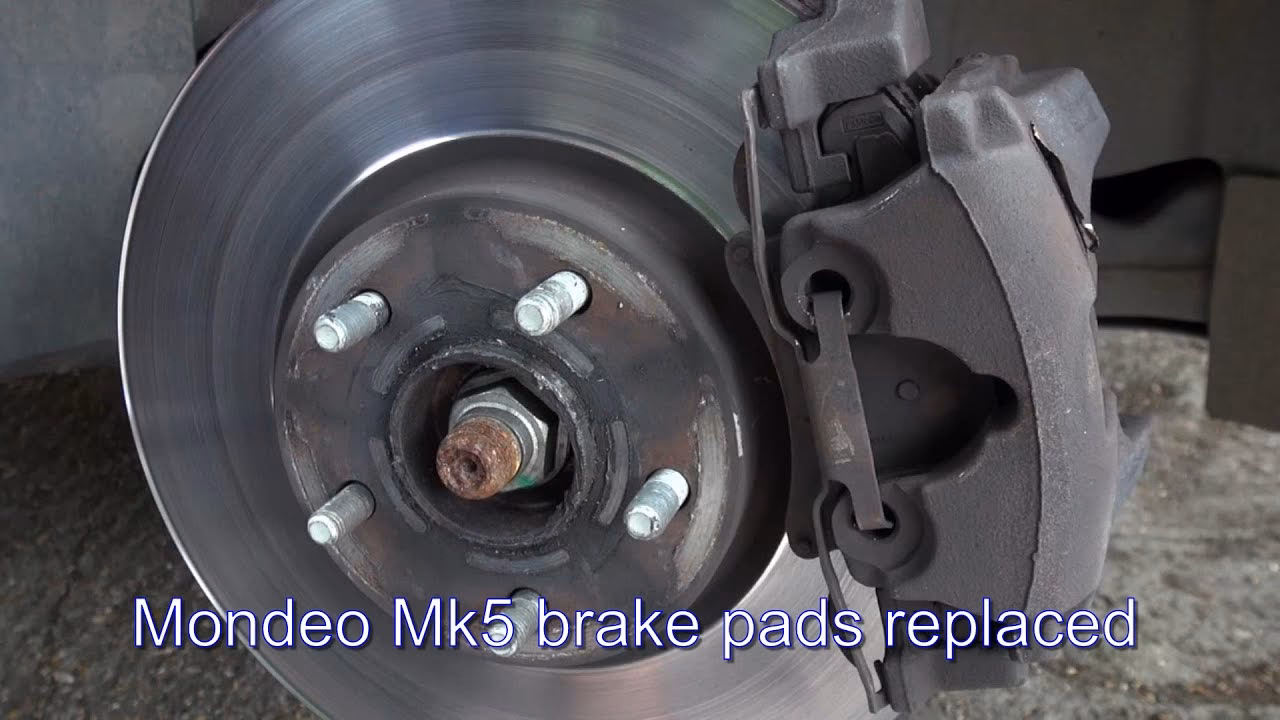

The Components of a Front Disc Brake

• Brake Calipers: These are the clamps that house the brake pads and hydraulic pistons. When you press the brake pedal, hydraulic pressure from the master cylinder forces the pistons to extend, pushing the brake pads against the disc.
• Brake Pads: These are consumable friction materials, typically made from a composite mix, that are pressed against the brake disc. They are designed to wear down over time and must be replaced periodically. The material composition greatly influences braking performance, noise, and dust generation.
• Brake Discs (Rotors): These are circular metal plates, usually made of cast iron, that are bolted to the wheel hub. When the brake pads clamp onto the spinning disc, the friction generated slows the wheel down. Discs can be solid or vented (with internal fins for better cooling) depending on the vehicle's specification and intended performance.
• Brake Lines and Hoses: These carry the hydraulic brake fluid from the master cylinder to the calipers. Lines are typically rigid metal pipes, while hoses are flexible rubber or braided steel, allowing for suspension movement.

Rear Braking: Discs or Drums?

While front disc brakes were standard across the Mondeo Mk2 range, the braking system on the rear axle varied depending on the specific model, engine size, and trim level. Generally, lower and mid-range engine variants (e.g., 1.6L, 1.8L, and some 2.0L models) often came equipped with drum brakes on the rear. However, higher-specification models, particularly those with larger engines like the 2.5L V6 (including the Ghia X, ST24, and ST200 variants), and some higher-trim 2.0L models, typically featured disc brakes on all four wheels. This distinction was primarily due to the increased braking demands of more powerful engines and the desire for enhanced stopping performance and heat management.

Rear Disc Brakes Explained

For Mondeo Mk2 models fitted with rear disc brakes, the components are largely similar to those found on the front, albeit often smaller in size. You'll find a caliper, brake pads, and a brake disc at each rear wheel. The design allows for consistent braking performance and better heat dissipation compared to drum brakes, which is beneficial for performance models or those subjected to heavier loads or more spirited driving. Additionally, vehicles with rear disc brakes often incorporate a small drum-style parking brake mechanism integrated within the disc's hub, providing a separate surface for the handbrake shoes to engage.

The Drum Brake System

Drum brakes, though less common on the front of modern cars, are still effective for the rear axle where braking forces are lower. In a drum brake system, a cylindrical drum rotates with the wheel. Inside the drum, two curved brake shoes are mounted. When the brake pedal is pressed, hydraulic pressure forces the shoes outwards against the inner surface of the drum, creating friction and slowing the wheel. While robust and inexpensive to manufacture, drum brakes can be more prone to overheating under heavy use and are generally less efficient at dissipating heat than disc brakes. They also tend to be more complex to service due to the number of internal components, including springs, adjusters, and cylinders.

Essential Safety Features: ABS and EBD

Beyond the fundamental mechanical components, your Mondeo Mk2's braking system is augmented by crucial electronic safety features designed to enhance control and stability during emergency braking. These technologies were becoming more widespread and sophisticated during the Mondeo Mk2's production run.

Anti-lock Braking System (ABS): This was either standard or a widely available option on most Mondeo Mk2 models. ABS is a vital safety system that prevents the wheels from locking up during hard braking. Sensors at each wheel monitor its rotational speed. If a wheel is about to lock, the ABS system rapidly modulates the brake pressure to that specific wheel, releasing and re-applying pressure many times per second. This allows the driver to maintain steering control, even under severe braking conditions, potentially avoiding obstacles and reducing stopping distances on slippery surfaces. When ABS activates, you might feel a pulsating sensation through the brake pedal – this is normal and indicates the system is working.

Electronic Brakeforce Distribution (EBD): Often integrated with the ABS system, EBD automatically varies the amount of braking force applied to each wheel based on road conditions, vehicle load, and dynamic weight transfer. For instance, during hard braking, more weight shifts to the front of the vehicle, requiring more braking force there. Conversely, if the vehicle is lightly loaded at the rear, EBD will reduce the braking force to the rear wheels to prevent premature lock-up. This optimises braking efficiency and stability, ensuring that each wheel is receiving the optimal amount of braking power for the given situation.

The Hydraulic System: Powering Your Stops

The entire braking process in your Mondeo Mk2 relies on a hydraulic system. When you press the brake pedal, you're not directly pushing the brake pads against the discs or drums. Instead, you're activating a series of components that multiply your effort and transmit it fluidly:

• Brake Pedal: Your initial input point.
• Brake Servo (Brake Booster): This vacuum-assisted unit multiplies the force you apply to the brake pedal, making it much easier to achieve effective braking. Without the servo, braking would require significantly more leg strength.
• Master Cylinder: Connected to the brake pedal and servo, the master cylinder converts the mechanical force from your foot into hydraulic pressure. It contains two separate circuits, one for the front brakes and one for the rear, providing a crucial safety redundancy in case one circuit fails.
• Brake Fluid: This incompressible fluid transmits the hydraulic pressure from the master cylinder through the brake lines and hoses to the calipers or wheel cylinders. It must meet specific DOT (Department of Transportation) standards (e.g., DOT3 or DOT4, with DOT4 being common for Mondeo Mk2) and is hygroscopic, meaning it absorbs moisture over time, which can reduce its boiling point and lead to a spongy pedal. Regular replacement of brake fluid is therefore essential.
• Wheel Cylinders (for Drum Brakes): In drum brake systems, these hydraulic cylinders are located inside the brake drum and are responsible for pushing the brake shoes outwards against the drum when pressure is applied.

Common Mondeo Mk2 Braking System Issues and Their Solutions

Even with a robust design, brake systems can develop issues over time. Being aware of common symptoms can help you address problems before they become serious.

Squealing or Grinding Noises

A high-pitched squeal often indicates worn brake pads. Many pads have a small metal tab (wear indicator) that scrapes against the disc when they reach their minimum thickness. A grinding noise, however, is far more serious and suggests that the brake pads are completely worn down, and the metal backing plates are now scraping directly against the brake discs. This causes rapid damage to the discs and severely compromises braking performance. Both symptoms require immediate attention and likely pad (and potentially disc) replacement.

Spongy Brake Pedal

If your brake pedal feels soft or spongy and travels further than usual before the brakes engage, it often points to air in the hydraulic system or contaminated/old brake fluid. Air is compressible, unlike brake fluid, leading to a loss of firm pedal feel. A brake fluid flush and bleed procedure is usually required to resolve this. Less commonly, a failing master cylinder could also be the cause, which would require replacement.

Vehicle Pulling to One Side

If your Mondeo Mk2 pulls sharply to one side when you apply the brakes, it usually indicates uneven braking force between the left and right wheels. This could be due to a seized caliper piston, a collapsed brake hose preventing fluid flow to one side, unevenly worn pads or discs, or contamination on one side. It's a significant safety concern and warrants immediate inspection by a qualified mechanic.

Vibrations During Braking

A pulsating or vibrating sensation felt through the brake pedal or steering wheel during braking is typically caused by warped or unevenly worn brake discs. Excessive heat can cause discs to deform, leading to an uneven surface that the brake pads then grab, creating the vibration. In most cases, the discs will need to be replaced, along with new brake pads.

Maintaining Your Mondeo Mk2's Brakes

Regular maintenance is key to ensuring your Mondeo Mk2's braking system remains in top condition and provides reliable stopping power for years to come. Neglecting brake maintenance can lead to costly repairs and, more importantly, compromised safety.

Regular Inspections

It's advisable to have your brakes inspected regularly, ideally during your car's annual service or MOT. A mechanic will check the thickness of your brake pads and discs, look for signs of uneven wear, inspect brake lines and hoses for leaks or damage, and check the condition of calipers and wheel cylinders. Between services, pay attention to any unusual noises, smells, or changes in pedal feel.

Brake Fluid Checks

Brake fluid should be checked periodically for level and condition. Most manufacturers recommend replacing brake fluid every two years, regardless of mileage. As brake fluid absorbs moisture over time, its boiling point decreases, which can lead to brake fade, especially under heavy braking or prolonged downhill driving. Fresh fluid ensures optimal performance and prevents internal corrosion within the hydraulic system.

Pad and Disc Replacement

Brake pads are designed to wear out and should be replaced when they reach their minimum thickness. It's generally good practice to replace both front or both rear pads at the same time to ensure even braking. While discs can sometimes be skimmed (machined) to correct minor imperfections, it's often more cost-effective and safer to replace them if they are warped, scored, or below their minimum thickness specification. Always replace pads and discs as a set on the same axle for optimal performance.

Handbrake Adjustment

The handbrake (parking brake) on your Mondeo Mk2 operates independently of the main hydraulic system, typically acting on the rear wheels. If your handbrake feels loose, requires excessive pulling, or doesn't hold the car securely, it may need adjustment. This is often a relatively simple procedure but should be done correctly to ensure safety.

Comparative Overview: Front vs. Rear Brakes

Frequently Asked Questions (FAQs)

Q1: How often should I replace brake pads on my Mondeo Mk2?

There's no fixed mileage for brake pad replacement as it depends heavily on driving style, road conditions, and the type of pads. However, a general guideline is every 20,000 to 40,000 miles for front pads and 40,000 to 60,000 miles for rear pads. Always check your owner's manual for manufacturer recommendations and have them inspected regularly by a professional.

Q2: Can I upgrade my Mondeo Mk2's brakes?

Yes, it's possible to upgrade your Mondeo Mk2's brakes. Common upgrades include fitting larger discs, multi-piston calipers, or higher-performance brake pads. However, any upgrade should be carefully considered for compatibility with your wheels and suspension, and ideally fitted by a specialist to ensure safety and compliance with regulations.

Q3: What type of brake fluid does my Mondeo Mk2 use?

Most Mondeo Mk2 models typically use DOT4 brake fluid. It's crucial to use the correct type of fluid as specified in your vehicle's owner's manual. Mixing different types of brake fluid or using an incorrect type can lead to system damage and compromised braking performance.

Q4: Is it normal for my ABS light to come on?

The ABS warning light typically illuminates briefly when you start the car and then extinguishes. If it stays on, or comes on while driving, it indicates a fault within the ABS system. While your regular brakes may still function, the anti-lock feature will not. You should have the system diagnosed by a qualified mechanic as soon as possible.

Q5: How do I know if my brake discs need replacing?

Signs that your brake discs need replacing include vibrations or pulsing through the pedal during braking, visible scoring or deep grooves on the disc surface, or if the disc has worn below its minimum thickness specification (often stamped on the disc's edge). Discs should typically be replaced when replacing pads if they show significant wear or damage.

In conclusion, the braking system on your Ford Mondeo Mk2 is a sophisticated blend of mechanical and hydraulic components, often enhanced with electronic safety features like ABS and EBD. Whether your specific model features disc brakes all round or a combination of discs up front and drums at the rear, understanding its operation and committing to regular, diligent maintenance is crucial. Your brakes are your primary safety feature, and ensuring they are always in optimal condition provides peace of mind and keeps you, your passengers, and other road users safe on every journey. Don't delay in addressing any signs of trouble; timely intervention is key to effective and reliable stopping power.
