Deciphering Your Seatbelt: S, 4N, and ECE Compliance

In the intricate world of automotive safety, few components are as critical as the seatbelt. It's not just a strip of fabric; it's a meticulously engineered device designed to protect you and your passengers in the event of an accident. Yet, many vehicle owners are unaware of the crucial information embedded within the seemingly cryptic markings on their seatbelts. These marks, often a string of letters and numbers, are far from random – they're a testament to rigorous testing and compliance with international safety standards. Understanding what symbols like 'S' and '4N' signify, alongside the omnipresent 'E-mark' and ECE R16, is essential for ensuring your vehicle's safety features are up to scratch and legally compliant on UK roads.

Seatbelts are your primary line of defence against impact injuries, designed to keep you securely in your seat, minimise contact with the vehicle's interior, and drastically reduce the risk of ejection. Every seatbelt fitted in a vehicle on British roads, whether it's an original component or a replacement, must adhere to stringent safety regulations. These regulations are not just bureaucratic hurdles; they are the result of extensive research and crash testing, all aimed at protecting lives.

Unpacking the ECE R16 Compliance Markings

When you inspect your seatbelt, you'll almost certainly find a label, typically near the buckle or the retractor. This label is your seatbelt's passport, detailing its certification and compliance. The most prominent marking you'll see is usually a capital 'E' followed by a number, enclosed in a circle. This is the E-mark, signifying ECE (Economic Commission for Europe) approval under Regulation 16. This regulation is the cornerstone for vehicle occupant restraint systems across Europe, including the UK.

The number directly after the 'E' in the circle indicates the country where the seatbelt was tested and approved. For instance, 'E11' signifies approval in Great Britain. This isn't just a geographical tag; it confirms that the seatbelt has undergone and passed the rigorous testing protocols mandated by that country under ECE R16. Here's a quick reference for some common E-marks:

• E1 – Germany
• E2 – France
• E3 – Italy
• E4 – Netherlands
• E5 – Sweden
• E6 – Belgium
• E7 – Hungary
• E8 – Czech Republic
• E9 – Spain
• E11 – Great Britain
• E12 – Austria
• E13 – Luxembourg
• E17 – Finland
• E18 – Denmark
• E21 – Portugal
• E23 – Greece
• E24 – Ireland

Following the E-mark and country code, you'll typically find a series of numbers and letters, which constitute the approval or certificate number. This unique identifier refers to the specific type of belt and its design. This level of detail ensures traceability and confirms that each seatbelt unit conforms to its approved design and performance criteria.

What Do 'S' and '4N' Mean on Your Seatbelt?

Beyond the E-mark and approval number, certain letters provide critical information about the seatbelt's design and functionality. Among these, 'S' and '4N' are particularly intriguing and often misunderstood.

The 'S' Mark: A Special Type of Belt

The capital 'S' on a seatbelt label signifies a special type of belt. This designation is used for seatbelts that don't fit neatly into the standard categories of typical passenger vehicle restraint systems. While the vast majority of seatbelts found in everyday cars are standard designs, an 'S' mark indicates that the belt has a unique configuration or application. This could include:

• Belts for specific vehicle types: Such as those designed for buses, coaches, lorries (trucks), or specialist plant machinery, where the mounting points or occupant positions differ from standard cars.
• Adaptive or bespoke systems: Seatbelts designed for specific seating arrangements or even for individuals with particular needs, where a standard belt might not offer optimal safety or comfort.
• Racing or performance applications: While often separate from road-legal ECE standards, some 'S' marked belts might bridge the gap for vehicles with modified interiors or performance seats, provided they still meet the necessary road safety requirements.

The 'S' mark essentially flags that the belt has been tested and approved for its specific, non-standard purpose, ensuring it provides adequate restraint and protection within its intended application.

The '4N' Mark: Lower Sensitivity Retractor

Understanding '4N' requires a brief dive into how modern seatbelts work, specifically their retractors. A retractor is the mechanism that allows the seatbelt webbing to extend and retract, keeping it taut against the occupant. Most modern seatbelts feature an emergency locking retractor, typically marked with a '4'. This means the retractor is designed to lock the webbing under sudden deceleration (like in a crash) or rapid acceleration, or when the vehicle itself experiences a certain degree of tilt. This locking mechanism is crucial for preventing the occupant from being thrown forward.

The '4N' mark, however, specifies a lower sensitivity retractor. This is a specific type of emergency locking retractor where the sensing mechanism that triggers the lock is calibrated to be less sensitive to minor vehicle movements or accelerations. This doesn't mean it's less safe in an actual crash; rather, it's designed to prevent nuisance locking in certain vehicle environments or under specific conditions where a standard '4' retractor might lock too frequently. For example, in off-road vehicles, certain industrial vehicles, or even some passenger cars with particularly firm suspensions, a '4N' retractor might provide a more comfortable experience by avoiding unnecessary locking during normal driving over uneven terrain, while still providing full protection in a genuine emergency. It's a fine-tuning of the safety mechanism to suit a particular use case without compromising crash protection.

Decoding Other Seatbelt Type Symbols

Beyond 'S' and '4N', the certificate label often includes other letters that specify the basic type of seatbelt and its retractor mechanism. These provide a comprehensive picture of the belt's design:

• A: Denotes a 3- or 4-point mounting lap and diagonal belt. These are the most common types found in passenger cars, providing restraint across both the lap and the shoulder.
• B: Refers to a 2-point mounting lap belt. These are typically found in older vehicles, middle rear seats, or certain commercial vehicles, providing restraint only across the lap.
• r: Indicates that the seatbelt features a retractor, meaning the webbing automatically adjusts to the occupant's size and retracts when not in use.
• 3: Specifies an auto-locking retractor. This type of retractor allows the belt to be pulled out to any desired length, but once the pulling force is released, it locks the webbing in that position. It can only be unlocked by fully retracting the belt. These are often used for child seats.
• 4: Denotes an emergency locking retractor. This is the most common type, allowing free movement of the webbing under normal conditions but locking instantly upon sudden deceleration, acceleration, or vehicle tilt.
• m: Signifies multiple sensitivity. This means the retractor has more than one sensing mechanism (e.g., both vehicle deceleration and webbing withdrawal rate) to trigger the lock, offering enhanced safety.

Here's a comparison of common retractor types:

The Broader Landscape of Seatbelt Safety Regulations

While ECE R16 governs the seatbelt itself, vehicle safety is a holistic concept. Other regulations play equally vital roles in ensuring the entire restraint system functions as intended:

ECE Regulation 14: Anchorage Points

This regulation focuses on the anchorages for seatbelts in cars, coaches, and other vehicles. It dictates where and how seatbelts must be securely fastened to the vehicle's structure. It ensures that the points where the seatbelt attaches can withstand the immense forces generated during a collision, preventing the belt from detaching or the vehicle structure from failing around the anchorage points. Without robust anchorages, even the most advanced seatbelt would be ineffective.

ECE Regulation 17: Seat Strength and Compatibility

ECE R17 is concerned with vehicle seats, their anchorage systems, and how they interact with restraint devices. It's crucial because the seat itself must be strong enough to withstand crash forces, especially when a seatbelt is connected to it or passes through it. This regulation includes resistance tests for front and rear impacts, requirements for protecting occupants from hard surfaces or sharp edges on the seat, and specifications for reclining or adjustable seats. It also ensures compatibility with the anchorage systems specified in R14, ensuring that the entire occupant protection system – seat, seatbelt, and anchorages – works seamlessly together to minimise injuries.

Replacing Your Seatbelts: What to Look For

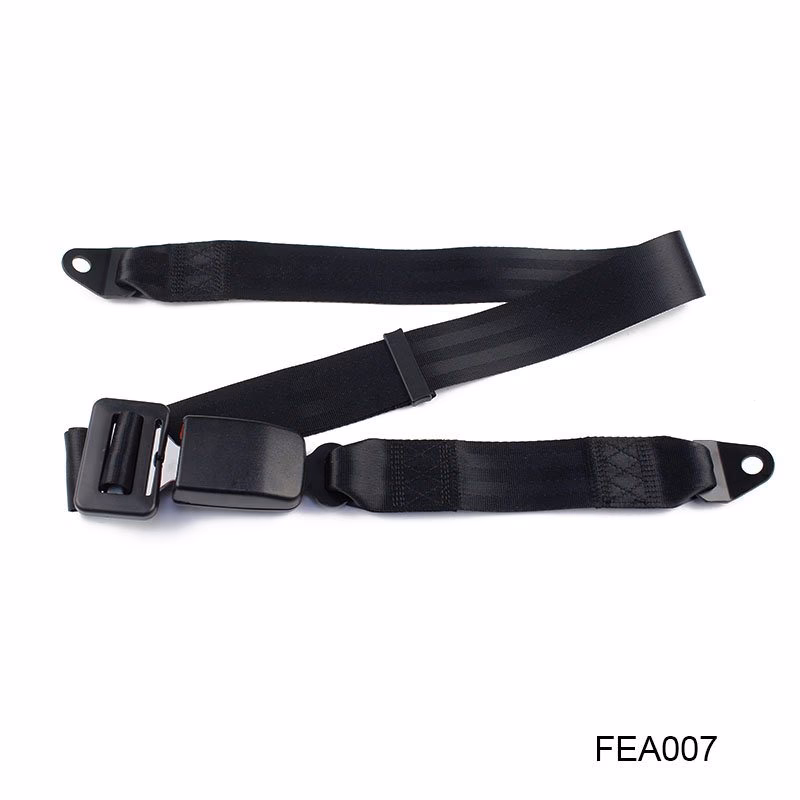

Should you ever need to replace a seatbelt, perhaps due to wear, damage, or after an accident, it's paramount to choose a product that is fully compliant with these regulations. Many reputable suppliers, such as Universal Seatbelts, offer replacements that are E4 ECE R16 safety rated and compliant, with the markings clearly visible on each belt. These universal fitment belts are designed to fit a wide range of vehicles, from Fords and Vauxhalls to Audis, VWs, and even luxury marques like Lamborghini and Ferrari, provided there's a suitable bolt-hole for installation.

When purchasing replacement seatbelts, ensure they come complete with all necessary fitting hardware, such as nuts, bolts, washers, and spring washers, to facilitate an easy and secure installation. Reputable suppliers will typically include VAT in their prices and offer convenient delivery options, like free next-day delivery within mainland UK, for prompt installation. For larger needs, discounts on bulk orders are often available.

Frequently Asked Questions About Seatbelt Markings and Compliance

Q1: What does E4 ECE R16 mean on a seatbelt?

E4 ECE R16 means the seatbelt has been approved according to ECE Regulation 16, and the testing and approval took place in the Netherlands (E4). This signifies that the seatbelt meets the European safety standards for vehicle occupant restraint systems.

Q2: Are all seatbelts universal fitment?

While many reputable replacement seatbelt suppliers offer products marketed as universal fitment, meaning they are designed to fit a wide range of vehicles and applications, it's crucial to verify compatibility. They typically require an existing hole or suitable point for bolting. Always check the product specifications and, if in doubt, consult with the supplier or a qualified mechanic.

Q3: Can I replace my seatbelt myself?

Replacing a seatbelt can be an 'easy fix' if you have the right tools and basic mechanical knowledge, especially if the replacement kit includes all necessary hardware. However, given the critical safety function of seatbelts, if you are unsure about any step of the process, it is always recommended to have the replacement performed by a qualified mechanic to ensure proper installation and safety.

Q4: What is the difference between a 3-point and a 2-point seatbelt?

A 3-point seatbelt (marked 'A') restrains the occupant across both the lap and diagonally across the torso/shoulder. This design distributes crash forces over a wider, stronger area of the body, offering superior protection. A 2-point seatbelt (marked 'B') only provides restraint across the lap. While still offering some protection, it is less effective than a 3-point belt in preventing upper body injuries or ejection.

Q5: Why is the E-mark important for my seatbelt?

The E-mark is paramount as it certifies that the seatbelt has been independently tested and approved to stringent European safety standards (ECE R16). This ensures the belt meets specific performance criteria for strength, reliability, and functionality in a collision, making it legally compliant and safe for use on UK roads. Without an E-mark, a seatbelt may not be legal or safe.

Q6: Do seatbelts have a CE mark?

No, seatbelts typically do not carry a CE mark. While CE marking is common for many products sold within the European Economic Area, seatbelts are specifically covered by European Directive 77/541 and/or Regulation 16. These specific automotive regulations are more rigorous and involve independent testing and certification, often providing a higher guarantee of basic performance than the CE marking process, which in some cases can be a subjective analysis with limited or no testing.

Conclusion

The markings on your seatbelt are far more than just manufacturing codes; they are a concise summary of rigorous testing, compliance, and design specifications that are fundamental to your safety. Understanding what 'S' and '4N' mean, along with the critical E-mark and ECE R16 compliance, empowers you as a vehicle owner. It assures you that your seatbelts are not just present, but are engineered and approved to provide maximum protection in the unfortunate event of an accident. Always prioritise ECE-approved seatbelts for replacements and ensure they are correctly installed. Your safety, and the safety of your passengers, depends on it.
