Brake Pad Replacement Guide

The brake pads are a critical component of your vehicle's braking system, working in conjunction with the brake discs (rotors) to bring your car to a halt. Over time, these pads wear down due to the constant friction generated during braking. Recognising the signs that indicate a need for replacement is paramount for your safety and the overall health of your braking system. Ignoring worn brake pads can lead to more severe damage, increased repair costs, and, most importantly, compromised stopping power.

Signs You Need New Brake Pads

Several indicators can alert you to the fact that your brake pads are nearing the end of their lifespan. Paying close attention to these signs can save you from potential danger and expensive repairs down the line.

1. Squealing or Grinding Noises

This is often the most common and earliest warning sign. Most brake pads are equipped with a small metal tab called a wear indicator. When the pad material wears down to a certain point, this indicator makes contact with the brake disc, producing a high-pitched squealing sound when the brakes are applied. If you hear this persistent squeal, it’s time to get your brake pads checked. In more severe cases, where the pad material has completely worn away, you might hear a harsh grinding sound. This indicates that the metal backing plate of the brake pad is rubbing directly against the brake disc, which can cause significant damage to the disc itself and requires immediate attention.

2. Longer Stopping Distances

If you notice that your vehicle is taking longer to stop than usual, or if you have to press the brake pedal further down to achieve the same stopping power, this is a clear indication that your brake pads are worn. As the pad material diminishes, the surface area available for friction decreases, leading to reduced braking efficiency. This is a serious safety concern and should not be ignored.

3. Vibrations or Pulsations

When you apply the brakes, do you feel a vibration or pulsation through the brake pedal or the steering wheel? This symptom can be caused by several issues, but one common culprit is warped brake discs, which are often a consequence of severely worn brake pads and overheating. The uneven surface of a warped disc causes the pads to make inconsistent contact, leading to these vibrations.

4. The Brake Warning Light

Many modern vehicles are equipped with a brake warning light on the dashboard. This light can illuminate for various reasons, including low brake fluid levels or a problem with the braking system. However, in some cars, it can also specifically indicate that the brake pads have worn down to a critical level. Consult your vehicle's owner's manual to understand what your specific warning light signifies.

5. Visible Thinning of the Pad Material

If you are comfortable with basic car maintenance, you can often visually inspect your brake pads. With the wheel still on, you might be able to see the brake caliper, which houses the brake pads. Look through the spokes of the wheel to see the thickness of the pad material. If it appears to be less than 3mm (approximately 1/8 inch), it’s generally recommended to replace them.

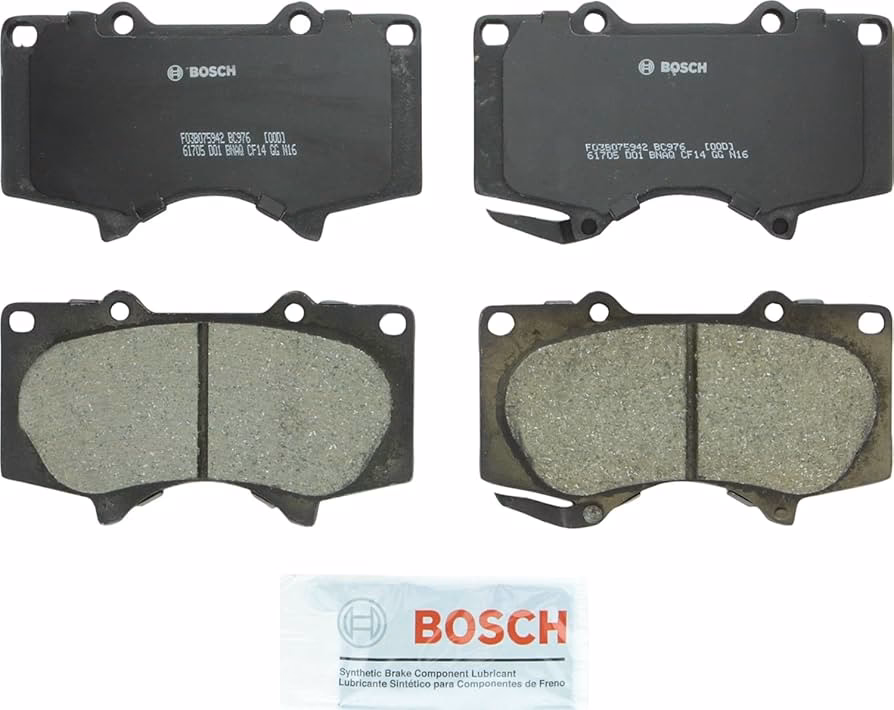

Understanding Brake Pad Types

Not all brake pads are created equal. The type of material used significantly impacts their performance, durability, and how they interact with your brake discs.

1. Organic (Non-Asbestos Organic - NAO) Pads

These are typically the least expensive option. They are made from a composite of materials such as recycled paper, rubber, and fibreglass, bound together with resins. Pros: Quieter operation, less dust, and gentle on brake discs. Cons: They wear out faster than other types, especially under heavy braking, and may not perform as well in extreme conditions.

2. Semi-Metallic Pads

These pads are made from a mixture of metal fibres (like copper, steel, or iron) and fillers. Pros: Excellent heat dissipation, good performance across a wide range of temperatures, and generally longer-lasting than organic pads. Cons: Can be noisier than organic pads, produce more brake dust, and can be harder on brake discs.

3. Ceramic Pads

Ceramic pads are made from ceramic fibres, along with non-ferrous fillers and bonding agents. Pros: Very quiet operation, produce minimal dust (which is usually lighter in colour), excellent stopping power, and are very durable. They are also less abrasive on brake discs, leading to longer disc life. Cons: Generally the most expensive option. Some argue they may not perform as well as semi-metallic pads in extreme cold or very heavy, repeated braking situations.

4. Low-Metallic NAO Pads

These are a hybrid, combining some of the benefits of organic and semi-metallic pads. They contain a small percentage of metal fibres. Pros: Offer a good balance of performance, quiet operation, and reasonable wear rates. Cons: Performance can vary depending on the specific formulation.

The Brake Pad Replacement Process

Replacing brake pads is a task that many DIY enthusiasts can undertake, but it requires precision and the right tools. If you're not confident, it's always best to entrust this job to a qualified mechanic.

Tools and Materials You'll Need:

• New brake pads (ensure they are the correct type for your vehicle)
• Jack and jack stands
• Lug wrench
• Socket set and ratchet
• C-clamp or brake caliper piston tool
• Wire brush
• Brake cleaner
• Gloves and safety glasses
• Brake lubricant (high-temperature, silicone-based)
• Optional: New brake discs (rotors) if yours are worn or warped

Step-by-Step Guide:

1. Prepare the Vehicle: Park your car on a level surface and engage the parking brake. Loosen the lug nuts on the wheel you'll be working on, but don't remove them completely yet.
2. Lift and Secure: Using your jack, lift the vehicle at the designated jacking point. Place jack stands securely under the vehicle's frame for support. Lower the vehicle onto the jack stands.
3. Remove the Wheel: Fully unscrew the lug nuts and remove the wheel.
4. Locate the Brake Caliper: The brake caliper is the component that clamps down on the brake disc. It's usually mounted on a bracket.
5. Remove Caliper Bolts: Identify the bolts that hold the caliper in place. You may need to remove one or two bolts to allow the caliper to pivot or be removed entirely.
6. Remove Old Brake Pads: Once the caliper is out of the way, you should be able to slide out the old brake pads. They might be held in place by retaining clips or springs.
7. Inspect Discs and Caliper: While the pads are out, inspect the brake discs for wear, scoring, or warping. Check the caliper for any leaks or damage. If the discs are worn beyond their minimum thickness or are significantly grooved, they should be replaced.
8. Compress the Caliper Piston: This is a crucial step. You'll need to push the piston back into the caliper to make room for the new, thicker brake pads. Use a C-clamp or a dedicated brake caliper piston tool to slowly and steadily push the piston back. Be careful not to damage the rubber boot around the piston. You may need to remove the brake fluid reservoir cap to allow fluid to flow back into the system.
9. Clean and Lubricate: Use a wire brush to clean any rust or debris from the caliper bracket and the areas where the new pads will sit. Apply a small amount of brake lubricant to the back of the new brake pads (where they contact the caliper piston and bracket) and to the caliper slide pins. Avoid getting lubricant on the friction material of the pads or the brake disc.
10. Install New Brake Pads: Slide the new brake pads into the caliper bracket. Ensure they are seated correctly and that any retaining clips are reinstalled.
11. Reassemble Caliper: Position the caliper back over the new brake pads and re-install the caliper bolts. Tighten them to the manufacturer's specified torque.
12. Reinstall Wheel: Place the wheel back onto the hub and screw on the lug nuts. Tighten them by hand as much as possible.
13. Lower Vehicle and Tighten Lug Nuts: Lower the vehicle off the jack stands. Use the lug wrench to tighten the lug nuts in a star pattern to ensure even pressure.
14. Pump the Brakes: Before driving, it is essential to pump the brake pedal several times. This will push the caliper piston back out and seat the new pads against the discs. The pedal should feel firm.
15. Bed-In the New Pads: New brake pads need to be 'bedded-in' to achieve optimal performance. This process involves a series of moderate stops from around 40-50 mph, followed by a period of cooling without coming to a complete stop. Consult the brake pad manufacturer's instructions for specific bedding-in procedures.

When to Call a Professional

While brake pad replacement can be a DIY job, there are instances where seeking professional help is advisable:

• Lack of Tools or Confidence: If you don't have the necessary tools or feel unsure about any part of the process, it's safer to have a mechanic do it.
• Damaged Components: If you discover that your brake discs are significantly worn, warped, or if you notice any leaks in the brake lines or calipers, these are issues that require professional diagnosis and repair.
• ABS or Sensor Issues: Modern braking systems often incorporate Anti-lock Braking System (ABS) sensors and wear indicators. If these are damaged or malfunctioning, a mechanic will have the specialised equipment to address them.
• General Brake System Health: A mechanic can perform a comprehensive inspection of your entire braking system, including brake fluid, hoses, and other components, ensuring everything is in good working order.

Frequently Asked Questions

Q1: How often should brake pads be replaced?

A1: The lifespan of brake pads varies greatly depending on driving habits, vehicle type, and the type of brake pads used. Generally, they can last anywhere from 25,000 to 70,000 miles. It's more reliable to rely on the signs mentioned above and regular inspections rather than a fixed mileage interval.

Q2: Can I replace just one set of brake pads?

A2: No, it is crucial to replace brake pads in pairs, meaning both front pads or both rear pads at the same time. This ensures even braking performance and prevents the vehicle from pulling to one side during braking.

Q3: What is 'bedding-in' brake pads?

A3: Bedding-in is a process that helps the new brake pad material transfer evenly onto the brake disc, creating an optimal friction surface. This is essential for achieving the best braking performance and longevity of both pads and discs.

Q4: How much does it cost to replace brake pads?

A4: The cost can vary significantly. Parts alone can range from £30 to £100+ per axle, depending on the type of pads. Labour costs for professional replacement can add another £50 to £150 per axle. So, expect to pay anywhere from £80 to £300+ for a full set of front or rear pads.

In conclusion, maintaining your brake pads is not just about performance; it's about ensuring your safety and the safety of others on the road. By understanding the signs of wear, the different types of pads available, and the replacement process, you can make informed decisions about your vehicle's braking system.
