Clutch Replacement: Your Guide to Fixing Gear Troubles

Are you experiencing frustrating issues with your car or van's manual gearbox? Perhaps you're struggling to engage gears, hearing an unsettling crunching sound, noticing a significantly high biting point on your clutch pedal, detecting an unpleasant burning smell, or finding that your engine revs increase dramatically without a corresponding increase in acceleration? These are all classic indicators that a vital component of your vehicle's drivetrain – the clutch system – is likely experiencing significant trouble. From internal slave cylinders developing leaks to the complex dual mass flywheel reaching the end of its life, or simply a clutch disc worn out from years of faithful service, these are among the most prevalent issues that can bring your driving experience to a grinding halt. The good news is, in virtually all cases, a manual clutch can indeed be replaced, restoring your vehicle's smooth operation and your peace of mind.

Understanding Your Clutch: The Heart of Manual Driving

Before diving into replacement, it's essential to understand what the clutch does. In a manual vehicle, the clutch is a critical component that connects and disconnects the engine's power to the gearbox and, subsequently, the wheels. It allows you to change gears smoothly without grinding them and to bring the vehicle to a complete stop without stalling the engine. Essentially, it's a friction device that, when engaged, transmits power, and when disengaged, allows the engine to spin independently of the wheels. A typical clutch system comprises several key parts: the friction disc (clutch plate), the pressure plate, the release bearing (also known as the throw-out bearing), and often a flywheel, which the clutch engages with.

Common Symptoms of a Failing Clutch and What They Mean

Recognising the signs of a failing clutch early can save you from more extensive damage and a breakdown. Here are the symptoms you might be experiencing, elaborated:

• Difficulty Engaging Gears or Crunching Sounds: This often indicates that the clutch isn't fully disengaging when you press the pedal. The friction disc might not be separating cleanly from the flywheel, leading to the gears grinding as you try to select them. This can be due to a worn clutch plate, a faulty release bearing, or issues with the hydraulic system (master or slave cylinder).
• A High Biting Point: If your clutch pedal needs to be almost fully released before the engine power begins to transfer to the wheels, you have a high biting point. This is a tell-tale sign of a worn-out clutch disc. As the friction material wears down, the pedal needs to travel further to achieve engagement. If left unaddressed, this will eventually lead to clutch slip.
• A Burning Smell: This distinct, acrid odour is often the smell of overheated clutch friction material. It occurs when the clutch is slipping excessively, generating immense heat through friction. This can happen if you're riding the clutch, frequently pulling away on hills, or if the clutch is simply too worn to hold the power effectively.
• Engine Revs Increasing But No Acceleration (Clutch Slip): This is perhaps the most definitive symptom of a failing clutch. When you accelerate, especially in higher gears or going uphill, you'll notice the engine RPMs rise rapidly, but the vehicle's speed doesn't increase proportionally. This means the clutch disc is slipping against the flywheel and pressure plate, failing to transmit the engine's power efficiently to the wheels. This is usually due to a completely worn friction disc, oil contamination, or a weak pressure plate.
• Soft or Spongy Clutch Pedal: This can point to an issue with the hydraulic system, such as air in the lines, a leak in the master cylinder, or a leaking slave cylinder. If the pedal feels unusually light, it might not be building enough pressure to disengage the clutch properly.
• Clutch Judder or Shudder: When pulling away, you might feel a vibration or shudder through the vehicle. This can be caused by a warped flywheel, a contaminated clutch disc, worn engine or gearbox mounts, or an unevenly worn pressure plate.
• Sticking Clutch Pedal: If the clutch pedal remains on the floor after you press it, or is slow to return, it's a strong indicator of a problem within the hydraulic system or a seized release bearing.

Can a Manual Clutch Be Replaced? Absolutely!

The answer to the most pressing question is a resounding yes. Replacing a manual clutch is a common and routine repair for skilled mechanics. It's a significant job, often requiring the removal of the gearbox, but it is entirely feasible and, in most cases, will completely resolve the issues you're experiencing, restoring your vehicle's driveability. It’s important to note that a clutch replacement isn't just about swapping out the friction disc; it typically involves replacing the entire clutch kit, which includes the pressure plate and release bearing, ensuring all critical wear components are new.

The Clutch Replacement Process: What to Expect

A clutch replacement is not a minor task and typically requires specialist tools and expertise. While the exact steps can vary slightly between vehicle models, the general process involves:

1. Preparation: The vehicle is hoisted onto a lift, and the battery is disconnected.
2. Component Removal: Various components need to be removed to gain access to the gearbox. This often includes air filters, battery trays, driveshafts, starter motor, and sometimes even suspension components.
3. Gearbox Removal: The gearbox is unbolted from the engine and carefully lowered out of the vehicle. This is the most labour-intensive part of the job due to the weight and position of the gearbox.

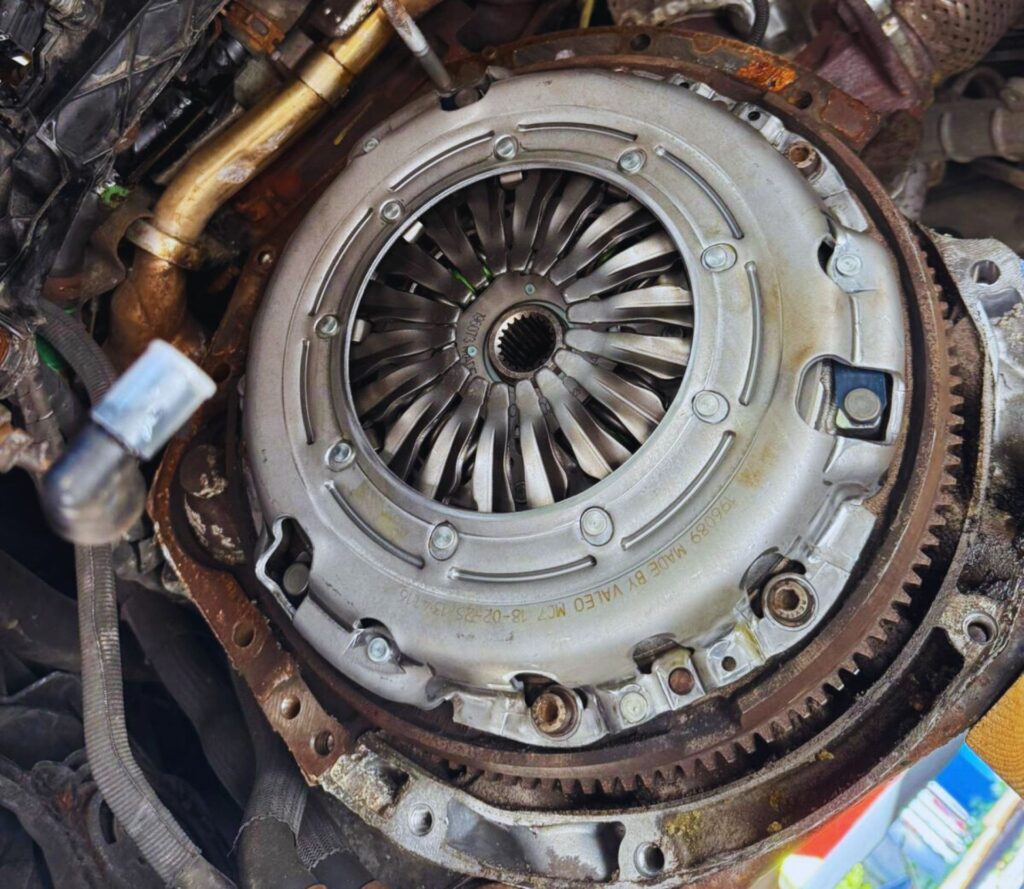

4. Clutch Assembly Removal: Once the gearbox is out, the old clutch pressure plate and friction disc are unbolted from the flywheel. The old release bearing is also removed from the gearbox.
5. Flywheel Inspection: The flywheel is thoroughly inspected for signs of heat spots, cracks, or excessive wear. If it’s a dual mass flywheel and shows signs of failure, it will also be replaced at this stage.
6. New Clutch Installation: The new friction disc is carefully aligned with a special tool, and the new pressure plate is bolted onto the flywheel. The new release bearing is fitted to the gearbox.
7. Reassembly: The gearbox is carefully lifted and reattached to the engine. All previously removed components are reinstalled, ensuring all bolts are torqued to specification.
8. Testing: Once everything is reassembled, the vehicle is lowered, fluids are topped up, and the clutch system is bled (if hydraulic). A road test is then conducted to ensure smooth gear changes and proper clutch operation.

Why Consider Replacing the Dual Mass Flywheel (DMF)?

Many modern vehicles, particularly those with higher torque engines or diesel engines, are fitted with a dual mass flywheel (DMF). Unlike older solid flywheels, a DMF is designed to absorb engine vibrations and reduce noise, vibration, and harshness (NVH). However, DMFs are also wear items and can fail. Symptoms of a failing DMF include a knocking or rattling sound from the bell housing, excessive vibration, or difficulty shifting. While not always necessary, it is highly recommended to inspect the DMF thoroughly during a clutch replacement, and often replaced simultaneously, especially if any signs of wear are present. This is because the labour cost to access the DMF is the same as for the clutch, so replacing both at once, if needed, saves significant money in the long run by avoiding a second, expensive labour charge if the DMF fails shortly after the clutch.

Cost Considerations for Clutch Replacement

The cost of a clutch replacement can vary significantly based on several factors:

• Vehicle Make and Model: European luxury cars or vehicles with complex engine layouts (e.g., longitudinal engines) often incur higher labour costs due to increased access difficulty.
• Parts Cost: The price of the clutch kit itself varies greatly. High-quality aftermarket kits are usually more affordable than original equipment manufacturer (OEM) parts, but quality should not be compromised.
• Dual Mass Flywheel (DMF): If your vehicle has a DMF and it requires replacement, this will add a substantial amount to the overall cost, as DMFs are considerably more expensive than solid flywheels.
• Labour Rates: Labour charges vary across different garages and regions of the UK.
• Additional Repairs: Sometimes, other components are found to be worn during the process, such as gearbox seals or driveshaft gaiters, which might add to the final bill.

While it's a significant investment, replacing a failing clutch is essential for the safety and continued operation of your vehicle. Neglecting these symptoms can lead to more serious and costly damage to your gearbox or even leave you stranded.

Prolonging Your Clutch's Life: Tips for Drivers

While clutches are wear items, your driving habits can significantly impact their lifespan:

• Avoid Riding the Clutch: Don't rest your foot on the clutch pedal while driving, as this causes unnecessary wear on the release bearing and friction disc.
• Don't Hold the Car on a Hill with the Clutch: Use the handbrake to hold the vehicle on an incline rather than slipping the clutch.
• Shift Smoothly: Avoid aggressive or jerky gear changes.
• Minimise Clutch Slippage: When pulling away, engage the clutch smoothly and quickly, without excessive revving or prolonged slipping.
• Reduce Weight: Carrying excessive, unnecessary weight in your vehicle puts more strain on the clutch.

By adopting these habits, you can help extend the life of your clutch and potentially delay the need for a costly replacement.

Symptom vs. Likely Cause: A Quick Reference

Frequently Asked Questions About Clutch Replacement

How long does a clutch typically last?

The lifespan of a clutch varies greatly depending on driving style, vehicle type, and conditions. Some clutches might last over 100,000 miles, while others might only last 30,000-50,000 miles in urban, stop-start driving or with aggressive drivers. Consistent smooth driving can significantly extend its life.

Can I drive with a failing clutch?

While you might be able to limp home, driving with a severely failing clutch is not recommended. It can lead to further damage to your gearbox, leave you stranded, or even pose a safety risk if you lose the ability to change gears or transmit power effectively, especially in traffic or on hills.

What is included in a standard clutch kit replacement?

A standard clutch kit typically includes a new clutch friction disc, a new pressure plate, and a new release bearing. Some kits may also include a new pilot bearing/bushing if applicable to the vehicle.

What's the difference between a high and low biting point?

A high biting point means the clutch pedal needs to be almost fully released before the clutch engages and the vehicle starts to move. This indicates a worn clutch disc. A low biting point means the clutch engages very early, close to the floor. While sometimes a sign of a new clutch, it can also indicate a hydraulic issue or improper adjustment.

Why might my new clutch be slipping?

A new clutch should not slip. If it does, possible reasons include incorrect installation (e.g., oil contamination during fitting), a faulty new part, an improperly bled hydraulic system, or an issue with the flywheel (e.g., a warped or excessively worn flywheel that wasn't replaced or resurfaced).

Do I always need to replace the flywheel with the clutch?

No, not always. If your vehicle has a solid flywheel, it can often be resurfaced by a machine shop if it shows minor heat spots or uneven wear. However, if it's deeply grooved or cracked, it should be replaced. If your vehicle has a dual mass flywheel, it is generally recommended to replace it along with the clutch, especially if it's showing any signs of wear, as they are wear items and failing to do so could lead to another expensive repair soon after.

If you are experiencing any of the issues described above, or if you simply require a routine service or any other repair for your vehicle, please do not hesitate to contact a qualified mechanic. Addressing clutch issues promptly will ensure your vehicle remains reliable and safe on the UK roads.
