DIY Exhaust System Repair: A Comprehensive Guide

Few things are as grating as the incessant hissing or blowing sound emanating from a compromised exhaust system. Unless your vehicle boasts a factory-fitted stainless steel exhaust, it's virtually inevitable that the elements will, over time, degrade the integrity and functionality of one or more components within the system. That irritating noise is often the most glaring symptom of a damaged or broken exhaust, signalling that it's time for some attention.

From the factory, many cars come equipped with what's known as aluminised steel exhaust tubing. This material offers a significant improvement over mild steel tubing, primarily because the infused aluminium helps to resist the formation of corrosion and rust. While the tubes themselves do a reasonable job of fending off rust, it's often the welds joining these aluminised pipes to silencers, resonators, flanges, and other parts that become the Achilles' heel. These welds are frequently performed with mild steel welding wire and are not subsequently treated to resist corrosion. Once exposed to water, road salt, mud, or any other abrasive elements you might encounter on the road, these unprotected steel welds become highly susceptible to rusting. Though they might hold for years, eventually, like all steel, they will rust through, leading to leaks and noise.

You might also discover exhaust issues when purchasing a used car. It's incredibly challenging to ascertain everything that has been done to a vehicle by previous owners. I personally encountered this problem when acquiring a car that was advertised as 'stock'. The seller wasn't lying; it did indeed have the factory exhaust system fitted. However, it quickly became apparent that the factory silencer had spent some of its life detached from the car. Slowly but surely, the car became progressively louder until it sounded as if there were no silencer at all. At some point, a previous owner must have installed an aftermarket exhaust system in place of the original unit. When it came time to sell the vehicle, a quick, makeshift repair job was evidently performed to re-attach the factory silencer. The fix was executed very poorly, and slowly but surely, it rotted away, eventually leaving the silencer suspended precariously by its hangers, completely disconnected from the rest of the exhaust system.

In this comprehensive article, I will guide you step-by-step on how to properly repair a damaged or rusted-out exhaust system. Our goal is to ensure it can withstand the rigours of the road and provide you with a quiet, worry-free driving experience, eliminating the constant dread of impending exhaust failure.

Understanding Common Exhaust System Failures

Exhaust systems are constantly exposed to harsh conditions, from extreme heat fluctuations to corrosive road salt and moisture. This relentless assault inevitably takes its toll. Beyond the obvious rust, other common failure points include:

• Corroded Welds: As mentioned, mild steel welds on aluminised pipes are a prime target for rust. These points become weak spots that can crack or break entirely.
• Perforated Pipes: Extensive rust can lead to holes forming directly in the exhaust piping, allowing gases to escape.
• Damaged Silencers or Resonators: Internal baffles can break loose, causing rattling noises, or the outer casing can rust through.
• Broken Hangers or Mounts: The rubber or metal hangers that support the exhaust system can perish or snap, leading to the exhaust dragging or rattling against the vehicle's underside.
• Cracked Manifolds or Downpipes: Less common for DIY repair, but these crucial upfront components can crack due to thermal stress, leading to loud ticking noises, especially when cold.

The consequences of a failing exhaust system extend beyond just noise. Leaks can reduce engine performance and fuel efficiency, and critically, they pose a serious safety risk. Exhaust gases contain carbon monoxide, a colourless, odourless, and potentially lethal gas. A leaking exhaust system can allow these fumes to enter the passenger cabin, leading to drowsiness, headaches, and in severe cases, carbon monoxide poisoning. Therefore, addressing exhaust issues promptly is not just about comfort; it's about safety.

Essential Tools and Materials for a Robust Repair

Before you begin, gathering the right tools and materials is paramount for a successful and lasting repair. Attempting a job like this with inadequate equipment often leads to frustration and, ultimately, a substandard fix that won't endure.

Tools You'll Need:

• Vehicle Jack & Jack Stands: Absolutely essential for safely lifting and supporting your vehicle. Never work under a car supported only by a jack.
• Safety Glasses & Gloves: Protect your eyes from sparks and debris, and your hands from sharp edges and heat.
• Ear Protection: Angle grinders and welding can be very loud.
• Angle Grinder with Cutting Discs: For precise cutting of rusted sections. Ensure you have several spare discs.
• Grinding Wheel/Flap Disc: For smoothing edges and removing stubborn rust.
• Wire Brush (manual and/or for grinder): For thoroughly cleaning metal surfaces before welding and painting.
• MIG Welder: With appropriate welding wire (e.g., mild steel, .023-.030 diameter) and shielding gas (e.g., Argon/CO2 mix).
• Tape Measure & Straight Edge: For accurate measurements and marking cut lines.
• Metallic Permanent Marker: For clear, visible marking on metal.
• Clamps (G-clamps, welding clamps): To hold exhaust sections securely in place during cutting and welding.
• Socket Set & Wrenches: For removing exhaust clamps and hangers.

Materials You'll Need:

• New Exhaust Tubing: Crucially, ensure the new pipe's diameter is compatible. Often, you'll want a slightly larger internal diameter (ID) than the original pipe's external diameter (OD) to allow for a slip-fit connection, simplifying welding. For instance, if your existing pipe is 2.25" OD, look for a 2.5" ID replacement section.
• High-Temperature Exhaust Paint: Standard spray paint will simply burn off. You need paint rated for very high temperatures, typically 1200°F (650°C) to 1400°F (760°C). This protects your new welds and pipe from future corrosion.
• Rust Penetrant/Lubricant: Helpful for loosening seized bolts and clamps.

Step-by-Step Exhaust Repair Process

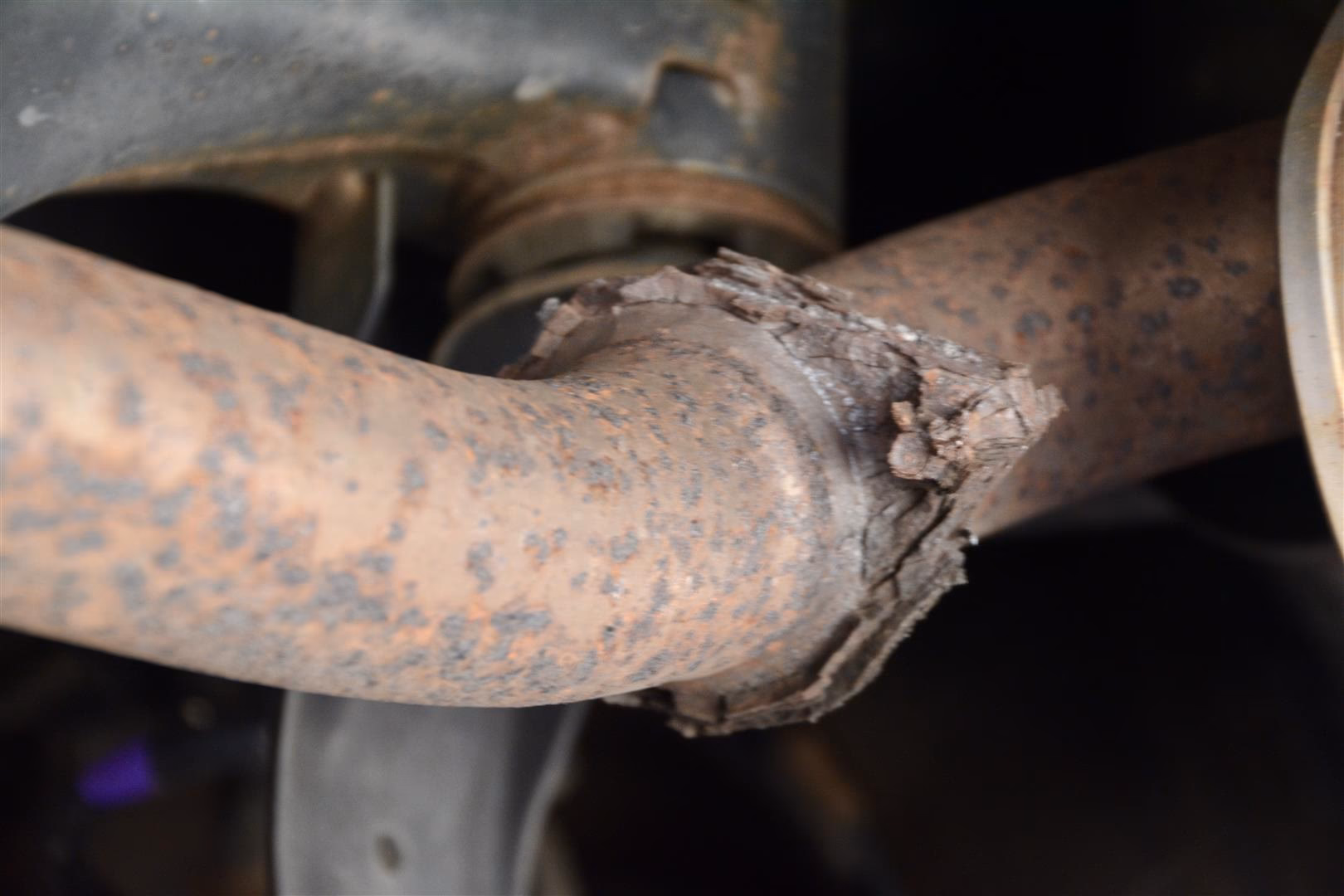

As illustrated by my own experience, this exhaust system had been 'mended' not once, but twice, both times improperly. Once the weld from the original patch job failed, a band-style clamp was crudely applied over the pipe to reconnect the pieces. Neither repair was a success. Fixing your exhaust system in such a haphazard manner might offer a temporary reprieve, but in the long run, it will invariably return to haunt you. When undertaking any automotive repair, it's always best to take your time and perform the job correctly. A properly executed repair will endure, allowing you to drive your vehicle with complete peace of mind.

1. Preparation and Disassembly

To tackle this exhaust repair, I first had to remove the rear portion of the exhaust system from beneath the car. This was achieved by releasing the factory band-style clamp located just in front of the resonator, and by detaching the two hook-style hangers that were supporting the silencer and exhaust tip. Ensure your vehicle is safely lifted on jack stands before commencing any work underneath.

2. Precise Measurement and Marking: The Key to Alignment

With the exhaust sections now on the workbench, I could get a much clearer view of the pipe's condition and determine the most effective repair strategy. As you can see, the rust was severe, indicating that to properly fix it, the entire section needed to be cut out and a new piece of pipe welded in. Before I began cutting away the rusted pieces, I securely clamped the resonator down to my workbench and held the broken sections together in their correct original orientation. This step is crucial for maintaining the system's geometry. I then used a metallic permanent marker and a straight edge to draw lines along the length of the area that required replacement. Additionally, I drew intersecting lines on either end, creating crosses. I then precisely measured the distance between each of these crosses and meticulously wrote them down for later use. This precision in marking and measuring is incredibly important, as without these marks as a guide, it would be almost impossible to make the repair and maintain the correct angles. This ensures the hangers will line up perfectly and the exhaust tip will sit square and even within the bumper cut-out. Remember to make sure your alignment marks are far enough away from the repair area so that you won't damage or destroy them while cutting out the rusted sections.

3. Cutting Out the Damaged Section

Once all my measurements and marks were meticulously recorded, I began the process of cutting off the old, failed repair. I used a cutting disc on an electric angle grinder to remove the rusted patch piece. Following this, I used a grinding wheel to smooth out any remaining rust or rough metal edges, ensuring a clean surface for the new weld.

4. Fabricating and Fitting the New Piece

With all of the old, compromised repairs removed, the next step was to cut a new piece of exhaust tubing. This new section needed to perfectly fill the gap between the old, sound pieces and also allow the two existing pipes to slip inside it. In this particular case, the outside diameter (OD) of the original piping was 2¼ inches, and the new piece of tubing had an inside diameter (ID) of 2½ inches. This creates a small, ideal gap that can be easily and effectively filled with a MIG welder, forming a strong, overlapping joint.

5. Welding the New Section: The Art of a Strong Joint

Using my Eastwood MIG 175 welder, I began by applying a tack weld to secure the new piece to one of the two existing sides. With the alignment marks and measurements I had so carefully written down earlier, I was then able to proceed with fully welding both sides of the joint. This meticulous preparation meant I could confidently lay down continuous, strong welds without worrying that the now-solid pipe was in the wrong orientation. Ensure your welding area is well-ventilated and free of flammable materials. Cleanliness of the metal is paramount for good weld penetration and strength.

6. Finishing and Protection

After both joints were fully welded, I meticulously inspected the welds for any pinholes or imperfections that could lead to future leaks. A good technique is to shine a bright light from one side and look for any light coming through from the other. Next, I took a wire brush and thoroughly cleaned off the welds and the surrounding metal in preparation for painting. To properly paint any part of an exhaust system, you must use paint that is specifically rated for very high temperatures; your standard off-the-shelf spray paint simply won't suffice. For this particular job, I used Eastwood’s High Temp Factory Engine Coating, which is rated to resist heat up to an impressive 1400 degrees Fahrenheit (760 degrees Celsius). This high-temperature coating provides crucial protection against future rust and longevity for your repair.

7. Reassembly and Final Checks

With the new section securely welded and painted, the final step was to remount the repaired exhaust system back under the car. Thanks to the careful measuring and alignment performed earlier, the exhaust tips now sit perfectly and evenly within the bumper cut-out, requiring no further adjustments. This meticulous attention to detail during the initial preparation ensured that once the new piece of pipe was welded in, the entire exhaust system maintained its original orientation and, once completed, appears as if it was never damaged in the first place. After reassembly, start the car and listen carefully for any leaks. A slight hiss or puffing sound indicates a missed spot. You can also carefully run your hand around the welds (after they've cooled slightly) to feel for escaping gases.

Comparative Table: Exhaust Repair Methods

Frequently Asked Questions About Exhaust Repair

Q: Can I repair an exhaust system without welding?

A: While there are temporary solutions like exhaust repair clamps, putties, or wraps, these are generally not long-term fixes. They are useful for getting your car to a garage or for very small, non-critical leaks. For a durable, reliable repair, welding is almost always recommended.

Q: How long does a proper exhaust repair last?

A: A well-executed welded repair, especially if the new pipe section is of good quality (like aluminised or stainless steel) and properly painted with high-temperature paint, can last for many years. Its longevity will largely depend on the quality of the weld, the materials used, and the environmental conditions your car is exposed to.

Q: What are the primary signs of a failing exhaust system?

A: The most common signs include a noticeable increase in engine noise (hissing, blowing, roaring), a rattling sound from under the car (often due to loose hangers or internal silencer baffles), a decrease in fuel efficiency, and the smell of exhaust fumes inside the cabin. Never ignore the smell of fumes for safety reasons.

Q: Is it safe to drive with a broken exhaust?

A: Driving with a broken exhaust is not recommended and can be dangerous. The primary risk is carbon monoxide poisoning if exhaust gases leak into the car's interior. It's also illegal in many places due to noise regulations and emissions concerns. Get it fixed as soon as possible.

Q: What type of paint should I use on my repaired exhaust?

A: You must use a high-temperature exhaust paint or ceramic coating specifically designed for exhaust systems. Standard automotive paints will not withstand the extreme heat generated by the exhaust and will quickly burn off, leaving the metal exposed to rust once more. Look for products rated to at least 1200°F (650°C).

Successfully repairing your exhaust system is a highly rewarding DIY project. By following these detailed steps, embracing precision in your measurements, and committing to proper welding techniques, you can restore your vehicle's exhaust to its optimal condition. Not only will you eliminate that irritating noise, but you'll also ensure your vehicle runs more efficiently and, most importantly, safely. The satisfaction of a job done correctly, knowing your repair will stand the test of time, is truly unparalleled.
