Bosch Drill Troubleshooting Guide

Bosch drills are renowned for their power, durability, and user-friendly design, making them a popular choice for both DIY enthusiasts and professional tradespeople. However, like any sophisticated power tool, they can occasionally encounter issues. Whether your Bosch drill is refusing to charge, failing to spin, or experiencing chuck problems, understanding the potential causes and solutions can save you time, money, and considerable frustration. This guide delves into common Bosch drill malfunctions and provides practical steps to get your tool performing optimally again.

Unlocking the Clutch on Your Bosch Drill

A common point of confusion for users is the clutch mechanism. The clutch on a Bosch drill is designed to prevent over-tightening screws and protect the drill's motor and the workpiece. To unlock the clutch and enable full drilling power, you need to rotate the clutch sleeve. Simply turn the clutch sleeve past the numbered torque settings until it aligns with the symbol that resembles a drill bit. This position effectively unlocks the clutch, allowing the drill to operate at its maximum speed and power.

Troubleshooting Common Bosch Drill Problems

Bosch Drill Not Working (No Spin, No Noise)

When you pull the trigger and nothing happens, it can be disheartening. The most frequent culprits are a depleted or faulty battery, a problem with the motor, or a malfunctioning trigger switch.

Solutions:

• Battery Check: Start by trying a known good, fully charged spare battery. If the drill springs to life, your original battery is likely the issue. If you don't have a spare, ensure your current battery is properly seated and try charging it. Observe the charging indicator to confirm it's receiving power.
• Charger and Outlet: If the battery isn't charging, test the charger in a different power outlet to rule out an issue with the socket. If the outlet is functional, the charger itself might be faulty and require replacement.
• Battery Connection: Sometimes, the battery might not be making proper contact. Push the battery firmly into the drill until it clicks securely. Inspect the power terminals inside the drill's handle for any dirt or damage. Vibration can occasionally break internal signal wires, so a visual inspection might be necessary.
• Trigger Switch: Examine the trigger switch. Ensure it's functioning smoothly. If the trigger feels loose, sticky, or doesn't engage properly, it might need replacement. If the battery is fine and the trigger pulls but the motor remains silent, the trigger switch is a prime suspect.
• Motor Issues: If all the above steps fail and the drill still shows no signs of life, the motor is the most probable cause of failure. If the drill is still under warranty, contact Bosch for a repair or replacement. Otherwise, you may need to consider purchasing a new drill.

Bosch Drill Not Charging

A drill that won't charge can halt your work. Common reasons include incorrect battery insertion, a damaged charger, an overheating battery, or a faulty charger or battery unit.

Solutions:

• Proper Insertion: Ensure the battery is correctly and firmly seated in the charger. Remove the battery and wipe both the battery contacts and the charger terminals clean of any dust, dirt, or grease.
• Charger and Outlet Test: As with the previous issue, test the charger in a different power outlet to confirm the outlet is working. If the outlet is fine, the charger might be the problem.
• Battery Health: Ensure the battery isn't excessively hot before attempting to charge it. Allow it to cool down if necessary. If you have a spare battery, try charging it to see if it works, which would indicate a problem with the original battery.

Bosch Drill Not Holding Charge

If your drill's performance is diminishing rapidly or it stops working prematurely, it's likely a battery issue.

Solutions:

• Battery and Charger Maintenance: Revisit the steps for ensuring the battery is correctly inserted into the charger and that both are clean.
• Charger and Outlet Verification: Test the charger on an alternate outlet. If the outlet works, consider replacing the charger.
• Battery Lifespan: Batteries have a finite lifespan. If your drill is several years old and you've noticed a significant decline in performance, the battery may simply be reaching the end of its life and needs replacement. Manufacturers typically estimate a battery lifecycle of 2-5 years or around 1,000 charging cycles.

Bosch Drill Not Spinning (Chuck Not Turning)

If the motor runs but the chuck remains stationary, this points to a problem within the drill's transmission or potentially the motor itself.

Solutions:

• Excessive Pressure: In some cases, applying too much pressure to the drill bit can cause it to stop spinning. Ease off the pressure to see if the bit resumes rotation. Ensure your battery is adequately charged, as low power can also lead to reduced torque.
• Faulty Trigger Switch: Double-check that the forward/reverse selector is fully engaged in the desired direction. If the trigger is pulled but the drill doesn't spin, the trigger switch might be faulty. If the trigger pulls but the motor doesn't engage, the switch could be broken. This often requires disassembling the drill casing to inspect or replace the switch.
• Transmission Issues: A common cause for the motor running but the chuck not turning is a problem with the gearbox or transmission. The gears might not be properly seated, or the transmission itself could be damaged. Ensure the drill is fully in gear and not caught between settings. If the transmission is broken, it will need to be replaced.
• Faulty Motor: A failing motor can result in slow or no chuck rotation. Overloading the drill or worn-out motor brushes can lead to motor failure. If the motor is the problem, it will require replacement.

Bosch Drill Not Tightening (Chuck Loosening)

If your drill bit keeps coming loose, the issue often lies with the chuck mechanism.

Solutions:

• Chuck Cleaning and Lubrication: Over time, dirt, dust, and grime can accumulate in the chuck, preventing it from gripping the bit securely. Thoroughly clean the chuck with a suitable cleaning agent and apply a light lubricant designed for power tools.
• Chuck Replacement: If cleaning doesn't resolve the issue, the chuck itself may be worn out or damaged. Replacing the chuck is often a cost-effective solution compared to buying a new drill.

Bosch Drill Not Releasing (Chuck Sticking)

Conversely, if the chuck is difficult to open or release, it can be equally frustrating. This is often due to the same factors as the chuck not tightening properly.

Solutions:

• Chuck Maintenance: Ensure the chuck is clean and free from debris. Applying a small amount of lubricant can help it operate smoothly.
• Chuck or Drill Replacement: If the chuck remains stubborn after cleaning and lubrication, it might be worn out or damaged. Consider replacing the chuck. If the cost of replacement is high relative to the drill's value, purchasing a new drill might be a more economical choice.

Are Bosch Drills Good?

Yes, Bosch drills are generally considered very good. They are praised for their powerful performance, robust build quality, and quick recharging capabilities. Bosch offers reliable tools with appealing designs that are more than capable of handling a wide range of household tasks. The extended battery life and balanced, ergonomic design further contribute to their positive reputation.

Lifespan of a Bosch Drill

The lifespan of any power tool, including a Bosch drill, is contingent upon usage frequency and the nature of the tasks performed. Infrequent use for lighter jobs will naturally lead to a longer tool life compared to constant, heavy-duty applications. For cordless models, a fully charged battery typically lasts around eight hours of use, with a battery lifecycle estimated at two to five years, or approximately 1,000 charging cycles.

Pros and Cons of Bosch Drills

Conclusion

For home improvement projects requiring a dependable and powerful drill, Bosch is an excellent brand to consider. While occasional issues may arise, understanding these common troubleshooting steps will help you maintain your Bosch drill and ensure it continues to perform reliably for years to come. Regular maintenance, proper battery care, and addressing minor issues promptly will keep your tool in top working order.

Frequently Asked Questions

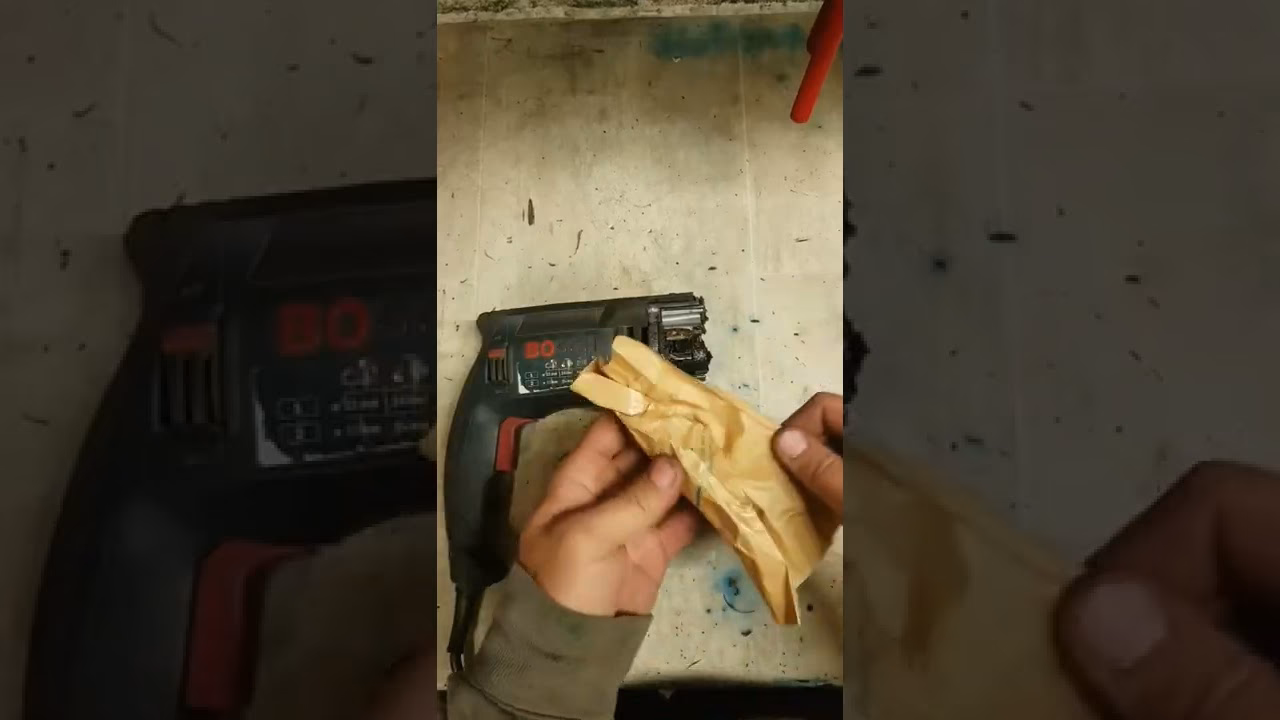

How do you unlock the clutch on a Bosch drill?

Rotate the clutch sleeve past the numbered settings to the symbol that looks like a drill bit. This position disengages the clutch for full drilling power.

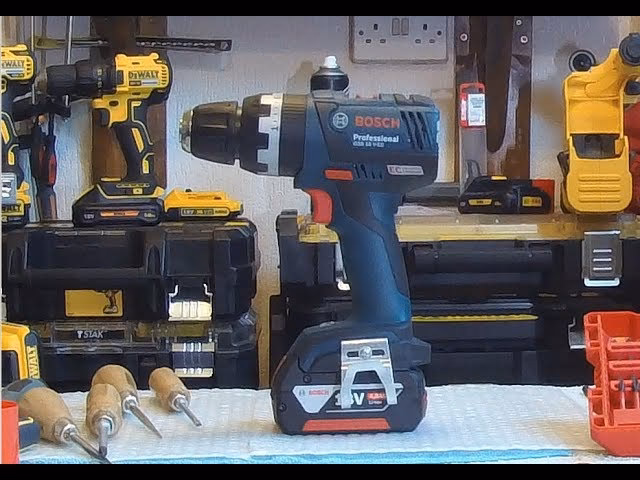

Why does my Bosch drill chuck keep coming loose?

This is usually due to a worn-out, dirty, or improperly locking chuck. Cleaning, lubricating, or replacing the chuck can resolve this issue.

My Bosch drill won't spin when I pull the trigger. What could be wrong?

Potential causes include a dead or disconnected battery, a faulty trigger switch, or a motor problem. Check the battery, its connection, and the trigger switch first. If these are fine, the motor may be the issue.

How do I get my Bosch drill battery to charge?

Ensure the battery is correctly seated in a clean charger, that the charger is plugged into a working outlet, and that the battery is not overheating. If it still doesn't charge, try a different outlet or a new charger/battery.
