Checking Your Viscous Fan Clutch

The Crucial Role of the Viscous Fan Clutch in Engine Cooling

A well-functioning cooling system is absolutely essential for any internal combustion engine. The intense heat generated from burning fuel and air within the cylinders can push engine components, even those made from robust materials, towards critical temperatures. While modern engines are designed to withstand significant heat, effective cooling is paramount to prevent deformation and ensure longevity. One critical, yet often misunderstood, component in this system is the viscous fan clutch. This article will guide you through understanding its operation, identifying common issues, and performing essential checks to keep your engine running at its optimal temperature.

Understanding the Viscous Fan Clutch: How it Works

While many modern vehicles utilise electric fans, older models, particularly rear-wheel-drive vehicles with longitudinally mounted engines, often employ a viscous fan clutch. This mechanism connects the engine's crankshaft (or sometimes the camshaft pulley) to the fan blades via a belt drive. The core of the viscous clutch contains two sets of discs, one driven by the engine and the other attached to the fan impeller. These discs are housed within a sealed unit filled with a specialised silicone-based fluid, often referred to as a dilatant fluid. The key to its operation lies in the fluid's unique property: its viscosity changes with shear rate. When the engine is cold or under light load, the fluid remains relatively fluid, allowing the fan to spin slowly or not at all, conserving engine power. As the engine heats up, a bimetallic strip or a temperature-sensitive valve within the clutch opens, allowing more of the silicone fluid to flow between the discs. This increased fluid volume intensifies the shear forces between the discs, causing the fan to spin faster and draw more air through the radiator. The more the engine heats up, the greater the engagement of the clutch, ensuring efficient cooling precisely when it's needed. When the engine cools down, the valve closes, allowing the fluid to return to a reservoir, and the fan speed reduces accordingly.

Key Components of a Viscous Fan Clutch:

Symptoms of a Failing Viscous Fan Clutch

Recognising the signs of a failing viscous fan clutch is crucial for preventing engine damage. The most common indicator is engine overheating, especially during low-speed driving or when the vehicle is stationary. This occurs because a faulty clutch fails to engage sufficiently, meaning the fan isn't spinning fast enough to pull adequate air through the radiator. Conversely, a clutch that remains permanently engaged can lead to the engine running too cool, which is also detrimental to efficiency and emissions. Other symptoms might include:

• Excessive Fan Noise: A fan that is constantly engaged at high speed, even when the engine is cold, can produce a loud roaring sound.
• Reduced Fuel Efficiency: An engine that is either overheating or running too cool can lead to poorer fuel economy. A fan that is always engaged also unnecessarily draws power from the engine.
• Inconsistent Fan Speed: The fan speed should vary smoothly with engine temperature. If it seems to operate erratically or not at all, the clutch may be faulty.

How to Test Your Viscous Fan Clutch

Testing a viscous fan clutch can be done with a few simple checks. It's important to perform these tests on both a cold and a warm engine.

Cold Engine Test:

1. Initial Check (Engine Off): With the engine off, try to spin the fan blades by hand. You should feel some resistance, and the fan should not spin freely like a freely coasting wheel. There should be a definite drag.
2. Start-up: Start the cold engine and let it idle. The fan should be spinning, but at a relatively low speed. If you rev the engine a few times, the fan speed should increase slightly but not dramatically. A working clutch should disengage or significantly reduce its engagement within a few minutes of the engine starting, especially if the engine isn't yet at operating temperature.

Warm Engine Test:

1. Operating Temperature: Once the engine has reached its normal operating temperature (the thermostat should be open and coolant circulating through the radiator), the fan clutch should be engaged.
2. Paper Test (Use with Caution): With the engine warm and idling, hold a rolled-up piece of paper (like a newspaper) in front of the fan. If the clutch is working correctly, the fan should pull enough air to stop or significantly slow the paper. If the paper is barely affected or the fan is spinning very slowly, the clutch may be weak. Caution: Be extremely careful not to get your hands or clothing caught in the fan.
3. Slippage Measurement (Advanced): For a more precise diagnosis, you can measure the fan's rotational speed relative to the engine's speed using a tachometer. At full operating temperature, the fan speed should be at least 60-70% of the engine speed. If the fan speed is significantly lower, it indicates a slipping clutch.

Water Immersion Test (Requires Disassembly):

This test requires removing the fan clutch. Submerge the clutch in hot water (simulating engine heat). As it heats up, you should feel increasing resistance when trying to spin the fan blades by hand. If it remains free-spinning, the fluid may have leaked out or degraded.

Common Causes of Viscous Fan Clutch Failure

The most frequent cause of failure is natural wear and tear over time. The silicone fluid can degrade, leak, or lose its viscous properties. Other common culprits include:

• Fluid Leakage: Seals can fail, allowing the specialised fluid to escape.
• Bimetallic Strip Failure: The temperature-sensing mechanism can become damaged or inaccurate due to repeated heating and cooling cycles.
• Bearing Wear: The internal bearings that allow the clutch to rotate can wear out, leading to noise and reduced efficiency.
• Contamination: Dirt and debris can enter the clutch, affecting its operation.

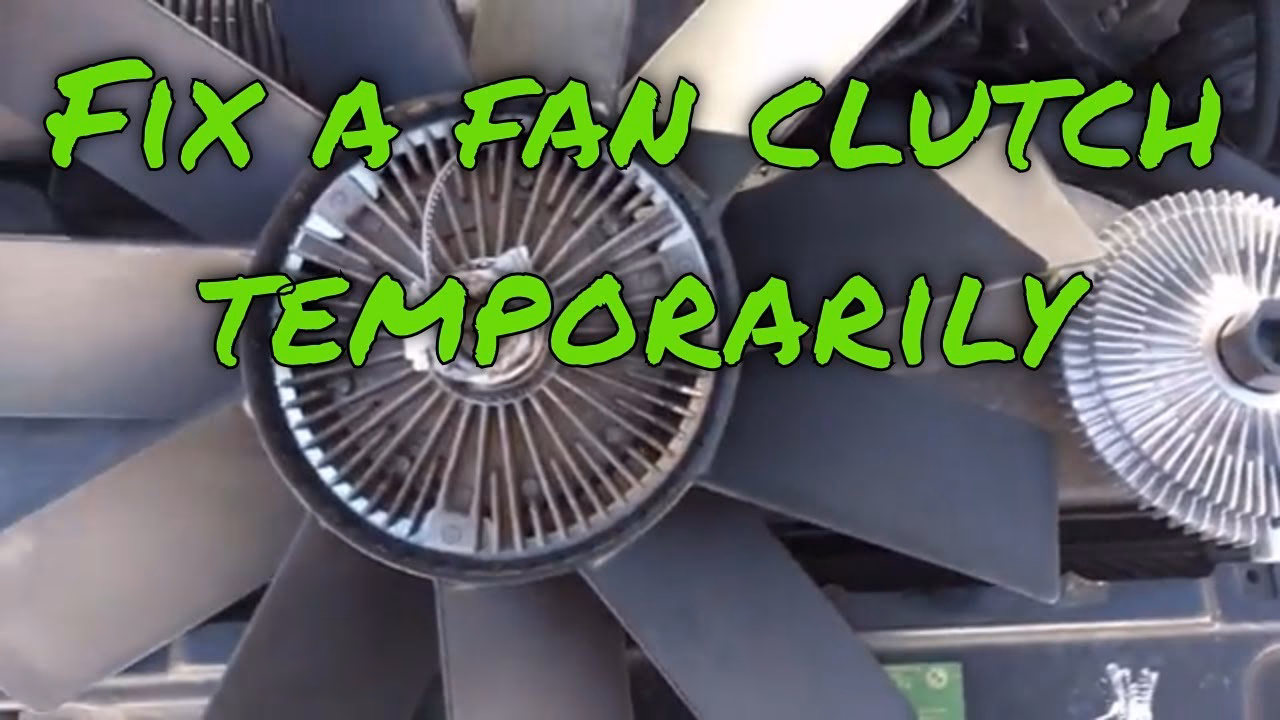

Repairing or Replacing a Viscous Fan Clutch

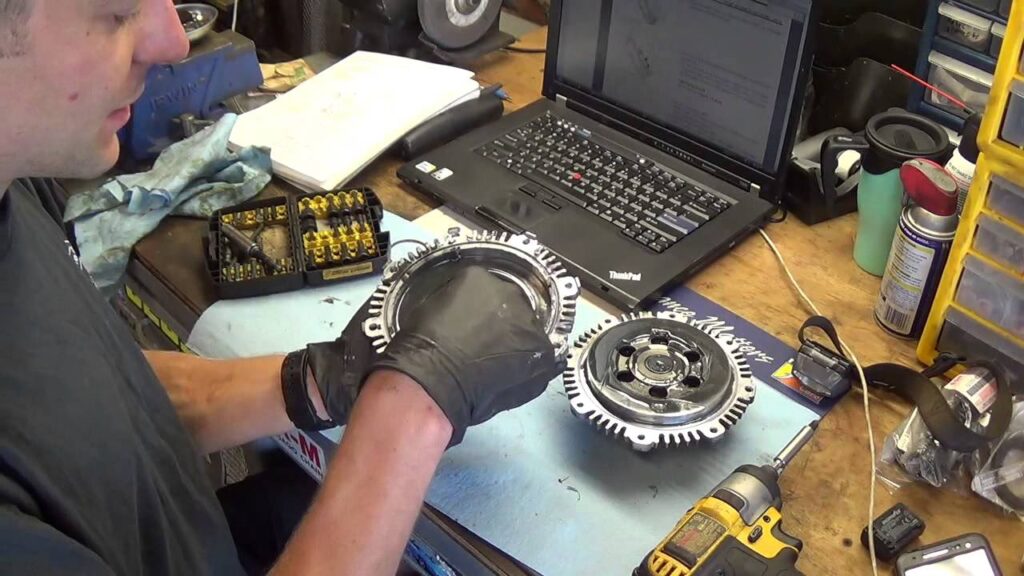

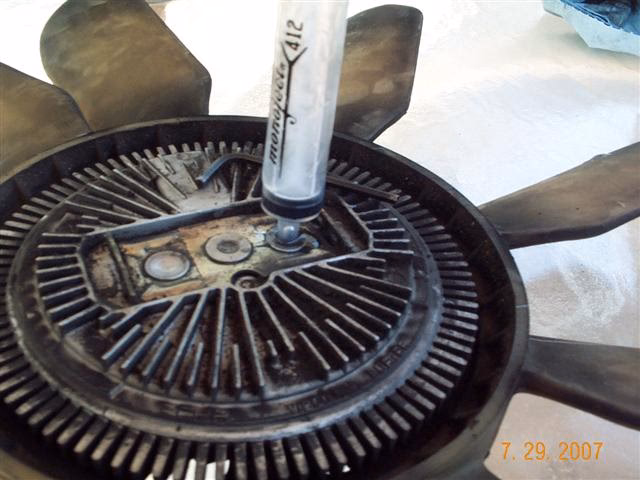

In many cases, a failing viscous fan clutch is not designed for repair, especially regarding the internal fluid. While some specialised workshops might offer fluid replacement, it's often more practical and reliable to replace the entire unit. When replacing, ensure you source a clutch that is compatible with your vehicle's make and model. Using a clutch with the incorrect fluid viscosity or engagement characteristics can lead to improper engine cooling or unnecessary power drain.

Replacing the Fan Clutch: A General Guide

1. Safety First: Disconnect the battery and ensure the engine is cool.
2. Access the Fan: You may need to remove shrouds, belts, or other components to gain access to the fan clutch.
3. Loosen the Belt: If the fan clutch is driven by a belt, you'll need to loosen the belt tension to remove it from the pulley.
4. Remove the Clutch: The fan clutch is typically held onto the water pump or fan hub by several bolts. You might need a special tool to hold the pulley or clutch stationary while loosening these bolts.
5. Install the New Clutch: Mount the new fan clutch, ensuring it's correctly aligned.
6. Reinstall Belt and Components: Re-tension the belt and reassemble any removed parts.
7. Reconnect Battery and Test: Reconnect the battery and start the engine to check for proper operation.

Choosing a Replacement Viscous Fan Clutch

When selecting a replacement, opt for reputable brands known for quality cooling system components. Checking your vehicle's VIN (Vehicle Identification Number) or consulting your owner's manual can help you find the correct part number. Brands like Behr-Hella, Nissens, and Gates are often good choices. It's worth noting that while some manufacturers claim their clutches are "lifetime" units, they do fail, and regular checks are still recommended.

Frequently Asked Questions (FAQs)

Q1: Can I drive with a faulty viscous fan clutch?
While you can drive, it's not advisable for extended periods. An overheating engine can cause severe and costly damage. If the clutch is stuck engaged, you might notice the engine running cooler than normal, which can affect performance and efficiency.

Q2: Is it normal for the fan to always be running?
No. On a cold engine, the fan should run at a low speed or be disengaged. It should only engage significantly as the engine temperature rises. If it's always roaring, the clutch is likely faulty and stuck in the engaged position.

Q3: How long do viscous fan clutches typically last?
Lifespan varies greatly depending on driving conditions and maintenance, but many can last for 100,000 miles or more. However, they are a wear item and will eventually need replacement.

Q4: Can I convert my viscous fan to an electric fan?
Yes, this is a common modification, especially if your viscous fan is failing. It often involves fitting an electric fan, a relay, a temperature sensor, and appropriate wiring. This can offer more precise control over fan speed.

Q5: What is the difference between a viscous fan clutch and an electric fan?
A viscous clutch uses a fluid coupling controlled by temperature to regulate fan speed, directly driven by the engine's belt system. An electric fan is powered by the vehicle's electrical system and controlled by a computer or temperature sensor, allowing for more independent and precise fan operation.

By understanding how your viscous fan clutch works and performing regular checks, you can ensure your engine stays cool and operates efficiently, preventing costly repairs down the line.
