E46 Steering Knuckle Clunk Fix

Why is My E46 Steering Knuckle Clunking?

Experiencing a disconcerting clunk from your BMW E46's front end, particularly when encountering bumps or during braking, can be a frustrating and concerning issue for any owner. This noise often originates from a problem within the front suspension system, and a common culprit is the steering knuckle assembly, or more specifically, the components that connect it to the rest of the chassis. In this comprehensive guide, we'll delve into the likely reasons behind that unsettling clunk and provide you with the knowledge to diagnose and potentially resolve the issue, focusing on the front control arm and its associated bushings and ball joints.

Understanding the E46 Front Suspension

To effectively tackle the clunking noise, it's essential to have a basic understanding of how the E46's front suspension is constructed. The heart of this system is the front subframe, a robust structure that serves as the mounting point for crucial components like the engine, transmission, steering rack, and most of the front suspension elements. It's important to note that the subframe design differs between rear-wheel-drive (RWD) and all-wheel-drive (AWD) models, which can influence repair procedures.

Key components of the E46 front suspension include:

• Lower Control Arms: Each side of the vehicle features a lower control arm with three critical attachment points. At the rear, a control arm bushing connects the arm to the car's frame (RWD) or the subframe (AWD). At the front, a ball joint secures the control arm to the subframe. The outer end of the control arm also incorporates a ball joint that interfaces directly with the steering knuckle.
• MacPherson Struts: Coil springs and shock absorbers are integrated into a MacPherson strut configuration, a common design for front suspension.
• Stabilizer Bar: Also known as an anti-roll bar, this component is anchored to the front subframe and connects to the struts via stabilizer links, helping to reduce body roll during cornering.

Common Causes of Steering Knuckle Clunking in the E46

The steering knuckle itself is a sturdy piece of metal, but the connections it makes are often the source of wear and tear. On the E46 chassis, the front control arm is a frequent offender when it comes to suspension noise. There are three primary areas on the front control arm that are prone to failure:

1. Ball Joint to Steering Knuckle: This ball joint is the outermost connection of the control arm and is directly involved in steering movements.
2. Ball Joint to Subframe: The inner ball joint connects the control arm to the vehicle's subframe.
3. Control Arm Bushing: This rubber or polyurethane bushing isolates the control arm from the chassis or subframe, absorbing vibrations and allowing for controlled movement.

When any of these components wear out, they develop play or looseness. This looseness allows for movement where there shouldn't be any, leading to the characteristic clunking sound as metal parts make contact or as the worn components shift under load.

Symptoms of Worn Control Arm Components

A failing control arm bushing or ball joint can manifest in several ways, with the clunking noise being the most prominent. You might experience:

• Clunking over bumps: This is a tell-tale sign that something is loose and moving as the suspension articulates.
• Shudder or vibration during braking: Worn components can cause the braking forces to be transmitted unevenly, resulting in a shuddering sensation through the steering wheel or the chassis.
• Vague or imprecise steering: Excessive play in the ball joints can lead to a feeling of disconnectedness from the road and a less direct steering response.
• Uneven tyre wear: When suspension geometry is compromised by worn parts, it can lead to premature and uneven wear on your tyres.
• Clunking during acceleration or deceleration: Torque can also cause worn components to shift, producing a clunking noise.

Diagnosing the Problem: The 'Wiggle Test'

A straightforward method to identify looseness in your front suspension components is the 'wiggle test'. This requires safely jacking up the front of your E46 so that the front wheels are off the ground. You'll then need to physically try and move the wheel to detect any play. Here's how to perform it effectively:

1. Safety First: Ensure the vehicle is on a level surface and securely supported by jack stands. Never work under a vehicle supported only by a jack.
2. Grip the Wheel: Place your hands at the 3 o'clock and 9 o'clock positions on the tyre.
3. Wiggle Side-to-Side: Apply firm pressure to move the wheel left and right.
4. Feel for Play: Listen and feel for any looseness or knocking sounds. If you feel significant movement or hear a clunk, this indicates play in either the tie rod ends or the ball joints connecting to the steering knuckle.
5. Check the Control Arm Components: Ideally, you'll have a helper to watch the control arm bushings and ball joints while you wiggle the wheel. This allows you to pinpoint exactly where the movement is occurring. You might see the control arm shift unnaturally relative to the subframe or the steering knuckle.

Hot tip: Wiggling the control arm itself side-to-side while a helper observes the attachment points is an excellent way to test the integrity of the bushings and ball joints.

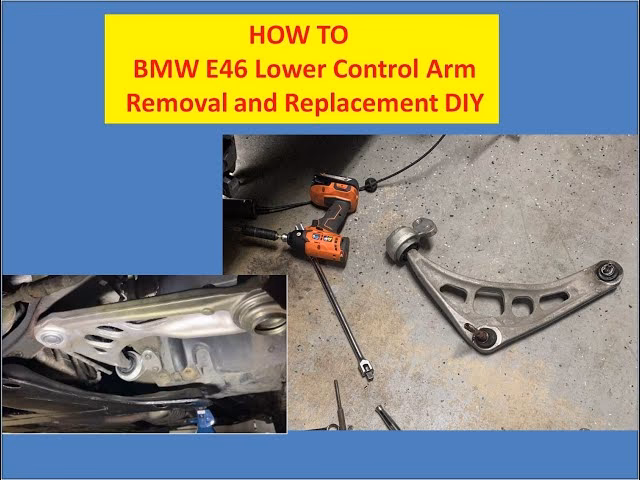

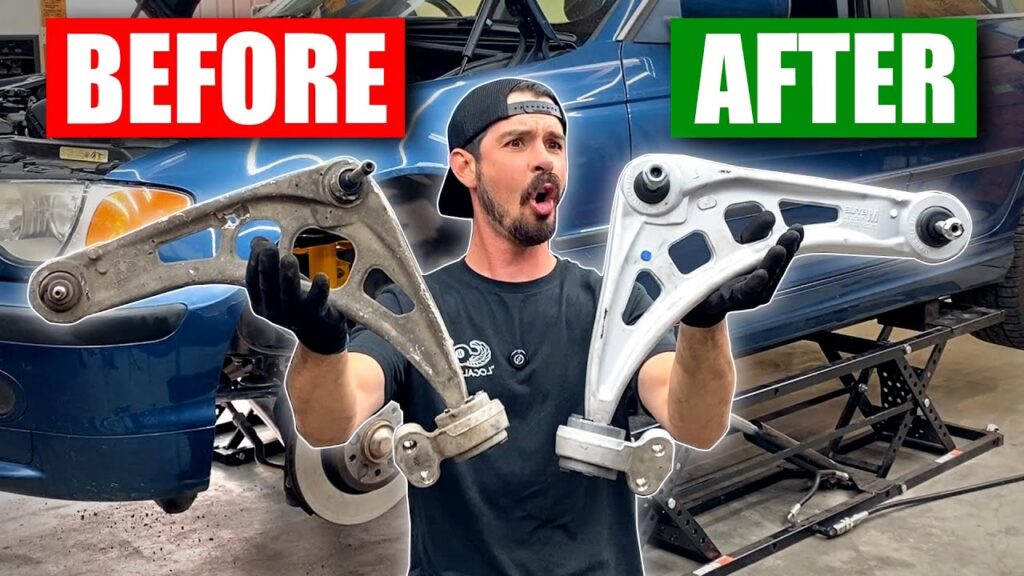

Replacing the Front Control Arm and Bushings

If your diagnosis points to a worn front control arm, it's often recommended to replace the entire control arm assembly, along with its associated bushings and ball joints. This is because the ball joints and bushings are typically press-fit or integral to the control arm, making them difficult to replace individually without specialised tools. Replacing the complete unit ensures that all the wear points are addressed simultaneously, offering a more robust and long-lasting repair.

Project Time: Approximately 3 hours

Estimated Cost: $300 (parts and labour)

Performance Gain: Smoother, stiffer suspension

Complementary Modifications: While you're at it, it's wise to also inspect and potentially replace the faulty ball joint and the control arm bushing if they are not already part of the new control arm assembly.

Tools You'll Need:

• Set of sockets
• Soft-faced hammer
• Jack and jack stands
• Torque wrench
• Pry bar (optional)

Parts Required:

• Front control arm (left and right are often sold separately)
• Control arm bushings (if not included with the new control arm)
• Ball joints (if not included with the new control arm)

Step-by-Step Replacement Guide (General Overview for RWD E46):

Disclaimer: This is a general guide. Always refer to a reputable repair manual specific to your BMW E46 model for precise instructions and torque specifications. If you are not comfortable with automotive repairs, it is best to seek professional assistance.

1. Prepare the Vehicle: Park on a level surface, engage the parking brake, and loosen the front wheel lug nuts slightly. Safely jack up the front of the vehicle and support it securely with jack stands. Remove the front wheels.
2. Locate the Control Arm: Identify the front lower control arm, which extends from the subframe to the steering knuckle.
3. Disconnect Stabilizer Link: Unbolt the stabilizer bar link from the strut assembly to allow for more movement.
4. Support the Subframe: Place a jack or support stand under the subframe to take its weight before loosening any mounting bolts.
5. Unbolt the Control Arm: You will typically find three main mounting points for the control arm: the bushing that attaches to the subframe (or chassis), and the ball joint that attaches to the steering knuckle. Loosen and remove the nuts and bolts securing the control arm. You may need to use a pry bar to gently persuade the arm to release from the steering knuckle's ball joint socket.
6. Remove the Old Control Arm: Carefully manoeuvre the old control arm out of position.
7. Install the New Control Arm: Position the new control arm, ensuring the bushings and ball joints are correctly aligned.
8. Reconnect Stabilizer Link: Reattach the stabilizer bar link to the strut.
9. Tighten Fasteners: Hand-tighten all nuts and bolts initially.
10. Lower the Vehicle: Carefully lower the vehicle until the suspension is loaded, but the wheels are still off the ground. This is crucial for tightening the control arm bushings to their correct angle.
11. Torque to Specification: Using a torque wrench, tighten all control arm mounting bolts and nuts to the manufacturer's specified torque values. This is a critical step for safety and longevity.
12. Reinstall Wheels: Put the front wheels back on and tighten the lug nuts in a star pattern.
13. Final Tightening: Fully lower the vehicle to the ground and torque the wheel lug nuts to specification.
14. Test Drive: Take the vehicle for a short test drive, listening for any unusual noises and checking steering feel.

Important Considerations and Safety Precautions

When undertaking any automotive repair, safety should always be your top priority. Always wear appropriate personal protective equipment, including safety glasses and gloves. Ensure you have a well-ventilated workspace. If you are working on the vehicle's electrical system, always disconnect the battery before starting. Catch any leaking fluids in appropriate containers and dispose of them responsibly, recycling whenever possible. If at any point you feel the task is beyond your capabilities, do not hesitate to seek professional assistance from a qualified mechanic.

It's also worth noting that as vehicles age, previous repairs may have involved the use of non-standard fasteners. While the information provided here gives general sizes, be prepared to have a range of sockets and wrenches available, as the fasteners on your specific E46 might differ from the original specifications.

Frequently Asked Questions (FAQs)

Q1: Can I just replace the control arm bushing without replacing the entire control arm?

A1: While it's technically possible, it often requires specialised hydraulic presses and can be a labour-intensive process. For most DIYers and even many professional shops, replacing the complete control arm assembly is more practical and cost-effective in the long run, as it includes new ball joints and often new bushings.

Q2: How long should new control arm bushings and ball joints last?

A2: The lifespan of these components can vary depending on driving conditions, road quality, and driving style. However, with proper installation, you can typically expect them to last anywhere from 40,000 to 80,000 miles.

Q3: Does a clunking noise always mean the control arm is bad?

A3: Not necessarily. While the control arm is a very common cause, other suspension components like worn tie rod ends, sway bar links, or even worn engine mounts can also produce similar clunking noises. A thorough diagnosis is essential.

Q4: Do I need an alignment after replacing the control arm?

A4: Yes, it is highly recommended to get a wheel alignment after replacing suspension components like control arms. This ensures that your wheels are properly aligned, preventing uneven tyre wear and maintaining optimal steering and handling.

Q5: How do I know if my E46 is RWD or AWD?

A5: Most BMW E46 models are rear-wheel drive (RWD). If your E46 has an 'x' designation in its model name (e.g., 330xi), it is all-wheel drive (AWD).

Conclusion

A clunking steering knuckle on your BMW E46 is often a symptom of worn front control arm bushings or ball joints. By understanding the suspension system, performing a thorough diagnosis, and following proper replacement procedures, you can effectively address this issue. Replacing these components not only eliminates the annoying noise but also restores crucial steering precision and enhances overall driving safety and comfort. Remember to always prioritise safety and consult a professional if you have any doubts.
