Understanding Suspension Mountings

The suspension mounting in your car is a critical component that significantly impacts your driving experience. It acts as the crucial link between your vehicle's chassis and the shock absorber, playing a pivotal role in delivering a smoother, more comfortable ride. While often an unsung hero, understanding where these mountings are located and their function is key to appreciating the intricate engineering that goes into modern vehicles.

What is Suspension Mounting?

At its core, suspension mounting refers to the points where the suspension system components are attached to the vehicle's body or chassis. These mountings are designed to absorb and dampen vibrations and shocks from the road, preventing them from being transmitted directly into the cabin. They are engineered to allow for controlled movement of the suspension components while maintaining structural integrity and ensuring precise handling.

The primary function of a suspension mounting is to isolate the vehicle's occupants from the harsh realities of the road surface. Think of them as sophisticated cushions that manage the forces generated when your tyres encounter bumps, potholes, or uneven terrain. Without effective suspension mountings, every imperfection in the road would translate into jarring impacts within the car, leading to an uncomfortable and potentially damaging ride.

Furthermore, suspension mountings are integral to the overall handling and stability of your vehicle. They ensure that the wheels remain in contact with the road surface as much as possible, even over undulating ground. This consistent contact is vital for maintaining traction, enabling effective braking, and allowing for predictable steering responses. A well-designed suspension mounting system contributes significantly to a car's ability to corner confidently and respond accurately to driver input.

Where are Suspension Mountings Located?

The exact location and type of suspension mountings can vary depending on the specific make, model, and suspension design of your vehicle. However, they are generally found at the points where major suspension components connect to the vehicle's frame or body. The most common locations include:

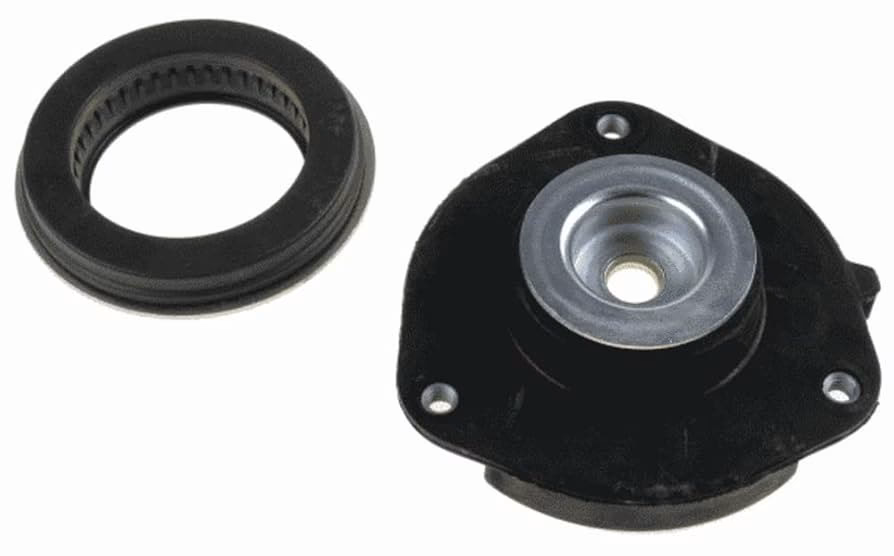

1. Strut Mountings (Top Mounts)

For vehicles equipped with MacPherson struts, the strut mounting, often referred to as the 'top mount,' is a crucial element. This component is typically situated at the very top of the shock absorber strut assembly, directly beneath the bonnet (hood). It connects the top of the strut to the vehicle's body or subframe.

The strut mounting is not just a simple bolt-on part. It often incorporates a rubber or polyurethane bushing designed to absorb noise and vibration. Many modern strut mounts also include a bearing, typically a ball bearing, which allows the strut assembly to pivot. This pivoting action is essential for steering, as it enables the front wheels to turn without twisting the shock absorber itself. A worn strut mounting can lead to clunking noises, poor steering feel, and uneven tyre wear.

2. Shock Absorber Mountings (Lower Mounts)

While the top mount connects the strut to the body, the shock absorber also needs to be securely attached to the suspension's lower control arm or axle. These lower mountings often use a rubber bushing or a more robust mounting bracket to secure the bottom of the shock absorber. Their primary role is to absorb the vertical forces generated by the suspension's movement and transmit them safely to the chassis.

The design of lower shock absorber mountings can vary significantly. Some might be simple rubber bushes pressed into a bracket, while others could involve more complex linkages and pivot points, especially in multi-link suspension systems. The durability of these mountings is paramount, as they are subjected to constant stress and impact.

3. Control Arm Bushings

Control arms (also known as wishbones) are fundamental components of most suspension systems. They connect the wheel hub assembly to the vehicle's chassis, allowing for controlled vertical movement while maintaining lateral and longitudinal stability. Each end of a control arm typically pivots on the chassis via bushings.

These control arm bushings are essentially suspension mountings. They are usually made of rubber or a synthetic elastomer. Their function is to provide a pivot point for the control arm while simultaneously isolating noise and vibration. As the suspension moves, these bushings compress and flex. Over time, they can degrade, crack, or become loose, leading to symptoms like clunks, imprecise steering, and premature tyre wear. Replacing worn control arm bushings is vital for restoring proper suspension geometry and handling.

4. Anti-Roll Bar Mountings

The anti-roll bar (or anti-sway bar) is a component designed to reduce body roll during cornering. It connects the suspension components on opposite sides of the vehicle. The anti-roll bar itself is typically mounted to the chassis via rubber or polyurethane bushings, often held in place by metal clamps.

These bushings isolate the anti-roll bar from the chassis and allow it to twist as the suspension compresses on one side and extends on the other. When these mountings wear out, you might experience clunking noises over bumps or a noticeable increase in body roll during cornering. They are a key part of maintaining your car's stability.

5. Subframe Mountings

Some vehicles, particularly those with more sophisticated suspension designs or front-wheel-drive platforms, utilise a subframe (or crossmember). The subframe is a separate structural component to which the engine, transmission, and suspension components are often attached. The subframe itself is then mounted to the main vehicle chassis.

The mountings that connect the subframe to the chassis are critical suspension mountings. These are typically large, robust rubber or hydraulic bushings. Their purpose is to absorb significant vibrations and shocks, providing a smoother and quieter ride. Worn subframe mountings can lead to a host of problems, including knocking sounds, vague steering, and a general feeling of looseness in the front end of the car. The quality of these mountings directly affects ride comfort.

The Importance of Suspension Mountings

It's clear that suspension mountings are far from insignificant. They are the unsung heroes that ensure your car behaves predictably and comfortably on the road. Their condition directly influences:

• Ride Comfort: Well-maintained mountings absorb road imperfections, preventing harsh impacts from reaching the cabin.
• Handling and Steering: They maintain proper suspension geometry, ensuring accurate steering responses and predictable cornering.
• Noise, Vibration, and Harshness (NVH): Quality mountings are designed to dampen noise and vibration, contributing to a quieter and more refined driving experience.
• Tyre Wear: Worn mountings can lead to misalignment and uneven suspension travel, resulting in premature and irregular tyre wear.
• Safety: Ultimately, the proper functioning of suspension mountings contributes to the overall safety of the vehicle by maintaining traction and control.

Common Suspension Mounting Problems and Symptoms

Like any component subjected to constant stress, suspension mountings can wear out over time. Here are some common signs that your suspension mountings may need attention:

• Clunking or Knocking Noises: Often heard when going over bumps, turning, or braking. This is a classic sign of worn bushings or loose mountings.
• Poor Steering Response: If steering feels vague, imprecise, or if the car wanders, worn control arm or strut mountings could be the culprit.
• Vibration: Excessive vibration felt through the steering wheel or the floor can indicate worn subframe or strut mountings.
• Uneven Tyre Wear: Cupping or feathering on the edges of your tyres can be a symptom of suspension geometry issues caused by worn mountings.
• Vehicle Pulling to One Side: This can be due to misaligned suspension caused by worn control arm bushings.
• Increased Body Roll: If your car leans more than usual in corners, the anti-roll bar mountings or other suspension bushings might be worn.

Choosing the Right Suspension Mounting Components

When it's time to replace suspension mounting components, selecting the right parts is crucial. Factors to consider include:

• Vehicle Specificity: Always ensure the parts are designed for your car's make, model, and year. Entering your vehicle's registration number (reg) is the easiest way to find compatible parts.
• Material: Suspension mountings are commonly made from rubber for comfort or polyurethane for a firmer, more responsive feel. Performance vehicles often benefit from polyurethane.
• Quality: Opt for reputable brands known for their durability and performance. High-quality components will last longer and perform better.

Finding the right suspension mounting components for your car is straightforward. By entering your registration, you can easily select from a range of high-quality products specifically designed to enhance your vehicle's ride and handling. Investing in quality replacement parts ensures that your suspension system functions optimally, providing a safe and comfortable driving experience for years to come.

Frequently Asked Questions (FAQs)

Q1: How often should suspension mountings be checked?
It's advisable to have your suspension system, including mountings, inspected during your regular vehicle servicing, typically every 12,000 miles or annually. However, if you notice any of the symptoms mentioned above, it's best to get them checked sooner.

Q2: Can I replace suspension mountings myself?
While some basic suspension components can be replaced by experienced DIY mechanics, replacing strut mounts, control arm bushings, and subframe mountings often requires specialised tools and a good understanding of suspension geometry. It's generally recommended to have these jobs carried out by a qualified mechanic to ensure safety and correct installation.

Q3: What's the difference between rubber and polyurethane suspension mountings?
Rubber mountings are softer and provide superior vibration damping, leading to a more comfortable ride. Polyurethane mountings are firmer and more durable, offering a more direct connection between the suspension and chassis, which can improve handling and steering response but may also transmit more vibration into the cabin.

Q4: Do suspension mountings affect wheel alignment?
Yes, absolutely. Worn or damaged suspension mountings can alter the suspension geometry, leading to misalignment. It's essential to have your wheel alignment checked after replacing suspension components, including mountings.

Q5: How long do suspension mountings typically last?
The lifespan of suspension mountings can vary significantly depending on driving conditions, driving style, and the quality of the original parts. However, they are considered wear-and-tear items and can typically last anywhere from 30,000 to 100,000 miles.
