Fixing Holes in Aluminium Radiators

Aluminium radiators have become the standard in modern vehicles due to their lightweight, strength, and excellent heat dissipation properties. However, when these vital components develop a hole or leak, the repair process can be considerably more complex than that of older copper and brass radiators. While a simple soldering job might suffice for traditional radiators, aluminium often requires a more involved approach, utilising materials like epoxy, specialised sealants, and sometimes even aluminium welding. Millions of vehicles on the road today likely have aluminium radiators, and understanding how to address leaks is crucial for any car owner.

The Nature of Aluminium Radiators

Unlike their copper and brass predecessors, aluminium radiators are typically constructed with an aluminium core and plastic tanks. These plastic tanks, often made from a durable blend of nylon, glass, and polymers, are crimped onto the aluminium core with a gasket to ensure a watertight seal. This design offers several advantages, including the ability to integrate mounting brackets, filler necks, and hose connections directly into the plastic mould, simplifying the manufacturing process. However, it also means that many 'aluminium radiator repairs' are, in fact, addressing leaks originating from the plastic tanks or the seals between the tank and the core.

Common Failure Points and Prevention

Regular maintenance is key to preventing radiator leaks. Two critical steps you can take are:

• Change Your Coolant Regularly: Over time, the protective additives in coolant can degrade, leaving the radiator vulnerable to corrosion and leaks. Always adhere to your vehicle manufacturer's recommended coolant change intervals.
• Maintain Proper Coolant Levels: An insufficient coolant level can lead to air pockets forming within the cooling system. These pockets can cause localised overheating and severe damage to the radiator and other engine components. Regularly check your coolant level and monitor your temperature gauges for any unusual fluctuations.

Beyond these general maintenance points, specific failure points in aluminium radiators include:

Epoxy Seal Failures

Many aluminium radiators feature an epoxy seal where the tubes enter the header (the main body of the radiator). This epoxy can, over time, crack or delaminate, leading to leaks. While minor seeping might be temporarily addressed with an aluminium stop-leak product, a significant crack in this area often necessitates a complete radiator replacement. Repairing these tube-to-header leaks is particularly challenging.

Plastic Tank Cracks

Cracks in the plastic tanks are a common issue, particularly at the rear of the inlet tank, often near the upper radiator hose connection. This area is subjected to the highest temperatures, and the constant thermal cycling can weaken the plastic, leading to cracks. While DIY repairs on plastic tanks are sometimes possible, cracks in this critical location are best left to professionals, with replacement of the tank or the entire radiator being the most reliable solution.

Gasket Leaks

The gasket situated between the aluminium core and the plastic tank is another potential leak source. If the crimping that secures the tank to the core is not perfectly even, coolant can seep out. A small leak might respond to a stop-leak additive. For a more hands-on approach, some owners attempt to re-crimp the tank using vice grips. The key is to apply even pressure around the entire circumference of the tank without overtightening, which could worsen the problem. It's vital to achieve a consistent gap when applying pressure.

Addressing Holes with Epoxy: A DIY Guide

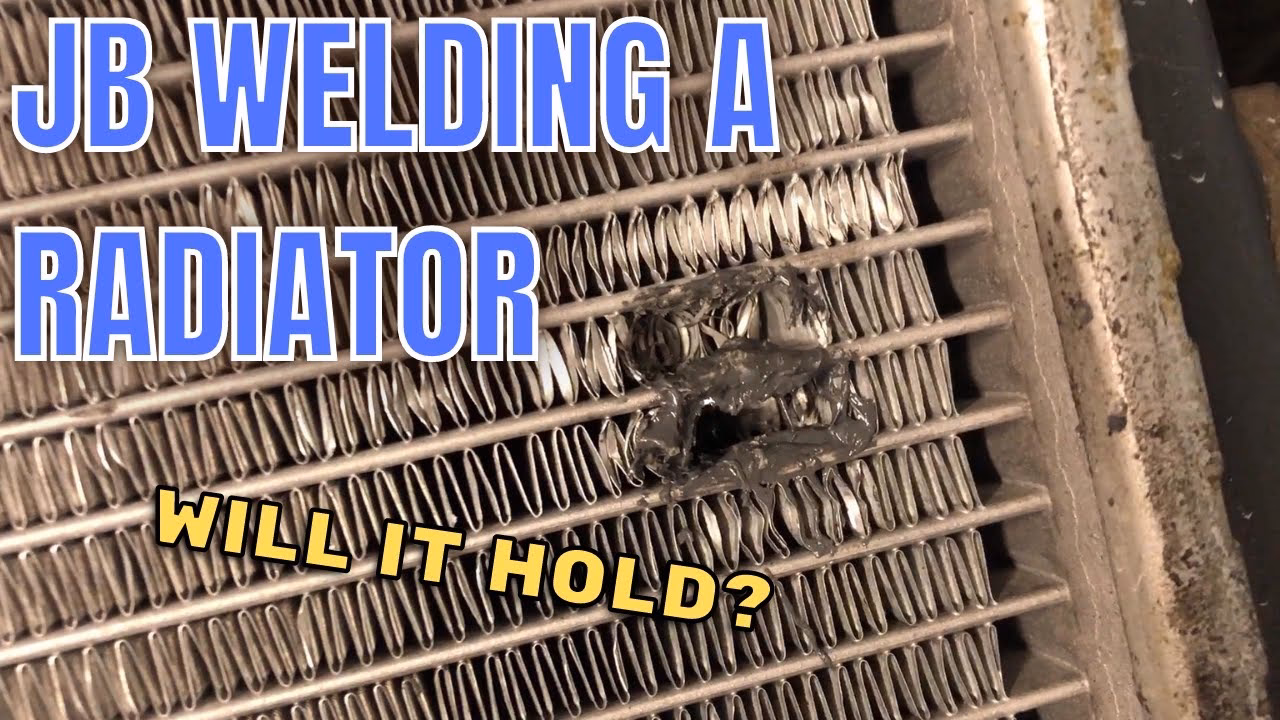

For a clean hole in the aluminium core, an epoxy repair can be a viable, albeit temporary, solution. Several aluminium repair epoxies are available on the market, such as JB Weld or Super Alloy 1. The success of an epoxy repair hinges on meticulous preparation and application.

Step-by-Step Epoxy Repair:

1. Engine Cool Down and Leak Identification: Ensure the engine is completely cool and the cooling system has lost all pressure. Disconnect any components obstructing access to the leak. If necessary, remove the radiator from the vehicle for easier access. Thoroughly clean the area around the leak with a suitable degreaser. The surface must be free from dirt, grease, and moisture for the epoxy to bond effectively. Lightly sanding the area around the leak can improve adhesion. Allow the area to dry completely.
2. Epoxy Application: Prepare the epoxy according to the manufacturer's instructions. This often involves kneading two-part epoxies together until they achieve a uniform consistency. Apply the mixed epoxy generously over the hole, ensuring it covers the damaged area completely. If there's excess epoxy, carefully wipe it away. Avoid rushing this process; a good, solid application is crucial to withstand the system's pressure. Allow the epoxy to cure fully, which can take several hours or even overnight for optimal strength.
3. Post-Repair Checks: Once the epoxy has hardened, reassemble any components that were removed. Ensure the coolant level is correct. Start the engine and let it run for 5-10 minutes, monitoring closely for any signs of leakage. Allow the system to build pressure to confirm the epoxy seal is holding. Thoroughly clean up any spilled materials, especially antifreeze and epoxy residue, as they can be harmful to pets and the environment. Dispose of waste materials responsibly.

Other Considerations for Aluminium Radiator Repair

Electrolysis: The Silent Killer

Electrolysis is an electrical current that can flow through the coolant, actively corroding and degrading metal components within the cooling system. If your aluminium radiator appears to be melting or is being 'eaten away,' electrolysis could be the culprit. Ensuring your vehicle's electrical grounding system is sound is vital. If electrolysis is present, it must be addressed before installing a new radiator, as it can quickly destroy even a brand-new unit.

The Professional Option: Aluminium Welding

For more significant damage or when a permanent, robust repair is required, aluminium welding is the preferred method. This requires specialised equipment and expertise, as aluminium is more challenging to weld than steel. A skilled radiator repair shop can often perform aluminium welding to effectively mend holes or cracks in the radiator core.

When to Replace vs. Repair

While radiator repair can often be more cost-effective than replacement, it's essential to weigh the severity of the damage against the potential for a lasting repair. For extensive damage, cracks in critical areas like the plastic tanks or tube-to-header joints, replacement is usually the most sensible and reliable option. Many general repair garages may default to recommending a new radiator, so seeking out a specialist radiator repair shop can sometimes uncover repairable solutions.

Frequently Asked Questions

Can I weld an aluminium radiator?

Yes, aluminium radiators can be welded, but it requires specialised TIG welding equipment and a skilled welder experienced with aluminium. It's not a DIY job for most home mechanics.

How long does an epoxy repair on an aluminium radiator last?

The lifespan of an epoxy repair can vary significantly. For minor leaks and under less stressful conditions, it might last for a considerable time. However, it's often considered a temporary fix, especially for higher-pressure areas or significant damage.

What is the best way to fix a leaking aluminium radiator tank?

For leaking plastic radiator tanks, replacement of the tank or the entire radiator is generally the most recommended and reliable solution. DIY repair kits for plastic tanks exist, but their effectiveness can be limited, especially for cracks in critical areas.

Is it worth repairing an aluminium radiator?

It can be worth repairing an aluminium radiator if the damage is minor and a reputable shop can perform a quality repair, often at a lower cost than a new radiator. However, for widespread corrosion or significant damage, replacement is usually more economical in the long run.

What causes an aluminium radiator to leak?

Aluminium radiators can leak due to corrosion, electrolysis, physical damage (impacts), cracks in the plastic tanks, failures of the epoxy seals between tubes and headers, or compromised gaskets between the tanks and the core.
