Fixing Car Wiring Harnesses

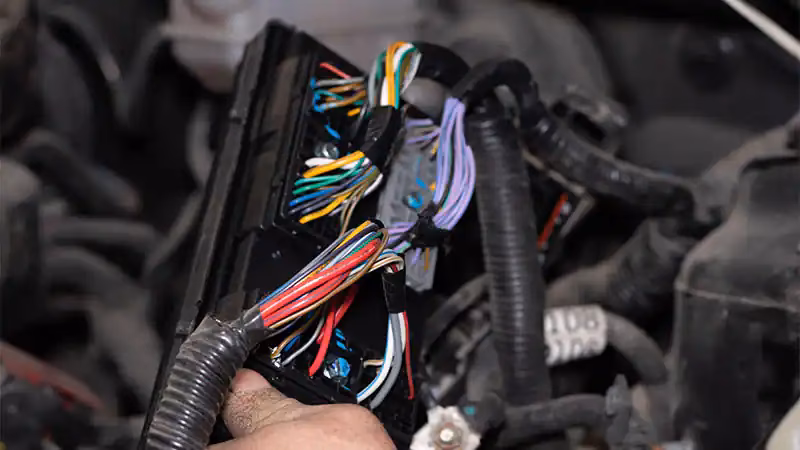

Understanding and Repairing Your Car's Wiring Harness

Your car's electrical system is a complex network of wires, connectors, and components that manage everything from starting the engine to powering your infotainment system. At the heart of this network lies the wiring harness, a protective sheath that bundles and organises numerous wires. While designed to be robust, these harnesses can unfortunately suffer damage over time due to various environmental factors and usage conditions. A seemingly minor issue like a broken wire or a melted harness can escalate into significant electrical problems if not addressed promptly. This guide will delve into why automotive wire harnesses get damaged, crucial considerations before attempting a repair, and a step-by-step process to fix a broken wire, empowering you to maintain your vehicle's electrical integrity.

How Does an Automotive Wire Harness Get Damaged?

Automotive wire harnesses are subjected to a demanding environment, which can lead to wear and tear. Several common factors contribute to their degradation:

• Vibrations: When driving on uneven surfaces or rough terrain, the constant vibrations can cause wires to chafe against each other or surrounding components. This friction can wear down the insulation, exposing the conductive material and potentially leading to short circuits. Cables located near the engine are particularly susceptible to this due to the engine's inherent vibrations.
• Heat Exposure: The engine bay is a hot environment, and prolonged exposure to high temperatures can cause the insulation on wires to become brittle, crack, or even melt. This is especially true for harnesses routed close to exhaust manifolds or other heat-generating components.
• Moisture and Corrosion: In coastal areas, salt spray can find its way into your car's interior and engine bay. This salt, combined with moisture from rain or humidity, can accelerate the corrosion of copper wires. Corrosion increases electrical resistance, hindering current flow and potentially causing connections to fail.
• Rainwater Ingress: Driving in heavy rain can allow water to penetrate the car's cabin and engine compartment. If this water contains salt (from road salt in colder climates), the combination can be particularly damaging, leading to significant corrosion of exposed wires and connectors.
• Physical Damage: Accidental damage during other maintenance or repair work, such as pinching a wire with a tool or snagging a harness on a moving part, can also occur.

Prior Considerations Before Automotive Wiring Harness Replacement

Before you even think about touching a wire, it's vital to understand the risks and prepare adequately. Tackling electrical repairs without the right knowledge and precautions can lead to further damage or personal injury.

Safety First: Always Disconnect the Battery

The golden rule for any electrical work on a vehicle is to always disconnect the battery before starting. The car battery is the primary power source, and leaving it connected poses a significant risk of electrical shock and can cause short circuits if you accidentally touch live wires. Only reconnect the battery when you are ready to perform diagnostic tests or when the repair is complete. When working with the battery connected for diagnostic purposes, exercise extreme caution to avoid touching any exposed or damaged wires with your bare hands.

Understand the Circuitry: Complexity and Delicacy

Modern vehicle electrical systems are incredibly intricate. If you are not experienced with automotive electronics, it is highly recommended to hire a qualified mechanic to perform the repair. Attempting to repair complex circuitry without the necessary expertise can lead to more problems. For instance:

• Soldering Errors: Over-soldering a wire can create a cold solder joint or add too much mass, potentially causing signal errors or increased resistance.
• Splicing Issues: Even a seemingly simple act like splicing a wire can increase its overall resistance if not done correctly. This increased resistance can impede the flow of electricity, affecting the performance of the component the wire serves.
• Connector Care: Be gentle when disconnecting and reconnecting wires from their harnesses. Damaging the plastic connectors can make it difficult to secure the new connection properly, leading to intermittent faults or complete failure.

Get the Wire Gauge Right

Using the correct wire gauge is critical for the safety and functionality of your car's electrical system. You cannot simply replace a thick gauge wire with a thinner one. Doing so can lead to the thinner wire overheating and potentially melting, causing a fire hazard and damaging the entire wiring harness. Always ensure the replacement wire's gauge matches the original wire's gauge for the specific application. For example, battery cables, which carry a substantial amount of current, require much thicker gauge wires than a signal wire for a sensor.

Consider the wire's length as well. A longer wire than necessary will introduce more resistance to the current flow. If you must use a longer wire, you may need to increase its thickness (lower gauge number) to compensate for the added resistance. Finally, avoid using solid core cables for repairs that might be subject to vibration. While they offer lower resistance initially, they are less flexible and more prone to breaking under stress compared to stranded core wires.

Select the Perfect Connector Size and Method

The connectors are the points where wires join together, and their proper function is paramount. Using connectors that are too large will result in a loose connection, which can lead to intermittent faults and eventual failure. Conversely, connectors that are too small may require excessive stripping of the wire's insulation, potentially weakening the conductor or leaving exposed wires.

Once a connection is made, using heat shrink tubing is highly recommended. This tubing shrinks when heated, creating a tight, insulated seal around the connection. This not only provides electrical insulation but also protects the splice from dirt, moisture, and further mechanical stress.

It's important to avoid quick-fix solutions like quick connector kits or basic electrical tape for harness repairs. While convenient, these methods often do not provide a reliable, long-term connection and can degrade over time, leading to future problems.

How to Replace a Broken Wiring Harness Section

Repairing a broken wire within a harness is achievable with the right tools and a methodical approach. Here’s a breakdown of the process:

Tools and Materials You'll Need:

• Replacement Wire: Ensure it's the same gauge and type (stranded core) as the original.
• Wire Strippers: For cleanly removing insulation.
• Wire Crimping Tool: To securely attach butt splices.
• Butt Splices: These are small metal sleeves used to join two wires. Ensure they are the correct size for your wire gauge.
• Heat Shrink Tubing: To insulate the splice.
• Heat Gun or Lighter: To shrink the tubing.
• Wire Cutters: For cleanly cutting the damaged wire.
• Wire Loom/Sleeving: To protect the repaired section and integrate it back into the harness.
• Diagnostic Tool (Optional but Recommended): To accurately identify the faulty wire before disconnection.

Step-by-Step Repair Process:

1. Disconnect the Battery: As stressed earlier, this is the absolute first step.
2. Identify the Faulty Wire: If you have a diagnostic tool, use it to pinpoint the specific wire that is broken or damaged. If not, you may need to visually inspect the harness for signs of damage like melted insulation, broken strands, or corrosion.
3. Prepare the New Wire: Take your replacement wire and use wire strippers to carefully remove about half an inch (1-1.5 cm) of insulation from both ends. Expose the conductive copper strands.
4. Remove the Damaged Section: Carefully cut out the damaged portion of the wire using wire cutters. Ensure the remaining ends of the original wire are clean and have enough exposed conductor to connect to the new wire. If the original wire is frayed, strip back a small section to get clean copper.
5. Crimp the First Splice: Slide a butt splice onto one end of the original wire. Insert the exposed end of the new wire into the other side of the same butt splice. Use the wire crimping tool to securely crimp the splice onto both wires, ensuring a solid mechanical and electrical connection.
6. Apply Heat Shrink Tubing: Slide a piece of heat shrink tubing over the crimped splice, ensuring it covers the entire splice and extends slightly onto both wires. Use a heat gun or a lighter (carefully) to heat the tubing evenly. It will shrink tightly, creating a robust and insulated connection.
7. Repeat for the Other End: Repeat steps 5 and 6 for the other end of the damaged wire, connecting the new wire to the remaining section of the original wire.
8. Integrate the Repair: Once both connections are made and insulated, slide a section of wire loom or protective sleeving over the entire repaired section. This will protect the new splice and help the repaired wire blend seamlessly back into the main harness.
9. Test the Connection: Before reconnecting the battery, double-check all your connections to ensure they are secure and properly insulated. Once satisfied, reconnect the battery and test the electrical system to confirm the repair was successful.

Frequently Asked Questions (FAQs)

Q1: Can I just use electrical tape to fix a broken wire?

A: While electrical tape might seem like a quick fix, it is not recommended for car wiring harnesses. It offers poor insulation, can degrade over time, and is susceptible to heat and moisture, leading to potential short circuits or connection failures.

Q2: What happens if I use a wire that is too thin?

A: Using a wire that is too thin (higher gauge number) for the current it needs to carry can cause it to overheat, melt its insulation, and potentially start a fire. It can also lead to poor performance of the electrical component it powers.

Q3: Is it always necessary to disconnect the battery?

A: Yes, absolutely. Disconnecting the battery is a crucial safety precaution to prevent electrical shocks and short circuits. Always perform electrical repairs with the battery disconnected.

Q4: How do I know which wire gauge to use?

A: The best practice is to match the gauge of the replacement wire to the original wire. You can often find markings on the wire's insulation indicating its gauge, or consult your vehicle's repair manual.

Q5: Can I repair a melted wiring harness?

A: A melted harness often indicates a more severe problem, such as a short circuit or an overloaded circuit. While individual wires within the melted section can be repaired using the method described, the entire melted harness might need replacement if the insulation is extensively damaged, compromising its protective function.

Conclusion

A broken wire in your car's electrical harness should never be ignored. It can be the source of numerous electrical gremlins and, if left unattended, can lead to more significant and costly damage to your vehicle's electrical system. Fortunately, most basic wire repairs are well within the capabilities of a DIY enthusiast with the right tools and a careful approach. By following the safety precautions, using the correct materials, and employing a methodical repair process, you can effectively restore your car's electricals to optimal condition and ensure reliable performance.
