DIY Renault Brake Pads: No Special Tools Needed

Replacing brake pads on modern vehicles, especially those equipped with an electric parking brake (EPB), can often seem like a daunting task, particularly when faced with the prospect of needing specialist diagnostic tools or costly 'Renault clips' to retract the caliper piston. Many DIY enthusiasts and seasoned mechanics alike find themselves scratching their heads, wondering how to proceed without resorting to a garage visit. However, with a bit of know-how and some basic tools, you can indeed perform this crucial maintenance task yourself, saving both time and money. This comprehensive guide will walk you through the process of replacing your Renault's rear brake pads, focusing on a clever method that bypasses the need for proprietary equipment, making it accessible for the home mechanic.

Before diving into the mechanics, it's paramount to stress the importance of safety. Working on your vehicle's braking system requires precision and attention to detail. Any errors can compromise your vehicle's stopping power, posing a significant risk. If at any point you feel unsure or uncomfortable, it is always best to consult a qualified mechanic.

Essential Tools and Materials

To successfully complete this job, gather the following:

• New brake pads (ensure they are the correct type for your specific Renault model).
• Vehicle jack and sturdy axle stands.
• Wheel chocks.
• Socket set (for wheel nuts and caliper bolts).
• Torque wrench.
• Flat-head screwdriver (wide blade).
• Wire stripper/crimper.
• Two suitable electrical connectors (e.g., spade connectors or similar, that can fit into the caliper's electrical connector).
• Approximately 1-2 metres of electrical wire (sufficient gauge for 12V).
• A fully charged 12V car battery (can be your vehicle's battery or a separate one).
• Brake cleaner.
• Wire brush.
• Caliper grease/anti-squeal compound.
• Gloves and safety glasses.

Preparation is Key

Proper preparation ensures a smooth and safe process. Do not skip these initial steps:

1. Park on a Level Surface: Ensure your car is parked on a firm, flat, and level surface. This provides stability and reduces the risk of the vehicle moving unexpectedly.
2. Chock the Wheels: Securely place wheel chocks on the wheels that will remain on the ground. For rear brake pad replacement, chock the front wheels to prevent any forward or backward movement.
3. Shut Down the Engine: Turn off the engine completely and remove the key from the ignition. This prevents accidental activation of any systems.
4. Engage Gear: Select either 1st gear (for manual transmission) or Park (P) (for automatic transmission). This adds an extra layer of security against movement.
5. Release the Park Brake: Crucially, release the electric parking brake. This is vital as it allows the caliper motor to be manipulated later. If the EPB is engaged, the piston will be locked in place.
6. Jack the Car and Remove Wheel: Loosen the wheel nuts slightly while the car is on the ground. Then, carefully jack up the rear of the car using the manufacturer-specified jacking points. Once lifted, place axle stands under the vehicle for support and remove the wheel completely. Never work under a vehicle supported solely by a jack.

Retracting the Electric Parking Brake Caliper Piston

This is the most critical part of the process, as it bypasses the need for specialist tools to retract the EPB caliper. The method involves manually powering the caliper's electric motor using a 12V battery to wind the piston back.

1. Locate and Disconnect the Electrical Connector: At the lower back side of the rear brake caliper, you will find an electrical connector attached to the EPB motor housing. This connector typically has a red safety cover. Gently slide this red cover back using a wide flat-head screwdriver. Once the cover is retracted, carefully push in the small tongue or tab on the connector to release it, and then gently pull the connector off. Be extremely careful here; these connectors can be a bit jammed, and yanking them off can damage the motor housing.
2. Note Wire Polarities: Before proceeding, observe the wires within the connector. You will typically see a red wire and a red/blue wire. It's crucial to remember which terminal corresponds to which wire colour for later reconnection. Taking a quick photo with your phone can be helpful.
3. Prepare Your 12V Connection: Take your pre-cut electrical wires and crimp or attach suitable spade connectors (or similar) to one end of each wire. These connectors must be able to securely fit into the terminals of the caliper's electrical connector. Ensure the wires are long enough to reach your 12V battery comfortably.
4. Initiate Piston Retraction (First Connection): Connect the other ends of your wires to the 12V battery. Now, here's the trick: connect the spade connectors to the terminals on the caliper in one orientation (e.g., red wire to positive, red/blue to negative). The brake motor should activate and run for a second or two, then stop. This action usually causes the piston to extend slightly or confirm its current position.
5. Retract the Piston (Second Connection - Reverse Polarity): Disconnect your wires from the caliper terminals. Then, reverse the polarity when reconnecting them (e.g., red wire to negative, red/blue to positive). Upon this connection, the motor should start "whizzing" continuously. This indicates it is winding the piston back into the caliper body.
6. Listen and Stop: Allow the motor to run for approximately 10 to 20 seconds. Listen carefully. When the motor sound changes – often becoming quieter, straining, or making a different noise indicating it has reached its limit – STOP immediately. Disconnect the wires from the caliper terminals. Over-winding can damage the internal mechanism of the EPB motor.

Replacing the Brake Pads

With the caliper piston fully retracted, you can now proceed with the standard brake pad replacement procedure.

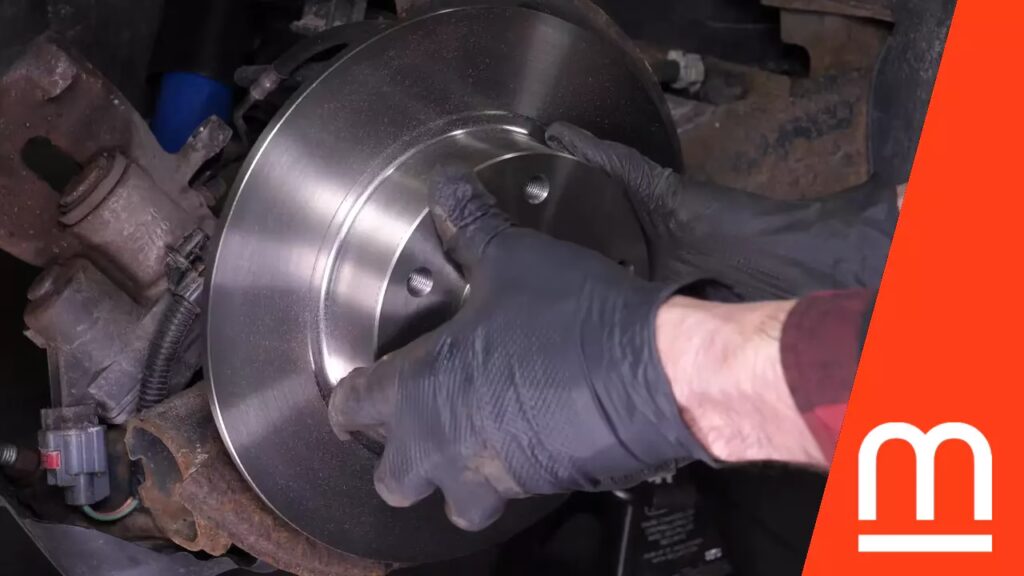

1. Open the Caliper: Depending on your Renault model, you may need to remove one or two caliper guide bolts (often 13mm or 15mm) to swing the caliper open. Some calipers might require complete removal. Once the bolts are out, gently lever the caliper open as much as it will go, or remove it entirely if necessary.
2. Remove Old Pads: Carefully slide out the old brake pads. Note their orientation, especially if they have wear sensors or specific inner/outer designs.
3. Clean the Caliper and Carrier: Use a wire brush to clean any rust or brake dust from the caliper carrier (the part the pads slide into). This is crucial for proper pad movement and preventing squealing. Apply a thin layer of caliper grease to the contact points where the pads sit in the carrier, but avoid getting any grease on the pad friction material or the brake disc.
4. Install New Pads: Insert the new brake pads. Ensure they fit snugly but can still slide freely within the carrier. If your new pads came with anti-squeal shims, install them correctly. Apply a small amount of anti-squeal compound to the back of the new pads where they contact the caliper piston and caliper body, avoiding the friction surface.
5. Reassemble the Caliper: Carefully swing the caliper back into position over the new pads and disc. Reinstall the caliper guide bolts and tighten them to the manufacturer's specified torque settings using your torque wrench. This is extremely important for safety.

Post-Installation Checks and Bedding In

Once the new pads are installed, there are a few vital steps to complete before driving.

1. Reconnect Electrical Connector: Reattach the electrical connector to the EPB motor housing. Ensure it clicks securely into place and slide the red safety cover back over it.
2. Pump the Brake Pedal: Before starting the engine, get into the car and slowly pump the brake pedal several times until it feels firm. This pushes the caliper piston out to meet the new, thicker brake pads and restores proper pedal feel.
3. Check Brake Fluid Level: Open the bonnet and check the brake fluid reservoir. The fluid level may have risen slightly due to the piston retraction. Ensure it is within the MAX/MIN lines. If it's above MAX, you may need to carefully remove a small amount using a syringe.
4. Reinstall Wheel: Mount the wheel back onto the hub, hand-tighten the wheel nuts, lower the car off the axle stands, and then fully tighten the wheel nuts to the manufacturer's specified torque pattern.
5. Repeat for Other Side: Follow all the steps for the other rear wheel.
6. Bedding In New Pads: New brake pads require a 'bedding in' period to perform optimally. Drive gently for the first 100-200 miles, avoiding hard braking. Perform a series of moderate stops from about 30-40 mph down to 10 mph, allowing the brakes to cool slightly between stops. This helps the pad material conform to the disc surface, preventing premature wear and optimising performance.

Pros and Cons of DIY Brake Pad Replacement

Frequently Asked Questions (FAQs)

Why can't I just use a C-clamp to push the piston back on an EPB caliper?

Unlike traditional hydraulic calipers, electric parking brake (EPB) calipers use an electric motor to extend and retract the piston. Simply trying to push the piston back with a C-clamp will likely damage the internal motor mechanism, leading to an expensive repair. The motor must be electronically commanded to retract, which is what the 12V battery method achieves.

Is the 12V battery method safe for the EPB motor?

When performed correctly and with caution, this method is generally safe. However, it requires careful attention to polarity and stopping the process as soon as the piston is fully retracted. Over-winding or incorrect polarity can potentially damage the motor. Always disconnect the battery immediately when the motor sound changes or stops.

What if the EPB motor doesn't 'whizz' or retract the piston?

First, double-check your connections to the 12V battery and the caliper terminals. Ensure good contact and correct polarity. If it still doesn't respond, there might be an issue with the motor itself (e.g., seized motor, electrical fault, or a blown fuse). In such cases, professional diagnosis would be required.

Do I need to bleed the brakes after replacing pads?

Typically, no. Replacing brake pads alone does not introduce air into the hydraulic system, so bleeding is usually unnecessary. However, if you open any brake lines or if the pedal feels spongy after pumping it, then bleeding the system would be required.

How often should I replace my Renault's brake pads?

Brake pad life varies significantly depending on driving style, vehicle weight, and the type of driving (city vs. motorway). As a general guide, front brake pads often last between 20,000 to 40,000 miles, while rear pads (especially with EPB) can last longer, sometimes up to 60,000 miles or more, as the front brakes do most of the stopping. Always inspect your pads regularly (e.g., during tyre rotations or servicing) for wear, usually when they reach 3mm-4mm thickness.

What are the signs that my brake pads need replacing?

Common indicators include a squealing or grinding noise when braking (often due to wear indicators), a noticeable decrease in braking performance, the brake pedal feeling spongy or requiring more pressure, or a warning light on your dashboard (if your vehicle has wear sensors).

Replacing your Renault's rear brake pads, even with an electric parking brake, is a manageable DIY task for those comfortable with basic car maintenance. By following this detailed guide and exercising caution, you can successfully retract the caliper piston using a simple 12V battery connection, avoid the expense of specialist tools, and keep your braking system in top condition. Remember, patience and adherence to safety procedures are your best tools for a successful outcome. Always double-check your work and perform a thorough road test in a safe area after any brake maintenance.
