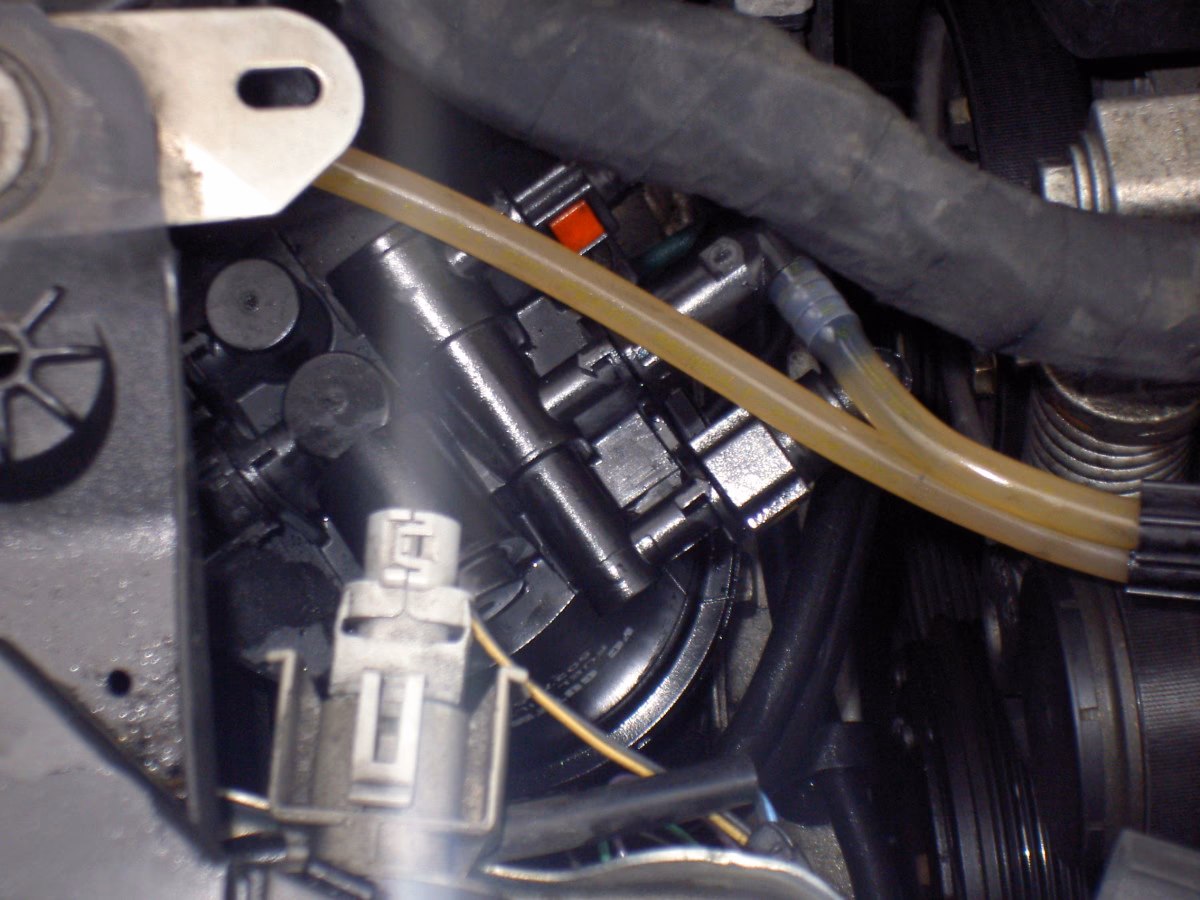

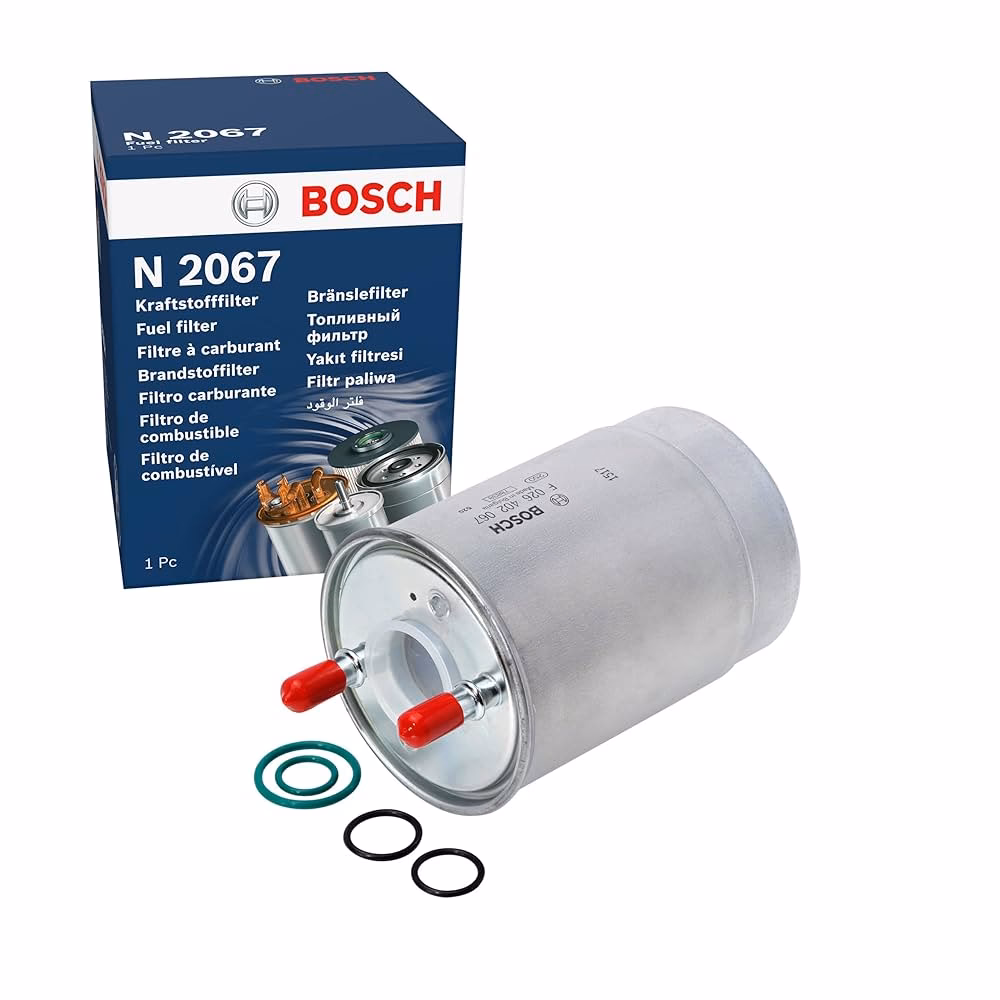

Many vehicle owners find themselves grappling with the intricacies of their fuel systems, often encountering frustrating issues with original components. One common pain point, as highlighted by many mechanics and enthusiasts, lies with the original fuel filters. These often hidden units, frequently tucked away in less accessible locations like the wing and encased in black plastic, typically feature two inlets and two outlets. While they may seem standard, their effectiveness and reliability are frequently called into question. A simple test, like shaking the filter, can reveal a concerning truth: the internal element often slides loosely within its housing. This lack of a secure seal can compromise its ability to effectively filter fuel before it reaches critical components like the high-pressure pump. Dismantling an old unit often confirms this suspicion, revealing that the element is not properly sealed around the outlet, allowing contaminants to bypass the filtration process entirely. To add insult to injury, these original filters are often surprisingly expensive, with prices reaching €50 or more, making their poor performance even more galling. Furthermore, the associated primer bulbs, often designed as two-way units, are prone to leaking due to hairline cracks, adding another layer of unreliability and cost to the system.
A Superior Solution: The Delphi CAV Filter Upgrade
Fortunately, a more robust and cost-effective solution exists. Extensive discussions with diesel specialists and practical experience have led to the adoption of a superior filtration system. The key to this upgrade lies in replacing the original, inadequate filters with a modern and highly effective alternative: the Delphi CAV 4-way cartridge filter. This unit offers significant advantages over the original design. It boasts a separate drain, a convenient water/contaminant bowl for easy inspection and removal, and a built-in air bleed valve, simplifying the bleeding process. Crucially, it comes with two spare elements, and subsequent replacements are remarkably affordable at around €2.50 each. The entire unit can be purchased for approximately €25, a fraction of the cost of the original filters. Installation is straightforward, with the filter easily mounted to the front cross member beside the bonnet latch. This strategic placement ensures easy access for checking and changing the elements, a welcome improvement over the original hidden setup.
Enhancing Protection: Inline Filters and Magnetic Traps
To further safeguard the fuel system, especially sensitive components like the injector pump, many enthusiasts opt for additional filtration measures. One popular approach involves fitting a rebuildable paper element filter in the hose that loops down to the injector pump. This adds another layer of filtration, capturing finer particles that might escape the primary filter. In conjunction with this, a magnetic inline filter can be incorporated into the same fuel line. This clever device attracts and traps metallic particles that can wear down and damage the injector pump over time. While this might seem like an added expense, the cost is minimal (around €10 for the filter and €1 for spare elements), and the peace of mind and extended life it offers to the fuel pump are invaluable.
Reliable Priming: The One-Way Truck Primer Bulb
Another common failure point in original fuel systems is the primer bulb. The original two-way units are notorious for their tendency to leak, often due to hairline cracks that develop over time. This leakage can allow air to enter the fuel system, leading to starting issues and poor running. The solution is to replace the faulty original primer bulb with a robust one-way truck component. These are designed for greater durability and reliability. Coupled with billet fittings, which offer a secure and leak-free connection, this upgrade costs approximately €8. The one-way design ensures that fuel is pushed forward only, preventing backflow and the ingress of air.
Eliminating Air Leaks: The Importance of Proper Fittings
Professional mechanics often advise that the clip-on fuel line fittings commonly found on Renault vehicles can be a significant source of air leaks. These quick-connect fittings, while convenient for initial assembly, can become loose or damaged over time, allowing air to be drawn into the fuel system. This air ingress can cause a host of problems, from rough idling to complete engine failure. To combat this, a comprehensive upgrade involves replacing all original clip-on fittings with reinforced PVC fuel pipe. This 8mm bore pipe is readily available and relatively inexpensive (around €15 for a 10-meter roll). The beauty of this pipe is its flexibility and its ability to slide securely over the vehicle's existing hose tails. For a guaranteed leak-free seal, the pipe can be dipped in hot water for a few seconds to soften it, allowing it to be easily pushed over the locking collar on the hose tails. All connections should then be secured with double ring spring clips, which are incredibly cheap and provide a very secure grip.
The Benefits of a Modernised Fuel System
By implementing these upgrades, you can achieve a significantly more reliable and efficient fuel supply system. The advantages are numerous: * Cost-Effectiveness: The total cost of these upgrades is remarkably low, often less than the price of a single original fuel filter. Ongoing maintenance costs are also drastically reduced, with replacement elements costing a mere €3.50. * Availability: The Delphi CAV filters (specifically the HDF296 model) and their elements are widely available from motor factors, agricultural suppliers, and even marine and tractor parts retailers. This ensures you can always source replacements easily. * Improved Filtration: The multi-stage filtration offered by the CAV filter, combined with the optional inline paper and magnetic filters, provides superior protection against contaminants, leading to better fuel quality and engine longevity. * Enhanced Reliability: By eliminating common failure points like leaky primer bulbs and air-leaking fittings, you create a much more dependable fuel system, reducing the risk of breakdowns and starting problems. * Ease of Maintenance: The relocated and more accessible filter makes routine checks and replacements a simple and quick task, saving you time and effort. * Warranty Protection: As highlighted by Delphi, using genuine Delphi filters can be crucial for maintaining the warranty on your fuel pump. By upgrading to a Delphi filter, you ensure your new pump is adequately protected and its warranty remains valid.
Frequently Asked Questions
Q1: Are the original fuel filters really that bad?A1: While they may meet basic requirements, many users report issues with their sealing and general reliability, often leading to premature component failure and costly repairs. The ease with which the element can move within the housing is a significant concern. Q2: Is the Delphi CAV filter a universal fit?A2: While the specific model mentioned (HDF296) is popular and widely compatible, it's always advisable to check the specifications against your vehicle's requirements and consult with a specialist if unsure. Q3: How often should I check and change the fuel filter elements?A3: This depends on the quality of your fuel and driving conditions. A good rule of thumb is to inspect the water/contaminant bowl regularly and change the elements every 12,000-15,000 miles or annually, whichever comes first. However, if you notice any performance issues, it's best to check them sooner. Q4: Will this upgrade void my vehicle's warranty?A4: Generally, aftermarket upgrades that improve the system's performance and reliability, especially those that use reputable brands like Delphi, are unlikely to void your warranty. In fact, using a superior filter like the Delphi CAV can actually help protect components and preserve your warranty, particularly for the fuel pump. Q5: Where can I buy the Delphi CAV filter and its elements?A5: These filters and their elements are widely available from automotive parts suppliers, agricultural machinery dealers, and online retailers specialising in diesel components. Look for the HDF296 model or equivalent.
Conclusion
Upgrading your vehicle's fuel system with a Delphi CAV filter, a reliable one-way primer bulb, and reinforced fuel lines is a sensible and cost-effective modification. It addresses the shortcomings of the original components, offering superior filtration, enhanced reliability, and easier maintenance. The peace of mind that comes with knowing your fuel system is protected by quality components, and the significant cost savings on both initial purchase and ongoing maintenance, make this a highly recommended upgrade for any discerning vehicle owner.
