There's little more frustrating than hopping into your car after it's been parked for a while, turning the key, and finding it simply won't budge. Often, the culprit behind this immovable situation is a set of seized brakes. While it might seem alarming, it's a relatively common issue, particularly in the UK's often damp climate. Understanding why your brakes seize and what symptoms to look out for can save you a significant amount of hassle and potential repair costs down the line.
When brakes seize, it effectively means that components of the braking system have become stuck together or within their housing, preventing the wheel from rotating freely. This can manifest in a few distinct ways, each with its own set of causes and implications for your vehicle's performance and safety.
The Common Causes of Seized Brakes
Several factors can contribute to brakes seizing, especially after a car has been left stationary for an extended period. These often involve a combination of moisture, corrosion, and lack of movement.
1. The Piston Stuck Within the Caliper
The brake caliper houses a piston (or pistons) that pushes the brake pads against the disc when you press the brake pedal. This piston operates within a bore and is sealed by rubber seals. Over time, these seals can degrade, allowing moisture and dirt to enter the caliper. This ingress can lead to rust forming on the piston or inside the caliper bore. Once rust builds up, the piston can become incredibly difficult, if not impossible, to retract, effectively holding the brake pads against the disc even when the pedal is released.
Furthermore, brake fluid is hygroscopic, meaning it absorbs moisture from the air. Old, contaminated brake fluid can lead to internal corrosion within the caliper and brake lines, exacerbating the problem of a sticky or seized piston. If the car has been sitting for a long time, this internal corrosion can solidify, locking the piston in place.
2. The Pads Stuck to the Disc

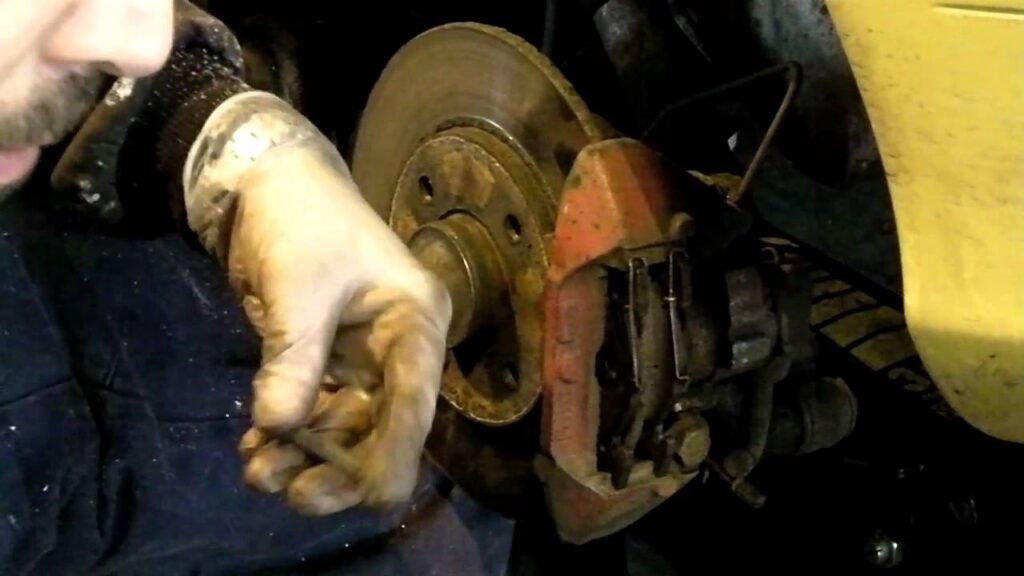

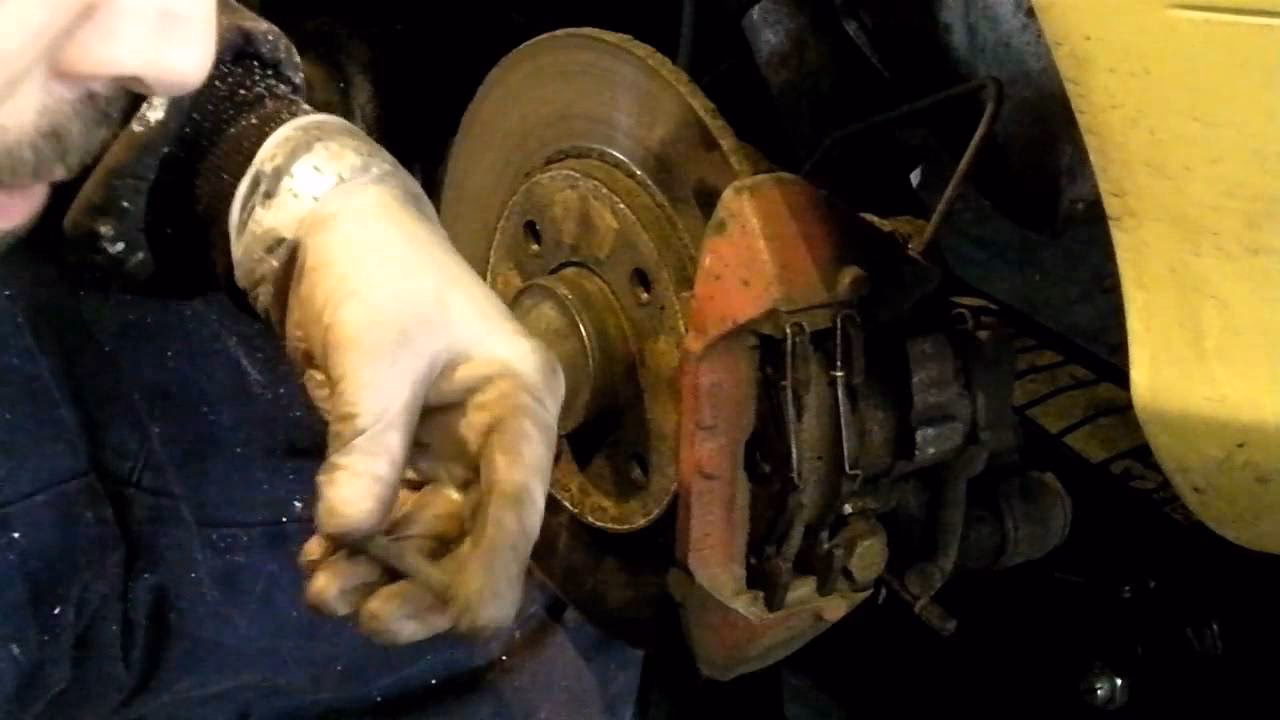

This is perhaps the most common and often the least severe form of seizure after a car has been sitting. Brake discs are typically made of cast iron, which is highly susceptible to rust, especially when exposed to moisture. If your car is parked for a few days, particularly in damp or humid conditions, a thin layer of surface rust will form on the brake discs. When the brake pads are pressed against these rusted discs (e.g., when the handbrake is applied), the pads can essentially bond to the rust layer. This 'sticking' can be quite firm, making it difficult for the car to move initially.
While often easily freed with a gentle attempt to drive, prolonged sitting can lead to more significant rust build-up and a stronger bond, potentially damaging the pads or discs if excessive force is used to break them free.
3. Seized Slide Pins (Single-Piston Calipers)
Many modern vehicles, especially on the front axle, use floating calipers. These calipers are designed to slide back and forth on guide pins (often called slide pins) to ensure even pressure is applied to both sides of the brake disc. These pins need to be well-lubricated to allow the caliper to move freely. If the lubrication dries out, or if dirt and moisture ingress cause corrosion on the pins, they can seize. When a slide pin seizes, the caliper can no longer float correctly, meaning the brake pads won't retract fully or apply pressure evenly.
This type of seizure might not completely lock the wheel, but it significantly impairs braking performance and leads to uneven pad wear, often only noticed during routine maintenance or an MoT test.
Recognising the Symptoms of Seized Brakes
The symptoms of seized brakes can vary depending on which component has failed and to what extent. It's crucial to identify these signs early to prevent further damage and ensure your safety.
Immediate and Obvious Symptoms: Car Won't Move
If your car has been unused for an extended period and the brakes are completely seized, the symptoms are fairly obvious: you simply can't get the car to move. You might hear a loud clunk or thud as you try to engage gear and move, indicating the pads breaking free from the disc, or the car might remain stubbornly stationary, even with significant throttle input. Forcing the car to move in this state can cause damage to the braking components or even the transmission.
Subtler Symptoms When Driving
If the seizure isn't complete or affects only certain components, you might be able to drive the car, but with noticeable issues:
- Reduced Power and Pulling to One Side: If a piston is stuck within the caliper, the car will feel sluggish, as if it's constantly battling against resistance. The binding brake will create drag, and if only one side is affected, the car will tend to pull strongly to that side when you're trying to accelerate or even just coast.
- Overheating Smell and Smoke: A binding brake generates an enormous amount of friction and heat. As you drive, the affected brake assembly will get incredibly hot – very hot. You'll quickly notice a distinctive, acrid, burning smell, often described as similar to burning rubber or chemicals. This is the brake linings overheating. In severe cases, you might even see smoke billowing from the wheel arch. If this occurs, stop immediately! Continuing to drive not only risks the brakes catching fire but will also cause severe damage to the brake disc, pads, and potentially compromise wheel bearings and other components connected to the wheel hub due to the extreme heat.
- Uneven Pad Wear and Reduced Braking Ability: If it's the slide pins that have seized, the car may initially appear to drive normally. However, because the caliper can't float properly, the brake pads will only be pushed onto the disc from the piston side, or unevenly. This leads to significantly reduced braking ability and, crucially, will wear out the pad on the inside much faster than the outer pad. This uneven wear is a clear indicator and is often only picked up at MoT test time when the brakes are tested and are discovered to be imbalanced.
- Squealing or Grinding Noises: A seized caliper or sticky pads can cause continuous friction, leading to persistent squealing, grinding, or rubbing noises even when you're not applying the brakes.
Comparing Seizure Types & Their Impact
Understanding the nuances of each seizure type helps in diagnosis and repair:
| Seizure Type | Primary Cause | Common Symptoms | Severity & Risks |
|---|---|---|---|
| Piston Stuck in Caliper | Internal corrosion, old brake fluid, damaged seals | Car won't move, severe drag, pulling to one side, burning smell, smoke, extreme heat | High; dangerous, can cause fire, extensive component damage |
| Pads Stuck to Disc | Surface rust on disc (esp. with handbrake applied), moisture | Car won't move, loud 'clunk' when freed, often resolves with gentle force | Low to Medium; can damage pads/discs if forced excessively |
| Seized Slide Pins | Lack of lubrication, corrosion on pins, dirt ingress | Reduced braking, uneven pad wear (inner pad wears faster), potentially subtle drag, MoT failure | Medium; affects braking efficiency, leads to premature wear, can cause caliper failure over time |
Preventing Brake Seizure
Prevention is always better than cure, especially when it comes to critical safety components like brakes. Here are some key measures to take:
- Regular Vehicle Use: The simplest way to prevent brakes from seizing is to use your car regularly. Even a short drive once a week can help keep components moving and prevent excessive rust build-up.
- Regular Brake Fluid Flushes: Brake fluid should be flushed and replaced every two years, or as per your vehicle's manufacturer recommendations. This removes old, moisture-laden fluid, preventing internal corrosion within the calipers and brake lines. This is a crucial maintenance step often overlooked.
- Proper Caliper Maintenance: During brake pad and disc replacement, ensure that the caliper slide pins are thoroughly cleaned, inspected for corrosion, and re-lubricated with appropriate high-temperature grease. The rubber boots protecting the pins should also be checked for tears.
- Consider Parking Habits: If you're parking your car for an extended period (weeks or months), especially in a damp environment, consider leaving it in gear (manual transmission) or 'Park' (automatic) with wheel chocks, rather than relying solely on the handbrake. This prevents the handbrake mechanism from holding the pads against the discs, reducing the chance of them sticking. If you do use the handbrake, try to release it and move the car a few feet every week or two, if possible.
- Routine Inspections: Include a visual inspection of your brake discs for excessive rust and check for any signs of fluid leaks around the calipers. Regular servicing by a qualified mechanic will also catch potential issues before they become severe.
What to Do If Your Brakes Seize
If you find your brakes seized, don't panic, and certainly don't force it aggressively. Here's a sensible approach:
- Gentle Attempts to Move: If it's just surface rust, a gentle rocking of the car (forward and reverse) might be enough to break the pads free. Use minimal throttle and listen for a distinct 'clunk' as they release.
- Inspect for Overheating: If you manage to get the car moving but notice a burning smell or pulling, stop immediately and check the wheels. Do not touch the brake components as they will be extremely hot. Look for smoke.
- Do Not Drive with Binding Brakes: Driving with a seized caliper or heavily binding brakes is extremely dangerous. It severely compromises your braking ability, risks fire, and will cause extensive, costly damage to your braking system and potentially other wheel-end components.
- Professional Help: If gentle attempts fail, or if you suspect a seized piston or slide pin, it's best to call for roadside assistance or have the vehicle towed to a reputable garage. A professional mechanic can accurately diagnose the issue and perform the necessary repairs, which might involve caliper replacement, pin cleaning/lubrication, or a full brake service.
Frequently Asked Questions About Seized Brakes
Q: Can I fix seized brakes myself?
A: It depends on the cause. If it's just surface rust bonding the pads to the discs after a short period, a gentle attempt to move the car might free them. However, if a caliper piston or slide pins are seized, it requires mechanical knowledge, specific tools, and potentially new parts. Unless you are an experienced DIY mechanic with the right equipment, it's safer to consult a professional.
Q: How long can a car sit before brakes seize?
A: There's no fixed time. It can happen after just a few days in very damp conditions, or not at all for several weeks in dry conditions. Factors like humidity, temperature fluctuations, brake system condition (age of fluid, condition of seals), and whether the handbrake was applied all play a role. Generally, the longer a car sits, the higher the risk.
Q: Is it safe to drive with seized brakes?
A: Absolutely not. Driving with seized or binding brakes is extremely dangerous. It drastically reduces your braking efficiency, can cause the brakes to overheat and potentially catch fire, and leads to rapid, severe damage to discs, pads, and wheel bearings. Stop immediately if you suspect a seized brake.
Q: What's the difference between a seized caliper and stuck pads?
A: A 'seized caliper' generally refers to the internal mechanism of the caliper being stuck – either the piston won't retract or the caliper itself won't slide on its pins. This prevents the pads from releasing from the disc properly. 'Stuck pads' often refers specifically to the brake pads themselves adhering to the brake disc, typically due to surface rust after the car has been parked, especially with the handbrake on. While both prevent the wheel from turning, a seized caliper is usually a more complex mechanical failure requiring repair or replacement, whereas stuck pads are often a temporary bonding issue.
Q: Will my MoT test detect seized brakes?
A: Yes, absolutely. During an MoT test, your car's braking performance is thoroughly checked, including brake efficiency and balance across axles. Seized calipers or slide pins will almost certainly result in an imbalance in braking force, leading to an immediate failure.
Understanding the causes and symptoms of seized brakes is vital for any car owner. Regular maintenance, including brake fluid changes and proper caliper lubrication, goes a long way in preventing this frustrating and potentially dangerous issue. When in doubt, always prioritise safety and seek professional assistance.
