Keeping your vehicle in prime condition is paramount for both its longevity and your safety on the road. While some aspects of car maintenance are best left to professionals, understanding fundamental tasks like changing your engine oil and knowing the complexities of a gearbox repair can empower you as a car owner. This guide delves into these crucial areas, offering insights into routine engine oil maintenance and shedding light on the intricate process of manual gearbox removal and refitting, specifically for various Renault Clio models.
The Essential Engine Oil Change: A Vital Service
Engine oil is the lifeblood of your car's engine, providing crucial lubrication, cooling, and cleaning properties. Over time, oil degrades and becomes contaminated with metal particles and combustion by-products, reducing its effectiveness. Regular oil changes are therefore non-negotiable for maintaining engine health and efficiency.
Preparing for the Oil Change
Before you begin, ensure your engine is warm but not scalding hot. A brief drive, perhaps 10 minutes with some gear changes, helps the oil thin out, allowing it to drain more completely. For instance, on a 2007 Mk3 1.4 manual, a short run was enough to warm the oil, which, while not terrible, certainly needed changing, showing some fine metallic grit – a clear sign of wear.
The Draining Process
Position your vehicle on a flat, stable surface, ideally on ramps or jack stands, ensuring it's secure. Locate the drain plug on the oil sump, usually at the lowest point of the engine. Place a suitable container beneath the plug to catch the old oil. An old washing-up bowl can be surprisingly effective for this, as its wider, shallower surface helps minimise splashes compared to some narrow-mouthed plastic cans. Remember to remove the oil filler cap on top of the engine and, crucially, the dipstick to allow air to enter and facilitate a smooth, steady drain. A common oversight, like forgetting to remove an air hole plug, can lead to messy overflows!
Once the old oil has fully drained – which might take a while, especially if the oil is thick or cold – replace the drain plug. Always use a new sump plug washer to ensure a tight, leak-free seal. Tighten the plug to the manufacturer's specified torque settings; over-tightening can damage the sump, while under-tightening can lead to leaks.
Replacing the Oil Filter
While the oil is draining, locate and remove the old oil filter. This typically requires a special oil filter wrench. Be prepared for a small amount of oil to spill from the filter housing. Once removed, ensure the mating surface on the engine is clean. Apply a thin film of new oil to the rubber gasket of the new filter before screwing it on. Hand-tighten the filter until the gasket makes contact, then give it an additional quarter to half turn, or follow specific manufacturer instructions.
Refilling with New Oil
Using a funnel, carefully pour the new, correct grade of engine oil into the oil filler hole on the top of the engine. Filling can be slow, especially with narrow access points. For the 2007 Mk3 Clio mentioned, a clear tubing (around 1 metre of 12mm inner/15mm outer) on a funnel, fed from above, worked perfectly. This allows for precise control, but be mindful of the slow flow and avoid overfilling. Continuously check the dipstick as you fill, adding oil incrementally until it reaches the 'full' or 'max' mark. Replace the oil filler cap and dipstick securely.
After refilling, start the engine and let it run for a few minutes to circulate the new oil. Turn the engine off, wait a few minutes for the oil to settle, and then re-check the oil level on the dipstick, topping up if necessary. Finally, ensure proper disposal of the old oil at an authorised recycling centre.
Understanding Manual Gearbox Repair: A Complex Endeavour
Unlike a routine oil change, manual gearbox repair or replacement is a significantly more involved task, often requiring specialised tools, technical knowledge, and considerable mechanical aptitude. The process typically involves extensive dismantling of surrounding components to access and remove the gearbox itself.
When Gearbox Intervention is Needed
Gearbox issues can manifest as difficulty shifting gears, grinding noises, a burning smell, or a complete loss of drive. These symptoms often indicate internal wear or damage, necessitating removal for inspection, repair, or replacement. The following outlines the general procedures for removing and refitting manual gearboxes on various Renault Clio models, highlighting the complexity and the need for adherence to specific service manual instructions.
General Principles of Gearbox Removal and Refitting
Regardless of the specific gearbox type (JH3, JR5, K9K, TL4, F4R, M4R, K4M), the process begins with thorough preparation. This involves safely lifting and securing the vehicle, disconnecting the battery, and removing numerous ancillary components that obstruct access to the gearbox. These typically include the battery tray, air filter unit, front wheels, driveshafts, various engine mounts, electrical connectors, and sometimes even the front bumper or subframe.
A crucial step for any gearbox removal is to drain the gearbox oil. Once all obstructions are cleared, and the gearbox is adequately supported (often with a component jack and specialised tools like the Bvi. 1718), the mounting bolts and studs securing it to the engine bell housing are systematically removed. Special attention is paid to elements like the clutch slave cylinder, which often needs to be disconnected and protected.
Refitting is essentially the reverse of removal, but with critical additional steps. These include checking the presence and correct positioning of engine/gearbox centering rings, replacing essential components such as driveshaft circlips and differential seals, and ensuring that specific components (e.g., clutch shaft splines, transmission output shaft) are not greased to avoid damage to the clutch slave cylinder. All bolts must be tightened to their precise torque specifications, and hydraulic systems (like the clutch) must be bled after reassembly.
Specific Gearbox Removal and Refitting Procedures (Renault Clio Examples)
JH3 or JR5 Gearboxes
This procedure involves positioning the vehicle on a two-post lift and securing it with a strap. Extensive removal of components precedes gearbox access: battery, battery tray, air inlet, air filter unit, front wheels, wheel arch liners, and engine undertray. The gearbox is drained, and gear control cables, ABS sensor connectors, and both driveshafts are disconnected/removed. The radiator assembly is secured, and its cross member removed, along with the engine tie-bar. Electrical connections (reverse gear connector, earth strap, starter, TDC sensor, injection computer) are uncoupled. The clutch slave cylinder is disconnected, requiring careful fluid collection and protective plugs. Finally, the scuttle panel grille, scoop, and left-hand suspended engine mounting are removed before the upper and lower bell housing bolts are undone, and the gearbox, supported by a component jack, is removed.
Refitting requires checking engine/gearbox centering rings and a stern warning against greasing the transmission output shaft or clutch shaft splines. Crucially, the clutch slave cylinder and right-hand driveshaft circlip must be replaced, along with differential seals. The gearbox is refitted, bolts torqued, and all previously removed components are systematically reinstalled, culminating in filling the gearbox and refitting the battery.
K9K and TL4 Gearboxes
Similar to JH3/JR5, this begins with lifting and securing the vehicle. Initial removals include the scuttle panel scoop, battery, battery tray, air filter unit, front wheels, wheel arch liners, engine undertray, and front bumper. The gearbox is drained, and both driveshafts are removed. Unique steps involve removing side stiffener bolts, front axle sub-frame bolts, and tie-rod. For K9K and 772 variants, specific heating element and coolant pump support bolts and connectors are handled. The radiator mounting cross member is removed after securing the cooling unit. The rear suspended engine mounting and front axle sub-frame are removed. Special attention is given to marking the earth terminal position before removal to ensure correct reassembly. Exhaust components, gear control cables, expansion bottle, and wiring harness channels are unclipped or removed. Electrical components like the starter, engine speed sensor, coolant temperature sensor, and injection computer are disconnected. The clutch slave cylinder is disconnected with a warning not to pull the clip. Finally, the left-hand suspended engine mounting is removed, often requiring specialized tools like the (Mot. 1453) and safety straps, before the main gearbox bolts are undone and the gearbox is carefully removed using a component jack and the (Bvi. 1718) tool.
Refitting involves stringent warnings against greasing the gearbox output shaft or clutch shaft splines and mandates replacing the slave cylinder and differential output lip seals. The new gearbox is positioned with the (Bvi. 1718), bolts torqued, and all components reassembled. For K9K and 772, specific exhaust strut, diesel injector wiring, and earth wiring reassembly steps are vital, including aligning earth terminal marks. Final steps include bleeding the clutch, topping up the gearbox, and reattaching all previously removed components.
F4R, 830, and TL4 Gearboxes
Preparation involves lifting, disconnecting the battery, uncliping the breather pipe, and removing the air filter unit, battery tray bracket, front wheels, and bumper. The gearbox is drained, and both driveshafts are removed. The cooling unit is strapped, and the radiator mounting cross member and front axle sub-frame are removed. The earth strap bolt, gearbox controls, reverse gear switch connector, and clutch slave cylinder pipe are disconnected. A lifting eye is fitted to the gearbox side, and the scuttle panel grille removed. The (Mot. 1453) tool is then fitted.
Removal of the left-hand suspended engine mounting precedes the unscrewing of starter, bell housing nuts and bolts (leaving one in place initially), and gearbox mounting studs. The (Bvi. 1718) and component jack support the gearbox, with a bracket and rod used to prevent tilting. The final bell housing bolt is removed, and the gearbox is carefully lowered.
Refitting follows warnings about not greasing clutch shaft splines, replacing the slave cylinder and differential output lip seals. The gearbox mounting studs and centering devices are checked. The gearbox is positioned with the (Bvi. 1718), one bell housing bolt refitted, then the tool is removed, and all remaining bolts/nuts are torqued. The left-hand suspended engine mounting and lifting eye are refitted, clutch slave cylinder pipe connected, and scuttle panel grille replaced. Finally, the hydraulic clutch system is bled, reverse gear switch connected, gear controls clipped, earth strap refitted, and all remaining components reinstalled, concluding with filling the gearbox and connecting the battery.
M4R and TL4 Gearboxes
Similar initial preparation: vehicle on lift, battery and tray removed, air filter unit, front wheels, wheel arch liners, and front bumper removed. Gearbox is drained, and both driveshafts are removed. The cooling assembly is strapped, and radiator mounting cross member and front axle sub-frame are removed. The earth wiring bolt, gearbox controls, wiring harness channel bolts, reverse gear switch connector, downstream oxygen sensor connector, and clutch control pipes are disconnected. The scuttle panel grille and scoop are removed. The union from the brake servo pipe on the vacuum pump is disconnected. The (Mot. 1453) (7) tool is positioned, with a warning not to deform air conditioning pipes.
The left-hand suspended engine mounting is removed, followed by starter bolts, gearbox nuts, gearbox bolts (leaving one in place), and gearbox studs. The breather pipe is unclipped. The (Bvi. 1718) and component jack are used, along with a bracket, shims, and a rod (possibly requiring a self-tapping bolt for attachment to the gearbox). The rod is tightened anti-clockwise to prevent tilting, ensuring pulleys do not press against the side member. The final gearbox bolt is removed, and the gearbox is lowered.
Refitting involves standard warnings against greasing clutch shaft splines and mandates replacing the slave cylinder and differential output lip seals. Gearbox studs and centering devices are checked. The gearbox is positioned with the (Bvi. 1718), one bell housing bolt refitted, then the tool removed, and all remaining bolts/nuts torqued. The left-hand suspended engine mounting and (Mot. 1453) are removed. The brake servo hose, clutch slave cylinder pipe, scuttle panel scoop/grille are refitted. The hydraulic clutch system is bled, reverse gear switch connected, gear controls clipped, wiring harness channel bolt and earth wiring refitted, and the downstream oxygen sensor connector repositioned. Final steps include refitting the subframe, radiator cross member, bumper, driveshafts, wheels, air filter unit, battery tray, clipping the breather pipe, topping up the gearbox, and refitting the battery.
K4M and TL4 Gearboxes
Initial preparation involves removing the engine undertray, front wheels, wheel arch liners, front bumper, windscreen wiper arms, scuttle panel grille, and scoop. The gearbox is drained. Both driveshafts and differential output seals are removed. The air resonator, battery, battery tray, air filter unit, radiator mounting cross member, starter, lower engine tie-bar, and left-hand suspended engine mounting are all removed. Gear control cables are unclipped from selector ball joints and their support. The (Ms. 583) tool is fitted between the brake fluid reservoir and clutch master cylinder. The hydraulic clutch control pipe is disconnected (with a warning not to pull the clip), and the reverse gear switch connector is disconnected. Blanking plugs are inserted. The earth terminal position is marked before removing its bolt. The wiring harness channel bolt on the gearbox is removed, and the breather pipe disconnected. The crankshaft position sensor is removed. Finally, the front left-hand bolt on the front axle subframe is loosened, and the tie rod pivoted.
Removal involves unscrewing the gearbox bolts. The (Bvi. 1718) and component jack are positioned under the gearbox, and the rod (11) is tightened anti-clockwise to prevent tilting. The gearbox nuts are removed, and the gearbox is removed using the (Bvi. 1718), along with the clutch thrust bearing.
Refitting mandates replacing the clutch thrust bearing and includes warnings against greasing the gearbox output shaft or clutch shaft splines. Centering dowels are checked. The new clutch thrust bearing is refitted, and the gearbox positioned using the (Bvi. 1718). The tool is then removed, and gearbox nuts and bolts are torqued. The tie-rod is refitted, and the front left-hand subframe bolt torqued. The crankshaft position sensor, gearbox breather pipe, wiring channel bolt, and earth cable (respecting marks) are refitted. The reverse gear switch connector is connected, blanking plugs removed, and clutch slave cylinder connected. The (Ms. 583) tool is removed. Gear control cables are clipped. The left-hand suspended engine mounting, lower engine tie-bar, starter, radiator cross member, air filter unit, battery tray, battery, air resonator, differential output seals, driveshafts, scuttle panel scoop/grille, windscreen wiper arms, front bumper, front wheel arch liners, and front wheels are all refitted. Finally, the gearbox is filled, hydraulic clutch bled, and engine undertray refitted.
Comparative Overview: Oil Change vs. Gearbox Repair
| Aspect | Engine Oil Change | Manual Gearbox Repair/Removal |
|---|---|---|
| Complexity | Low to Moderate (DIY-friendly) | High (Professional/Advanced DIY) |
| Tools Required | Basic hand tools, drain pan, funnel, oil filter wrench | Extensive range of hand tools, component jack, specialised manufacturer tools (e.g., Bvi. 1718, Mot. 1453), torque wrench, lifting equipment |
| Typical Time Investment | 30 minutes - 1 hour | Several hours to multiple days |
| Risk of Damage | Low (if steps followed) | High (if not experienced or proper tools lacking) |
| Parts to Replace | Oil, oil filter, sump plug washer | Differential seals, driveshaft circlips, clutch slave cylinder, clutch thrust bearing, various bolts/gaskets (depending on repair) |
Frequently Asked Questions (FAQs)
- How often should I change my engine oil?
- Refer to your vehicle's owner's manual for specific intervals, typically every 5,000 to 10,000 miles or once a year, whichever comes first. Driving conditions (e.g., frequent short trips, heavy loads) might necessitate more frequent changes.
- What type of oil should I use?
- Always use the oil grade and specification recommended by your car manufacturer. This information is found in your owner's manual and is crucial for engine compatibility and performance.

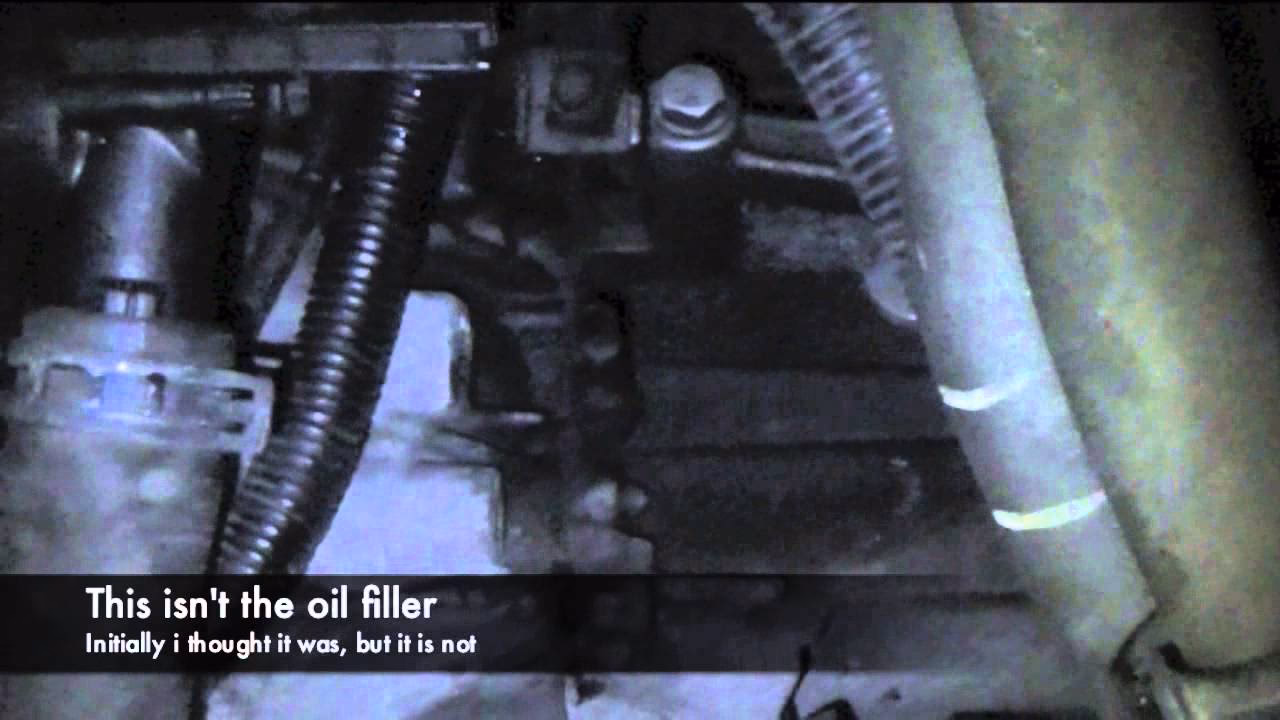

- Can I change my gearbox oil myself?
- Yes, draining and filling gearbox oil is generally a simpler task than removing the entire gearbox, often involving drain and fill plugs similar to engine oil. However, ensure you use the correct type and amount of gearbox fluid as specified by the manufacturer.
- When should I consider a gearbox repair or replacement?
- If you experience persistent grinding noises, difficulty shifting, gears slipping, a burning smell, or a complete loss of drive, these are strong indicators that your gearbox requires professional attention. Minor issues might be repairable, but severe damage often necessitates replacement.
- Why are there so many steps for gearbox removal?
- Modern vehicles are complex, with many components tightly packed in the engine bay. To access the gearbox, which is typically large and heavy, numerous surrounding parts – including subframes, driveshafts, and electrical systems – must be carefully disconnected and removed to provide adequate clearance and prevent damage.
- What are "centering rings" or "differential output seals"?
- Centering rings (or dowels) ensure precise alignment between the engine and gearbox. Differential output seals prevent gearbox oil from leaking where the driveshafts connect. Both are critical for proper function and must be checked/replaced during gearbox work.
- What are these "special tools" mentioned (e.g., Bvi. 1718, Mot. 1453)?
- These are typically proprietary or manufacturer-specific tools designed for particular tasks, such as supporting the gearbox during removal or holding components in place. They are often essential for safe and effective repair and may not be readily available to the general public, underscoring the complexity of such repairs.
Whether you're performing a routine engine oil change or contemplating a significant gearbox repair, knowledge and preparation are your best assets. While DIY oil changes are accessible, the intricacies of gearbox work demand careful consideration, often pointing towards the expertise of a qualified mechanic. Always prioritise safety, use the correct tools, and consult your vehicle's specific service manual for detailed, accurate instructions.
