Few things are as frustrating as a dashboard warning light that simply won't go away, especially when you're certain the underlying issue has been addressed. For owners of Renault Master and Vauxhall Movano vans, a persistent 'check brake wear' message, often accompanied by the dreaded spanner light, can be a common and perplexing nuisance, even after new brake pads have been fitted. You've installed fresh pads, confident you've resolved the issue, only for the warning to stubbornly reappear. More often than not, the culprit isn't your new brake pads, but rather the brake pad wear sensor itself.

This article will delve into a practical diagnostic method to confirm if a faulty sensor is indeed causing your woes. It's a technique that's proven effective for many and can save you the hassle and expense of further unnecessary investigation or part replacement. Understanding how these sensors work and how to effectively troubleshoot them is key to maintaining the integrity of your braking system and ensuring your peace of mind on the road.

Understanding Brake Pad Wear Sensors

Modern vehicles are equipped with an array of sensors designed to monitor critical components, and the brake pad wear sensor is a prime example. Its primary function is to alert the driver when the brake pads have worn down to a critical level, indicating they need replacement. This is a vital safety feature, preventing metal-on-metal contact between the brake disc and caliper, which can lead to severe damage and dangerous braking performance.

On vehicles like the Master and Movano, the brake pad sensor system often operates as a loop circuit. This means the sensor itself is a simple electrical circuit that is completed when the pads are new. As the brake pad wears down, a small wire embedded within the sensor eventually makes contact with the brake disc or breaks, interrupting the circuit. When the circuit is broken, the vehicle's onboard computer (ECU) interprets this as worn pads and triggers the warning light and message on your dashboard.

However, these sensors are not immune to faults. They are exposed to harsh conditions – road grime, moisture, temperature fluctuations, and physical stress during pad changes. The wiring can become brittle, the connector pins can corrode, or the internal sensor element can fail, leading to an open circuit even when the pads are perfectly fine. This is where the false 'check brake wear' message comes in, and it's precisely what we aim to diagnose.

Why False Brake Wear Warnings Occur

It’s a common misconception that if a brake wear warning appears, the pads must be worn. While often true, there are several reasons why you might get a false positive, especially after replacing your pads:

• Damaged Sensor During Installation: Even with careful handling, it's possible for the fragile sensor wire or connector to be bent, pinched, or broken during the installation of new pads.
• Corroded Connections: The electrical connectors where the sensor plugs into the main wiring loom are exposed to the elements. Corrosion can build up, leading to a poor connection and an open circuit.
• Faulty New Sensor: Unfortunately, even brand-new sensors can be defective from the factory. Quality control isn't always perfect, and a faulty sensor can mimic worn pads.
• Wiring Loom Damage: Less common, but possible, is damage to the vehicle's main wiring loom leading to the sensor connector. This could be due to rodent damage, chafing, or impact.
• ECU Glitch: Very rarely, the vehicle's ECU might experience a temporary glitch, though this is usually resolved by turning the ignition off and on.

Our diagnostic method specifically targets the sensor itself or its immediate connection to the loom, which are the most frequent points of failure causing these misleading warnings.

Tools and Materials You'll Need

This diagnostic procedure is surprisingly simple and requires minimal tools:

• Basic Hand Tools: You might need a screwdriver or a small trim removal tool to access the sensor connectors, depending on their location.
• Small Piece of Wire: This is the crucial item. A short length of stiff, thin wire is ideal. Many mechanics use a piece of locking wire (also known as safety wire) due to its rigidity and small diameter, which allows it to push easily into the tiny electrical sockets. A paperclip, straightened and cut to size, could also work in a pinch, but ensure it's clean and conductive.
• Gloves: For cleanliness and protection.
• Torch/Headlamp: To illuminate hard-to-reach areas.

Step-by-Step Diagnostic Process

This method involves temporarily bypassing the sensor circuit to see if the warning light extinguishes. Remember, this is purely for diagnostic purposes and should not be considered a permanent fix. Your brake wear warning system is a critical safety feature.

Step 1: Locate the Brake Pad Sensor Connectors

Brake pad wear sensors are typically located on one of the front brake pads, and often on one of the rear brake pads as well. For the Master/Movano, you'll need to check both. The sensor wire will emerge from the brake pad itself and connect to a small electrical connector, which then plugs into the vehicle's main wiring loom. These connectors are usually found near the wheel arch or within the suspension components.

Step 2: Disconnect the Sensor from the Loom

Carefully disconnect the sensor wire that comes directly from the brake pad from the main wiring loom connector. This usually involves pressing a small tab or lever to release the locking mechanism. Be gentle, as plastic connectors can become brittle with age.

Step 3: Prepare Your Bypass Wire

Take your small piece of wire (e.g., locking wire) and ensure it's clean and has bare ends. You'll need it to bridge the two tiny sockets within the loom-side connector – the part that the sensor wire *normally* plugs into.

Step 4: Insert the Bypass Wire into the Loom Connector

Carefully insert one end of your bypass wire into one of the tiny sockets within the loom-side connector. Then, insert the other end of the bypass wire into the *other* tiny socket. You are effectively creating a short circuit, completing the electrical loop that the sensor would normally complete when the pads are new. Ensure the wire makes good contact with both terminals inside the connector. It should sit snugly and securely.

Step 5: Check the Dashboard Warning

With the bypass wire in place, get back into the driver's seat. Turn the ignition on (you may need to start the engine, or at least have the ignition fully on, not just accessory mode). Observe the dashboard. If the spanner light and the 'check brake wear' message disappear, this is a strong indication that the brake pad sensor (or its short section of wiring) on that specific wheel is at fault.

Step 6: Repeat for All Sensors (Front and Rear)

As the initial information suggests, you may have sensors on both front and rear axles. If bypassing one sensor doesn't clear the warning, you'll need to repeat this process for the other sensors on the vehicle. It's possible that more than one sensor is faulty, or that the system requires all sensors to be 'closed' (bypassed or functioning) to clear the warning. Start with the most accessible or commonly failed sensor location first.

Step 7: Confirm Diagnosis and Revert

Once you've identified which sensor (or sensors) causes the warning to clear when bypassed, you've successfully diagnosed the problem. Immediately remove the bypass wire from the loom connector and reconnect the original sensor (even if faulty). Remember, this bypass is for diagnosis only. Driving long-term with a bypassed sensor means you lose a crucial safety warning system.

What to Do After Diagnosis (Permanent Solutions)

Diagnosing the faulty sensor is the first step. The next is to implement a permanent solution to restore your vehicle's safety features:

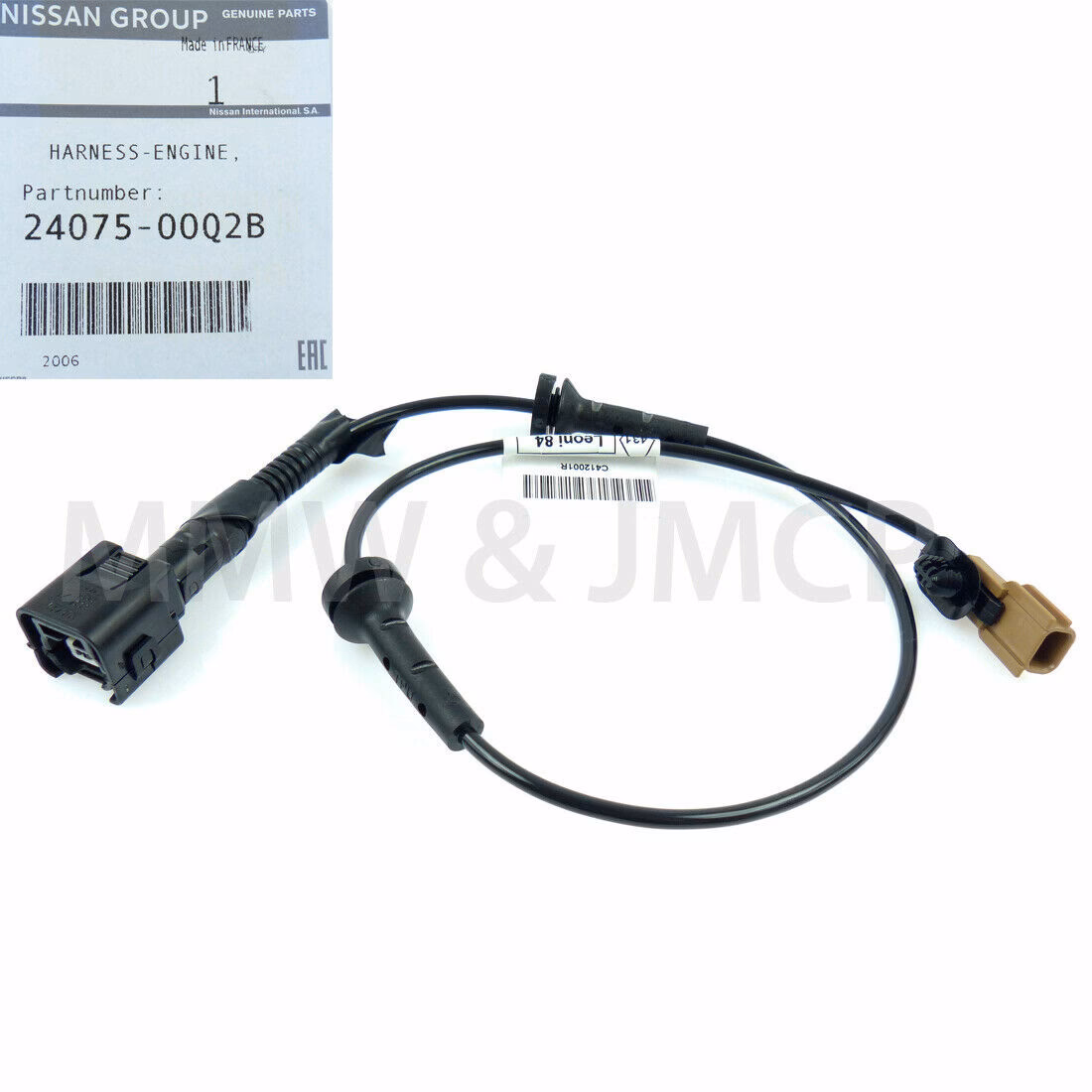

• Replace the Faulty Sensor: The most straightforward and recommended solution is to replace the faulty brake pad wear sensor. These are typically inexpensive parts and relatively easy to replace, often coming integrated with new brake pads or as a separate component that clips onto the pad. Ensure you purchase the correct sensor for your specific make, model, and axle.
• Inspect Wiring and Connectors: Before simply replacing the sensor, take a moment to thoroughly inspect the wiring leading to the sensor and the loom connector itself. Look for signs of corrosion, fraying, or physical damage. Sometimes, simply cleaning the connector pins with electrical contact cleaner can resolve intermittent issues, though this is less common for a persistent 'open circuit' fault.
• Professional Assistance: If you've bypassed all sensors and the warning persists, or if you suspect damage to the main vehicle wiring loom, it's advisable to seek professional help. A qualified mechanic will have diagnostic tools to read specific fault codes and perform more in-depth electrical checks.

Important Safety Considerations

It cannot be stressed enough: the brake pad wear warning system is a critical safety feature. Bypassing a faulty sensor, while an excellent diagnostic tool, should never be considered a permanent solution for driving. Here's why:

• Loss of Warning: If you bypass a sensor permanently, you will no longer receive a warning when your brake pads genuinely wear down. This could lead to metal-on-metal braking, damaging your brake discs, reducing braking efficiency, and potentially causing a dangerous situation.
• MOT/Roadworthiness: In the UK, a non-functioning brake wear indicator light (if fitted as standard) could lead to an MOT failure, as it's considered a safety system defect.
• Insurance Implications: While unlikely, driving with a knowingly disabled safety system could potentially have implications with your insurance provider in the event of an accident.

Always aim to replace the faulty sensor as soon as practically possible after diagnosis.

Preventative Maintenance Tips

While sensor failures can be random, some practices can help mitigate the risk:

• Careful Handling During Pad Changes: When replacing brake pads, always handle the sensor and its wiring with extreme care. Avoid pulling on the wire itself; always pull from the connector body.
• Inspect During Service: Ask your mechanic to inspect the brake pad sensors and their wiring during routine servicing. Early detection of fraying or corrosion can prevent future issues.
• Use Quality Parts: When replacing sensors, opt for reputable aftermarket brands or OEM (Original Equipment Manufacturer) parts. Cheaper sensors may use lower quality materials that are more prone to failure.

Frequently Asked Questions (FAQs)

Q1: Can I drive my Master/Movano with the brake wear warning light on?

While many people do, it's generally not recommended for extended periods. The light indicates that your pads *may* be worn down to a critical level, which affects safety. If you know it's a false warning due to a faulty sensor, you have a bit more leeway for a short period until you can fix it. However, it's always best to address it promptly.

Q2: Are brake pad sensors specific to front or rear axles?

Yes, often they are. The length of the wire and the type of connector can differ between front and rear sensors. Always ensure you purchase the correct replacement part for the specific axle you are working on.

Q3: Do all brake pads come with sensors?

No. Only specific brake pads designed for vehicles with electronic wear indicators will have an integrated sensor or a provision to attach one. Many vehicles, particularly older or lower-spec models, rely solely on visual inspection or an audible squealer tab to indicate wear.

Q4: My 'check brake wear' message reappeared after replacing pads and the sensor. What now?

If you've replaced the pads AND the sensor, and the warning persists, re-check your connections thoroughly. Ensure the new sensor is properly plugged in and that the wiring loom connector itself is clean and undamaged. If the issue remains, it could indicate a fault further up the wiring loom or a rare ECU issue. At this point, professional diagnostic equipment would be beneficial.

Q5: Is it safe to permanently bridge the sensor wires?

Absolutely not. While it might turn off the light, it completely disables a vital safety system designed to warn you about critically worn brake pads. This could lead to dangerous driving conditions and expensive damage to your braking system if pads wear out unnoticed.

By understanding this simple diagnostic trick, you can quickly identify whether a faulty brake pad sensor is the cause of your persistent 'check brake wear' warning on your Master or Movano. This not only saves you time and frustration but also directs you towards the correct, cost-effective solution to get your van's braking system operating perfectly and safely once more.
