Owning a classic Porsche 911 is a true automotive passion, but keeping these legendary machines running at their best requires a deep understanding of their unique mechanics. Among the most critical systems is the fuel delivery, which directly impacts performance, efficiency, and overall reliability. For many 911 enthusiasts, the fuel injection system, particularly the Continuous Injection System (CIS), and the fuel pump can seem daunting. However, with the right knowledge and a methodical approach, maintaining these components is well within the reach of a dedicated owner. This guide will delve into the intricacies of the 911's fuel system, focusing on its injectors and the process of fuel pump removal, ensuring your classic remains a joy to drive.

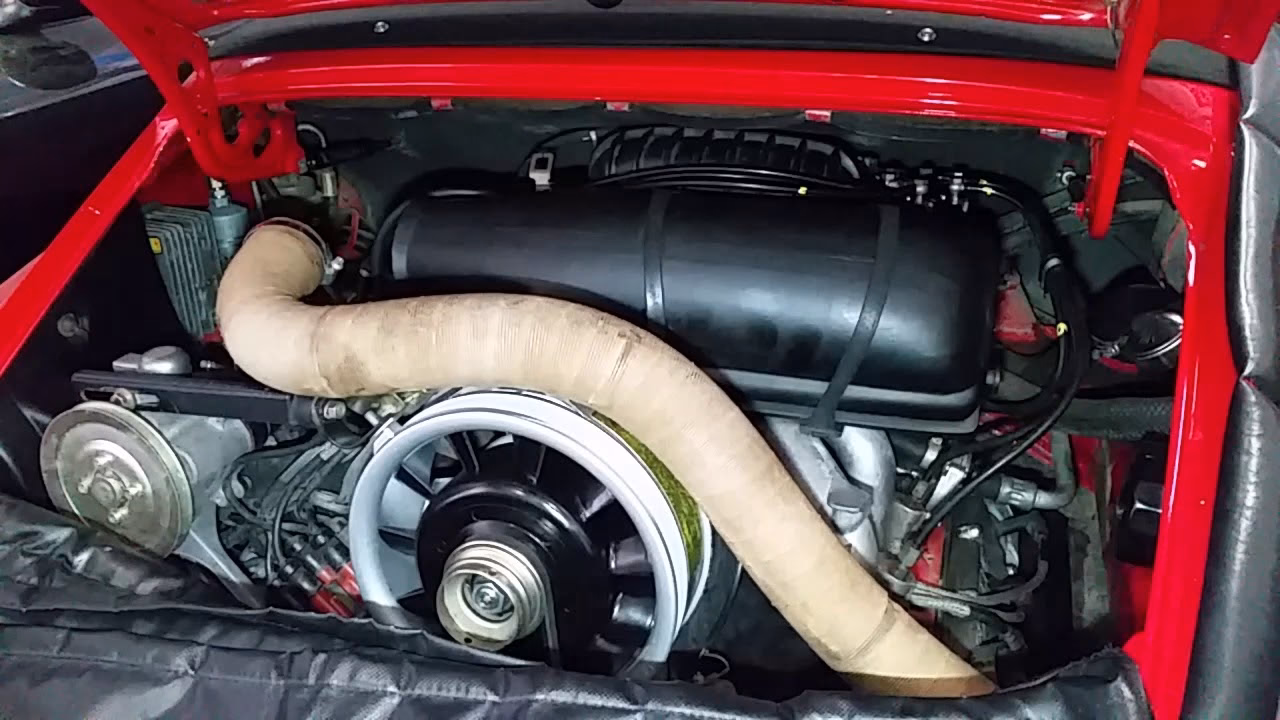

Understanding the 911's Fuel Injection System
For a significant period, particularly from the mid-1970s onwards, Porsche 911 models employed the Bosch Continuous Injection System (CIS), also known as K-Jetronic. Unlike modern electronic fuel injection (EFI) systems that use complex sensors and a computer to control fuel delivery, CIS is a largely mechanical system. It's renowned for its robust and relatively simple design, which provides a constant spray of fuel into the intake manifold, hence the name 'continuous'.
In a CIS system, fuel is continuously delivered to the injectors, which are essentially sophisticated nozzles that atomise the fuel. There's no on/off pulsing like in electronic injectors; instead, the system's fuel distributor varies the pressure and volume of fuel delivered based on engine load and air intake. This mechanical simplicity contributes to its legendary reliability, yet it also means that when issues arise, they often stem from mechanical wear or deterioration of associated components rather than electronic glitches.
The injectors themselves in a CIS system are typically made of metal and are designed to be serviceable. This means, theoretically, they can be bench tested, cleaned, and flow-matched to ensure uniform fuel delivery across all cylinders. However, as the automotive landscape evolves, finding workshops equipped and willing to perform this specialised work is becoming increasingly challenging. Often, the cost and time involved in servicing older injectors can make the option of simply purchasing new replacement units a more practical and economically viable solution for many owners.
The Truth About 911 Injector Issues
It's a common misconception that the fuel injectors themselves are a primary source of trouble in a Porsche 911's CIS system. While any component can eventually fail, the metal injectors are surprisingly durable. The more frequent culprits behind rough running and poor fuel economy are often the components surrounding the injectors, specifically the O-rings and sleeves.

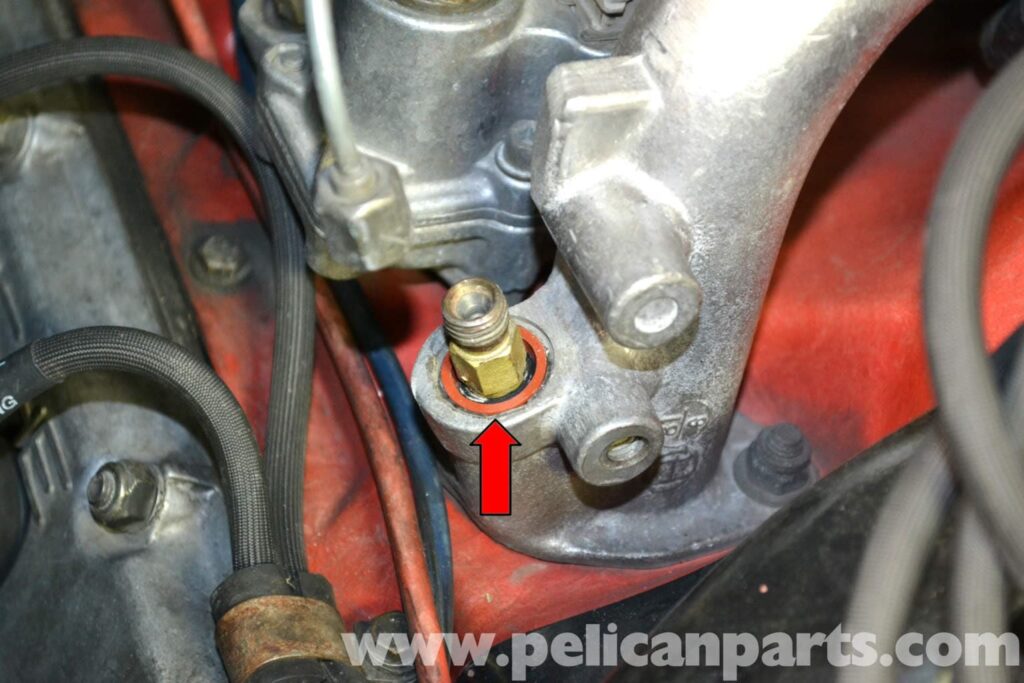

These rubber O-rings and plastic or metal sleeves create a seal between the injector and the intake manifold. Over time, due to heat cycling, exposure to fuel, and general degradation, these seals can harden, crack, or lose their elasticity. When this happens, they fail to provide an airtight seal, leading to what's known as a vacuum leak. A vacuum leak allows unmetered air into the engine, disrupting the carefully calibrated fuel-air mixture. This lean condition can manifest in a variety of symptoms, including:
- Rough idle, especially when cold
- Hesitation or stumbling under acceleration
- Poor fuel economy
- Reduced engine performance
- Difficulty starting
- Stalling
A properly functioning injector is crucial for sending a precise amount of atomised fuel into the induction system. An improperly working injector, whether due to a faulty internal component (rare) or, more commonly, a compromised seal, can cause anything from no fuel delivery to leaking raw, non-atomised fuel into your engine. Leaking raw fuel can wash oil off cylinder walls, dilute engine oil, and significantly impact combustion efficiency, leading to further engine wear and emissions issues.
Recognising Fuel Injector Problems: A Symptom Breakdown
Identifying injector-related issues early can save you from more significant problems down the line. Pay close attention to how your 911 behaves. Here's a table summarising common symptoms and their potential causes related to the fuel injectors and their seals:
| Symptom | Likely Cause (Injector/Seal Related) | Impact on Engine |
|---|---|---|
| Rough Idle | Vacuum leak from O-rings/sleeves, uneven fuel spray | Unstable RPMs, vibrations, potential stalling |
| Poor Fuel Economy | Leaking injectors, rich mixture from vacuum leak compensation | Increased fuel consumption, higher running costs |
| Engine Misfires | Clogged/leaking injector, severe vacuum leak | Loss of power, engine running on fewer cylinders |
| Hesitation/Stumbling | Insufficient or inconsistent fuel delivery | Poor throttle response, dangerous in traffic |
| Difficult Starting | Leaking injectors (loss of residual fuel pressure), severe vacuum leak | Prolonged cranking, may require throttle input |
| Fuel Smell | External fuel leak from injector area (rare, but possible) | Safety hazard, fire risk |
Replacing Fuel Injectors: A Practical Guide
If your classic 911 is exhibiting symptoms like rough running or dismal fuel mileage, there's a good chance it's time to inspect and potentially replace the fuel injectors, and more importantly, their O-rings and sleeves. This isn't an overly complex job for the competent DIY enthusiast, typically taking around 2 hours. The cost for parts, including new injectors, O-rings, and sleeves, can range from a modest £2 to around £275, depending on whether you opt for genuine Porsche parts or quality aftermarket alternatives.
Essential Tools and Parts:
- 14mm wrench
- 12mm wrench
- Screwdriver set
- New fuel injectors (if needed)
- New O-rings for injectors
- New sleeves for injectors
- Plenty of clean rags or paper towels
- Chemical-resistant gloves
Safety First: Prioritising Your Well-being
Working on the fuel system of any vehicle demands extreme caution due to the highly flammable nature of petrol. Before you begin any work, ensure you have a fire extinguisher readily accessible and that you know how to use it effectively. There will almost certainly be some spillage of fuel, as it's nearly impossible to prevent entirely, so be prepared.
Always perform the injector removal in a clear, open, and well-ventilated space, ideally outdoors or in a garage with large doors open. The fumes from petrol can be intoxicating and hazardous to your health. Wearing chemical-resistant gloves is highly recommended to protect your skin from direct contact with fuel. Having an assistant nearby can also be beneficial in case you encounter any unforeseen problems or require an extra set of hands.
Hot tip: The most critical safety step before commencing work is to depressurise the fuel system. Consult your Porsche 911's service manual for the exact procedure for your specific model year, as this typically involves removing a fuse or relay to deactivate the fuel pump and then cranking the engine briefly to relieve pressure in the lines. Failing to depressurise the system can result in a dangerous spray of highly pressurised fuel when lines are disconnected.
The Replacement Process (Overview):
While a detailed step-by-step guide is beyond the scope here, the general process involves carefully disconnecting fuel lines, unbolting or unseating the injectors, replacing them along with new O-rings and sleeves, and then reassembling everything. Ensure all connections are secure and leak-free before attempting to start the engine.
Upon successful replacement, you should notice a significant performance gain, with your motor running much more smoothly and efficiently. A complementary modification that is highly recommended whenever you work on the fuel system is to change the fuel filter. A clean fuel filter ensures that your new injectors are supplied with clean fuel, protecting them from contamination and prolonging their lifespan.
The Fuel Pump: A Vital Component
The fuel pump is the heart of your 911's fuel delivery system, responsible for drawing fuel from the tank and supplying it under pressure to the fuel injection system. In a CIS system, the fuel pump maintains a constant high pressure, which is essential for the fuel distributor to operate correctly and deliver fuel continuously to the injectors. A failing fuel pump can lead to a host of problems, from hard starting and poor performance to complete engine shutdown.
Removing Your 911's Fuel Pump
The process for removing a fuel pump from a Porsche 911 requires careful attention to detail and, once again, strict adherence to safety protocols due to the presence of fuel. The exact position of fuel pump components can vary slightly between model years, so always refer to your specific vehicle's workshop manual for precise locations and procedures.
Before beginning any work, ensure you are in a well-ventilated area and have your fire extinguisher ready. It is crucial to clean all fuel fittings thoroughly before attempting to loosen them. This prevents dirt and debris from entering the fuel system, which could potentially clog new components or lead to further issues. Once clean, it is imperative to clamp the inlet hose to prevent fuel from escaping once components are removed. This minimises spillage and reduces fire risk.
Year-Specific Considerations:
- On 1973-74 Porsche 911 models: After loosening the hose clamp, carefully remove the inlet hose from the union fitting. Be prepared for some residual fuel to escape, even with the hose clamped.
- On 1975 Porsche 911 models with polyamide fuel lines: The procedure differs slightly. In these models, you will typically remove the fuel pump together with its associated bracketry or connections, rather than just disconnecting individual hoses from the pump itself. The polyamide lines are less flexible than traditional rubber hoses, so extra care must be taken to avoid kinking or damaging them during removal.
After removal, inspect the fuel pump and its surrounding components for any signs of wear, corrosion, or damage. Often, if the pump is being replaced, it's a good opportunity to inspect and possibly replace fuel lines, filters, and any associated electrical connections to ensure the entire fuel delivery system is in optimal condition.
Frequently Asked Questions (FAQs)
Q: How often should I check my 911's fuel injectors and O-rings?
A: While there isn't a strict mileage interval, it's wise to inspect them every 50,000 miles or if you notice any of the symptoms mentioned (rough idle, poor fuel economy). Given the age of most classic 911s, proactive inspection is always recommended.
Q: Can I clean my CIS injectors, or do I always need to replace them?
A: CIS injectors can be serviced, bench tested, and flow matched by specialist shops. However, as noted, finding such services is becoming harder, and the cost can sometimes approach that of new injectors. For DIYers, focusing on replacing the O-rings and sleeves is often the most impactful and accessible first step. If symptoms persist, then professional cleaning or new injectors may be necessary.
Q: What are the typical signs of a failing fuel pump in a 911?
A: Common signs include a whining noise from the pump area, difficulty starting (especially when hot), engine hesitation or cutting out at higher RPMs, and a general loss of power. In severe cases, the engine may not start at all.
Q: Is working on a 911's fuel system difficult for a DIY mechanic?
A: It requires patience, the correct tools, and a strong emphasis on safety. While not overly complex, the risks associated with fuel make it a job that demands respect and careful preparation. If you're unsure, it's always best to consult a professional Porsche specialist.
Q: Why is fuel system safety so critical when working on a classic 911?
A: Classic cars often have older rubber components in their fuel systems that can be brittle or degraded, increasing the risk of leaks. Additionally, the confined spaces and the inherent flammability of petrol mean that any spark or ignition source near a fuel leak can lead to a serious fire. Always ensure proper ventilation, depressurise the system, and have a fire extinguisher on hand.
Conclusion
Maintaining the fuel system of your Porsche 911 is fundamental to preserving its performance and ensuring its longevity. While the CIS system is known for its robustness, components like the injector O-rings and sleeves are common wear items that can significantly impact engine health. Understanding how to identify these issues, coupled with the knowledge of safe practices for working on both injectors and the fuel pump, empowers you to keep your classic running as smoothly as it did the day it left the factory. Regular inspection and timely maintenance are key to enjoying many more miles in your iconic 911.
