ECU Remapping: Unleash Your Vehicle's True Power

In the grand old days, motorcycle engines relied on carburetors, where a simple kick-start and a twist of a few screws could noticeably boost performance. Fast forward to today, and the modern era of fuel injection systems has completely revolutionised power delivery. Now, the intricate dance of an engine’s performance is managed by the Engine Control Unit (ECU), an electronic brain that orchestrates a multitude of actuators to ensure optimal operation. Just like carburetor tuning, however, this advanced electronic optimisation is far from a simple task. ECU tuning is akin to cracking factory restrictions, much like jailbreaking a smartphone, to enhance its inherent capabilities. It's about taking the standard setup, designed for broad appeal and compromise, and tailoring it for superior performance, efficiency, or a unique driving experience.

Understanding the ECU and Its Maps

At its core, an ECU is the central nervous system of your vehicle's engine. It’s a sophisticated computer that receives data from numerous sensors around the engine – monitoring everything from air intake temperature and fuel pressure to engine speed and throttle position. Based on this incoming data, the ECU then makes real-time decisions, sending commands to actuators such as fuel injectors, spark plugs, and throttle bodies to ensure the engine runs as efficiently and powerfully as possible.

The instructions the ECU follows are stored in what are known as 'maps'. Think of these maps as intricate tables of data, or programmes, that dictate how the engine should behave under various conditions. While a single file extracted from an ECU might contain numerous individual maps, each one governs a specific aspect of the engine's operation. For instance, there are:

• Fuel Maps: Determining how much fuel to inject based on engine load and RPM.
• Ignition Maps: Controlling the timing of the spark plugs for optimal combustion.
• Boost Maps: Regulating turbocharger or supercharger pressure (in forced induction vehicles).
• Lambda Maps (O2 Sensor Maps): Managing the air/fuel ratio for emissions and efficiency.
• Throttle Maps: Dictating how the electronic throttle body responds to pedal input.

The default factory settings for these maps are designed to cater to a wide range of global markets, considering diverse factors like varying fuel quality, different climatic conditions, diverse operating altitudes, and stringent emissions regulations. This often means the factory setup is a compromise, balancing performance with fuel economy, emissions, and engine longevity. By remapping the ECU, specialists can adjust these parameters to either make an engine run more efficiently or unlock more power by optimising its efficiency for specific conditions or owner preferences.

For an engine to run, it requires a precise quantity of fuel injected at the exact moment when an adequate amount of air is available for combustion. This complex process requires the ECU to consider a multitude of dynamic parameters:

1. Driver's Input: How much acceleration is being requested via the accelerator pedal.
2. Available Air: The volume and density of air entering the engine.
3. Engine Temperature: Crucial for determining cold-start fuelling and overall engine health.
4. Intake Air Temperature: Affects air density and thus the amount of oxygen available.
5. Fuel Temperature: Influences fuel density and injection characteristics.

Based on these inputs, the ECU then references its maps to precisely determine:

• The exact injection quantity as requested by the accelerator.
• The optimal injection duration calculated from the required quantity.
• The precise injection start timing, synchronised with the engine's cycle.

Chipping vs. Remapping: The Evolution of Tuning

The terms 'chipping' and 'remapping' are often used interchangeably, but historically, they referred to distinct processes. Chipping is largely an outdated method of tuning, whereas remapping is the modern approach.

Understanding the Difference

Today, the vast majority of ECU tuning is done through remapping or 'flashing'. The factory settings are first securely backed up, and then replaced with the custom-made performance data. This is predominantly achieved via the vehicle's OBD port, a diagnostic connector found in most modern cars and motorcycles.

Why Don't Manufacturers Do It?

A common question is, if remapping can unlock so much potential, why don't manufacturers simply do it themselves? The answer lies in the complex ecosystem of automotive manufacturing and regulation:

• Global Markets & Regulations: Manufacturers sell vehicles across numerous countries, each with different tax, emissions (e.g., Euro 6 standards), and safety regulations. A single, conservative ECU map allows them to comply with the strictest of these without needing to produce region-specific software for every single vehicle.
• Fuel Quality: Fuel octane ratings vary significantly worldwide. A conservative map ensures the engine runs reliably even on lower-quality fuels, preventing issues like knocking or detonation.
• Climatic Conditions: Vehicles must perform reliably in extreme heat, cold, high humidity, and varying altitudes. A factory map accounts for these broad conditions.
• Durability & Warranty: Manufacturers design engines for longevity and offer warranties. Aggressive tunes can increase wear and tear, potentially leading to premature component failure. A conservative map minimises this risk.
• Operating Costs & Insurance: Manufacturers aim for a balance of performance and running costs (including fuel economy), which appeals to a wider consumer base. Remapping for performance might increase fuel consumption and could affect insurance premiums.
• Marketing & Product Segmentation: Sometimes, manufacturers intentionally detune engines in lower-spec models to create a clear performance hierarchy within their product line, encouraging customers to purchase more expensive, higher-powered variants.

In essence, manufacturers make substantial compromises in their vehicle's operation to ensure reliability, compliance, and broad market appeal. Remapping allows owners to tailor their vehicle's performance to their specific needs and local conditions, often beyond these factory compromises.

Effects of ECU Remapping

ECU remapping can have a profound impact on a vehicle's performance and characteristics. The effects can be broadly categorised into pros and cons:

Pros of ECU Remapping

• Remove Restricted Throttle Opening: Many factory ECUs limit throttle opening in lower gears or at certain RPMs. Remapping can remove these restrictions, providing full throttle response throughout the rev range.
• Remove Factory Time Retard: Ignition timing can be advanced for quicker, more efficient combustion, allowing the engine to rev faster and produce more power.
• Improved Throttle Response: A properly remapped ECU can make the vehicle feel much more responsive and eager to accelerate, enhancing the driving experience.
• Increase RPM Limiter: The engine's maximum RPM can be safely increased, allowing for a broader powerband, particularly useful in performance driving.
• Remove Top Speed Limiter: Many vehicles are electronically limited to a certain top speed (e.g., 155 mph). Remapping can bypass this limiter.
• Reduce Excessive Engine Braking: For motorcycles or certain cars, excessive engine braking can be uncomfortable or hinder smooth driving. Remapping can reduce this effect.
• Improved Engine Tractability: The engine becomes smoother and more flexible, with power delivered more linearly and consistently across the rev range.
• Significant Power and Torque Gains: A well-optimised remap can result in a 10-15% increase in power and a 15-20% increase in torque over a factory-tuned ECU.
• Optimised Fuel Economy: While often associated with performance, if driven conservatively, the improved efficiency from a remap can lead to better fuel economy. For example, better torque might mean less frequent gear changes, especially on inclines.

Cons of ECU Remapping

• Warranty Void: Most manufacturers will void the vehicle's warranty if they detect an ECU remap, as it alters the factory specifications.
• Added Power Can Cause Failure of Parts: Increased power and torque put more strain on components like the clutch, gearbox, and drivetrain, potentially leading to premature wear or failure if not designed to handle the extra stress.
• Engine Damage from Improper Parameters: Incorrect remapping (e.g., too lean a fuel mixture, excessive ignition advance) can cause serious engine damage, including detonation, knocking, and overheating. This is why professional tuning is paramount.
• Lowered Fuel Consumption in Some Cases: If the vehicle is driven aggressively to exploit the increased power, fuel economy will inevitably suffer.
• Increased Emission Levels: Optimising for performance often means sacrificing some emissions compliance, as factory maps are heavily geared towards meeting environmental regulations. This could lead to MOT failures in some regions.
• Engine Overheating: An improperly tuned engine can run hotter than intended, leading to cooling system strain and potential damage.
• Reduced Resale Value of the Vehicle: Some buyers may be wary of a remapped vehicle due to concerns about engine longevity or warranty issues, potentially impacting its resale value.

It's crucial to weigh these pros and cons carefully. While the allure of increased performance is strong, the potential risks associated with an improper remap are significant. Always consider professional services for ECU tuning.

Technical Jargon Involved in ECU Remapping

Navigating the world of ECU remapping often involves encountering specific technical terms. Here's a brief glossary to help clarify some of the common jargon:

How to Remap an ECU: A Step-by-Step Guide

While the idea of remapping an ECU might seem daunting, especially for car owners, understanding the proper process can demystify it. Many modern reflash tools have made the process more accessible. However, it’s vital to stress that while some steps can be performed by an enthusiast, a certain level of experience and knowledge of engine parameters is crucial. Incorrectly altering ECU parameters can lead to severe engine damage.

Required Tools for ECU Remapping

Before embarking on an ECU remap, gather the following essential tools:

• Windows-Based Laptop: A reliable laptop running a stable operating system is crucial, as it will host the remapping software. Portability makes a laptop ideal for connecting to the vehicle.
• Stable Internet Connection: Essential for downloading the appropriate reflash files for your specific vehicle and software updates. An interrupted connection during the flashing process can corrupt the ECU.
• Voltage Supply/Battery Charger: Maintaining a constant and adequate voltage supply to the vehicle's electrical system throughout the remapping process is paramount. A drop in voltage can interrupt the flash and permanently damage (or 'brick') the ECU.
• On-Board Diagnostics (OBD-II) Scanner/Interface: This tool allows you to read existing fault codes, identify the ECU's serial number, and, most importantly, read the factory map data from the ECU and write the new, modified map back.
• ECU Remapping Software: This is the core tool that allows you to access, modify, and flash the ECU's maps. These can be subscription-based or one-time purchase, and specific to certain tuning companies (e.g., Revo, Dynobike's proprietary system). Choose software appropriate for your vehicle.
• Experience and Knowledge: While not a physical tool, this is arguably the most critical component. Understanding engine dynamics, air-fuel ratios, ignition timing, and the specific characteristics of your vehicle's engine is vital to safely and effectively remap an ECU. Without this, you risk causing serious damage.

Step-by-Step Process for Remapping an ECU

Here’s a general guide to how an ECU reflash is performed:

Step 1: Connect a Battery Pack to the Vehicle

Before initiating any remapping, connect a robust battery pack or a high-quality battery charger to your vehicle's battery. This ensures a consistent and sufficient power supply to the vehicle's electrical system throughout the entire process. A sudden drop in voltage during the ECU programming can lead to a corrupted ECU, rendering it inoperable and potentially requiring costly replacement or specialised repair.

Step 2: Prepare Your Laptop with an Internet Connection

Ensure your Windows-based laptop is fully charged and has a stable internet connection. The internet connection is necessary for downloading the correct reflash files for your specific vehicle model and for any software updates. Any interruption to the internet connection or the laptop's operation during the file transfer can lead to a failed flash and a 'bricked' ECU.

Step 3: Check the Engine for Existing Faults

Before making any modifications, it's absolutely crucial to perform a full diagnostic scan of your vehicle using an OBD-II scanner. Clear any existing Diagnostic Trouble Codes (DTCs) from the ECU's memory. This step is vital because if underlying engine faults are present, they can interfere with the remapping process or be exacerbated by the new tune. Additionally, this scan often provides essential information like the engine's exact serial number and specifications, which helps in selecting the precise remapping software file.

Step 4: Plug in the Remapping System

With the vehicle's faults cleared and power supply stable, connect the OBD-II interface or dedicated remapping tool (e.g., Revo system, Dynobike's interface) to your vehicle's OBD port. This establishes communication between your laptop and the ECU. It's critical that no faults remain in the car's system at this stage, as they can prevent proper communication or corrupt the remapping process.

Step 5: Find the Right Software and Load It Into the ECU

Using the remapping software on your laptop, identify the correct custom map file for your specific vehicle model and desired outcome (e.g., performance, economy). This is a critical step; loading the wrong software can severely damage the engine or the ECU. Once identified, initiate the flashing process. The software will typically first read and back up your original factory map (a crucial safety step), then erase the old calibrations, and finally write the new, modified data to the ECU's memory. This process can take some time, and it's imperative not to interrupt it by unplugging cables or turning off the ignition. Visual indicators on the software will usually show the progress of the file transfer.

Step 6: Go For a Test Drive

Once the remapping process is complete and the software indicates a successful flash, disconnect all tools. Start the vehicle and take it for a careful test drive. Pay close attention to how the car feels. You should notice improvements in throttle response, acceleration, and overall power delivery. It's advisable to drive conservatively at first to allow the ECU to adapt. For a precise measurement of the performance gains, consider taking your vehicle to a dynamometer (dyno) facility, where professional technicians can run tests to measure horsepower and torque before and after the remap.

Types of ECU Reflash

ECU remapping isn't a one-size-fits-all solution; it can be tailored to achieve various outcomes based on the owner's specific needs or the vehicle's existing issues. The most common types of ECU reflash include:

• Performance Remap: This is the most popular type, focusing on maximising horsepower and torque. Parameters like fuel delivery, ignition timing, boost pressure, and throttle response are optimised to achieve significant gains in acceleration and top-end power.
• Fuel Economy Remap: While seemingly counter-intuitive, remapping can also be done to improve fuel efficiency. By optimising the engine's combustion process and torque delivery at lower RPMs, the vehicle can operate more efficiently, potentially reducing fuel consumption, especially when driven conservatively.
• Vehicle Issue Resolution Remap: Sometimes, remapping is used to address specific driving characteristics or issues, such as idle roughness, stalling, cold-start problems, or to eliminate 'limp mode' issues after installing aftermarket parts (e.g., a new exhaust or air intake that alters sensor readings). This type of remap ensures the ECU properly adapts to modifications.

Complete Remap vs. Limiter Maps

When considering professional remapping services, you might encounter different packages. For instance, Dynobike offers two main types:

Frequently Asked Questions (FAQ)

How much does it cost to reflash an ECU?

The cost of remapping an ECU can vary significantly depending on the vehicle model, the complexity of the tune, the tuning company, and the region. On average, you might expect to pay anywhere from £120 to £500 or more for a professional ECU remap. If your vehicle has existing faults that need to be addressed before tuning, or if it's a highly specialised vehicle, the cost can be higher. Labour costs, if charged separately, typically range from £50 to £80 per hour.

When should I reflash my ECU?

You should consider remapping your ECU when you desire a noticeable improvement in your vehicle's performance, fuel economy, or to resolve specific driving issues. Many owners opt for a remap when they feel their car's factory performance is lacking, or after installing aftermarket performance parts (like an upgraded exhaust or turbocharger) that require the ECU to be re-calibrated to function optimally. If your car experiences issues like rough idling, stalling, or poor starting due to faulty existing software, a remap can also be beneficial.

Is ECU tuning bad for your car?

When performed correctly and professionally, ECU tuning is generally not bad for your car. In fact, a proper tune can optimise engine performance and even improve fuel economy. However, an improper or aggressive tune can be detrimental, leading to increased wear on engine components, higher operating temperatures, and potentially severe engine damage due to incorrect fuel or ignition parameters. It is crucial to choose a reputable tuner who understands your vehicle's limits.

Is ECU tuning safe?

Yes, ECU tuning is completely safe when carried out by experienced and knowledgeable professionals using quality equipment and software. Reputable tuners will always back up your original map, conduct pre-tune diagnostics, and ensure the new map is tailored to your specific vehicle and its modifications. The risks arise from inexperienced individuals attempting the process or using generic, untested maps.

Is ECU tuning legal?

The legality of ECU tuning varies by region and jurisdiction. In the UK, remapping an ECU for performance is generally legal for road use, provided the vehicle still complies with all roadworthiness regulations, including emissions standards. However, it's important to note that a remap can void your vehicle's manufacturer warranty, and some insurance companies may require you to declare the modification, potentially affecting your premiums or even your policy's validity if not declared. Always check with your insurance provider.

Is ECU reflash good?

For many car owners, an ECU reflash is a highly beneficial modification. It can significantly improve vehicle performance, enhance driving enjoyment, and, in some cases, lead to better fuel economy. The satisfaction derived depends on your expectations and the quality of the remap. If done correctly, it can transform your vehicle's characteristics without causing harm.

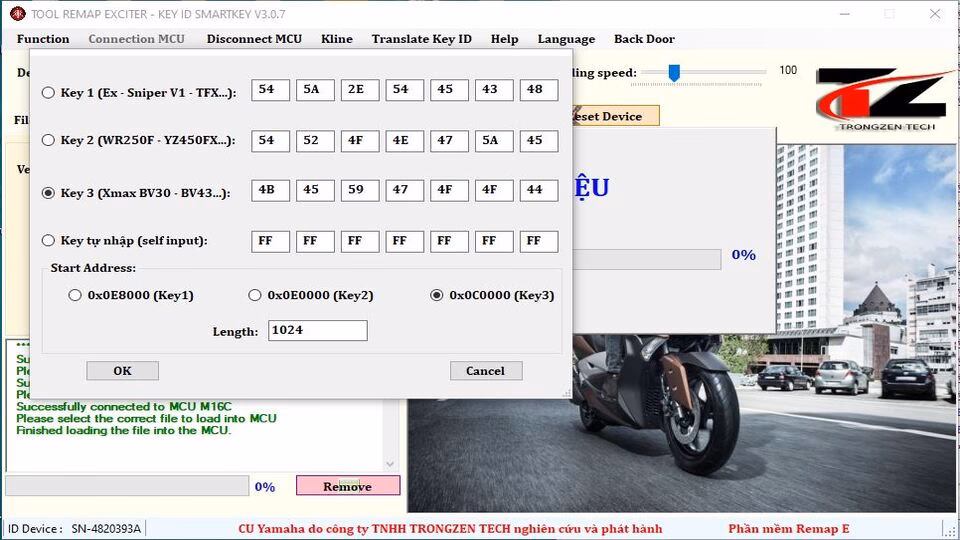

What is a Yamaha ECU?

A Yamaha ECU, in the context of tuning, refers to an advanced Engine Control Unit flashing solution specifically designed for Yamaha motorcycles. It provides essential features for updating, reprogramming, and managing the ECU, making it a vital tool for motorcycle technicians, professional mechanics, and Yamaha enthusiasts. YamahaECU ensures that motorcycles operate with the latest firmware and custom ECU files, allowing for tailored performance or efficiency.

Final Thoughts

ECU remapping is a powerful way to unlock the latent potential of your vehicle, transforming its performance and driving dynamics beyond factory specifications. From enhancing throttle response and increasing power output to potentially improving fuel economy, the benefits are clear. However, it is not a process to be taken lightly. The intricate nature of an engine's control unit demands a thorough understanding of its parameters and a precise approach to modification.

While the accessibility of remapping tools might tempt some to attempt it at home, remember that experience and knowledge are paramount. An improperly executed remap can lead to serious engine damage, costly repairs, and potential warranty voidance. For peace of mind and optimal results, it is highly recommended to seek professional assistance from reputable tuning specialists who possess the expertise and equipment to safely and effectively remap your ECU. By doing so, you can truly unleash your vehicle's hidden capabilities and enjoy a more dynamic and satisfying driving experience.
