CAV/Lucas/Delphi DPA Pump Repair Kit Explained

The heart of any diesel engine is its fuel injection system, and for countless tractors, agricultural machinery, and various other diesel-powered applications across the United Kingdom, the CAV, Lucas, and Delphi DPA distributor type injection pump has been a ubiquitous and reliable component for decades. Despite their robust design, like all mechanical parts, these pumps are subject to wear and tear, eventually leading to performance issues or complete failure. When this happens, a full replacement pump can be a significant expense. This is where the CAV / Lucas / Delphi DPA Injection Pump repair kit becomes an invaluable solution, offering a comprehensive and cost-effective path to restoring your engine’s vital fuel delivery system.

Understanding what this kit entails, why it's essential, and what it can achieve for your diesel engine is crucial for any owner or mechanic looking to maintain or repair these workhorse machines. It's not just a collection of random parts; it's a precisely curated assortment designed to address the most common points of failure within the DPA pump, ensuring a proper and lasting repair.

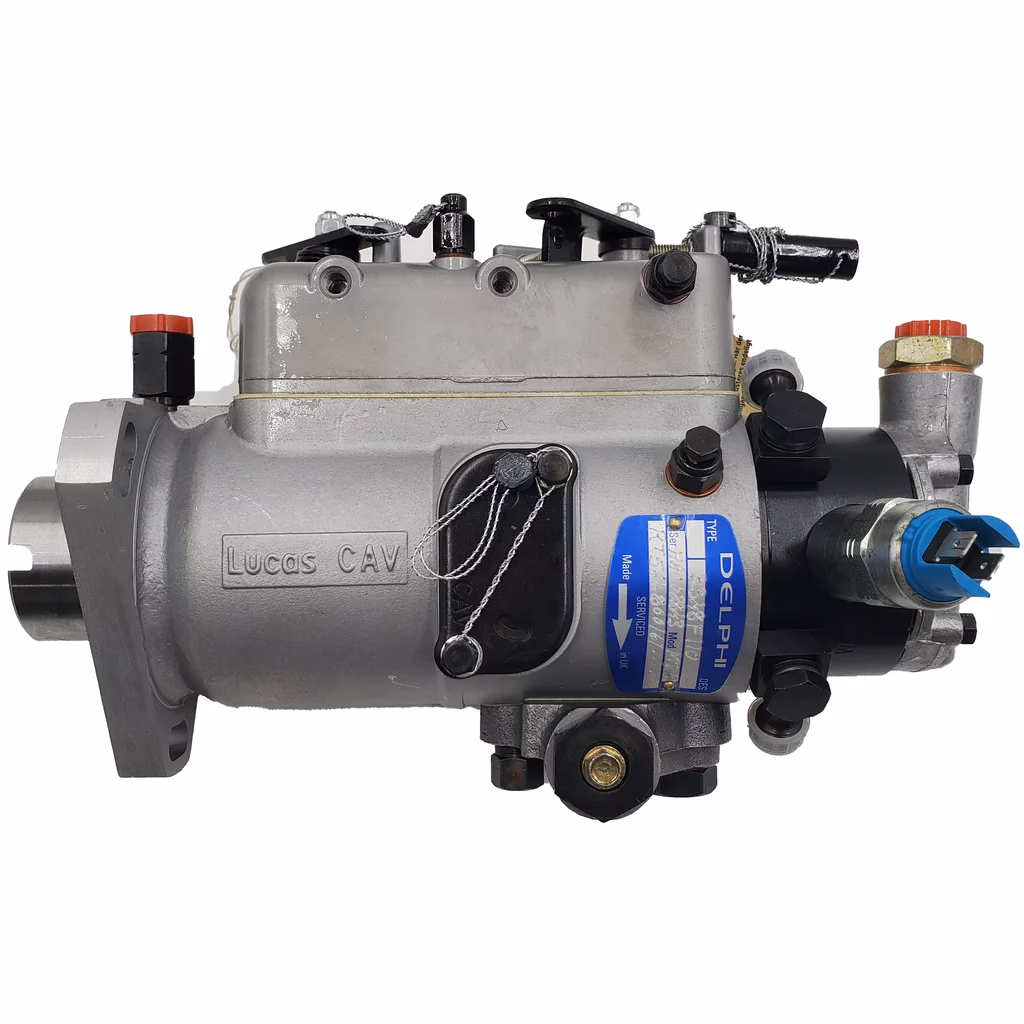

What Exactly is a CAV / Lucas / Delphi DPA Injection Pump?

Before delving into the repair kit, it’s helpful to understand the component it serves. The DPA (Distributor Pump, Type A) injection pump is a rotary-type fuel injection pump that was widely manufactured by CAV, which later became Lucas, and eventually Delphi. Its design is renowned for its simplicity, compactness, and reliability, making it a popular choice for a vast array of diesel engines, particularly in agricultural and industrial sectors. Unlike in-line pumps, the DPA pump uses a single pumping element and a distributor to deliver fuel under high pressure to each injector in the correct firing order.

Its widespread adoption means that millions of these pumps are still in service today, powering everything from Ford and Massey Ferguson tractors to various industrial generators and marine engines. The continuous operation, exposure to varying fuel qualities, and the sheer number of moving parts mean that over time, seals harden, O-rings perish, and internal components wear, leading to leaks, erratic performance, or complete breakdown.

Why Do DPA Injection Pumps Require Repair?

The DPA pump, while durable, is not immune to the rigours of its operating environment. Common reasons for pump degradation and the need for a repair kit include:

• Age and Material Degradation: Over years of service, rubber seals and O-rings can harden, crack, or shrink due to heat cycling and exposure to diesel fuel, leading to external and internal fuel leaks.
• Fuel Contamination: Water, dirt, or other particulates in the fuel can cause abrasive wear on internal components, such as the rotor, cam ring, and plungers, affecting pumping efficiency and timing.
• Wear on Moving Parts: Constant friction between internal metallic components like the drive shaft, rollers, and cam ring can lead to wear, altering fuel delivery characteristics and timing.
• Rust and Corrosion: If the engine sits idle for extended periods, especially with low fuel levels or water in the tank, internal rust can form, damaging critical surfaces.
• Poor Maintenance: Neglecting fuel filter changes can exacerbate wear by allowing contaminants to reach the pump.

Symptoms of a failing DPA pump can manifest as difficult starting, excessive smoke (black or white), loss of power, rough running, surging, or visible fuel leaks around the pump body. Addressing these issues promptly is key to preventing further damage to the engine.

Unpacking the CAV / Lucas / Delphi DPA Injection Pump Repair Kit

A DPA injection pump repair kit is not just a random assortment of bits; it is a meticulously assembled collection of components specifically designed to replace the most common wear items and sealing elements within the pump. When you acquire a brand new CAV / Lucas / Delphi DPA Injection Pump repair kit, you are typically receiving a package containing:

• Gaskets: Various paper or composite gaskets that seal mating surfaces of the pump body, preventing external fuel leakage and maintaining internal pressure.
• O-rings: A comprehensive set of rubber O-rings of different sizes and specifications. These are critical for sealing internal passages and external joints, such as the housing, control valve, and delivery valve plugs, ensuring fuel is directed correctly and pressure is maintained.
• Seals: This often includes the main drive shaft seal, which prevents fuel from leaking out where the pump connects to the engine drive, and other specialised seals for internal components.
• Washers: A variety of copper, fibre, or steel washers used for sealing bolts, banjo fittings, and other connections, ensuring a leak-free reassembly.
• Specialised Components (occasionally): Some kits may include specific springs, small valves, or other minor components that are prone to wear, although the primary focus is on seals and gaskets.

The beauty of a high-quality kit, especially one that comes with a full manufacturer’s warranty, is the assurance that all components are manufactured to original equipment specifications. This ensures compatibility, durability, and the proper functioning of the rebuilt pump. Using inferior or incorrect parts can lead to premature failure and further headaches down the line. The kit provides everything needed to reassemble and install a DPA distributor type injection pump, making it a comprehensive solution for a professional rebuild.

The Benefits of Rebuilding with a Repair Kit vs. Full Replacement

When faced with a failing DPA pump, owners typically have two main options: replace the pump entirely with a new or reconditioned unit, or rebuild the existing pump using a repair kit. There are compelling reasons why rebuilding is often the preferred choice:

For many, the cost-effective nature of a repair kit is the primary driver. It allows for a significant saving compared to sourcing a complete new unit, especially for older or less common applications where new pumps might be prohibitively expensive or simply unavailable. Moreover, a properly rebuilt pump, using quality components from a reputable kit, can offer comparable longevity and performance to a new unit, provided the internal hard parts (like the rotor, cam ring, and plungers) are still in good condition.

The Rebuilding Process: A Glimpse

While a repair kit provides the necessary parts, the actual process of rebuilding a DPA injection pump is a highly specialised task that demands precision, specific tools, and extensive knowledge of diesel fuel systems. It is emphatically not a job for the novice mechanic. The general steps involved include:

1. Removal: Safely detaching the pump from the engine.
2. Disassembly: Carefully taking the pump apart, noting the position and condition of all components. This requires specialised wrenches and fixtures.
3. Cleaning: Thoroughly cleaning all internal and external components to remove fuel varnish, dirt, and wear particles.
4. Inspection: Critically examining every hard part (rotor, cam ring, plungers, drive shaft, housing bores) for wear, scoring, pitting, or damage. If these core components are excessively worn, a repair kit alone will not suffice, and the pump may be beyond economical repair.
5. Replacement: Installing all new gaskets, seals, O-rings, and washers from the repair kit. This is where the quality of the kit's components truly matters for long-term reliability.
6. Reassembly: Putting the pump back together, ensuring all components are correctly seated and torqued to specifications.
7. Calibration and Testing: This is perhaps the most critical step. The rebuilt pump must be mounted on a specialised test bench to verify correct fuel delivery, timing, governor operation, and pressure settings across the engine’s operating range. Without proper calibration, the engine will not run efficiently or reliably.
8. Installation: Reinstalling the calibrated pump onto the engine.

Due to the complexity and the absolute necessity of precise calibration, this work is best entrusted to an authorised Delphi/Lucas/CAV service dealer or a specialised diesel injection workshop. These facilities possess the specific tools, test benches, and expertise required to perform a rebuild that restores the pump to its original factory performance specifications.

Choosing the Right Repair Kit

Not all repair kits are created equal. When sourcing a CAV / Lucas / Delphi DPA Injection Pump repair kit, it’s paramount to ensure you acquire a high-quality product. Key considerations include:

• Manufacturer Warranty: As mentioned in the provided information, a kit that comes with a full manufacturer’s warranty signifies confidence in the quality and durability of its components.
• Authenticity: Look for kits from reputable suppliers who deal in genuine or OEM-equivalent parts. Counterfeit or low-quality seals can quickly fail, leading to costly leaks and repeat repairs.
• Completeness: Ensure the kit contains all the necessary gaskets, seals, O-rings, and washers for your specific DPA pump model. While DPA pumps share a common design, there can be minor variations.

Reputable suppliers, such as authorised service dealers, are the best source for these kits, as they are typically supplied directly from the manufacturer or trusted distributors.

Prolonging the Life of Your Rebuilt DPA Pump

Once your DPA pump has been successfully rebuilt and reinstalled, its longevity largely depends on ongoing maintenance and proper fuel management:

• Regular Fuel Filter Changes: This is perhaps the most critical maintenance item. Clean fuel prevents abrasive wear on the pump’s internal components. Always use high-quality fuel filters recommended by the engine manufacturer.
• Use Clean Fuel: Ensure your fuel storage tanks are clean and free of water or contaminants.
• Avoid Running Out of Fuel: Running the tank dry can introduce air into the fuel system and potentially cause the pump to run dry, leading to internal wear.
• Check for Leaks: Periodically inspect the pump and fuel lines for any signs of leaks.

Frequently Asked Questions about DPA Injection Pumps and Repair Kits

What does DPA stand for?

DPA stands for Distributor Pump, Type A. It refers to the design where a single pumping element distributes fuel to all cylinders.

How long does a DPA pump repair last?

With a quality repair kit, professional installation, and proper calibration, a rebuilt DPA pump can last for many years, often comparable to the lifespan of a new pump, assuming the core hard parts were in good condition.

Can I install the repair kit myself?

While the kit provides the parts, the actual rebuilding and calibration of a DPA pump require specialised tools, a clean environment, and extensive expertise. It is strongly recommended to have this work performed by an authorised Delphi/Lucas/CAV service dealer or a specialist diesel injection workshop. Attempting a DIY rebuild without the necessary skills and equipment often leads to poor performance or further damage.

Are all DPA pumps the same, and will one kit fit all?

No, while the basic DPA design is consistent, there are numerous variations of the DPA pump tailored for different engine applications. These variations can include different governors, timing devices, and internal settings. Therefore, it is crucial to use the correct repair kit specified for your exact pump model number to ensure all seals and components fit perfectly.

What are the most common symptoms of DPA pump failure?

Common symptoms include difficulty starting (especially when hot), excessive white or black smoke from the exhaust, loss of engine power, rough idling, surging, or visible fuel leaks from the pump body.

What is the relationship between CAV, Lucas, and Delphi?

CAV (C.A.V. Ltd.) was a British manufacturer of diesel fuel injection equipment. It was acquired by Lucas in the 1930s, becoming Lucas CAV. Over time, Lucas was acquired by TRW, and eventually, the diesel fuel injection business was spun off and acquired by Delphi Corporation, continuing the legacy of these widely used pumps and their associated parts.

In conclusion, the CAV / Lucas / Delphi DPA Injection Pump repair kit represents a vital resource for maintaining the vast fleet of diesel engines still relying on these robust pumps. It offers a pragmatic, cost-effective, and environmentally conscious solution to pump issues, provided the rebuild is undertaken with the correct, high-quality kit and, crucially, by experienced professionals. Investing in a manufacturer-warranted kit and expert service ensures that your diesel engine continues to deliver reliable performance for years to come, keeping your agricultural machinery, industrial equipment, or vintage vehicle running smoothly and efficiently.
