The Humble Oil Sump: Engine's Essential Reservoir

When it comes to the inner workings of a car, there are many components that work together in harmony to ensure the vehicle runs smoothly and efficiently. One of the most critical components is the oil sump, which plays a vital role in lubricating the engine and keeping it running smoothly. In this article, we will delve into the world of oil sumps, exploring what they are, how they work, and why they are so important for the health of your car’s engine.

What is an Oil Sump?

The oil sump, often referred to as the oil pan, is a crucial component of a car’s engine, responsible for collecting and storing the engine oil. It is typically located at the very bottom of the engine block, acting as the lowest point of the lubrication system. Its primary purpose is to provide a reservoir for the oil that is circulated to lubricate the engine’s myriad of moving parts. The oil sump is designed to hold a specific amount of oil, the capacity of which is dependent on the make and model of the car, as well as the type and size of the engine it houses.

Types of Oil Sumps

Over the years, different materials and designs have been employed for oil sumps, each with its own advantages and disadvantages. The most common types of oil sumps encountered in vehicles include:

How Does an Oil Sump Work?

The operation of an oil sump is intrinsically linked to the engine's lubrication system. The engine oil, after circulating through the engine to lubricate moving parts like the crankshaft, camshaft, pistons, and connecting rods, eventually drains back down to the sump due to gravity. The oil pump, typically driven by the engine’s crankshaft or camshaft, draws oil from the sump. This oil is then pushed through an oil filter to remove any impurities and contaminants. From the filter, the pressurized oil is sent to various lubrication points throughout the engine. After performing its lubricating duties, the oil flows back down, often through designated channels and return holes, to collect once again in the sump, ready for the cycle to repeat. This continuous circulation is vital for reducing friction, dissipating heat, and preventing premature wear and tear on engine components. The sump effectively acts as the primary oil reservoir, ensuring the oil pump always has a supply of oil to circulate.

The Oil Circulation System: A Deeper Look

The oil sump is just one part of a sophisticated oil circulation system. Understanding the interplay of these components highlights the sump's importance:

• Oil Pump: As mentioned, this is the heart of the lubrication system. It creates the pressure needed to move oil from the sump to all the necessary parts of the engine. A healthy oil pump is crucial for maintaining adequate oil pressure.
• Oil Filter: This acts as a vital cleansing agent. As oil passes through it, microscopic particles of metal, carbon, and other debris are trapped, preventing them from circulating and causing damage. A clogged oil filter can restrict oil flow, impacting lubrication.
• Oil Cooler (Optional): In some high-performance or heavy-duty applications, an oil cooler is fitted. This is a small radiator that helps to dissipate excess heat from the engine oil, preventing it from becoming too thin and losing its lubricating properties. The oil typically flows to the cooler and then back to the main oil gallery or sump.
• Oil Return: These are passages and holes within the engine block and cylinder head that allow the lubricated oil to drain back into the sump. The design of these returns is important to ensure a consistent flow of oil back to the reservoir, especially under various G-forces during cornering or acceleration.
• Oil Baffles and Windage Trays: Many sumps, particularly those in performance vehicles, incorporate baffles or windage trays. These are metal plates or dividers within the sump designed to prevent the oil from sloshing excessively during hard cornering, acceleration, or braking. This ensures the oil pickup remains submerged, preventing oil starvation to the pump.
• Oil Pickup Tube: This is a tube with a mesh screen at the end that extends down into the oil sump. It is connected to the oil pump and is responsible for drawing the oil from the sump. The mesh screen acts as a pre-filter, catching larger debris before the oil reaches the pump.

Why is an Oil Sump Important?

The importance of the oil sump cannot be overstated. It is the foundation of the engine's lubrication system. Without a properly functioning oil sump, the engine would be unable to adequately lubricate its moving parts. This lack of lubrication leads to increased friction, excessive heat buildup, and ultimately, catastrophic engine damage, often referred to as engine seizure. Beyond just holding oil, the sump also plays a role in maintaining oil pressure. By providing a consistent pool of oil for the pump to draw from, it helps to stabilise the oil pressure within the system, ensuring the engine runs smoothly and efficiently. The oil also helps to cool down engine parts by carrying heat away to the sump, where it can dissipate.

Consequences of a Faulty Oil Sump

A compromised or faulty oil sump can have severe repercussions for your vehicle's engine. The consequences can range from minor performance issues to complete engine failure:

• Engine Damage: The most critical consequence is engine damage due to a lack of lubrication. If the oil level drops too low because of a leak from the sump, or if the oil pickup becomes uncovered due to excessive sloshing (in sumps without adequate baffles), the engine will not be lubricated. This leads to overheating and severe wear on components like bearings, pistons, and cylinder walls.
• Increased Wear and Tear: Even if the sump isn't leaking, internal issues like damaged baffles or a clogged oil pickup screen can impede oil flow. This results in less efficient lubrication, leading to accelerated wear on engine parts, increased noise (such as knocking or ticking), and noticeable vibration.
• Reduced Engine Performance: When the engine isn't properly lubricated, internal friction increases. This robs the engine of power, making it feel sluggish and unresponsive. You might notice a drop in acceleration, poorer fuel economy, and an overall rougher running engine.
• Oil Leaks: Cracks or damaged seals around the oil sump can lead to oil leaks. These leaks not only result in a loss of oil but can also be a fire hazard if oil drips onto hot exhaust components. They also create messy oil stains on your driveway or garage floor.
• Overheating: Oil plays a role in cooling the engine. If the oil level is low or circulation is poor due to sump issues, the engine's ability to dissipate heat is compromised, leading to overheating.

How to Maintain an Oil Sump

Maintaining the oil sump is a relatively straightforward process that primarily revolves around good general engine maintenance. Here are some key tips:

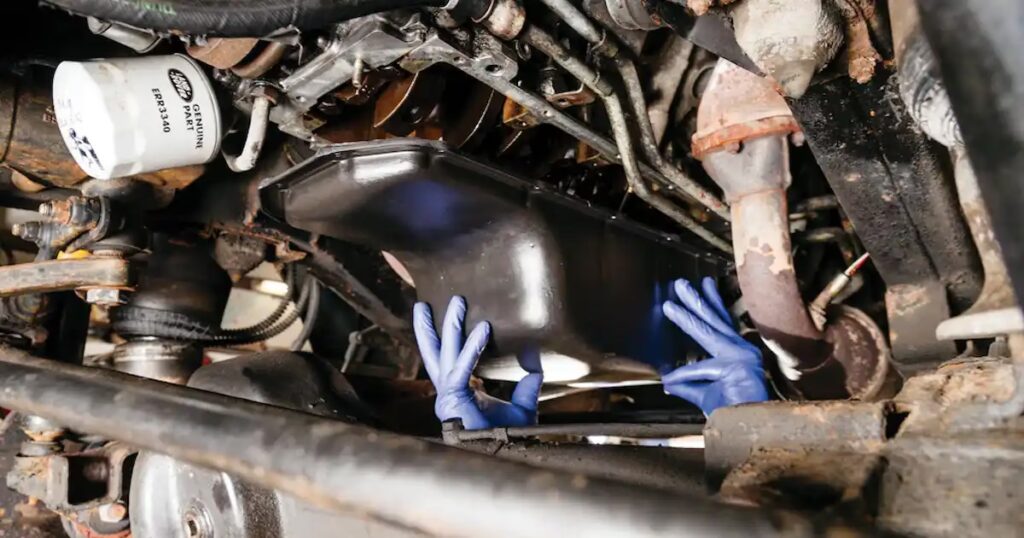

Regular Oil Changes

Regular oil changes are the most critical aspect of maintaining the health of your oil sump and the entire lubrication system. Over time, engine oil degrades, losing its viscosity and lubricating properties. It also accumulates contaminants. Changing the oil at the manufacturer's recommended intervals (typically every 5,000 to 7,500 miles, but always consult your owner's manual) ensures that fresh, clean oil is available for circulation and that the sump isn't filled with sludge.

Oil Change Tips

When you or your mechanic perform an oil change, pay attention to the sump itself:

• Use the Correct Type of Oil: Always use the oil viscosity and specification recommended by your vehicle's manufacturer. Using the wrong oil can affect lubrication and potentially damage engine components.
• Check the Oil Level: Before changing the oil, check the existing oil level using the dipstick. Ensure it's within the recommended range. If it's very low, investigate potential leaks, which could be from the sump.
• Inspect the Sump Plug and Washer: The sump plug is the drain point for the oil. Ensure it is tightened correctly and that the sealing washer is replaced at each oil change to prevent leaks.
• Inspect the Sump for Damage: During an oil change, it's a good opportunity to visually inspect the oil sump for any signs of damage, such as dents, cracks, or corrosion. Look for any signs of oil residue or leaks around the sump's gasket or seals.
• Use a Quality Oil Filter: A good quality oil filter will effectively remove contaminants, protecting the engine and ensuring a cleaner oil supply in the sump.
• Professional Inspection: If you suspect a leak or damage to the oil sump, it's best to have it inspected by a qualified mechanic. They can identify the source of the leak and recommend the necessary repairs, which might involve replacing the sump gasket, tightening the sump bolts, or in severe cases, replacing the entire oil sump.

Recap

In conclusion, the oil sump is a fundamental and often overlooked component of a car’s engine. Its primary role is to act as the collection and storage reservoir for engine oil, which is essential for lubricating the vast array of moving parts within the engine. The sump ensures a continuous supply of oil to the oil pump, which then circulates it throughout the engine, reducing friction, dissipating heat, and preventing wear. Different materials like cast iron, aluminium, and plastic are used in sump construction, each offering unique properties. The health of the oil sump is directly tied to the overall health of the engine; a faulty sump can lead to serious consequences, including severe engine damage, reduced performance, and oil leaks. Therefore, regular maintenance, particularly timely oil changes and visual inspections, is crucial for ensuring the longevity and optimal performance of your vehicle's engine.

FAQs

Q1: What is the primary purpose of an oil sump?
The primary purpose of an oil sump is to collect and store the engine oil that circulates through the engine, providing a reservoir for the oil pump to draw from and ensuring adequate lubrication of moving parts, thereby reducing friction and wear.

Q2: How often should I change my engine oil?
The frequency of oil changes varies depending on your vehicle's make, model, and engine type, as well as driving conditions. However, a general guideline is every 5,000 to 7,500 miles. Always consult your vehicle's owner's manual for the most accurate recommendation.

Q3: What are the consequences of neglecting oil changes?
Neglecting oil changes can lead to a build-up of sludge and contaminants in the engine, reduced lubricating effectiveness of the oil, increased engine wear, overheating, reduced engine performance, and potentially severe engine damage.

Q4: Can I change my car's oil myself?
Yes, many car owners can change their own oil. However, it's essential to follow the correct procedures, use the recommended type of oil and filter, and dispose of used oil responsibly. Consulting your car's owner's manual is highly recommended for specific instructions.

Q5: What are the common signs of a faulty oil sump?
Common signs of a faulty oil sump include visible oil leaks underneath the vehicle (especially after parking), a low oil warning light on the dashboard, unusual engine noises (like knocking or grinding), and a noticeable drop in engine performance or increased oil consumption.

Q6: Can an oil sump affect engine temperature?
Yes, the engine oil plays a role in cooling by carrying heat away from internal components. If the oil level is low due to a sump leak, or if the oil itself is degraded and less effective, the engine's ability to manage its temperature can be compromised, leading to overheating.

Q7: What is a windage tray and why is it in some sumps?
A windage tray (or baffle) is a shield positioned within the oil sump. Its purpose is to prevent the engine oil from "sloshing" violently during rapid acceleration, deceleration, or cornering. This ensures that the oil pickup tube remains submerged in oil, preventing the oil pump from drawing air, which would lead to oil starvation and potential engine damage.
