27/05/2007
Embarking on the restoration of a classic car, particularly one as iconic as the Triumph TR6, is a journey filled with both immense satisfaction and moments of sheer apprehension. At the heart of any such endeavour lies the engine, a complex symphony of precision-engineered components that, when assembled correctly, breathes life into the vehicle. For any enthusiast, the engine assembly phase is arguably the most critical, a stage where attention to detail isn't just a virtue but an absolute necessity. The mere thought of having to pull the engine and gearbox back out due to an oversight or misstep is enough to send shivers down the spine of even the most seasoned mechanic. While this wasn't my first engine rebuild – indeed, a previous project involving an SBC Chevy engine for an Apache truck provided valuable experience – the Triumph engine presented a new and distinct challenge. Its unique characteristics and specific tolerances meant navigating uncharted territory, but thankfully, a wealth of resources, from the invaluable shop manual to the generous support of vendors and the vibrant community of British car forums, proved to be indispensable.
Piston Installation: A Compressor Conundrum

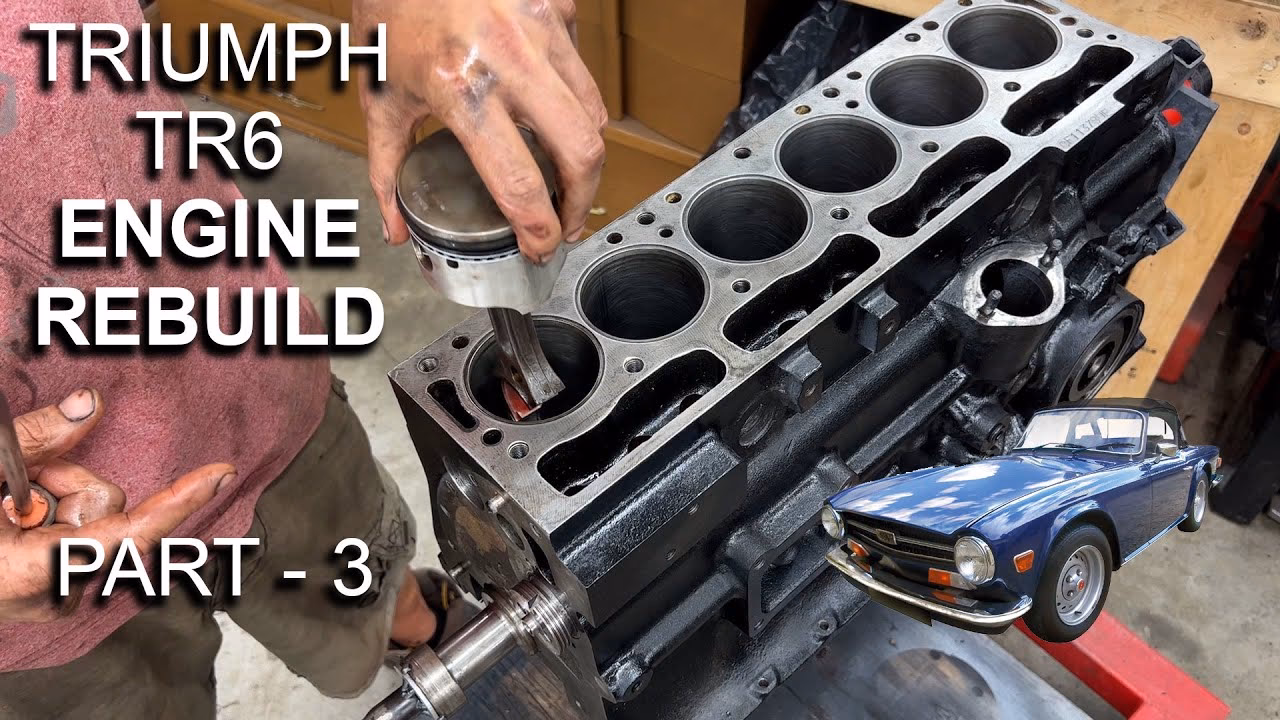

The journey began with the pistons, gleaming and ready for installation, a seemingly straightforward task that quickly revealed its own set of intricacies. My experience with the Chevy engine had afforded me the luxury of a tapered ring compressor, a tool that simplifies the process immensely by guiding the piston rings smoothly into the cylinder bore. For the Triumph TR6, however, such a tool for its specific bore dimensions appeared elusive. Instead, I found myself working with a pliers-style ring compressor, complete with a locking ratchet mechanism. While effective in theory, applying sufficient downward pressure by hand to firmly seat the compressor and compress the rings into the cylinders proved surprisingly challenging. The design of the Triumph block, with a slight recess at the top of the cylinder bores, further complicated matters, making it difficult to maintain the necessary pressure and alignment simultaneously. It was a moment that called for an inventive solution.
Necessity, as they say, is the mother of invention. Faced with this hurdle, I devised a simple yet highly effective mechanical aid to hold the ring compressor firmly against the block. This clever workaround transformed a frustrating wrestling match into a smooth, controlled operation, allowing each piston to slide effortlessly into its designated cylinder. This experience underscored a crucial lesson: sometimes, the simplest mechanical assistance can overcome significant ergonomic challenges, turning a potential roadblock into a mere speed bump on the path to successful assembly. It also highlighted the subtle differences in tooling and technique required when transitioning between marques, even for a task as fundamental as piston installation.
To illustrate the contrast in approaches, consider the following:
| Feature | Pliers-Style Ring Compressor (Triumph TR6) | Tapered Ring Compressor (Chevy SBC) |
|---|---|---|
| Ease of Use | Required mechanical assistance to hold down due to block design and manual pressure limitations. | Extremely simple; the taper naturally guides the rings into the bore, often allowing for single-handed operation. |
| Holding Mechanism | Utilises a ratchet lock, but applying consistent, firm downward pressure by hand can be challenging. | Relies on a conical shape that self-compresses the rings as the piston is pushed through, requiring less direct manual force. |
| Adaptability | Typically specific to a range of bore sizes, can be fiddly if not perfectly matched to the bore. | Often designed to accommodate a wider range of bore sizes within a single unit, offering greater versatility. |
| Common Availability | Less common or readily available in tapered form for Triumph bores, leading to improvised solutions. | Widely available and a standard tool for many common engine types, including the Chevy SBC. |
Securing the Front: The Steel Sealing Block
As the engine build progressed, attention turned to ensuring robust sealing, especially at critical points. For the front of the engine, I opted to use the Classic Technologies steel front sealing block. This component is highly regarded within the Triumph community for its superior durability and sealing capabilities compared to original specifications, offering a significant degree of peace of mind against potential oil leaks – a common annoyance in many classic vehicles. The decision to invest in such an upgrade was driven by the desire for a truly reliable and leak-free engine, aiming to avoid any future maintenance headaches. However, even with premium aftermarket parts, a degree of customisation or adaptation can sometimes be necessary.
In this particular instance, installing the Classic Technologies block necessitated a minor but crucial modification to the ARP main bearing cap bolts. The heads of these high-strength bolts, while excellent for securing the main bearings, were found to be slightly proud, creating a clearance issue with the new sealing block. To rectify this, a careful and precise grinding down of the top of the ARP bolt heads was required. This seemingly small alteration was vital to ensure proper fitment and, critically, to allow the sealing block to sit flush and exert uniform pressure, thereby guaranteeing an effective seal. It was a reminder that even when using top-tier components, a thorough dry-fit and meticulous attention to detail are paramount to a successful outcome, highlighting the iterative nature of classic car restoration where unexpected adjustments are often part of the process.
Precision and Patience: Setting the Camshaft Timing
With the lower end of the engine taking shape, the focus shifted to the valve train, specifically the critical task of setting the camshaft timing. This is a procedure that demands precision, as incorrect timing can severely impact engine performance, efficiency, and even lead to internal damage. Thankfully, with the right tools and, crucially, expert guidance, this phase proved to be remarkably straightforward. Utilising a magnetic dial indicator, a precision instrument essential for accurately measuring valve lift and duration, the process of dialling in the camshaft became a methodical and manageable task. The real game-changer, however, was the invaluable assistance received from Richard Good.
His enthusiastic customer service and willingness to provide live, over-the-phone support were truly exemplary. Richard spent a considerable amount of time guiding me through the intricacies of the timing procedure, patiently explaining each step and offering troubleshooting advice. This level of dedication, backing up sales with genuine expertise and support, is incredibly rare and immensely appreciated in the classic car world. It underscores the profound value of connecting with knowledgeable vendors who are not just selling parts but are invested in the success of their customers' projects. This direct line to expertise meant that what could have been a daunting and complex operation was transformed into a confident and accurate assembly step, ensuring the engine’s breathing was perfectly orchestrated from the outset.
The Valve Stem Seal Saga: A Near Catastrophe
One of the more significant decisions during the cylinder head assembly involved the choice of valve stem seals. I had opted for Viton valve stem seals, renowned for their superior heat resistance and longevity compared to traditional materials. The intention was to enhance the engine's long-term reliability and minimise oil consumption through the valve guides. I entrusted Casey at HDS Machine shop with setting the height of the valve guides according to the factory manual specifications, assuming this would be the correct approach. The head was completed, looked immaculate at this stage, and was duly installed on the engine.
The car was driven for a couple of hundred miles, performing admirably. As part of routine post-rebuild maintenance, I popped off the valve cover to re-torque the cylinder head bolts. What I discovered beneath the cover sent a jolt of alarm through me: the Viton seals had been smashed, with little bits and pieces scattered around the cylinder head near the valve springs. It was a disheartening sight, indicating a fundamental problem that needed immediate rectification. Upon closer inspection and subsequent consultation, the root cause became clear: with the higher lift camshaft I had chosen, the stock valve guide height specification, as per the factory manual, was simply too tall. The increased valve lift caused the retainer to bottom out on the valve guide, crushing the seals in the process. What’s more, the very installation tool I had used for the seals was also designed to set the valve guide height – a crucial detail that hadn't occurred to me, nor had it been adjusted for the specific cam profile.
My immediate thought was to rectify the problem by removing the damaged seals. After all, the factory didn't install seals in some early models, so perhaps running without them was an option, at least temporarily. The plan was to use compressed air to hold the valves up, allowing me to remove the springs without dropping a valve into the cylinder. I proceeded cautiously, but unfortunately, I didn't apply enough air pressure. With a sickening clunk, the first valve dropped into the cylinder, landing squarely on top of the piston. Removing the cylinder head again was a painful necessity, a frustrating setback after all the effort. When the head was off, the sight of the valve standing upright on the piston, as my son-in-law Russel wryly observed, "like it was giving you the finger," was almost comical in its defiance, despite the underlying frustration. It was a potent symbol of the unexpected challenges that can arise even with meticulous planning.
The removal of the valve springs had been relatively straightforward using a Lisle “hit it with a hammer” tool, which proved highly effective for taking the springs off. However, installing them back on was a different story; the Lisle tool, while great for removal, proved problematic for installation. I reverted to my old, trusty valve spring compressor, a more traditional tool that provided the necessary leverage and control to safely re-install the springs. This entire episode, while a significant detour, ultimately proved to be for the best. It forced a re-evaluation of the valve guide height and ensured that the engine was reassembled with the correct clearances, preventing potentially catastrophic long-term damage. It was a harsh but invaluable lesson in the critical interplay between aftermarket performance components and factory specifications, and the necessity of verifying all clearances, especially with a modified valve train.
The Value of Community and Expertise
Throughout this challenging but ultimately rewarding engine rebuild, the importance of external support and collective knowledge cannot be overstated. Individuals like Richard Good, whose patient guidance on camshaft timing was a beacon of clarity, and Casey over at HDS Machine shop, who provided invaluable insights into the valve guide height issue, were instrumental. Their willingness to share their deep expertise and offer live, practical advice transformed potential roadblocks into solvable challenges. Beyond individual experts, the vibrant community found on British car forums also proved to be an indispensable resource. These online platforms are treasure troves of shared experiences, troubleshooting tips, and collective wisdom, providing a sense of camaraderie and support that is unique to the classic car hobby.
Whether it was diagnosing the mysterious valve seal issue or simply seeking reassurance on a particular assembly step, the ability to tap into this network of enthusiasts and professionals provided immense confidence. It’s a testament to the fact that even for experienced DIYers, there’s always something new to learn, and the path to a successful restoration is often paved with collaborative effort and shared knowledge. This collective support system not only helped avert potential disaster but also enriched the entire rebuilding experience, turning moments of frustration into opportunities for learning and growth.
Conclusion: Perseverance Pays Off
The journey of reassembling the Triumph TR6 engine was undeniably more involved than initially anticipated. It was a winding path marked by unexpected hurdles, moments of head-scratching frustration, and even a heart-stopping incident with a dropped valve. Each challenge, from the tricky piston ring compressor to the critical valve stem seal saga, demanded patience, ingenuity, and a willingness to learn and adapt. The discovery of the smashed seals and the subsequent dropped valve felt like a significant setback, forcing the painful decision to remove the newly installed cylinder head. Yet, it was a necessary step, ensuring that the underlying issue of incorrect valve guide height for the higher lift camshaft was properly addressed.

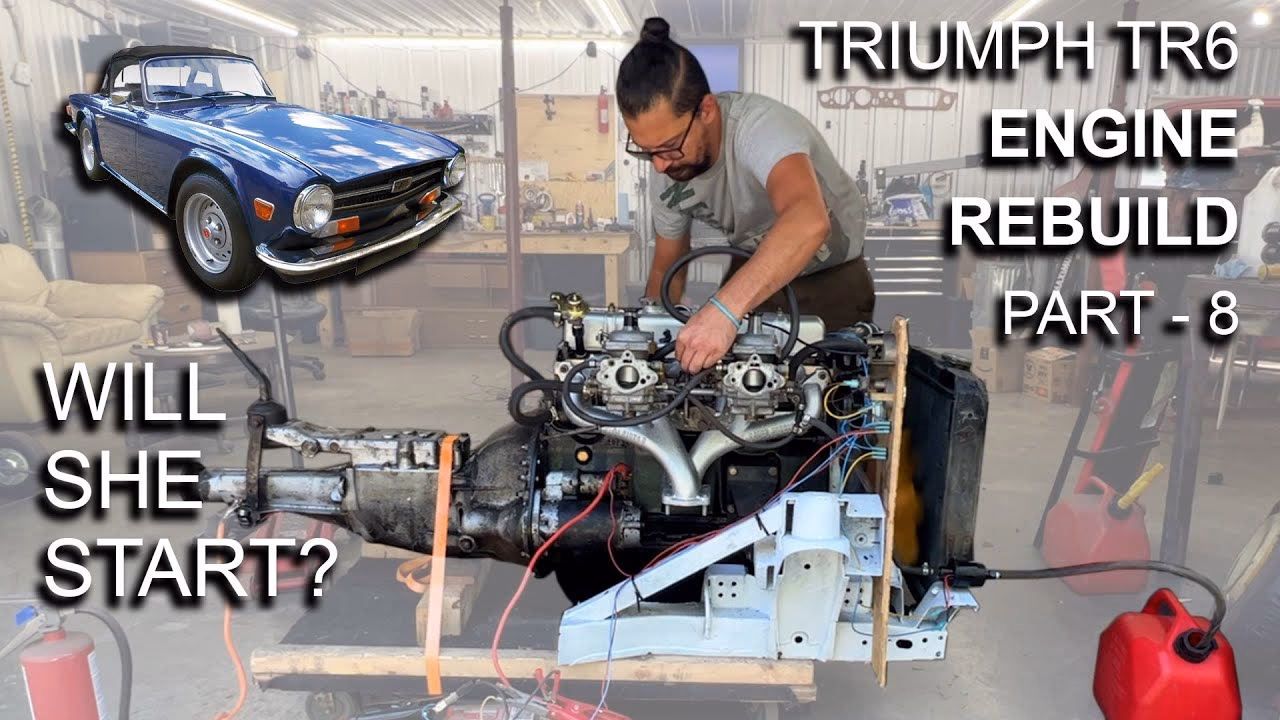

Despite the added work and the momentary despair, the meticulous re-assembly, coupled with the invaluable guidance from experts and the classic car community, ultimately ensured a positive outcome. After putting everything back together, changing the oil and filter, and performing a final inspection, the engine started beautifully and has been running perfectly ever since. Crucially, no permanent damage was done, a testament to the iterative nature of restoration and the importance of addressing problems head-on. This experience reinforced the understanding that an engine rebuild is rarely a perfectly linear process; it's a dynamic endeavour that often requires problem-solving on the fly. But the satisfaction of hearing that TR6 engine hum, knowing every component has been carefully considered and correctly installed, makes every challenge and every extra hour immensely worthwhile. It’s a powerful reminder that perseverance, coupled with a passion for mechanical detail, truly pays off in the world of classic car restoration.
Frequently Asked Questions (FAQs)
Q: Is it common for aftermarket parts to require modifications during installation?
A: Yes, it is quite common. While aftermarket parts are designed to improve performance or reliability, they are not always a direct 'bolt-on' fit, especially when combined with other non-standard components (like a higher lift camshaft). Always dry-fit parts and check clearances before final assembly. Modifications like grinding or shimming might be necessary to ensure proper function and prevent interference.
Q: How can I prevent dropping a valve during valve stem seal replacement?
A: The most secure method is to remove the cylinder head and work on it on a bench, allowing you to easily clamp the head and control the valve. If working with the head on the engine, using compressed air through the spark plug hole is common, but ensure you have a high-volume, consistent air supply and a reliable adapter. A leak-down tester can also be adapted for this. Always test the air pressure's ability to hold the valve before removing the springs, and have a contingency plan ready.
Q: What's the best type of ring compressor for a Triumph TR6?
A: While a pliers-style compressor can work, a tapered sleeve compressor specifically designed for the TR6's bore size would be ideal if available. The tapered design guides the rings smoothly and reduces the chance of ring damage or difficulty. If a tapered compressor isn't available, creative solutions like a mechanical hold-down for the pliers-style compressor can make the job significantly easier.
Q: Should I use Viton valve stem seals in my classic car engine?
A: Viton seals offer excellent heat resistance and durability, making them a popular upgrade. However, as demonstrated, it's crucial to ensure compatibility with your specific valve train components, especially if you're using a higher lift camshaft. Always verify valve guide height and retainer-to-seal clearance to prevent crushing the seals. If in doubt, consult with your engine builder or a specialist familiar with your engine type and chosen camshaft.
Q: How important is consulting experts or forums during a classic car engine rebuild?
A: Extremely important. Even experienced mechanics encounter unique challenges with classic engines due to age, variations, and aftermarket parts. Experts and online forums offer a wealth of collective knowledge, troubleshooting advice, and often, specific solutions to common problems. Their guidance can save you time, money, and prevent costly mistakes, providing invaluable peace of mind throughout the restoration process.
