DIY Lawnmower Engine Rebuild: A UK Guide

Is your trusty lawnmower sputtering, losing power, or refusing to start altogether? Before you consider shelling out for a brand-new machine, consider the immensely satisfying and often cost-effective option of rebuilding its engine. While it might sound daunting, particularly without the original service manual, a methodical approach, a bit of common sense, and the right guidance can see you breathe new life into your garden workhorse. Not only can a successful rebuild significantly improve your engine's efficiency and speed, but it also offers a deep sense of accomplishment and substantial savings on professional repair costs or a full replacement.

This comprehensive guide will walk you through the essential steps to rebuilding a lawnmower engine, tailored for the home mechanic in the UK. We'll cover everything from crucial safety precautions to detailed component care, ensuring you have the knowledge to tackle this rewarding project with confidence.

Safety First: Non-Negotiable Precautions

Before you even think about touching a spanner, safety must be your absolute priority. Working on an engine involves various hazards, from unexpected starts to sharp edges and hazardous fluids. Ignoring these precautions could lead to serious injury.

• Disconnect the Spark Plug: This is arguably the most crucial step. Always, without fail, disconnect the spark plug lead from the spark plug before performing any work on the engine. This eliminates any chance of the engine accidentally starting, which could result in severe injury, such as losing fingers. It takes mere seconds but could save you a lifetime of regret.
• Wear Personal Protective Equipment (PPE):
• Gloves: Engines are often sharp, greasy, and dirty. Robust work gloves will protect your hands from cuts and grime, preventing potential infections.
• Eye Protection: Sparks, splashes of petrol or oil, and flying debris are all potential hazards. Safety glasses or goggles are essential to protect your eyes.
• Proper Fluid Disposal: Before disassembly, you’ll need to drain the old engine oil. Never pour used oil down drains or onto the ground. Collect it in a sealed container and take it to an authorised oil disposal site, such as your local recycling centre. This protects the environment and is a legal requirement.

Step-by-Step Engine Rebuild Process

While specific models may have unique quirks, the fundamental steps for rebuilding most lawnmower engines remain consistent. Follow these guidelines for a successful overhaul.

Step 1: The Art of Disassembly and Inspection

Disassembling the engine might seem complex, but it's often quite straightforward. The real challenge lies in remembering where everything goes! Organisation is key here. As you remove each part, consider taking photos or making notes. You might even want to use a labelled egg carton or separate containers for different sets of fasteners.

Once the oil has been safely drained, begin carefully dismantling the engine. As you remove each component:

• Wash Thoroughly: Clean each part with warm, soapy water to remove grease, grime, and carbon deposits. This not only makes inspection easier but also prevents dirt from contaminating newly assembled parts.
• Inspect for Wear and Damage: This is a critical assessment phase. Look for signs of excessive wear, cracks, scoring, or corrosion. Components that are too badly damaged or worn, such as deeply scored cylinder walls, bent connecting rods, or severely pitted valve seats, will need to be replaced. Be honest in your assessment – a compromised part will undermine your entire rebuild.

Step 2: Sourcing Quality Replacement Components

Once you’ve identified which parts can be reused and which need replacing, it’s time to purchase your new components. This is not the time to cut corners. Always strive to buy the very best quality components available. Genuine manufacturer parts are often ideal, but reputable aftermarket suppliers can also provide excellent alternatives. Inferior parts can significantly shorten the lifespan of your rebuild and lead to premature failure.

Step 3: Addressing the Cylinders and Piston Rings

The cylinders and piston rings are fundamental to an engine's compression and performance. This step is crucial for restoring lost power.

• Cylinder Assessment: Carefully check the internal diameter and condition of your engine's cylinders. If they show significant scoring or wear, they might be larger than their standard specification. In such cases, standard-sized piston rings won't provide an adequate seal.
• Boring and Oversized Rings: If a cylinder is worn beyond tolerance, you might need to have it professionally bored out to a slightly larger, precise dimension. This allows for the fitting of oversized piston rings, which will restore proper compression. This is a job that typically requires specialist machining equipment.
• Piston Ring Orientation: When fitting new piston rings, pay close attention to their orientation and the gaps. The gaps in the rings should be staggered (e.g., at approximately 90-degree intervals) to prevent oil from leaking through them. Lubricate the rings lightly with engine oil before installing the piston into the cylinder.

Step 4: Replacing the Engine Gasket

The gasket acts as a seal between different engine components, preventing leaks of oil, coolant (if applicable), and combustion gases. A proper seal is paramount for engine integrity.

• Thorough Cleaning: Before installing a new gasket, ensure that both mating surfaces are spotlessly clean and free of any old gasket material or debris. Any remnants can compromise the seal.
• Proper Sealing: When fitting the new gasket, ensure it completely seals the entire engine block or component it's designed for. A gasket that leaks or exposes any part of the engine to the outside environment will significantly increase the likelihood of damage during normal operating conditions. This could lead to premature wear, loss of performance, and the need for another rebuild much sooner than anticipated. Double-check all bolt torques according to the manufacturer's specifications.

Step 5: Renewing Filters and Spark Plugs

These components are vital for the engine's breathing, lubrication, and ignition. Replacing them is a straightforward yet impactful step.

• Air and Oil Filters: Replace both the air filter and oil filter (if applicable). A clean air filter ensures the engine breathes clean, uncontaminated air, preventing abrasive particles from entering the combustion chamber. A fresh oil filter ensures the engine's lubricating oil remains clean and effective.
• Spark Plugs: Install new spark plugs. When fitting them, ensure they are tightened securely. A loose spark plug can prevent the engine from firing correctly, leading to misfires, reduced power, or a complete failure to start. Do not overtighten, however, as this can strip the threads in the cylinder head – a costly mistake. Use a torque wrench if you have access to one and know the correct torque setting.

Step 6: The Moment of Truth – Testing Your Rebuild

With all components reassembled, it’s time to see if your hard work pays off. This step is crucial for breaking in new parts and checking for any issues.

• Initial Start-Up: Ensure the engine has fresh oil and fuel. Attempt to start the engine. It might take a few pulls or cranks to get the fuel circulating.
• Run-in Period: Once started, allow the engine to run at full throttle for a couple of minutes. Listen for any unusual noises, vibrations, or leaks.
• Cool-Down and Inspection: Shut down the engine and allow it to cool completely.
• Post-Run Oil Change: This is a critical step often overlooked. After the initial run, drain the oil and replace it with fresh, clean oil. The first run-in period will likely dislodge tiny metallic particles from the newly seated components (e.g., piston rings, bearings). If these microscopic bits of metal are left in the engine, they can circulate with the oil and cause significant wear and damage to internal parts over time. This fresh oil change ensures these contaminants are removed, promoting a longer, healthier life for your rebuilt engine.

Tackling Common Troublespots and Advanced Considerations

While the six steps above cover the core rebuild, several other areas often cause issues and are worth addressing during your overhaul.

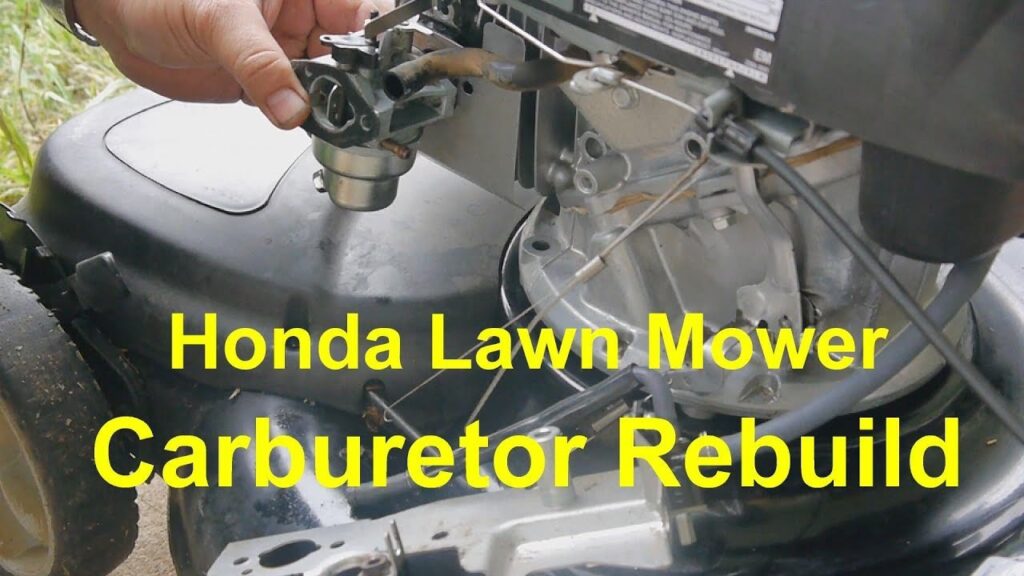

The Carburettor: The Engine's Fuel Mixer

The carburettor is arguably the most common culprit behind lawnmower engine problems. It’s responsible for mixing air and fuel in precise proportions. If it’s dirty or clogged, your engine won’t run smoothly, if at all.

• Gunk and Varnish: Old petrol, especially if left in the carburettor for extended periods (e.g., over winter), can evaporate and leave behind a sticky varnish or "gunk" that clogs tiny passages and jets.
• Cleaning is Paramount: A carburettor must be meticulously clean to function correctly. Disassemble it carefully, noting the position of all small parts. Soak metal components in a dedicated carburettor cleaner overnight (avoid soaking plastic or rubber parts for too long, as they can degrade).
• Float and Valve: Inspect the float (which regulates fuel level) for holes (submerge in water to check). Ensure the float valve moves freely and is clean.
• Jets and Passages: The tiny jets are most prone to clogging. Use a fine wire (like from a wire brush) to clear them. Use a flashlight or laser pointer to ensure all small passages in the main carburettor body are clear.

The Ignition System: Sparking Life

The ignition system provides the spark needed to ignite the fuel-air mixture. The most common type on lawnmowers is the magneto ignition system.

• Magneto Gap: There needs to be a small, precise gap between the magnets on the flywheel and the magneto coil. This gap is usually no wider than the thickness of a playing card. Incorrect gapping can lead to a weak or absent spark.
• Testing for Spark: To test the ignition system, connect the spark plug lead to the spark plug, then touch the metal body of the spark plug to a grounded metal part of the engine (e.g., the engine block). Pull the starter cord and look for a strong, blue spark. Never hold the spark plug directly while doing this, as you will receive a painful electric shock.

Fuel Tank and Lines: Ensuring Flow

Fuel delivery issues are another common cause of starting problems.

• Vent Hole in Fuel Cap: Some fuel caps have a small vent hole that can become clogged, creating a vacuum in the tank and preventing fuel flow. Loosely screw on the cap and see if the engine starts. If so, clean the vent hole with a small wire.
• Fuel Filter: Many engines have a small fuel filter in the tank or in the fuel line. Check it for blockages. Sometimes a light brush can clean it, but replacement is often best.
• Fuel Lines: If fuel flow is still restricted, the lines themselves might be clogged. Use a pipe cleaner or similar tool to clear them.
• Primer Bulb: If your engine has a primer bulb, ensure it’s free of cuts and its air hole is clear.

Intake and Exhaust Valves: The Engine's Lungs

Four-stroke engines have intake and exhaust valves that control the flow of air-fuel mixture into and exhaust gases out of the combustion chamber. They are operated by a camshaft.

• Valve Condition: Over time, carbon deposits can build up around the valve stems, impeding their movement. Clean them with a commercial valve cleaner or by hand. The valve surface should be smooth.
• Wear and Damage: Scratched or pitted valve faces can lead to oil leaks (often due to infrequent oil changes) and loss of compression. Chipped valve heads can cause incorrect fuel injection and reduced combustion efficiency. In these cases, replacement valves are often the only solution.
• Removal and Reinstallation: Removing valves requires pressing down compression springs and removing retainers. Reinstallation can be tricky; you'll need to compress the springs and carefully position the retainers and valve spring keepers. Patience and a good understanding of the mechanism are essential.

The Flywheel: Power and Timing

The flywheel is a heavy wheel that helps smooth out engine rotation and often houses the magnets for the ignition system.

• Nut Removal: The nut holding the flywheel is typically very tight. You’ll need to block the rotation of the crankshaft (e.g., by holding the blade nut with a wrench or blocking the blade itself) to loosen it. Never try to block the flywheel by sticking a crowbar in its teeth, as they can easily break off.
• Flywheel Key: Once the nut is off, gently pry off the flywheel. Be careful not to lose the small flywheel key, which aligns the flywheel with the crankshaft for proper timing. Note its orientation for reassembly.

Spark Arrestor: Fire Prevention

While not critical for engine operation, the spark arrestor is a legally required component on most outdoor power equipment. It’s located in the exhaust system and catches sparks before they can exit the engine and potentially start a fire.

• Cleaning: Most spark arrestors cannot be fully disassembled. Use a wire brush to clean out any carbon build-up or blockages.

Common Engine Issues & Rebuild Necessity

Understanding the symptoms can help you decide if a full rebuild is truly necessary or if a simpler repair might suffice.

Frequently Asked Questions (FAQs)

Q: Can I rebuild any lawnmower engine?

A: While the general principles apply to most small four-stroke engines, the complexity can vary. Older, simpler engines are often more straightforward. Newer engines with more electronics or specific proprietary designs might be more challenging without a dedicated service manual. However, with patience and the right tools, most common lawnmower engines are rebuildable by an enthusiastic DIYer.

Q: What are the primary signs my lawnmower engine needs a rebuild?

A: Common indicators include excessive smoke (especially blue smoke, indicating oil burning), significant loss of power, difficulty starting or staying running even after routine maintenance, unusual knocking or tapping noises from the engine, or excessive oil consumption. A compression test can often confirm if internal wear (like worn piston rings or valves) is the root cause.

Q: Is it cheaper to rebuild my engine or buy a new lawnmower?

A: In many cases, rebuilding an engine is significantly cheaper than purchasing a brand-new lawnmower, especially for higher-quality or larger machines. The cost of parts for a rebuild is typically a fraction of a new mower's price. However, factor in your time and the cost of any specialist tools you might need to buy. For very old, cheap, or severely damaged mowers, replacement might be more economical.

Q: How often should a lawnmower engine be rebuilt?

A: A lawnmower engine typically doesn't have a set rebuild schedule. Rebuilds are usually performed when the engine exhibits signs of significant wear or failure due to age, neglect, or high hours of operation. Proper regular maintenance, such as timely oil changes, air filter cleaning/replacement, and spark plug replacement, can drastically extend an engine's life and delay the need for a rebuild.

Q: What if I don't have the engine manual?

A: While the manual is incredibly helpful for torque specifications and specific diagrams, a rebuild is still possible without it. Rely on careful observation, taking plenty of photos during disassembly, and general mechanical principles. Online forums and videos for similar engine types can also be a valuable resource. For critical torque settings, generic small engine specifications can sometimes be found online, but use them with caution.
