N47 & N57 Timing Chain Longevity

The timing chain is a vital component in any internal combustion engine, responsible for synchronising the crankshaft and camshaft(s). In BMW's N47 and N57 diesel engines, this critical part has unfortunately become a talking point among owners due to documented issues. Understanding how often these chains need replacing, and why, is paramount for avoiding costly repairs and ensuring the longevity of your vehicle.

Understanding the N47 and N57 Timing Chain Conundrum

The N47 and N57 diesel engines, found in a wide range of BMW models from the 1 Series to the X5, have gained a reputation for potential timing chain issues. Unlike older BMW engines, such as the robust M47 and M57, which were known for their durability and often less frequent need for timing chain intervention, the N-series engines present a different picture. Several factors contribute to this perception, including design choices, material quality, and in some cases, driving and maintenance practices.

The core of the problem often lies in the wear and potential stretching of the timing chain itself, along with the associated tensioners and guides. When these components begin to degrade, they can produce a distinctive rattling noise, particularly noticeable on startup or at idle. This 'rattle' is a clear indicator that the timing chain system is under stress and requires immediate attention. Ignoring this symptom can lead to more severe consequences, including the chain jumping a tooth, or in the worst-case scenario, snapping entirely, which can result in catastrophic engine damage.

When Should the Timing Chain Be Replaced?

There isn't a fixed, universally prescribed mileage interval for replacing the timing chain on N47 and N57 engines in the same way there might be for wear items like brake pads. Instead, replacement is typically driven by the onset of symptoms and the condition of the components. However, based on owner experiences and anecdotal evidence, many recommend proactive inspection and potential replacement between 60,000 and 100,000 miles, especially if the vehicle has a history of potentially less-than-ideal maintenance or specific driving conditions.

Key indicators for potential replacement include:

• Rattling Noise: This is the most common and significant symptom. The noise often originates from the front of the engine, near the timing chain cover.
• Check Engine Light: While not always directly related to the chain itself, timing issues can throw engine fault codes, triggering the check engine light.
• Performance Issues: Rough idling, hesitation, or a general loss of power can sometimes be linked to incorrect engine timing.

It's crucial to understand that 'failure' isn't always a sudden event. It can be a gradual process of wear. Therefore, listening for unusual noises and ensuring regular, high-quality maintenance is key. Some sources suggest that the original timing chain guides and tensioners may not have been manufactured to the highest standards, leading to premature wear.

The Role of Maintenance and Driving Style

The provided forum excerpts highlight the significant impact of maintenance and driving style on the health of N47 and N57 engines. One common theory suggests that the UK police fleet's issues with engine failures, including bearing problems (though not directly timing chains), were exacerbated by long oil service intervals, frequent idling, and then sudden hard acceleration. The suggested remedy involved more frequent oil changes and a switch to 5W40 oil.

Here's how maintenance and driving style play a role:

• Oil Changes: Regular oil changes with the correct specification oil are vital. Old, degraded oil can lose its lubricating properties, increasing wear on all engine components, including the timing chain and its tensioners. The DPF regeneration process can also contribute to oil dilution over time, making timely oil changes even more critical.
• Driving Style: While occasional spirited driving is fine, consistent patterns of very short journeys (which can lead to DPF issues and oil dilution) followed by prolonged idling, or aggressive driving without allowing the engine to warm up properly, can put undue stress on the engine.

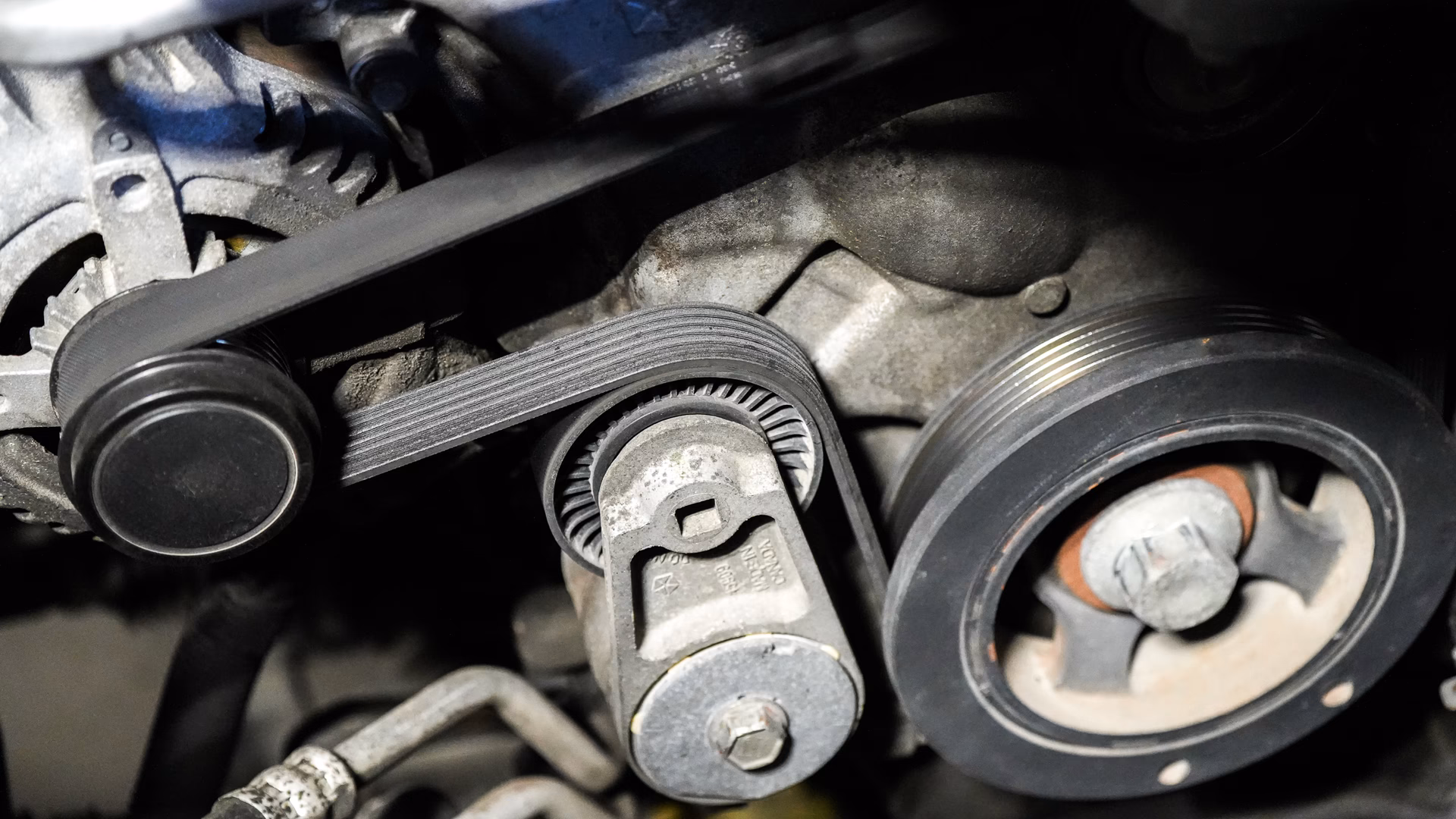

• Component Wear: Issues like a failing vibration dampener on the crank pulley can lead to crank pulley wobble, which in turn can affect the timing chain's alignment and tension, accelerating wear.
• Valve Cover Gaskets: Leaking valve cover gaskets, a known issue on N-series diesels, can lead to oil leaks that drip onto hot exhaust manifolds, potentially causing overheating and breakdown of oil. Replacing these promptly is important.

Timing Chain Replacement: What to Expect

Replacing the timing chain on an N47 or N57 engine is a significant undertaking. It typically involves removing the engine or at least a substantial portion of its front end to gain access. This complexity is reflected in the labour costs, which can be substantial.

Commonly Replaced Components During a Timing Chain Service:

It's generally recommended to replace more than just the chain itself when undertaking this job. A comprehensive timing chain service usually includes:

The cost of this procedure can range from £800 to £1500 or more, depending on the garage, location, and specific parts used. Some specialist garages may offer more competitive pricing.

Addressing BMW's Stance and Goodwill

The forum user 'Chris' highlights a common frustration: BMW's response to timing chain issues, especially when a vehicle is just outside its warranty period. As Chris experienced, a dealership may refuse replacement under warranty if the work has been done previously, stating that parts are not available or that it's a known issue that may be addressed in the future. This leaves owners in a precarious position, facing potentially high repair bills.

Chris's Questions and Potential Answers:

• (1) At what time would BMW consider the noise bad enough to replace the timing chain? BMW's threshold is often based on specific fault codes or severe degradation confirmed by their diagnostic procedures. Rattling alone might not always trigger an immediate warranty claim if it's not deemed critical by BMW at that moment.
• (2) What happens if this is outside warranty re: goodwill? Goodwill gestures from BMW are discretionary and depend on the vehicle's service history, age, mileage, and the dealership's discretion. A well-documented service history with a BMW dealer can improve the chances of a goodwill contribution.
• (3) Why won't BMW repair an item under warranty? This is often a point of contention. If the work has been done previously and the part fails again shortly after, BMW might investigate further, but their initial stance can be to deny repeat repairs unless a clear defect is proven or a specific recall is in place.
• (4) Should I have done more research before buying a nearly new car? In hindsight, yes. The N47 and N57 timing chain issue is well-documented, and thorough research into common faults for any vehicle is always advisable.
• (5) I am now at the stage where I feel I should sell the car - is this irrational, or am I best to try and avoid a potentially large bill later and sell the car while it has warranty left and before it depreciates further? This is a difficult personal decision. Selling the car before the issue becomes critical could mitigate future costs, especially if you have lost confidence in the vehicle. However, it also means taking a financial hit on depreciation and the potential for repairs. If the car is otherwise reliable and the rattle is minor, continuing to monitor it and save for a potential repair might be an option, but it carries risk.

The mention of "parts not available" on Chris's service invoice is particularly concerning and suggests potential supply chain issues or a reluctance to commit to the repair at that time.

Expert Opinions and Theories

Forum discussions often delve into the root causes. While some theories point to vibration dampeners as a primary culprit, others, like the user 'TurboWeasel', are more sceptical, citing the relative rarity of severe bearing failures on the older M57 engine despite similar vibration damper issues. The focus often returns to the quality of components used in the N-series engines and the extended service intervals contributing to oil degradation.

The consensus among many enthusiasts and mechanics is that while the N47 and N57 engines can be great to drive, they require diligent maintenance and awareness of their potential weaknesses, particularly the timing chain system. Some aftermarket companies do offer upgraded timing chain kits, which may provide a more robust solution than OEM replacements.

Preventative Measures and Recommendations

To mitigate the risk of timing chain failure on your N47 or N57 engine:

• Regular Oil Changes: Adhere to shorter oil change intervals than BMW's maximum recommended schedule, especially if you undertake short journeys. Consider intervals of 8,000-10,000 miles or annually, whichever comes first. Use high-quality oil meeting BMW's specifications (e.g., BMW Longlife-04).
• Listen for Rattles: Pay close attention to any unusual noises from the engine, particularly on cold starts. If you hear a rattle, get it inspected by a qualified mechanic immediately.
• Address Oil Leaks Promptly: Repair any oil leaks, especially from the valve cover, to prevent oil degradation and potential fire hazards.
• Consider Upgraded Components: If you are replacing the timing chain, research reputable aftermarket suppliers who offer enhanced or upgraded kits.
• Maintain a Service History: Keep meticulous records of all maintenance performed on the vehicle.

FAQ

Q1: How often should the timing chain be replaced on an N47/N57?
A1: There's no fixed interval. Replace when symptoms like rattling appear, or consider proactive replacement between 60,000-100,000 miles if you want to avoid potential issues.

Q2: What are the symptoms of a failing timing chain?
A2: The most common symptom is a rattling noise from the front of the engine, especially on startup. Other signs can include engine warning lights or performance issues.

Q3: Is the timing chain issue covered by warranty?
A3: It depends on the age and mileage of the vehicle and BMW's discretion. Issues arising just outside warranty may sometimes be eligible for goodwill contributions.

Q4: How much does it cost to replace the timing chain?
A4: Expect costs ranging from £800 to £1500+, depending on labour rates and parts used. It's a labour-intensive job.

Q5: Can I prevent timing chain failure?
A5: While not entirely preventable, regular maintenance, particularly frequent oil changes with quality oil, and addressing any unusual noises promptly can significantly reduce the risk.

In conclusion, the N47 and N57 engines require a proactive approach to maintenance, especially concerning the timing chain. By understanding the potential issues, listening to your engine, and adhering to diligent servicing practices, you can maximise the reliability and lifespan of these otherwise capable BMW diesel engines.
