Retracting Brake Pads: A Comprehensive Guide

Maintaining your vehicle's braking system is paramount for safety on the road. The brakes are arguably the most critical safety component, and ensuring they are in optimal working condition is not just good practice, it's a necessity. One common task in brake maintenance, particularly when replacing worn brake pads, involves retracting the brake piston. This seemingly simple step is crucial for fitting new, thicker pads and ensuring the hydraulic system functions correctly. This comprehensive guide will walk you through the process of brake pad retraction, along with essential procedures for brake pad and disc replacement, and the vital step of bleeding the hydraulic circuit. Proper understanding and execution of these tasks will keep your vehicle stopping safely and reliably.

Understanding Brake Pad Retraction

Retracting the brake piston is a fundamental step when installing new brake pads. As your old brake pads wear down, the caliper piston extends further out to compensate for the reduced pad material. When you fit new, thicker pads, this piston needs to be pushed back into its caliper housing to create enough space.

The process typically involves a specialised brake piston retraction tool. This tool allows you to apply controlled pressure to the piston, pushing it back smoothly and squarely into the caliper. It's crucial to use the correct tool to avoid damaging the piston or the caliper seal. As the piston is pushed back, brake fluid from the caliper is displaced and pushed back into the brake fluid reservoir. This is why it's important to monitor the fluid level in the reservoir; if it's already full, you might need to remove a small amount of fluid to prevent overflow before retracting the pistons. Always ensure the caliper is supported when moving it, and that the brake pad contact points are meticulously clean and free from any contamination.

Brake Pad Removal Procedure

Before you can retract the piston or fit new pads, the old ones must be safely removed. This process requires careful attention to detail and adherence to safety protocols.

1. Vehicle Positioning and Safety: Begin by positioning your vehicle securely onto a lift. This provides safe and easy access to the wheels and brake components. Crucially, switch the vehicle off and remove the key from the ignition. This prevents any accidental starting and ensures the vehicle's electrical systems, including any electronic park brake, are disengaged.
2. Wheel Removal: Once the vehicle is safely lifted and secured, proceed to remove the rear wheels. This exposes the brake assembly, allowing you full access to the caliper and pads.
3. Disengage Park Brake: Ensure the park brake is fully released. If the park brake is engaged, it will prevent the caliper from being easily removed and can make subsequent steps more difficult.
4. Caliper Preparation: Carefully remove the park brake cable, if applicable, and any caliper retainers that might be present. These components secure the caliper and need to be disengaged before the caliper itself can be moved.
5. Caliper Bolt Removal: Using the correct size spanner, carefully loosen and remove the caliper mounting bolts. These bolts secure the caliper assembly to the hub section. Once the bolts are out, gently free the caliper from the hub. Remember to support the caliper as you remove it; never let it hang by the brake hose, as this can damage the hose and lead to leaks.
6. Pad Extraction: With the caliper free, you can now remove the old outer and inner brake pads. Note their orientation as you remove them, as proper fitment of the new pads is essential for correct brake operation.

Brake Pad Replacement Procedure

Once the old pads are out and the caliper piston has been retracted, fitting the new brake pads is a straightforward, yet critical, step.

1. Piston Retraction: As mentioned previously, the first crucial step is to retract the piston back into the caliper housing using the appropriate brake piston retraction tool. This creates the necessary space for the new, thicker brake pads. Ensure this is done smoothly and completely.

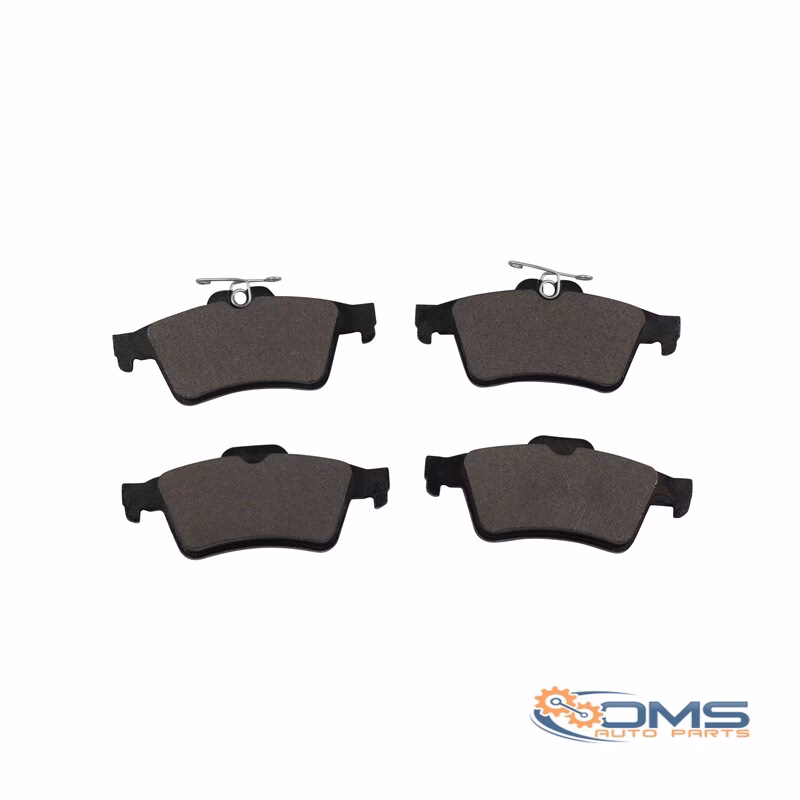

2. Pad Installation - Outer Pad: Carefully fit the new outer brake pad. This pad typically goes on the wheel side and usually does not have a retaining clip. Ensure it seats correctly within the caliper bracket.
3. Pad Installation - Inner Pad: Next, fit the new inner brake pad. This pad is positioned on the piston side and often features a retaining clip. This clip helps secure the pad and prevent movement. It is absolutely critical to fit the pads as per the vehicle's specifications, often with diagrams indicating specific placement for correct rear brake operation.
4. Caliper Reinstallation: Carefully position the brake caliper back over the new pads and brake disc. Align the mounting holes and refit the caliper mounting bolts.
5. Torque Specifications: Tighten the brake caliper to mount retaining screws to a specified torque of 35 Nm. Always use a torque wrench for this step. Overtightening can strip threads or damage components, while undertightening can lead to loose calipers and dangerous brake performance.
6. Parking Brake Adjustment: After refitting the caliper and pads, it's important to adjust the parking brake travel. This ensures the park brake functions correctly and holds the vehicle securely.
7. Hydraulic System Bleeding: Finally, and crucially, you must bleed the hydraulic system. This step is vital to remove any air that may have entered the system during the process, or any air introduced by the piston retraction pushing fluid back. Air in the brake lines leads to a spongy pedal and significantly reduced braking efficiency, posing a serious safety risk. The bleeding procedure is detailed in the 'Hydraulic Circuit Bleeding' section.

Brake Disc Removal Procedure

While often overlooked, inspecting and, if necessary, replacing brake discs is just as important as changing pads. Worn or warped discs can severely compromise braking performance.

1. Initial Setup: As with pad removal, begin by positioning the vehicle onto a lift, switching off the ignition, and removing the key.
2. Wheel Removal and Park Brake Release: Remove the rear wheels and ensure the park brake is fully released.
3. Caliper and Pad Removal: Disengage the park brake cable and caliper retainer. Using the correct size spanner, remove the caliper mounting bolts and carefully free the caliper from the hub section. Support the caliper to prevent stress on the brake hose. Then, remove both the outer and inner brake pads.
4. Hose Coupling Disconnection: Carefully remove the brake caliper hose coupling. Be prepared for some brake fluid to drip out; have a catch pan ready. This step disconnects the caliper from the main hydraulic line.
5. Caliper Mounting Bracket Removal: Loosen the caliper mounting bolts that secure the caliper mounting bracket itself. This bracket is separate from the caliper and holds it rigidly in place. Once these bolts are removed, you can take off the entire caliper mounting bracket.
6. Disc Removal: With the caliper and its mounting bracket out of the way, the brake disc is now accessible. Remove the brake disc from the hub. It might be held by small retaining screws or simply by the wheel bolts, so a gentle tap with a rubber mallet may be needed if it's seized.

Brake Disc Replacement Procedure

Replacing brake discs requires precision to ensure optimal braking performance and longevity.

1. Hub Preparation: Before fitting the new disc, ensure the wheel hub is meticulously clean and entirely free from corrosion. Any rust or debris on the hub mating surface can cause the new disc to sit unevenly, leading to runout and vibration, or even warping of the disc over time. A wire brush can be used for cleaning. Also, ensure the new disc surface is clean and smooth; new discs often come with a protective coating that should be cleaned off with brake cleaner before installation.
2. Disc Installation: Carefully position the new brake disc onto the hub by sliding it onto the stud bolts. Ensure it sits flush against the hub face.
3. Piston Retraction (if not done): Before proceeding, use the correct specialist tool to push the caliper piston fully home into the caliper. This is crucial as the new disc, combined with new pads, will require maximum piston retraction.
4. Caliper Mounting Bracket Installation: Fit the brake caliper mounting bracket back into place.
5. Torque Specification - Bracket: Tighten the brake caliper mount retaining screws to a torque of 70 Nm. This is a critical torque value as this bracket bears the primary braking force.
6. Caliper and Pad Reinstallation: Position the caliper in place and refit the caliper mounting bolts.
7. Pad Installation: Fit the new outer brake pad on the wheel side of the hub and the new inner brake pad on the piston side of the caliper. Ensure correct orientation and seating.
8. Torque Specification - Caliper: Tighten the brake caliper mounting bolts to a torque of 35 Nm.
9. Hose Coupling Torque: Tighten the hose coupling to the caliper to a torque of 15 Nm. This ensures a leak-free connection for the hydraulic fluid.
10. Parking Brake and Bleeding: Adjust the park brake travel and, critically, bleed the hydraulic system as indicated in the "Hydraulic Circuit" procedure. This step is non-negotiable to ensure safe and effective braking.

Hydraulic Circuit Bleeding

Bleeding the hydraulic brake system is a non-negotiable step after opening the brake lines or replacing components that could introduce air. Air in the brake lines compresses, leading to a 'spongy' brake pedal and significantly reduced braking effectiveness, a major safety hazard.

Important Warnings Before You Start:

• New Fluid Only: Always pour new and clean brake fluid into the reservoir. Never reuse old fluid, as it absorbs moisture over time, reducing its boiling point and leading to brake fade.
• Fluid Type: Ensure you use the correct type of brake fluid specified for your vehicle (e.g., DOT 3, DOT 4, DOT 5.1). Mixing types or using the wrong type can damage your braking system.

Bleeding Procedure:

1. Connect Bleed Pipe: Connect the bleed pipe securely to the bleed screw located on the brake caliper.
2. Catch Reservoir Setup: Ensure the other end of the pipe is positioned in a catch reservoir. This reservoir should contain a small amount of clean brake fluid at the bottom; this prevents air from being sucked back into the system if the pedal is released too quickly.
3. Reservoir Height: Position the bowl bottom of the catch reservoir at least 300mm above the bleeding screw. This creates a positive pressure head, further aiding in preventing air from re-entering the system.
4. Starting Point: The best place to start the brake bleed is the wheel furthest away from the master cylinder. This ensures you push air through the longest line first. A pressure bleeder is highly recommended for a more efficient and thorough bleed, especially for modern vehicles with ABS systems. If using the traditional two-person method (one pumping the pedal, one at the caliper), clear communication is key.
5. Fill Reservoir: Fill the brake fluid reservoir under the bonnet to the 'Max.' mark. Monitor this level throughout the bleeding process, topping it up as necessary to prevent it from dropping too low and introducing more air.
6. Bleeding Process: Loosen the bleeding screw by half a turn. While it's open, have a helper steadily press the brake pedal. Continue pressing the brake pedal until clean and air-free brake fluid is pumped into the catch reservoir. You will see bubbles initially; continue until no more bubbles appear.
7. Tighten Screw: Once the pressure bleeding is complete and no air is visible in the fluid, tighten the bleed screw before the brake pedal is released. This prevents air from being drawn back in.
8. Final Checks: Apply brake pressure using the foot brake and check thoroughly for any leaks around the bleed screw, caliper, or hose connections.
9. Screw Protection: Ensure the bleed screw is fully tightened and the dust cap is replaced. This prevents dirt and moisture ingress, which can lead to corrosion and future bleeding difficulties.
10. Repeat: Repeat the same procedure for the other brake lines, working progressively closer to the master cylinder (e.g., furthest rear, closest rear, furthest front, closest front).

This meticulous process ensures a firm brake pedal and reliable stopping power.

Parking Brake Considerations

The parking brake, also known as the handbrake or emergency brake, plays a crucial role in securing your vehicle when parked, particularly on inclines. After any work on the rear brakes, especially involving caliper or disc removal, adjusting the parking brake travel is imperative. This ensures it engages effectively and holds the vehicle securely.

Electronic Park Brake (EPB) Systems:

It's important to note that certain modern vehicle models may be fitted with an optional Electronic Park Brake (EPB) system instead of a traditional cable-operated one. These systems are more complex and require specific procedures for maintenance and adjustment. An EPB system typically includes:

• A special key or dashboard button for activation.
• A clutch pedal switch (for manual transmissions).
• A brake pedal switch.
• An emergency brake release mechanism.
• An actuator positioned under the spare wheel compartment or directly on the caliper.

When dealing with an EPB system, it is absolutely essential to follow the correct manufacturer-specific adjustment and service procedures, often requiring diagnostic tools to put the system into 'service mode' before any mechanical work can commence. Attempting to force an EPB caliper without disengaging the electronic mechanism can cause severe damage to the system's motor or gears. Always consult your vehicle's service manual or a qualified technician if your vehicle is equipped with an EPB system.

Key Torque Specifications

Always refer to your vehicle's specific service manual for the most accurate and up-to-date torque specifications, as these can vary slightly between models and manufacturers.

Frequently Asked Questions About Brake Maintenance

Q: Why do I need to retract the brake piston when replacing pads?

A: When old brake pads wear down, the caliper piston extends to compensate. New brake pads are much thicker, so the piston must be pushed back into the caliper housing to create enough space for the new pads to fit over the brake disc. This is crucial for proper installation and brake function.

Q: What tool do I use to retract the brake piston?

A: A specialised brake piston retraction tool is required. There are various types, including cube tools that fit into the piston face, and screw-type press tools. Using the correct tool prevents damage to the piston or caliper seals.

Q: Why is it important to bleed the brake system after replacing components?

A: Any time the hydraulic brake system is opened (e.g., when disconnecting a brake hose or pushing the piston back), air can enter the lines. Air is compressible, unlike brake fluid, and will lead to a 'spongy' brake pedal and significantly reduced braking effectiveness, which is a major safety hazard. Bleeding removes this trapped air, restoring a firm pedal and proper braking.

Q: Can I reuse old brake fluid during bleeding?

A: Absolutely not. Always use new and clean brake fluid. Brake fluid is hygroscopic, meaning it absorbs moisture over time, which lowers its boiling point and can lead to brake fade. Reusing old fluid introduces moisture and contaminants into your system.

Q: Why do I need to adjust the parking brake after rear brake work?

A: When working on the rear brakes, especially replacing discs or calipers, the parking brake mechanism may be disturbed. Adjusting its travel ensures it properly engages and holds the vehicle securely, which is vital for safety when parked, particularly on inclines.

Q: What is an Electronic Park Brake (EPB) and how does it affect brake maintenance?

A: An Electronic Park Brake (EPB) is a modern system that replaces the traditional cable-operated handbrake with an electronic mechanism. When working on vehicles with an EPB, you must follow specific manufacturer procedures, often requiring a diagnostic tool to put the system into 'service mode' before attempting to retract the calipers, to prevent damage to the electronic components.

Conclusion

Proper brake maintenance is not merely about replacing worn parts; it's about understanding the intricate relationship between components and ensuring every step is performed with precision and care. From the crucial act of retracting the brake piston to the meticulous process of bleeding the hydraulic system, each action contributes to the overall safety and performance of your vehicle's braking system. Always adhere to manufacturer specifications, use the correct tools, and prioritise safety. If at any point you feel unsure or uncomfortable undertaking these tasks, it is always advisable to consult a qualified mechanic. A well-maintained braking system is your primary defence on the road, providing peace of mind and reliable stopping power in all conditions.
