Brake Caliper Replacement: A Step-by-Step Guide

The braking system in your vehicle is arguably its most crucial safety component. At the heart of this system lies the brake caliper, a vital part responsible for pressing the brake pads against the brake disc (or rotor) to slow down or stop your car. Over time, or due to wear and tear, brake calipers can develop issues, such as sticking, leaking, or uneven braking. Replacing a faulty brake caliper is a task that, with the right tools and a methodical approach, can be undertaken by a competent DIY mechanic. This guide will walk you through the process, ensuring you understand each step and the importance of doing it correctly.

Tools and Materials You'll Need

Before you begin, ensure you have all the necessary tools and materials to hand. This will not only make the job smoother but also safer. Here's a comprehensive list:

• New Brake Caliper: Ensure it's the correct one for your vehicle's make, model, and year.
• Jack and Axle Stands: For safely lifting and supporting the vehicle. Never rely solely on a jack.
• Lug Wrench: To remove and tighten wheel nuts.
• Socket Set: Specifically, a 16mm socket for caliper mounting bolts.
• Torx Bit Set: A T30 Torx bit is required for securing the brake disc.
• Piston Compressor Tool: Essential for retracting the caliper piston. A C-clamp can sometimes be used, but a dedicated tool is safer for the piston seal.
• Brake Cleaner: For cleaning components.
• Wire Brush: For cleaning rust and debris.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specifications.
• Thread Lock: For securing caliper mounting bolts and disc screws.
• Gloves and Safety Glasses: To protect yourself from brake dust and fluid.
• Block of Wood or Similar: To rest the caliper on once removed, preventing strain on the brake line.
• Penetrating Oil (e.g., WD-40): May be needed for stubborn bolts or discs.
• Brake Fluid: You may need to top up your brake fluid reservoir after the job. Ensure you use the correct type specified for your vehicle.
• Rag/Cloth: For wiping away excess fluid and dirt.

Step-by-Step Caliper Replacement

Safety is paramount when working on your brakes. Ensure the vehicle is on a level surface, the handbrake is engaged (unless working on the rear brakes where it might need to be released, see below), and the wheels are chocked. Once the car is safely jacked and supported on axle stands, you can begin:

1. Remove the Wheel

Using your lug wrench, loosen the wheel nuts on the wheel you'll be working on. Once loosened, jack up the vehicle and place an axle stand securely under a strong point of the chassis. Then, fully remove the wheel. This will give you clear access to the brake caliper and disc assembly.

2. Remove the Caliper Retaining Pins

Brake pads are typically held in place within the caliper by retaining pins and a spring plate. Locate the pin that secures the brake pads. This is often a metal pin that can be driven out from the back using a punch and hammer, or sometimes a socket. Make a note of the orientation of the spring plate and pins, as you'll need to refit them correctly later. Some calipers may have bolts that hold the caliper in place; these will be addressed in the next step.

3. Remove the Brake Pads

Once the retaining pins are out, you should be able to slide the old brake pads out of the caliper. At this stage, you can also retract the caliper piston(s). This is best done using a piston compressor tool. If you don't have one, a large C-clamp can be used, but be very careful not to damage the piston seal. It's advisable to retract the piston while the old brake disc is still in place, as this provides resistance. You might need a second tool to hold the opposite piston in place if you're working on a floating caliper to prevent it from moving while you retract the other.

4. Remove the Caliper Mounting Bolts

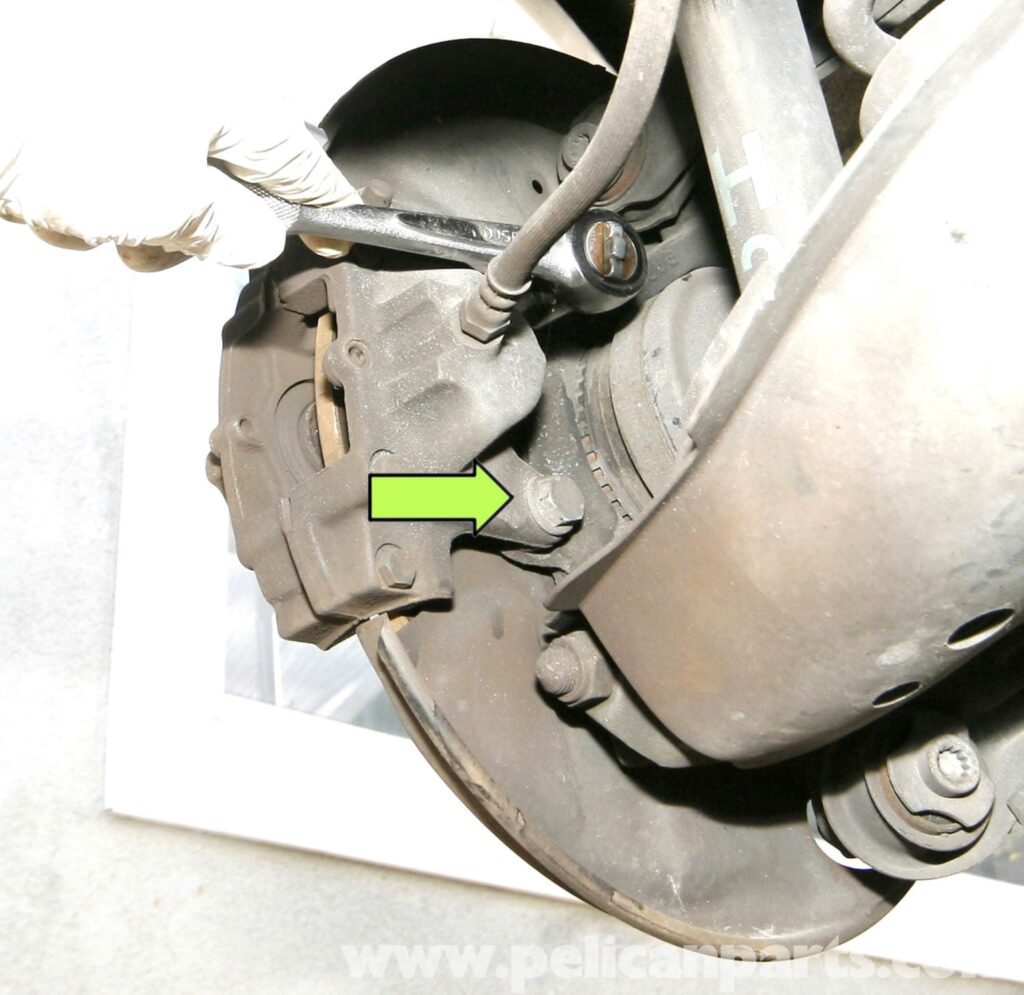

The brake caliper itself is usually held in place by two large bolts, typically 16mm. These bolts often have a rubber boot or dust cover over them. Remove these covers to access the bolts. Unbolt the caliper using the appropriate socket. Once the bolts are removed, the caliper can be lifted off the brake disc. Have a block of wood or a sturdy hook ready to rest the caliper on. Never let the caliper hang by the brake hose, as this can damage the hose and lead to brake failure.

5. Prepare for Disc Removal (If Necessary)

If you are also replacing the brake discs, you'll need to remove them. Discs are usually held in place by a small Torx screw (often a T30). Remove this screw. If the disc is rusted onto the hub, you may need to use a rubber mallet to tap it loose, or in more stubborn cases, a dedicated disc puller. If you are working on rear brakes, you might need to adjust the handbrake mechanism. This is often accessed through a small hole in the brake disc or drum, typically behind one of the wheel bolt holes. You'll need to insert a flathead screwdriver or a specialised tool to release the tension on the handbrake shoes. This is usually done by turning an adjuster nut or star wheel.

6. Clean and Inspect Components

With the caliper and disc removed, take the opportunity to thoroughly clean the hub assembly and the area where the caliper mounts using brake cleaner and a wire brush. Remove any rust, dirt, or old grease. Inspect the hub for any damage. Also, clean your new brake discs, as they are often coated in a protective fluid from the factory that must be removed before installation.

7. Install the New Caliper and Disc

Fit the new brake disc onto the hub, ensuring it's seated correctly. Reinstall the T30 Torx screw to hold it in place. Now, position the new brake caliper over the disc. Ensure the brake pads are correctly seated within the caliper and against the disc. Reinstall the caliper mounting bolts. Apply a small amount of thread lock to the threads of the caliper mounting bolts before tightening them. Use your torque wrench to tighten these bolts to the manufacturer's specified torque setting (typically around 40 ft-lb or 55 Nm for caliper mounting bolts, but always check your vehicle's manual). Reinstall the brake pad retaining pins and spring plate, ensuring they are correctly oriented.

8. Refitting the Wheel and Final Checks

Once the caliper is securely fitted, you can refit the wheel. Hand-tighten the wheel nuts first, then lower the vehicle slightly to put some weight on the wheel before fully tightening them. Use your torque wrench to tighten the wheel nuts to the correct torque (e.g., 80 ft-lb / 110 Nm for many 16 and 17-inch wheels, but again, verify for your specific vehicle).

9. Bleeding the Brakes (If Necessary)

If you had to disconnect the brake line, or if you suspect air has entered the system, you will need to bleed the brakes. This involves opening a bleed nipple on the caliper and pumping the brake pedal to expel air from the system. This is a two-person job or requires a one-man brake bleeding kit. Ensure you top up the brake fluid reservoir with the correct fluid type and keep an eye on the fluid level throughout the bleeding process.

10. Test the Brakes

Before driving off, it is crucial to pump the brake pedal several times until it feels firm and solid. This will re-seat the caliper pistons against the new pads. Check that the wheel still rotates freely without any binding. Once you're satisfied, you can take the vehicle for a short, slow test drive in a safe area, gradually applying the brakes to ensure they are working correctly and effectively.

Important Considerations and Tips

• Always replace calipers in pairs: For consistent braking performance, it's highly recommended to replace brake calipers on the same axle (front or rear) in pairs, even if only one is faulty.
• Check brake fluid level: After retracting pistons, the brake fluid level in the reservoir may rise. Ensure it doesn't overflow. You might need to remove some fluid if it's too high.
• Handbrake Adjustment: If you worked on rear brakes, remember to re-adjust the handbrake. After adjusting it to bite, back it off slightly so the wheels are free to rotate without drag.
• Torque Settings: Using a torque wrench is non-negotiable for critical components like caliper mounting bolts and wheel nuts. Incorrect torque can lead to component failure.
• Brake Fluid Type: Always use the specific type of brake fluid recommended by your vehicle manufacturer (e.g., DOT 3, DOT 4, DOT 5.1). Mixing types can damage the system.

Frequently Asked Questions (FAQs)

Q1: How often should brake calipers be replaced?
Brake calipers don't have a fixed replacement interval. They should be inspected during routine maintenance, and replaced if they show signs of leaks, sticking, corrosion, or if they are causing uneven braking.

Q2: Can I just replace the brake pads and not the caliper?
Yes, you can replace just the pads if the caliper is functioning correctly. However, if the caliper is sticking or leaking, it will wear out new pads prematurely and compromise braking performance.

Q3: What happens if a brake caliper fails?
A failing brake caliper can lead to reduced braking effectiveness, pulling to one side when braking, uneven pad wear, overheating brakes, and in severe cases, complete brake failure.

Q4: Do I need to bleed the brakes after replacing a caliper?
If you had to disconnect the brake line from the caliper, then yes, bleeding the brakes is essential to remove any air from the hydraulic system. If you only retracted the piston and didn't disconnect the line, bleeding might not be necessary, but it's good practice to check the pedal feel.

Replacing a brake caliper is a significant maintenance task. By following these steps carefully and using the correct tools, you can ensure your vehicle's braking system is in optimal condition, providing the safety and reliability you need on the road.
