BMW E46 Relay Locations: Your Essential Guide

The BMW E46, a true automotive icon, solidified its reputation as the fourth generation of the revered 3 Series. Known for its engaging driving dynamics, diverse engine range, and various body styles, it remains a popular choice for enthusiasts and daily drivers alike. However, like any sophisticated machine, the E46 relies heavily on a complex electrical system, with relays playing a crucial, often overlooked, role. Understanding where these small but mighty components are located is paramount for any owner looking to diagnose electrical issues or perform routine maintenance.

Relays are essentially electrical switches, controlled by a small electrical current, that allow a larger current to flow to a component. They protect sensitive switches from high current loads and enable a single input to control multiple outputs. Without them, your E46 wouldn't start, the windows wouldn't roll down, and the lights wouldn't switch on. This comprehensive guide will meticulously detail the location of relays across your BMW E46, covering models from 1998 to 2007, including the 316Ci, 316i, 316ti, 318d, 318i, 320d, 320i, 323i, 325i, 325xi, 328i, 330d, 330i, 30xd, and the high-performance M3.

Understanding Your E46's Electrical Heartbeat

Before diving into specific locations, it's helpful to understand that the E46's electrical system is distributed, meaning components are strategically placed throughout the vehicle. This design optimises wiring paths and component protection. Relays, being critical control points, are often grouped in fuse boxes or located individually near the components they control. Knowing their precise whereabouts is the first step in diagnosing anything from a non-functioning headlight to a persistent engine no-start condition. Always ensure your vehicle's battery is disconnected before working on any electrical components to prevent accidental short circuits or injury.

Where to Find Them: The Engine Compartment

The engine compartment houses some of the most critical relays, primarily those associated with engine management and powertrain functions. You'll find a main fuse box here, along with several individual relay modules.

Engine Compartment Fuse Box

This primary unit is conveniently situated in the rear of the engine compartment, typically on the passenger side, nestled next to the windshield wipers. Access is usually straightforward, involving the removal of a protective cover. While primarily a fuse box, it often contains integrated relays or is closely associated with relays that control major engine functions. For instance, you'll find fuses here that protect circuits powered by essential relays.

Within this box, you'll also find the main Engine ECU (1), Transmission Control Unit (2), Windshield Wiper Motor Relay (3), and relays for the Engine Management System for both petrol (4) and diesel (5) variants, along with the Reverse Lamp Relay (6). The presence of the Fuel pump relay (F4) here is particularly important, as a fault can prevent your car from starting.

Individual Relays in the Engine Bay

Beyond the main fuse box, several individual relays are strategically placed to manage specific functions within the engine compartment. These are often found mounted directly to the chassis or within small, dedicated housings. Identifying them correctly is key for targeted troubleshooting.

The DME relay (R5) is incredibly important; it powers the engine control unit and other critical engine components. If your E46 cranks but won't start, or suffers from intermittent stalling, this relay is a prime suspect. Similarly, the Variable Valve Timing relay (R1) is vital for engine performance and efficiency, controlling the VANOS system.

Delving Deeper: Passenger Compartment

The passenger compartment, particularly behind the glove box, is another significant hub for electrical components, including a large fuse box that also houses several relays.

Passenger Compartment Fuse Box

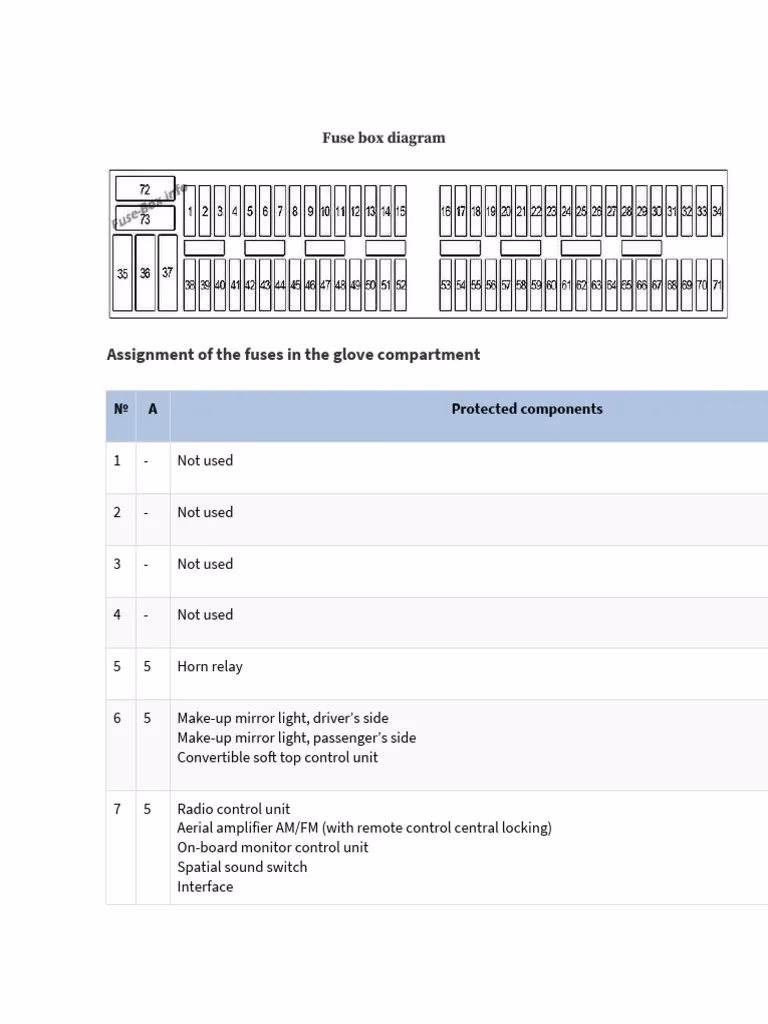

This primary fuse box is located on the passenger side, cleverly concealed behind the glove box. To access it, you'll typically need to unclip or unbolt the glove box, allowing it to drop down or be removed. On the back of this unit, you'll find a series of relays integral to interior functions and safety systems.

Relays on the Back of the Glove Box Fuse Box

It's worth noting that the fuel pump relay appears in both the engine compartment (as a fuse) and directly as a relay behind the glove box. BMW sometimes used different configurations depending on the specific model year and engine variant. A common symptom of a failing fuel pump relay is a car that cranks but doesn't start, or stalls unexpectedly, as the fuel supply to the engine is interrupted.

The heater fan relay (2) is crucial for climate control, and its failure can leave you without heating or air conditioning. The horn relay (4) is responsible for activating your horn, a vital safety feature. If your horn isn't working, this is a good place to start your diagnosis.

Individual Relays in the Passenger Compartment

Beyond the main fuse box, other individual relays are scattered throughout the passenger compartment, often tucked away behind trim panels or under carpets. These control various convenience and safety features.

Further relays also exist for specific functions:

• Fuel module relay (fuel pump) / or empty
• Rear window heater relay
• Moisture trap relay (for climate control/dehumidification systems)

The rear window heater relay is a common point of failure, leading to a non-functional rear demister. If your rear window isn't clearing on a frosty morning, this relay might be the culprit.

Beyond the Main Boxes: Distributed Relays and Modules

The E46's electrical architecture extends beyond the primary fuse boxes, incorporating numerous control modules that often contain internal relays or are directly controlled by external ones. Understanding these locations is crucial for a complete picture of your E46's electrical system.

• Air conditioner compressor solenoid clutch relay: Located behind the instrument panel, on the right-hand side. This relay activates the A/C compressor, vital for cooling.
• Electronic air conditioner control unit: This module, often with integrated switching components, manages your climate control.
• Antenna signal amplifiers: Found in the rear pillar, left side of luggage compartment (Convertible), or under the rear spoiler (Touring). While not relays themselves, they are part of the complex electrical network.
• Side impact sensors: Under the seats (driver's and passenger's side). These are crucial for airbag deployment and are part of the SRS system.
• Vehicle tilt sensor (anti-theft system): Located on the right side of the luggage compartment.
• Anti-theft alarm system horn: Situated within the intake system resonator.
• Anti-theft system control module (with volume change control): Found in the roof panel.
• Anti-theft alarm system switch, hood: In the engine compartment, right rear, within the mounting block.
• Audio output amplifier: Behind the rear left trim panel (Cabriolet) or left-hand side of the luggage compartment.
• Auxiliary heater control module: Manages supplementary heating systems.
• Battery pack: Engine compartment, rear right-hand side (4-cylinder engines) or right side of luggage compartment (6-cylinder engines/Diesel).
• Trunk lid/rear door release switch: Left lower protective panel.
• Motor relay for the folding sunroof lid drive motor: Behind the instrument panel, right-hand side. A common cause for sunroof issues.
• Roof folding control module: Behind the rear left-hand side trim panel (for convertibles).
• Folding roof drive relay: Left-hand side of the luggage compartment (for convertibles).
• Diagnostic connectors (DLC): Behind the instrument panel, near the steering column, and another 20-pin connector for older diagnostics.
• Rearview mirror control modules: For driver's and passenger's side mirrors.
• Mirror folding control module: Behind the glove box.
• Headlamp washer control module: Behind the dashboard, right-hand side.
• Rear window heater relay: Right-hand side of luggage compartment, front. Also, specific relays (1 and 2) behind the rear right-hand side trim panel for Convertibles.
• Heater fan relay: Behind the centre console. A common failure point for HVAC issues.
• Horn 1 and Horn 2: Located separately, ensuring redundancy.
• Electronic immobilizer control unit: Near the steering column, with its ring antenna near the ignition switch. Critical for vehicle security.
• Instrument cluster control module: Behind the instrument panel.
• Lighting control module: Manages various lighting functions, including hazard alarms and indicators.
• Multifunction switch assembly: Integrates various controls on the steering column.
• Multifunction control module (GM5/ZKE): Behind the glove compartment. This is a highly significant module, controlling central locking, power windows, interior lamps, hazard warning lights, and more. It contains multiple internal relays.
• Navigation system control module and antenna: In the luggage compartment (left-hand side) and behind the instrument cluster, respectively.
• Parking system control module and buzzer: Right-hand side of the luggage compartment and left front legroom.
• Rain sensor: Mounted on the windshield.
• Additional fuses: In the luggage compartment, often on the suspension cup.
• Power seat control modules: Under the driver's and passenger's seats.
• Exhaust air pump relay: Behind the right-hand side of the dashboard. Part of the emissions system.
• Power sunroof control module: In the ceiling panel.
• SRS control module: Under the mat, vital for airbag system.
• Body height sensors (front and rear): In the wheel arches, for headlight levelling.
• Telephone interface control module: Under the centre console, rear.
• Trailer electrical control module: Right-hand side of the luggage compartment.
• Electronic control module for the transmission: In the engine compartment, within the mounting box.
• Tire pressure monitoring system control module: Behind the luggage compartment.
• Vehicle speed sensor: Right rear wheel speed sensor.
• Windshield washer nozzle temperature sensor: Under the underbody (front).

This extensive list highlights that while some relays are easily accessible, others are embedded within complex control modules or tucked away in less obvious locations. Troubleshooting often requires a good wiring diagram and patience.

Common E46 Relay Failures and Troubleshooting

Relays are electro-mechanical devices, and like all such components, they can fail over time due to wear, corrosion, or heat. Common symptoms of a failing relay include:

• Clicking but no action: The relay is energising, but the internal contacts are worn or burnt, preventing the flow of power.
• No click and no action: The relay isn't receiving power, the coil is open, or the control signal is absent.
• Intermittent operation: The relay works sometimes, but not always, often due to loose connections or internal degradation.
• Constant power (stuck closed): The relay contacts are fused together, causing a component to remain on even when it should be off.

Diagnosing a Faulty Relay

1. Listen for the click: When the circuit is activated (e.g., turning on the ignition for the DME relay, pressing the horn button), listen closely to the relay. A distinct click indicates the coil is likely working. 2. Swap with a known good relay: If you have an identical relay from a non-critical circuit (e.g., horn relay if your horn isn't working), you can temporarily swap it to see if the problem resolves. 3. Test with a multimeter: * Coil Resistance: Disconnect the relay and measure the resistance across the coil terminals (usually pins 85 and 86). It should show a specific resistance (check service manual); an open circuit (OL) means a faulty coil. * Continuity: Apply 12V to the coil terminals and check for continuity across the switch terminals (usually 30 and 87/87a). When the coil is energised, continuity should be established between 30 and 87. 4. Visual inspection: Look for signs of burning, corrosion, or physical damage on the relay's casing or terminals. Always ensure you replace a faulty relay with one of the correct amperage and type. Using an incorrect relay can lead to further electrical damage or even fire.

Frequently Asked Questions (FAQs)

Can I swap any relay on my E46?

No, not all relays are interchangeable. Relays have specific voltage, amperage, and pin configurations. While some standard relays (e.g., 4-pin or 5-pin automotive relays) might look similar, their internal specifications can differ. Always replace a relay with one that matches the original part number or specified ratings for that circuit to prevent damage.

What's the difference between a fuse and a relay?

A fuse is a safety device designed to protect an electrical circuit from excessive current. If too much current flows, the fuse's internal wire melts, breaking the circuit and preventing damage to components or wiring. A relay, on the other hand, is an electrical switch that uses a small current to control a larger current. It allows a low-power signal (e.g., from a dashboard switch) to activate a high-power device (e.g., a fuel pump or headlight).

Why do relays fail in a BMW E46?

Relays can fail due to several reasons:

• Age and wear: The internal contacts can become pitted or corroded over time from repeated switching.
• Heat: High temperatures in the engine bay or from continuous operation can degrade the internal components.
• Voltage spikes/overloads: Although fuses protect against overcurrent, repeated minor surges can stress relays.
• Moisture/Corrosion: Water ingress or humidity can lead to corrosion on the terminals or internal components.
• Vibration: Constant vehicle vibration can cause internal components to loosen or break.

How much does a new E46 relay cost?

The cost of a new relay for your E46 can vary significantly depending on the specific relay and whether you purchase an OEM (Original Equipment Manufacturer) part or an aftermarket equivalent. Generic automotive relays can be relatively inexpensive, perhaps £5-£20, while specific BMW-branded or more complex control module relays might cost significantly more, potentially £50 or even hundreds for integrated modules. It's always advisable to check with a reputable BMW parts supplier.

Is it hard to replace a relay on my E46?

Replacing a relay is generally one of the simpler DIY electrical tasks. Most relays are plug-and-play components that simply pull out and push in. The main challenge lies in accurately identifying the correct relay and gaining access to its location, especially for those tucked away behind trim panels. Always ensure the battery is disconnected before working on electrical components, and take care not to damage the wiring harness or other nearby components when removing or installing relays.

Conclusion

The BMW E46 is a marvel of German engineering, and its electrical system is a testament to its complexity and functionality. By understanding the detailed locations of its many relays, from the engine compartment to the passenger cabin and beyond, you empower yourself to diagnose and address common electrical issues. This knowledge not only saves you potential garage bills but also deepens your appreciation for your E46's intricate design. Always approach electrical work with caution, ensure you have the correct replacement parts, and never hesitate to consult a professional if you're unsure. Happy motoring!
