Understanding Your Car's Readiness Monitors

What Exactly Are Readiness Monitors?

In the world of automotive diagnostics, you'll often hear about 'readiness monitors'. But what precisely are they? Simply put, readiness monitors are self-check routines built into your car's onboard diagnostic system (OBD2). Think of them as your car's internal quality control department, constantly testing and evaluating the performance of various emission control systems. Their primary purpose is to ensure that your vehicle's emissions are within acceptable limits, a crucial aspect for environmental protection and passing mandatory vehicle inspections.

Modern vehicles can perform up to eleven different system tests, each referred to as a readiness monitor. The output from these monitors tells you whether your car's computer has successfully completed these self-diagnostic tests. This information is vital, especially when it comes time for your annual emissions test, as a vehicle with too many 'not ready' monitors may fail to pass, even if there are no underlying mechanical issues.

The Two Flavours: Continuous and Non-Continuous Monitors

Readiness monitors are broadly categorised into two types: continuous and non-continuous. Understanding the difference is key to knowing why a particular monitor might not be ready.

Continuous Monitors

These monitors are the ever-vigilant ones. They are constantly being tested and evaluated while the engine is running. Examples of continuous monitors include:

• Misfire Monitor: Checks for irregular combustion in the engine cylinders.
• Fuel System Monitor: Evaluates the performance of the fuel delivery and management systems.
• Comprehensive Component Monitor: A broader monitor that checks for faults in various other components not covered by specific monitors.

Non-Continuous Monitors

Unlike their continuous counterparts, non-continuous monitors require specific conditions to be met before their tests can be completed. These conditions often involve a particular driving pattern, known as a 'drive cycle'. Some monitors might only need one drive cycle, while others, due to the need for cool-down and warm-up periods, might require two. The exact requirements vary for each emission monitor and can differ significantly between vehicle manufacturers and models.

For spark ignition (petrol) vehicles, common non-continuous monitors include:

• Catalyst (CAT) Monitor
• Heated Catalyst Monitor
• Evaporative (EVAP) System Monitor
• Secondary Air System Monitor
• Oxygen (O2) Sensor Monitor
• Oxygen Sensor Heater Monitor
• EGR (Exhaust Gas Recirculation) and/or VVT (Variable Valve Timing) System Monitor

For compression ignition (diesel) vehicles, the list is slightly different:

• NMHC Catalyst Monitor
• NOx/SCR Aftertreatment Monitor
• Boost Pressure Monitor
• Exhaust Gas Sensor Monitor
• PM Filter Monitor
• EGR and/or VVT System Monitor

It's important to note that not all vehicles are equipped with all these monitors, and the manufacturer decides which ones are implemented.

Understanding Monitor Status: Complete, Incomplete, Disabled, and NA

The output of a readiness monitor test yields its status. Each monitor will have one of the following statuses:

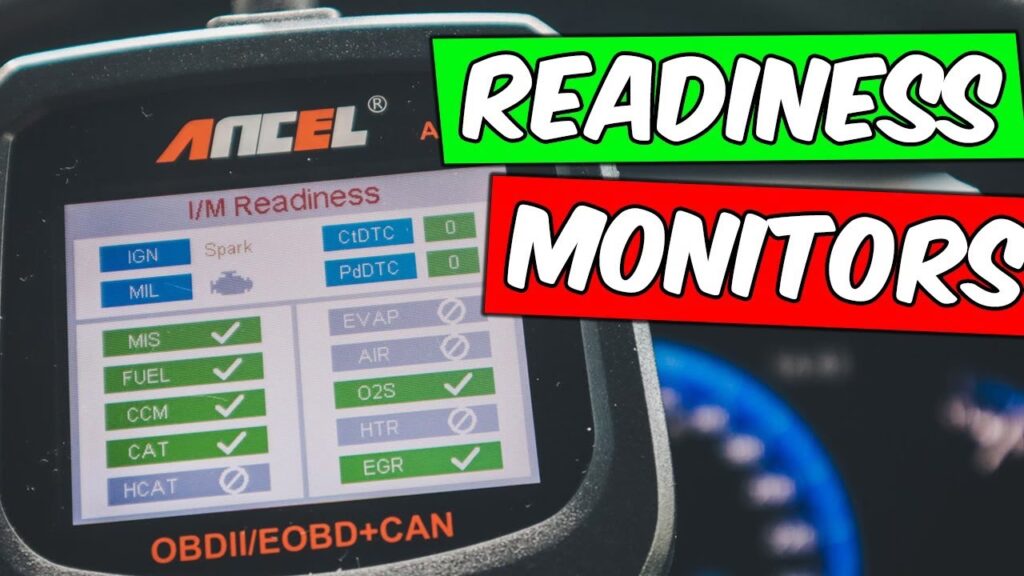

• Complete or Ready: This means the self-diagnostic test for that particular system has been successfully completed. Your car's OBD-II system has checked the emission control system, and it has passed. This is typically indicated by a green checkmark.
• Incomplete or Not Ready: This signifies that the test has not yet been completed. The OBD2 system has either not had the opportunity to run the routine, or it has failed. This is usually indicated by a red exclamation mark.
• Disabled: In some cases, a monitor might be disabled for the remainder of the current monitoring cycle. This can happen if there's no practical way for the driver to operate the vehicle to allow the monitor to run. For example, if the ambient air temperature is too low or too high, certain tests might be automatically disabled.
• NA or Not Available: This means the car does not have that specific monitor installed, and therefore, it cannot be tested.

When using a diagnostic tool, you'll see a list of all defined monitors, but the tool can only report the status for those your car actually supports. A monitor showing 'NA' is simply not present on your vehicle.

Why is a Monitor 'Not Ready'? The Common Culprits

Several common scenarios can lead to a readiness monitor showing a 'Not Ready' status:

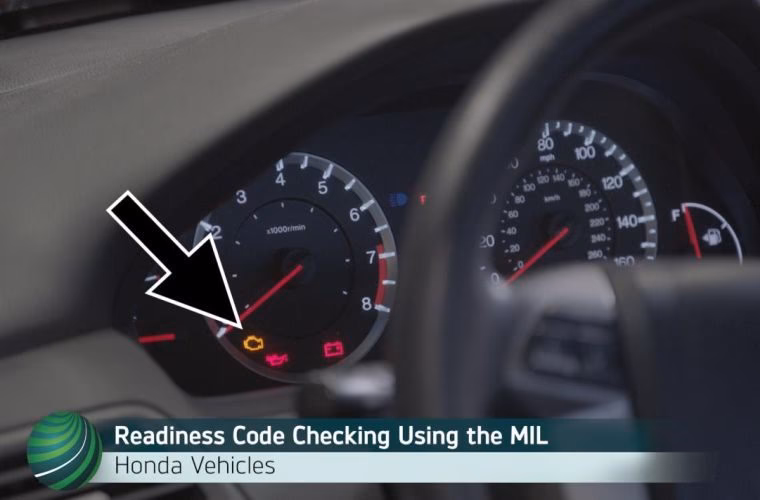

• Clearing Diagnostic Trouble Codes (DTCs) or Resetting the Check Engine Light: This is perhaps the most frequent reason. When you clear fault codes or reset the Malfunction Indicator Lamp (MIL), you also reset all the readiness monitor statuses. This typically happens after a repair. The monitors then need to complete their self-checks again.
• Battery Disconnection: Disconnecting the vehicle's battery, whether for replacement or other maintenance, will also reset the readiness monitors. This is why it's often advised to avoid disconnecting the battery unless absolutely necessary.
• Starting a New Monitoring Cycle: For monitors that track status for the 'current drive cycle', the status is automatically set to 'incomplete' when a new monitoring cycle begins (e.g., when you start the engine). This is normal, and the monitors will update as you drive.
• Short Trips or Insufficient Driving: Many non-continuous monitors require specific driving conditions to run their tests. If you primarily take short trips or don't drive your car in a way that meets these conditions, the monitors may not have a chance to complete.
• Faulty Components or Sensors: If a particular emission control component or sensor is malfunctioning, it might prevent the corresponding readiness monitor from completing its self-test, leading to a 'Not Ready' status.

The Impact on Emissions Testing and How to Get Monitors 'Ready'

In many regions, a vehicle must have a certain number of readiness monitors in the 'Complete' or 'Ready' state to pass an emissions inspection. Regulations vary, but generally, having too many 'Not Ready' monitors will result in a failed inspection. For instance, US EPA guidelines typically allow up to two 'Not Ready' monitors for older vehicles (1996-2000) and only one for newer models (2001 onwards).

So, how do you get those stubborn monitors back to 'Ready' status?

1. Drive the Vehicle: The most effective way to complete readiness monitor tests is to drive your car. However, simply driving around aimlessly might not meet the specific conditions required.
2. Follow an OBD2 Drive Cycle: This is the most reliable method. An OBD2 drive cycle is a specific sequence of driving operations designed to exercise various vehicle systems and allow the onboard diagnostics to run their tests. The exact drive cycle can vary by manufacturer and model, so it's best to consult your owner's manual.
3. Generic Drive Cycle (If Manual is Unavailable): If you can't find a manufacturer-specific drive cycle, a generic one can often work. A typical generic drive cycle involves starting the engine from cold, idling for a period, accelerating to a steady speed, maintaining that speed, decelerating without braking, and then accelerating again. A common example is:
   • Start the engine with it cold (coolant temperature below 50°C/122°F).
   • Idle the engine in drive for 2.5 minutes with the A/C and rear defroster on (if equipped).
   • Turn off A/C and defroster. Accelerate to 88 km/h (55 mph) under moderate acceleration.
   • Maintain 88 km/h (55 mph) for 3 minutes.
   • Decelerate to 32 km/h (20 mph) without braking.
   • Accelerate back to 88-96 km/h (55-60 mph) at 3/4 throttle.
   • Maintain speed for 5 minutes.
   • Decelerate to a stop without braking.

   It's often best to perform a drive cycle in a safe, controlled environment, like a large, empty parking lot, to avoid traffic and ensure safety.

4. Ensure Sufficient Fuel: Some monitors, like the EVAP system monitor, have specific fuel level requirements (often between 35% and 85%).
5. Check for Active DTCs: Make sure your Check Engine Light is off and there are no pending or stored DTCs, as these can prevent monitors from running.

Using a Scan Tool to Check Readiness

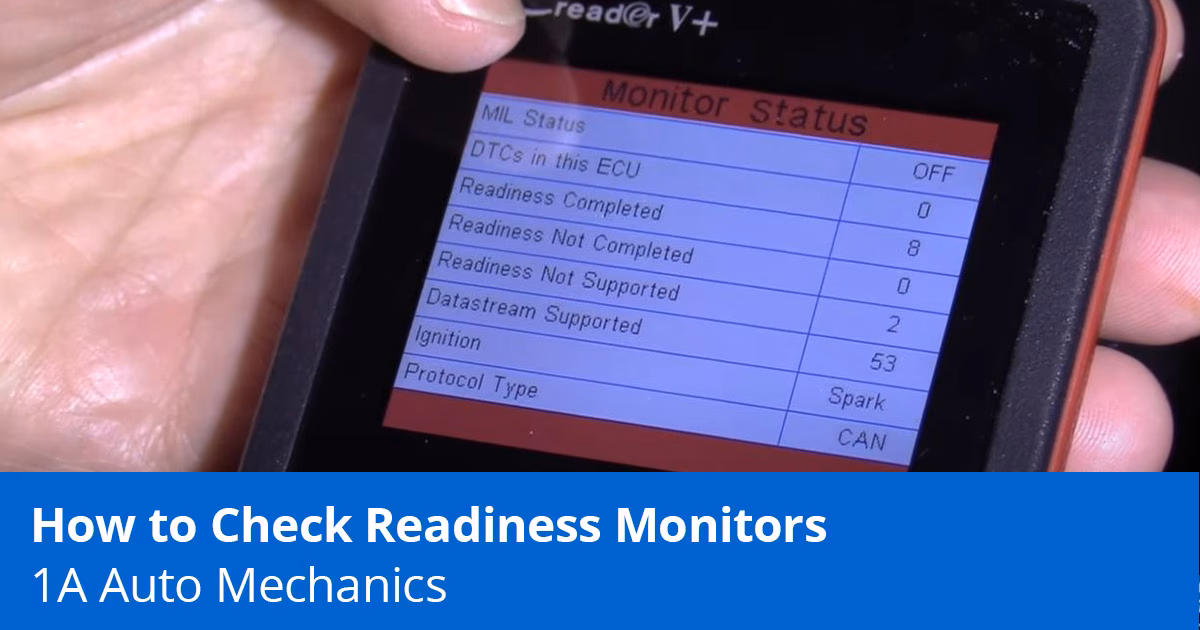

A diagnostic scan tool is invaluable for checking the status of your readiness monitors. You'll typically connect the scan tool to the OBD2 port (usually located under the dashboard on the driver's side), turn the ignition to the 'Accessory' mode, and navigate to the 'I/M Readiness' or 'Monitor Status' section. This will provide a clear report showing which monitors are 'Ready', 'Not Ready', or 'Not Supported' for your specific vehicle.

FAQs

How long does it take for an OBD2 scanner to check I/M Readiness?

Checking the I/M Readiness status with a scanner is usually very quick, taking anywhere from a few seconds to a couple of minutes. However, the readiness of the monitors themselves depends on driving conditions and the vehicle's systems completing their self-checks.

Will my car pass emissions if the I/M Readiness is not completed?

Generally, no. Most emissions tests require a certain number of readiness monitors to be in the 'Ready' state. If critical monitors are 'Not Ready', your vehicle will likely fail the inspection.

Does a Bluetooth OBD2 scanner work the same way as a wired scanner?

Yes, both Bluetooth and wired OBD2 scanners perform the same diagnostic functions, including checking I/M Readiness. The primary difference is convenience; Bluetooth scanners offer wireless connectivity to smartphones or tablets, making the process more flexible.

What should I do if my readiness monitors are consistently 'Not Ready'?

If, after performing drive cycles, your monitors remain 'Not Ready', it could indicate a more significant issue. This might be a problem with fuses, wiring, the battery, or a specific component related to the monitor's function. In such cases, it's advisable to consult a qualified mechanic for diagnosis and repair.

Understanding and managing your car's readiness monitors is a key part of responsible vehicle ownership. By ensuring they are all 'Ready', you not only increase your chances of passing emissions tests but also contribute to a healthier environment and potentially avoid costly future repairs by addressing issues early.
