Restoring the Iconic Yamaha RD400F

The roar of a two-stroke engine, the scent of burning oil, and the thrill of a lightweight, agile machine – for many, these sensations are synonymous with the Yamaha RD400F. This iconic motorcycle, particularly the 1979 model, represents the zenith of Yamaha's air-cooled two-stroke twins before the liquid-cooled era took hold. Despite their celebrated performance and classic appeal, these machines, now decades old, inevitably require significant attention to bring them back to their former glory. This isn't merely about fixing a fault; it's a dedicated act of restoration, a journey into preserving automotive history, as exemplified by the remarkable efforts of enthusiasts like Dave Newitt from Hinckley, Leicestershire.

The Enduring Appeal of the Yamaha RD400F

What truly sets the Yamaha RD400 apart and cements its legendary status? Introduced in 1975 as a successor to the RD350, the RD400 quickly dominated the late 70s sport middleweight category. Its appeal lies in a potent combination of attributes that remain highly desirable even today. Owners rave about its surprisingly low weight, which contributes significantly to its nimble handling. The engine, a 398cc air-cooled parallel twin, is renowned for being torquey and sweet-revving, delivering around 40 horsepower at 7000 rpm, enough to lift the front wheel with ease. Ergonomics were well-considered, providing a comfortable yet engaging riding position, while its supreme handling allowed it to 'run rings around' bigger, more flexi-framed fours of the period. The powerful brakes, featuring 267mm discs with single-piston floating-calipers, were also ahead of their time, offering confident stopping power. This blend of agility, power, and classic styling ensures the RD400F remains a highly sought-after machine for riders and collectors alike.

Why Does a 1979 RD400F Need Restoration?

Even a well-preserved classic from 1979 will show its age, and the RD400F is no exception. Dave Newitt’s experience with his recently acquired 1979 RD400F perfectly illustrates the typical state of these machines. Despite having only two former keepers and a genuine 12,000 recorded miles, verified by old tax discs and MOTs, the bike had been stored in a wooden shed for 17 years, covering only 2,000 miles in that period. While it initially appeared to have 'survived quite well', a deeper examination revealed numerous issues that necessitated a full strip-down and comprehensive restoration. The frame, for instance, was heavily corroded, showing rust everywhere, and the original paintwork was tired and damaged. Beyond the obvious, most of the original nuts, bolts, fixtures, and fittings were badly corroded, requiring meticulous attention or replacement. Even areas that might seem robust, such as the fuel tank, can hide light surface corrosion underneath, often masked by old repairs or staining from leaking fuel caps. The engine, while mechanically sound in Dave’s case, often suffers from flaking paintwork on the barrels and heads, and worn internal components are a common finding in less fortunate examples. Furthermore, classic RD400s are prone to issues like sticking brake callipers, worn swinging arm bushes, and engines that have been over-bored or are simply worn out from years of enthusiastic riding. The bike, despite its solid design, is susceptible to corrosion in many unseen areas, including the frame, fuel tank, and steel seat base, almost guaranteeing the need for repairs.

Dave Newitt's Meticulous Restoration Journey

Dave Newitt, affectionately known as “Thumper Dav” from his expertise with XT Yamahas, has a long-standing passion for bringing vintage bikes back to life. His journey with the RD400F is a testament to his self-sufficiency and dedication, undertaking virtually all the work himself, from painting and fabrication to zinc plating and engine work.

The Search and Initial Assessment

Dave’s quest for the right RD400 took two years, driven by a desire to relive his youth. He eventually found a promising 1979 model on eBay, purchasing it for £1,400. Its low mileage and documented history were a bonus. However, once in his workshop, the bike’s true condition became apparent. The extensive rust on the frame and tired paintwork immediately dictated a complete strip-down, transforming the bike into a 'huge pile of rusty black metal bits' destined for sandblasting and powder coating at KMH Powder Coating in Leicester.

Frame and Chassis Rejuvenation

With the frame dispatched, Dave could thoroughly inspect the remaining components. Surprisingly, many original items, like the wiring loom, switch units, and clocks, only needed a thorough clean and minor terminal replacements. However, the heavily corroded nuts, bolts, and fixings were all re-zinc plated to ensure longevity and an as-new appearance. The chrome work, often a weak point on period Yamahas, was remarkably good on this bike, requiring only a polish – a significant and unexpected saving. To prevent future corrosion, Dave treated the underside of the mudguards. Reassembly of the chassis components involved new taper headrace and swinging arm bearings, with Dave offering a crucial tip: always run a clean tap through all threads after powder coating to prevent damaged threads.

Cosmetic Overhaul: Paint, Chrome, and Seat

The paintwork demanded a complete overhaul. A large yellow fuel stain on the tank, caused by a leaking petrol cap seal, meant total paint stripping was essential to avoid colour variations. Beneath the old paint, the tank revealed light surface corrosion and evidence of a previous repair, which Dave meticulously addressed before repainting it to original specifications and applying new decals. The seat, while in excellent condition structurally, required a new cover, which Dave sourced from a VJMC club supplier and fitted himself. The wheels were also stripped and painted 'Pillar Box Red', a vibrant choice sourced from a local bargain shop. The brake components were fully stripped, repainted, and even the original brake hose fittings were re-plated, reflecting Dave's attention to detail.

Engine Revival: Powering the Legend

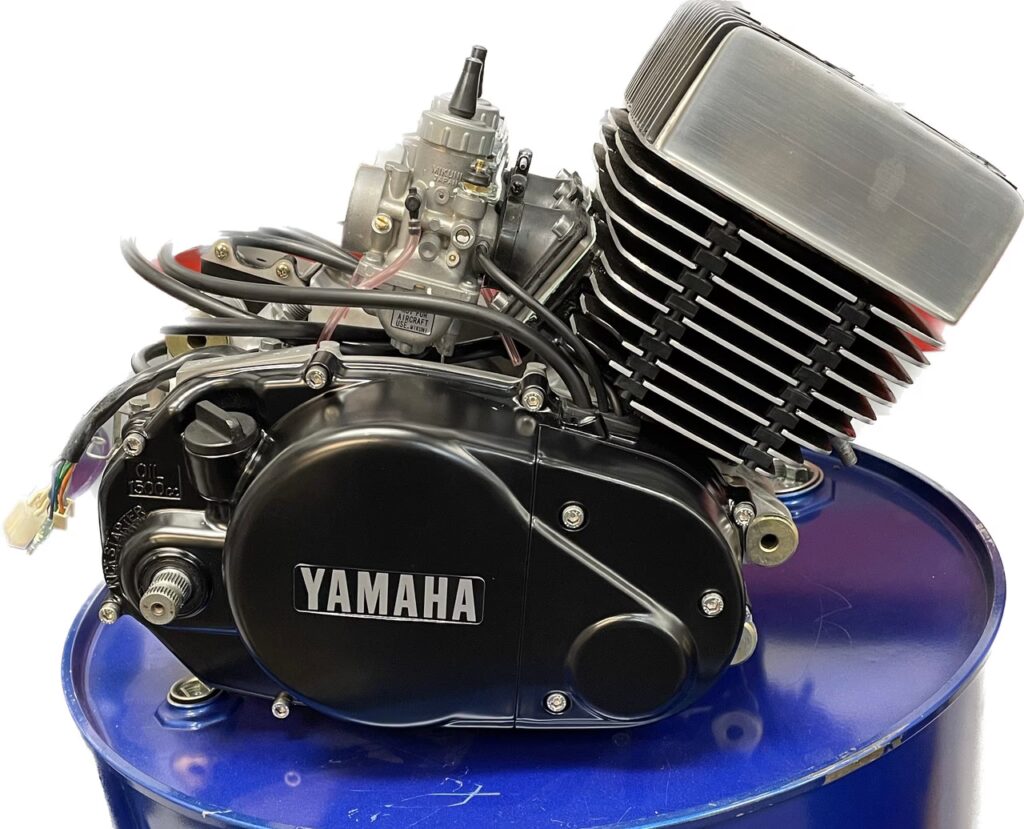

Although the engine ran well before removal, Dave opted for a cosmetic and preventative overhaul. He sandblasted the cylinder barrels and heads, removing flaking paint, and applied paint stripper to the outer casings. Internally, the engine was in great condition with no measurable wear, having covered few miles. As a goodwill gesture, Dave fitted a new set of pistons and rings, acquired for a bargain £20 each from a classic bike show, keeping the standard bore sizes. With new gaskets and newly painted outer covers, the engine began to look superb. Further cosmetic enhancement came from removing and re-zinc plating all original engine bolts, brackets, and mountings. The carburettors received a similar detailed treatment, being fully cleaned and rebuilt, with new consumable parts like reed valves and carburettor rubbers installed.

Reassembly: Bringing It All Together

With all components prepared, the reassembly phase began, greatly aided by the numerous photographs Dave had taken during the strip-down. This methodical approach ensured a relatively straightforward process, transforming the 'huge pile of black shiny metalwork' back into a cohesive, stunning motorcycle.

Overcoming the Hurdles: Common Restoration Pitfalls

Even for an experienced restorer like Dave, challenges are an inherent part of the process. His RD400F restoration encountered several specific problems that highlight common pitfalls:

• Incorrect Rear Brake Link: Locating the correct rear brake link proved difficult, as the bike had been fitted with the wrong part previously.
• Piston Fitting Issues: Fitting the new pistons into the cylinder bores was tricky, with the rings fouling on the inlet ports, necessitating the removal of the reed valve blocks to gain access.
• Front Engine Mounting Bolts: Inserting the front engine mounting bolts was a nightmare, especially with the rear bolt already in place. This is apparently a known characteristic, though Dave initially feared a bent frame.
• Throttle Cable Snapped: A newly fitted throttle cable snapped on its very first twist of the grip, requiring immediate replacement.
• Seized Clutch Adjuster: The clutch adjuster inside the left cover had seized up, adding another minor but frustrating repair to the list.

Beyond Stock: The RD400 as a Race-Developed Machine

The Yamaha RD400 wasn't just a great road bike; it was 'indisputably race developed', a factor that allowed owners to 'run rings around' larger, less agile machines of the era. This inherent performance potential made it a favourite for customisation and racing. Take, for example, Alan Phillips's Yamaha RD400 Special, developed with chassis guru Lester Harris of Harris Performance and tuning expert Mark Dent of Performance Fabrications. This build transformed a North American Daytona into an 'ultimate expression' of the RD400. The stock ~40 bhp engine was boosted to a staggering 80 bhp through modifications like twin 35mm Keihin PWK carburettors, V Force 4 reed blocks, and Mark Dent's custom-designed pipes, fueling, and ignition. Chassis upgrades included 43mm non-USD Öhlins forks, bespoke yokes, superbike-spec Brembo brakes, and a Harris box-section aluminium swingarm to accommodate BST carbon wheels. This level of performance enhancement showcases the RD400's incredible adaptability and the engineering prowess that can unlock its full potential, transforming a vintage classic into a modern superbike in disguise, yet still identifiably an RD400.

Essential Wisdom: Dave's Top Tips for RD Restoration

Drawing from years of experience, Dave Newitt offers invaluable advice for anyone embarking on a Yamaha RD restoration:

• Prioritise Smart Buying: Never let your heart completely rule your wallet. It's often better to pay more for the 'right bike' – one that is more complete or in better original condition – rather than settling for a cheaper 'basket case' that will cost far more in the long run due to sourcing elusive, no longer available parts from Yamaha.
• Be Methodical and Document Everything: Maintain a written record of all parts required and clearly define your restoration goals.
• Capture Visual Records: Take good, clear pictures of the bike before the restoration begins, and meticulously document every step during the strip-down process. This invaluable visual guide will save immense time and frustration when reassembling, especially when dealing with complex wiring.
• Understand Pricing for Matching Numbers: Expect to pay premium prices for bikes with matching engine and frame numbers, comprehensive history, and verified low mileages. These command higher values among collectors.
• Consider Non-Matching Numbers: If matching numbers are not a primary concern for you, it's still possible to achieve a beautifully restored bike for significantly less money. The focus can then be purely on the quality of the restoration itself.
• Anticipate Hidden Corrosion: While the RD400 is fundamentally a solid machine, it notoriously suffers from corrosion in unseen areas. Items like the main frame, the fuel tank (especially internally or under the paint), and the steel seat base will almost certainly require repairs or extensive treatment.
• Prepare for Common Wear Items: Be ready to address common wear points such as sticking brake callipers, worn swinging arm bushes, and potentially over-bored or generally worn-out engines. These issues are almost guaranteed on a bike of this age and mileage.

1979 Yamaha RD400F 4L0 Specification Overview

For enthusiasts and restorers, understanding the original specifications of the RD400F is crucial. Here's a quick reference for the 1979 RD400 4L0 model:

Frequently Asked Questions About RD400 Restoration

What are the most common areas of wear and corrosion on an RD400?

The most common areas for wear and corrosion on a Yamaha RD400 include the frame, which often suffers from extensive rust, especially in hidden areas. The fuel tank is also prone to internal surface corrosion and external damage from fuel leaks. The steel seat base can corrode significantly, requiring repair or replacement. Mechanically, sticking brake callipers, worn swinging arm bushes, and general engine wear (including over-bored cylinders and worn internals) are almost guaranteed issues that will need addressing during a comprehensive restoration.

Is it difficult to source parts for an RD400F restoration?

Sourcing parts for a vintage RD400F can be challenging, particularly for original Yamaha components that are no longer manufactured. As Dave Newitt advises, it's often better to buy a bike that is more complete, even if it costs more upfront, to avoid the arduous task of tracking down rare parts. However, the strong community of RD enthusiasts, along with specialist suppliers like Granby Motorcycles and clubs like the VJMC, can provide valuable assistance and access to reproduction or salvaged parts.

How long does a comprehensive RD400 restoration typically take?

The duration of a comprehensive RD400 restoration largely depends on the restorer's skill level, resources, and the condition of the donor bike. Dave Newitt, being highly self-sufficient and equipped with extensive skills (painting, fabrication, welding, engine work), states he can fully restore a bike within a 4-6 week period. For amateur restorers or those relying on external services, the process can easily extend to several months or even years, depending on parts availability and workshop time.

Can a classic RD400 be enhanced for modern performance?

Absolutely. As demonstrated by Alan Phillips's RD400 Special, these bikes have immense potential for modern performance enhancements. Modifications can include upgraded suspension (e.g., Öhlins forks and shocks), modern braking systems (e.g., Brembo calipers and larger discs), lighter wheels (e.g., carbon fibre), and significant engine tuning to double or even triple the original horsepower. While maintaining the classic aesthetic, these enhancements can transform the RD400 into a formidable machine capable of competing with much more contemporary motorcycles in terms of handling and straight-line speed.

The Yamaha RD400F remains a cherished piece of motorcycling heritage, its unique blend of performance and character captivating generations of riders. While time inevitably takes its toll, the dedication of restorers like Dave Newitt ensures that these iconic two-strokes continue to thrive, gracing roads and shows with their distinctive presence and the unmistakable aroma of their exhaust. Embarking on an RD400F restoration is more than just a mechanical task; it's a labour of love, a commitment to craftsmanship, and a vibrant connection to a golden era of British motorcycling.
