RC Front Toe: Mastering Your Car's Grip

For any remote-controlled car enthusiast, particularly those navigating the thrilling world of Traxxas vehicles, understanding the nuances of suspension tuning is paramount to unlocking peak performance. While many components contribute to how your RC car handles, the front toe setting is a critical, yet often overlooked, adjustment that significantly impacts everything from straight-line stability to cornering agility. It might not grab as much attention as rear toe, but its influence on your vehicle's driving dynamics around the track is substantial. This guide delves deep into the effects of front toe-in versus front toe-out, helping you to fine-tune your RC car for optimal control and speed, no matter the terrain.

What Exactly Is Front Toe?

Before diving into the effects, let's clarify what front toe actually means. Front toe refers to the angle at which your front wheels point when viewed from above the car. Imagine drawing a line through the centre of each front wheel, parallel to the ground. If these lines converge in front of the car, you have 'toe-in'. If they diverge (point outwards) in front of the car, you have 'toe-out'. A setting of zero toe means the wheels are perfectly parallel to each other and to the car's centreline.

Adjusting front toe is typically done by lengthening or shortening the steering turnbuckles connected to the steering knuckles. Even minor adjustments, often measured in degrees or millimetres, can lead to noticeable changes in handling.

The Impact of Front Toe-Out

Front toe-out is when the front of your wheels points outwards, away from the centre of the car. This setup is generally favoured for certain driving conditions and desired handling characteristics. It's particularly effective in scenarios where steering response is a priority.

Benefits of Front Toe-Out:

• Increased Steering Response: The primary benefit of toe-out is a sharper, more immediate reaction to steering inputs. As the car begins to turn, the leading wheel is already angled in the direction of the turn, initiating the turn more quickly.
• Enhanced Steering Entry (Off-Power): When you're off the throttle and entering a corner, toe-out helps the car 'bite' into the turn more aggressively. This can be particularly useful for navigating tight, technical sections of a track.
• Aids Slow Servos: If your steering servo feels a bit sluggish or slow to react, a touch of front toe-out can help compensate by making the steering feel more responsive without needing to upgrade the servo itself.
• Better for Off-Road or Low-Grip Conditions: In loose dirt, gravel, or other low-traction environments, toe-out can make the car feel more nimble and easier to steer. The slightly 'scrubbing' action of the wheels can help find grip where it's scarce.
• More Stable On-Power Out of Turns: Surprisingly, while it increases initial steering, toe-out can contribute to stability when exiting a corner under acceleration. As the front wheels try to straighten under power, the toe-out helps to prevent twitchiness and keep the car tracking straight as it exits the turn.

Considerations for Front Toe-Out:

While beneficial, too much toe-out can lead to a car that feels overly 'nervous' or twitchy on the straightaways. It can also increase tyre wear due to the constant scrubbing action. For low-grip, off-road racing, a common range for front toe-out might be around 0.5 to 3 degrees.

The Impact of Front Toe-In

Conversely, front toe-in is when the front of your wheels points inwards, towards the centre of the car. This setup typically promotes a more stable and predictable handling characteristic, especially at higher speeds or on high-grip surfaces.

Benefits of Front Toe-In:

• Less Twitchy Handling: Front toe-in makes the car feel more planted and less prone to sudden directional changes. This is ideal for maintaining a consistent line, especially on long straights.
• Increased Steering Exit (On-Power): When you're accelerating out of a corner, toe-in helps the front end 'pull' the car straight and stable. This provides a more predictable and controlled exit, allowing you to get on the power earlier.
• Slows Down Fast Servos: If your steering servo is incredibly fast and makes the car feel overly sensitive or 'darty', adding some front toe-in can help to calm down the steering response, making the car smoother and easier to control.
• Better for On-Road or High-Grip Conditions: On high-traction surfaces like asphalt or carpet, toe-in provides the stability needed to maintain high speeds and precise lines. The wheels are already trying to pull inwards, which helps resist outside forces trying to push the car off course.
• More Stable Off-Power: When coasting or braking, toe-in helps keep the car tracking straight, reducing wandering or unpredictability.
• Greater Stability on the Straightaway: This is one of the most significant advantages of toe-in. It helps the car track true and straight, reducing the need for constant small steering corrections, which is crucial for high-speed runs.

Considerations for Front Toe-In:

Excessive toe-in can make the car feel sluggish to turn and may lead to understeer. It can also reduce overall top speed slightly as the wheels are constantly fighting against each other, requiring more power to overcome the drag. For high-grip or on-road situations, a typical range might be around -0.5 (which is 0.5 degrees of toe-in) to 1 degree of toe-out. Remember, the more toe-in or toe-out you add, the more power is generally needed, often resulting in a slightly lower top speed due to increased tyre scrub.

Finding Your Sweet Spot: The Art of Adjustment

There's no single 'perfect' toe setting; it's a dynamic variable influenced by your specific RC car model (e.g., Traxxas Slash 2WD LCG setup), the track surface, your driving style, and even the ambient temperature. The key is experimentation and careful observation.

Start with the manufacturer's recommended settings as a baseline. For Traxxas vehicles, their official guides are an excellent starting point. Then, make small, incremental adjustments. For instance, if your car feels too twitchy on a high-speed straight, try adding a small amount of toe-in. If it's slow to react in tight corners, try a little toe-out.

Practical Adjustment Tips:

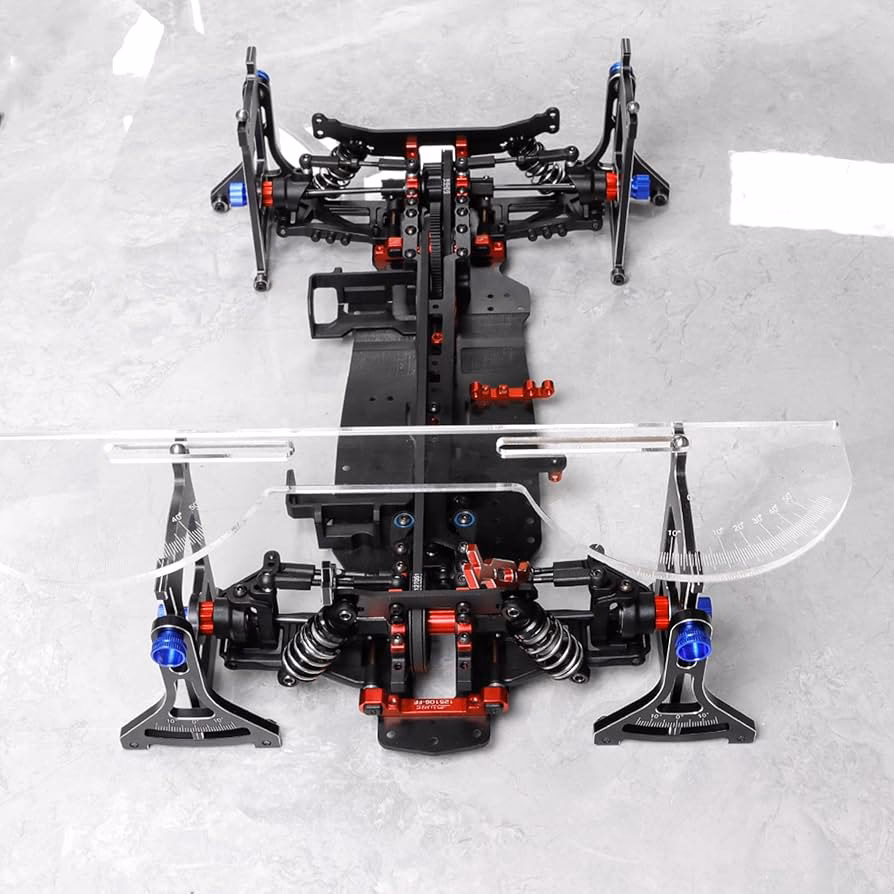

1. Tools Required: You'll typically need a small adjustable wrench or nut driver for the turnbuckles, and a precise toe gauge or ruler. Some hobbyists use a setup station for ultimate precision.
2. Measure Accurately: Ensure your measurements are consistent. Measure from the front edge of the tyre to the front edge of the opposite tyre, and then from the rear edge of the tyre to the rear edge of the opposite tyre. The difference will give you your toe setting.
3. Adjust Evenly: Always adjust both left and right turnbuckles by the same amount to maintain even steering and prevent uneven tyre wear.
4. Test and Observe: After each adjustment, take your car for a test run. Pay close attention to how it feels on straights, during corner entry, and corner exit. Note any improvements or new issues.
5. Keep Records: Jot down your settings and the observed effects. This will build a valuable database for future tuning sessions.

Toe-In vs. Toe-Out: A Comparative Overview

To help you visualise the differences, here's a comparative table summarising the effects of front toe-in and toe-out:

Front Toe and Other Suspension Settings

It's crucial to remember that front toe doesn't exist in isolation. It interacts with other critical suspension parameters like camber, caster, and ride height. For example:

• Camber: The vertical angle of the wheel. Camber and toe work together to determine how much tyre contact patch you have during cornering. A well-tuned combination maximises grip.
• Caster: The angle of the steering axis. Caster affects straight-line stability and steering return. It can influence how much toe change occurs during suspension compression.
• Ride Height: How high the chassis sits off the ground. Changes in ride height can subtly alter toe settings due to suspension geometry.

A holistic approach to tuning, considering the balance of all these settings, will yield the best results for your RC car's performance.

Frequently Asked Questions About Front Toe

Q1: How much toe-in or toe-out should my RC car have?

A: There's no universal answer. It heavily depends on your vehicle type (e.g., truck, buggy, on-road touring car), the track surface, and your driving style. A good starting point is usually between 0 to 2 degrees of toe-out for off-road and 0 to 1 degree of toe-in (or slight toe-out) for on-road. Always start with the manufacturer's recommendation and adjust incrementally.

Q2: Can too much toe-in or toe-out cause problems?

A: Absolutely. Excessive toe-in can make your car understeer severely, feel sluggish, and reduce top speed. Too much toe-out can make the car overly twitchy, unstable on straights, and lead to premature tyre wear due to constant scrubbing. Both extremes also increase drag, requiring more power and potentially overheating electronics.

Q3: How often should I check my front toe settings?

A: It's a good practice to check your toe settings before every race day or significant bashing session. Impacts, hard landings, and general wear and tear can cause settings to drift. Regular checks ensure consistent performance and can pre-empt handling issues.

Q4: Does front toe affect tyre wear?

A: Yes, significantly. Incorrect toe settings, especially excessive toe-in or toe-out, cause the tyres to scrub against the ground rather than rolling cleanly. This leads to accelerated and uneven tyre wear, costing you money and reducing grip.

Q5: Is front toe more important than rear toe?

A: Both are crucial, but they affect different aspects of handling. Front toe primarily influences steering response and straight-line stability. Rear toe, on the other hand, has a greater impact on on-power stability, forward traction, and how the car rotates through a corner. They work in conjunction for overall vehicle dynamics.

Conclusion

Mastering front toe adjustment is a fundamental step towards optimising your Traxxas or any RC car's handling. By understanding the distinct effects of toe-in and toe-out, you gain the power to fine-tune your vehicle for specific conditions and personal preferences. Remember, the journey of RC tuning is one of continuous experimentation and learning. Take your time, make small adjustments, observe the results, and you'll soon unlock a level of performance and control that transforms your driving experience. Happy tuning!
