RAV4 Transfer Case Fluid Change Guide

Your Toyota RAV4, particularly those equipped with All-Wheel Drive (AWD), features a transfer case that plays a crucial role in distributing power to all four wheels. While often considered relatively maintenance-free, neglecting the fluid within this vital component can lead to premature wear and potential costly repairs. A fluid exchange is a straightforward yet essential service that ensures the longevity and optimal performance of your RAV4's drivetrain. This guide will walk you through the process, explaining why it's necessary, when to perform it, and how to do it yourself.

Why Change Your RAV4's Transfer Case Fluid?

The transfer case fluid isn't just a lubricant; it's a complex blend designed to protect the gears, bearings, and seals within the unit. Over time, this fluid can degrade due to heat generated during operation and contamination. Even with a well-sealed transfer case, the venting system allows for pressure equalisation but can also admit atmospheric moisture and fine particulate contaminants. This ingress can lead to:

• Corrosion: Moisture can cause metal components to rust.
• Gasket Degradation: Contaminants can attack and break down the seals, leading to leaks.
• Increased Wear: Contaminated or degraded fluid loses its lubricating properties, accelerating wear on moving parts.
• Overheating: Old, broken-down fluid is less effective at dissipating heat.

Regularly replacing the fluid with a fresh, high-quality lubricant is a proactive measure that keeps the seals pliable and the internal metal components protected, ensuring smooth power transfer and preventing expensive damage down the line. Think of it as giving your transfer case a vital health boost.

When Should You Change the Transfer Case Fluid?

Toyota's official maintenance schedules can sometimes be a bit general, especially regarding specific components like the transfer case. While the manual might not always specify a strict interval for regular driving, it often mentions more frequent changes under "Special Operating Conditions." Generally, a good guideline for changing your RAV4's transfer case fluid is every 30,000 to 60,000 miles. However, this range can be narrower depending on your driving habits and environment:

Factors Influencing Fluid Change Intervals:

• Off-roading or Heavy Towing: These activities place more stress and generate more heat, necessitating more frequent changes, perhaps closer to the 30,000-mile mark.
• Driving in Extreme Temperatures: Both very hot and very cold conditions can accelerate fluid degradation.
• Frequent Short Trips: Engines and drivetrains don't always reach optimal operating temperatures on short journeys, which can lead to moisture condensation.
• Driving in Wet or Snowy Conditions: Increased exposure to moisture can impact the fluid.

If you're unsure, or if your RAV4 has a history of severe use, err on the side of caution and opt for the more frequent interval. It's a relatively inexpensive service that can prevent significant future costs.

How to Perform a Transfer Case Fluid Exchange on a Toyota RAV4

The process is essentially a drain and refill operation. For many Toyota RAV4 models, particularly the 2006-2013 AWD variants, this is a manageable DIY task. The key is to ensure you use the correct fluid and fill it to the proper level.

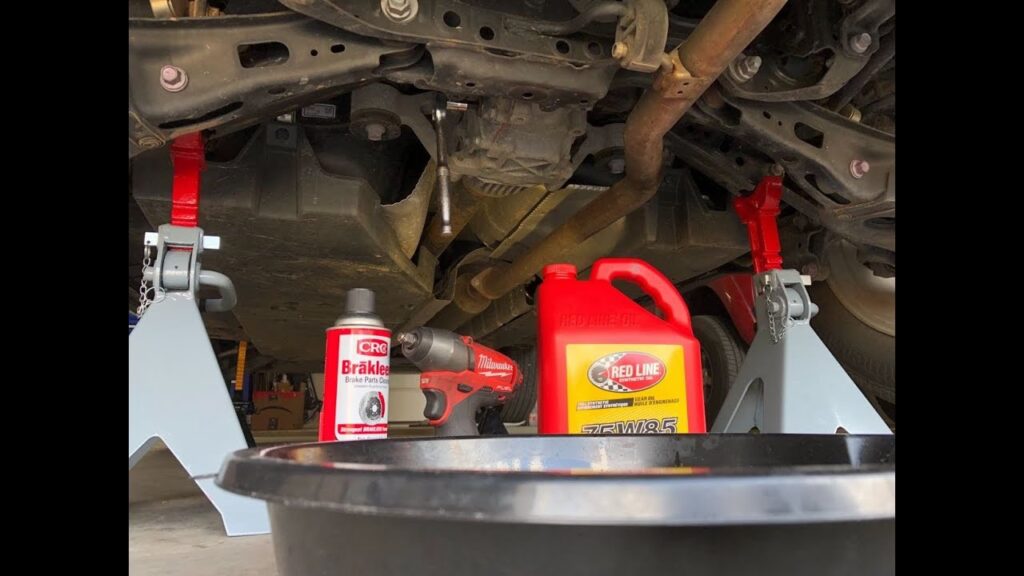

Tools and Materials You'll Need:

• New Transfer Case Fluid: Consult your owner's manual for the specific type and quantity. Toyota typically recommends a specific gear oil.
• Wrench/Socket Set: You'll need the correct size socket for the drain and fill plugs.
• Drain Pan: To collect the old fluid.
• Funnel with a Flexible Hose: For refilling the transfer case.
• Rags or Shop Towels: For cleaning up spills.
• Gloves: To protect your hands from the old fluid.
• Jack and Jack Stands: If you need to lift the vehicle for better access. Ensure they are rated for your vehicle's weight and placed on secure points.
• Torque Wrench: Recommended for tightening plugs to the correct specification.

Step-by-Step Guide:

1. Prepare the Vehicle: Park your RAV4 on a level surface. If you need to lift the vehicle for access, use a jack and securely place jack stands under the designated support points. Never work under a vehicle supported only by a jack.
2. Locate the Transfer Case: The transfer case is typically located behind the transmission, connecting it to the rear differential. You'll be looking for two plugs: a drain plug at the bottom and a fill plug on the side or front.
3. Identify the Fill Plug First: Before draining, it's crucial to loosen and preferably remove the fill plug. This is a critical step. If you drain the fluid and then find the fill plug is seized or impossible to remove, you'll be left with an undrivable vehicle. Once the fill plug is out and you've confirmed you can add fluid, proceed.

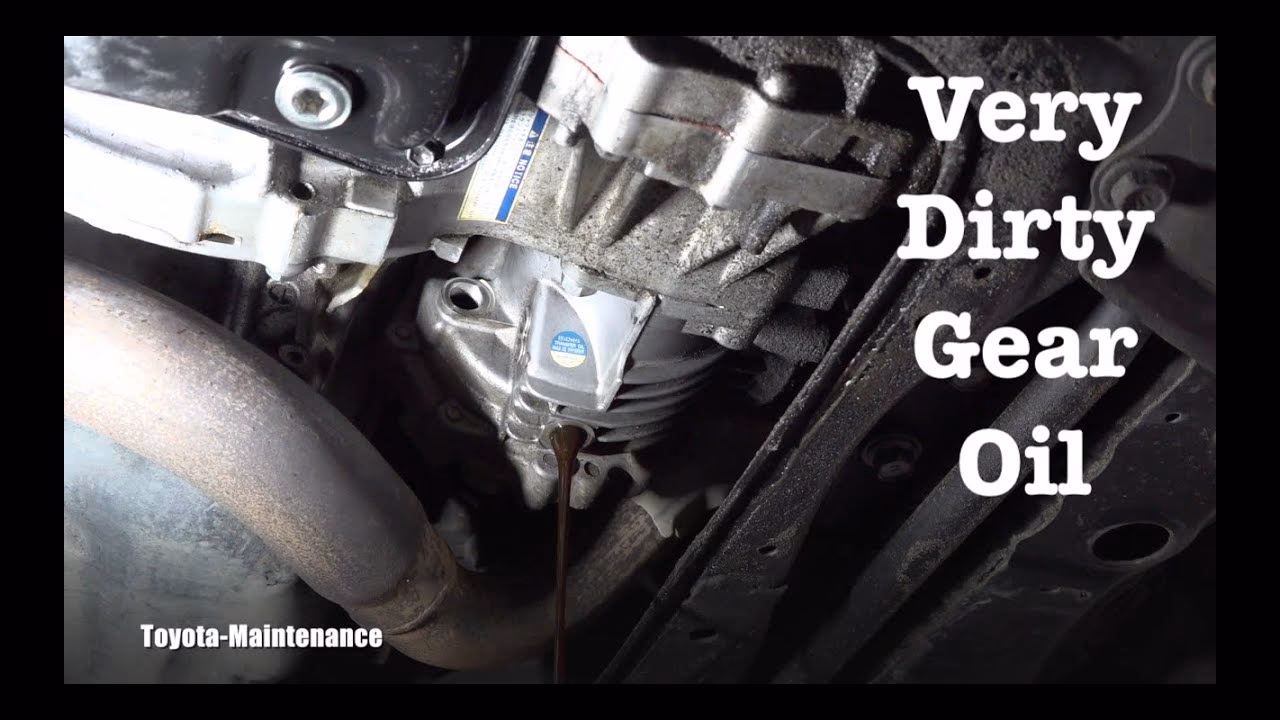

4. Drain the Old Fluid: Place your drain pan beneath the drain plug. Using the appropriate wrench, carefully unscrew the drain plug. Allow the old fluid to drain completely. This can take some time; patience is key, especially if you want to let it drain for an extended period, as some owners do.
5. Replace the Drain Plug: Once the fluid has finished draining, clean the drain plug and its threads. Reinstall the drain plug and tighten it to the manufacturer's specified torque. If you don't have a torque wrench, tighten it firmly but avoid over-tightening, which can strip the threads.
6. Refill with New Fluid: Insert the flexible hose of your funnel into the fill plug opening. Slowly pour in the new transfer case fluid. The correct amount of fluid is critical. On many RAV4 models, you fill until the fluid begins to seep out of the fill hole. This indicates the correct level. Again, consult your owner's manual for the precise capacity and type of fluid.
7. Replace the Fill Plug: Once the fluid level is correct, clean the fill plug and its threads. Reinstall the fill plug and tighten it to the specified torque.
8. Clean Up and Lower the Vehicle: Clean any spilled fluid from the transfer case and surrounding areas. If you lifted the vehicle, carefully lower it back to the ground.
9. Test Drive: Take your RAV4 for a short test drive. Listen for any unusual noises and ensure the drivetrain is operating smoothly.

Fluid Specifications and Capacity

Using the correct type and amount of fluid is paramount. Toyota often specifies a specific GL-4 or GL-5 gear oil for their transfer cases. Always refer to your owner's manual or a reliable Toyota parts specialist to confirm the exact fluid specification and the required quantity. Using the wrong type of fluid can damage the internal components.

Typical Fluid Capacity:

While it can vary slightly by model year, many Toyota RAV4 transfer cases hold approximately 0.8 to 1.0 litres (0.85 to 1.05 US quarts) of fluid. Always verify this information for your specific vehicle.

Common Questions About Transfer Case Fluid Exchange

Q1: How long does it take to change the transfer case oil?

The actual draining and refilling process is relatively quick, often taking less than 30 minutes. However, allowing the old fluid to drain thoroughly can add another 30 minutes or more. Including preparation and cleanup, you can expect the job to take anywhere from 45 minutes to 1.5 hours, depending on your comfort level and how meticulously you work.

Q2: Can I use a different type of fluid?

It is strongly recommended to use only the fluid specified by Toyota. The transfer case contains specific materials and operating tolerances that require a particular type of gear oil. Using an incorrect fluid, such as a standard automatic transmission fluid or a different viscosity gear oil, could lead to gear damage, seal failure, or reduced performance.

Q3: What are the signs of low or contaminated transfer case fluid?

Signs can include whining or humming noises coming from the transfer case area, especially during acceleration or deceleration. You might also notice increased vibration or a feeling of roughness in the drivetrain. Leaks around the transfer case seals or a burning smell could also indicate a problem. However, the best approach is preventative maintenance rather than waiting for symptoms to appear.

Q4: Is this the same as changing the differential fluid?

No, the transfer case and differentials are separate components. While both require gear oil, they are distinct units with their own fluid reservoirs and maintenance requirements. Your RAV4 will have front and rear differentials that also need periodic fluid changes.

Conclusion

Performing a fluid exchange on your Toyota RAV4's transfer case is a valuable DIY maintenance task that contributes significantly to the health and longevity of your AWD system. By understanding the importance of this service, adhering to the recommended intervals, and following the correct procedure, you can ensure your RAV4 continues to provide reliable and efficient power delivery for many miles to come. It's a small investment of time and money that pays significant dividends in the long run.
