When you press the brake pedal in your vehicle, a complex and highly efficient system springs into action, relying heavily on the principles of hydraulics and friction to bring you to a safe stop. At the heart of modern braking systems are hydraulic disc brakes, renowned for their superior stopping power and resistance to fade. While the term 'radius' might seem purely mathematical, it plays a profoundly important role in how these sophisticated brakes function, influencing everything from brake torque generation to pad wear and overall performance. This article delves into the intricate world of hydraulic disc brakes, exploring how various 'radii' – from the inner and outer edges of the disc to the effective radius of the brake pad – contribute to their design, efficiency, and common operational characteristics.
Understanding Hydraulic Disc Brakes
Hydraulic disc brakes are a cornerstone of modern automotive safety. Unlike older drum brakes, which enclose their friction components, disc brakes are an 'open' or 'spot' type, meaning the friction surfaces are largely exposed. At their core, a disc brake system comprises a rotor (a disc attached to the wheel hub that rotates with it) and a caliper. The caliper, fixed to the axle or suspension, houses two opposing brake pads. When hydraulic pressure is applied, slave pistons within the caliper force these pads against the rotating disc. This action generates a friction force, opposing the disc's motion and consequently decelerating the vehicle. This fundamental principle, patented by Lanchester in 1902 and famously demonstrated by Jaguar in the 1950s at Le Mans, proved their superior resistance to temperature effects and fade, leading to their widespread adoption over drum brakes for high-duty applications.
The Critical Role of Radius in Disc Brake Performance
Effective Radius Explained
The effective radius (also known as the torque radius) of a brake disc is a critical parameter, representing the centre of the brake pads by area. It's the theoretical point at which the resultant friction drag force acts on the disc to generate braking torque. For practical purposes, especially in initial analysis, the effective radius is often assumed to be the mean radius of the disc's rubbing path – the average distance from the disc's centre to the inner and outer edges of the friction ring. The precise calculation of brake torque heavily relies on this effective radius, alongside the coefficient of friction and the clamp force applied by the pads. A larger effective radius, for a given force, will yield greater braking torque, highlighting its importance in brake system design.
Inner and Outer Radii: Defining the Friction Surface
The friction surface of the disc, often referred to as the 'friction ring', is defined by its inner (ri) and outer (ro) radii. These radii bound the area where the brake pads make contact. Similarly, disc brake pads are typically designed with inner and outer edges that form circular arcs, mirroring the disc's rubbing path. The ratio of the outer radius to the inner radius (ro/ri) is a significant design consideration. Good practice suggests keeping this ratio at or below 1.5 to minimise the impact of brake pad wear on the effective radius and maintain consistent performance. Modern automotive disc brakes, often found in larger wheel rims, tend to have lower ro/ri ratios, which might necessitate longer, higher aspect ratio pads to achieve sufficient friction area for heat dissipation and power density criteria.
Calculating Brake Pad Area
Understanding the area of the brake pad is essential for thermal design and performance calculations. The area of an annular brake pad, common in disc brakes, can be calculated using its angular dimension (θp, in radians), outer radius (Ro), and inner radius (Ri). The formula is: Area of Brake Pad = Angular Dimension of Pad * (Brake Pad Outer Radius2 - Brake Pad Inner Radius2) / 2. This calculated area helps designers ensure adequate surface contact for effective friction generation and heat management, preventing localised hot spots and premature wear, and ensuring the pad can dissipate the heat generated during braking efficiently.
Types of Calipers and Actuation Methods
Fixed vs. Sliding Calipers
Automotive disc brakes primarily use two caliper designs: fixed (or opposed piston) and sliding (or fist) calipers. The fixed caliper has separate actuators (pistons) on both sides of the disc. This design ensures uniform force distribution across the pad/disc interface and has few moving parts. However, it requires brake fluid to traverse the caliper's 'bridge', which can be susceptible to fluid vaporisation under extreme heat. Fixed calipers also tend to be heavier and larger, potentially constraining wheel positioning. In contrast, the sliding caliper features a fixed carrier and a caliper body that slides on pins. It has an actuator on only one side (the inner side), with the force reacted by the opposing pad as the caliper slides. This design allows for better positioning of the rotor relative to the wheel, which is beneficial for modern suspension geometries, and reduces the risk of brake fluid vaporisation as there's no fluid path across the caliper. However, the slide pins are vulnerable to wear, corrosion, and contamination, which can compromise force equalisation if not properly maintained.
To summarise the key differences between the two primary caliper designs:
| Feature | Fixed (Opposed Piston) Caliper | Sliding (Fist) Caliper |
|---|---|---|
| Actuators | Pistons on both sides of disc | Piston on one side (inner), caliper slides |
| Force Distribution | Generally uniform force on both pads | Force applied to inner pad, reacted by outer as caliper slides |
| Fluid Path across Disc | Yes (across 'bridge'), higher vaporisation risk | No, lower vaporisation risk |
| Size/Weight | Tends to be larger and heavier | Generally more compact |
| Steering Geometry Compatibility | Can constrain wheel/suspension design | Allows for optimum rotor/suspension positioning |
| Vulnerability | Fluid vaporisation at bridge | Slide pin wear, corrosion, contamination |
Hydraulic, Mechanical, and Electromechanical Actuation
Most passenger cars and light vans employ hydraulically actuated disc brakes. Hydraulic pressure forces slave pistons against the pad backplates, generating a normal force. A key feature is 'seal rollback', where hydraulic seals provide slight pad retraction when pressure is released, eliminating the need for complex springs to pull pads clear. This reduces threshold pressures and promotes more linear braking. For larger commercial vehicles, mechanically or air-actuated disc brakes are common, often requiring positive pad retraction via springs, leading to higher threshold pressures. The future of braking may lie in electromechanical actuation, offering faster response and finer control of running clearances, while eliminating concerns about fluid vaporisation. However, challenges related to high electric current demands and safety compliance have so far been major inhibitors to their widespread implementation in road vehicles.
The Mechanics of Braking: Forces and Deformations
Friction Interface and Pressure Distribution
When a brake pad is pressed against the disc, the actuation force generates a pressure distribution over the pad's friction surface. This distribution is rarely uniform, even in ideal conditions, and is influenced by factors such as the pad's flexural characteristics (material thickness, stiffness), backplate properties, and the method of force application. Finite Element Analysis (FEA) often reveals that peak pressure is displaced towards the leading end of the pad, and edges may experience lower, or even zero, contact pressure. This non-uniformity can lead to uneven wear and affect braking performance, as parts of the pad may wear more quickly than others, leading to a tapered wear profile.
Understanding Brake Torque
The braking torque generated by a disc brake is directly proportional to the clamp force applied to the pads, the coefficient of friction between the pad and disc, and the effective radius. For a single pad, the torque (τ) is essentially μ × Nc × re, where μ is the coefficient of friction, Nc is the clamp force, and re is the effective radius. When considering an entire axle with multiple pads, the total braking torque involves a factor that accounts for the number of pads and a constant (K1) related to the pad's angular dimension and radial geometry. This illustrates that greater actuation force is required from a disc brake to achieve a given torque compared to a drum brake, primarily due to the absence of a significant self-servo effect.
The Self-Servo Effect
Unlike drum brakes, disc brakes exhibit little to no self-servo effect. In drum brakes, the rotation of the drum can assist in forcing the shoes against the drum, amplifying the braking force. Disc brakes, however, rely almost entirely on the external actuation force applied to the pads. This means the friction force generated is directly proportional to the applied actuation force. While this requires more effort for the same torque output compared to a drum brake, it provides a more linear, predictable, and consistent braking response, which is a major advantage in performance and safety, especially under varied operating conditions.
Common Issues and Advanced Considerations
The "Pumping Up" Phenomenon

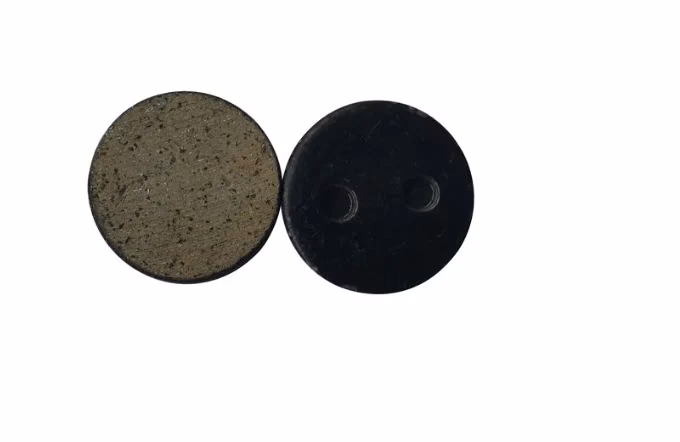

Some drivers and mechanics have reported an issue with certain hydraulic disc brakes, commonly described as a 'pumping up' feel. This manifests as the first pull of the brake lever bringing it close to the handlebar (as observed on some bicycle models), while subsequent pulls feel normal. However, if left for 5-10 seconds, the lever 'drops back' to its initial, problematic state. This issue, which has been observed on bikes from manufacturers like Trek equipped with 'Radius' branded brakes, doesn't seem to be resolved by simply replacing barb and olives. Interestingly, pressurising the system from the lever end with a syringe while pumping the lever can temporarily restore normal feel and power. This suggests a potential issue with maintaining consistent hydraulic pressure or a subtle air ingress that self-corrects under repeated pumping but slowly re-emerges when static. As of current reports, a definitive fix from manufacturers has not been widely communicated, leaving workshops to seek their own solutions for this specific operational anomaly.
Pad Deformation and Critical Length
Brake pads are not infinitely rigid. Under actuation force, they deform, particularly their friction material and backplate. The concept of critical length (Lc) helps quantify this. If a pad's length exceeds its critical length, parts of the friction material, particularly at the ends, may not initially contact the disc. This effectively reduces the working area of the pad, concentrating braking work over a smaller region. Such reduced contact area increases power dissipation per unit area, potentially leading to excessive wear at the pad's centre, localised high heat flux in the disc, and even thermal cracking. It can also introduce tensile stresses at the bond line between the friction material and backplate, risking separation. Designers mitigate this by distributing actuation forces, for example, using multiple pistons or offset piston designs, to ensure more uniform pressure distribution across the pad's surface.
Disc and Caliper Deformations
Beyond pad deformation, the disc and caliper themselves are subject to flexure, displacement, and distortion under braking loads, impacting performance. These effects can contribute to uneven wear, noise, and reduced braking efficiency:
- Caliper Deflection: Under the immense clamp force, calipers can 'open up', particularly fixed designs where the bridge is offset from the actuation forces. This increases friction interface pressure towards the outer edge of each pad, promoting radial taper wear during heavy braking. Frame-type sliding calipers aim to minimise this by aligning the clamp load and actuation forces.
- Caliper Twisting: Due to the offset mounting from the disc plane, calipers can twist in the direction of wheel rotation under friction drag. With a fixed caliper, this increases pressure at the trailing end of the outer pad and the leading end of the inner pad. In sliding calipers, this can lead to high slide friction or even seizure if guide pins are worn or contaminated, reducing the caliper's ability to slide freely.
- Disc Coning: As the disc heats up during braking, thermal stresses cause it to 'cone', meaning the axial deflection of the disc at the outer radius differs from that at the inner radius. The result is that one pad sees the centre of pressure displaced towards the outer radius, and the other pad sees it displaced towards the inner radius. This thermomechanical deflection can concentrate braking work over a smaller, unintended area of the friction surfaces, increasing the potential for thermal damage, accelerated wear, and ultimately, brake failure or thermal judder (a vibration or shudder during braking).
Advantages of Disc Brakes
The widespread adoption of disc brakes stems from several key advantages. Their open design allows for superior self-cleaning, as centrifugal action helps expel dirt, dust, and water, preventing debris accumulation that plagues drum brakes. This open structure also facilitates the escape of heat, gases, and dust generated during braking, significantly reducing brake fade – the loss of braking power due to overheating. Their consistent performance, even under high temperatures, allows drivers to brake harder and later, contributing to enhanced safety and control, especially in demanding driving conditions. Furthermore, the absence of a significant self-servo effect provides a more predictable and linear braking response, which is crucial for modern vehicle control systems.
Frequently Asked Questions (FAQ)
Do disc brake pads always touch the disc?
Despite mechanisms like seal 'rollback' designed to retract pads slightly, disc brake pads often do touch the disc surface while rotating, leading to some residual brake drag losses. Some manufacturers implement positive retraction for CO2 emission reduction, but complete separation is not always achieved or necessary. This minimal contact helps keep the disc surface clean and ensures immediate braking response.
What is brake fade?
Brake fade is the reduction in braking power that occurs due to overheating of the brake components, particularly the pads and disc. High temperatures can cause a decrease in the coefficient of friction of the pad material, and in hydraulic systems, can lead to brake fluid vaporisation (boiling), which creates compressible gas bubbles, reducing hydraulic pressure transmission. Disc brakes are inherently more resistant to fade than drum brakes due to their superior heat dissipation capabilities.
Why is the effective radius important?
The effective radius is crucial because it directly influences the amount of torque a brake can generate. It represents the lever arm at which the friction force acts on the disc. A larger effective radius, for a given clamp force and coefficient of friction, will result in greater braking torque, allowing for more powerful deceleration. Designers carefully select this parameter to achieve optimal braking performance for a vehicle's weight and intended use.
Can brake fluid vaporisation occur in disc brakes?
Yes, particularly in fixed caliper designs where brake fluid is transferred across a 'bridge' close to the hot disc. If the brake fluid overheats and boils, it forms compressible gas bubbles, leading to a 'spongy' pedal feel and a significant reduction in braking effectiveness. Modern brake fluids are designed with high boiling points (e.g., DOT 4 or DOT 5.1), but extreme conditions or old, moisture-contaminated fluid (which lowers the boiling point) can still lead to vaporisation. Regular fluid changes are vital for maintaining brake system integrity.
Conclusion
From the nuanced geometry of the effective radius to the complex interplay of forces and thermal dynamics, hydraulic disc brakes are marvels of engineering. Their ability to deliver consistent, powerful, and reliable stopping performance, even under the most demanding conditions, has made them indispensable in modern vehicles. While challenges like uneven wear, thermal deformation, or even specific 'pumping up' issues can arise, a deeper understanding of these systems empowers both designers and mechanics to ensure optimal safety and performance on the road. The continuous evolution of materials, actuation methods, and design principles ensures that the humble brake remains at the forefront of automotive safety innovation, continually pushing the boundaries of vehicle control and occupant protection.
