RacingLine Brake Upgrades: Enhance Your Stopping Power

In the world of automotive performance, the ability to stop effectively is just as crucial as the ability to accelerate. Many drivers focus on engine power and handling, often overlooking the vital role of the braking system. However, even the most potent engine is rendered somewhat moot if the stock brakes can't reliably bring the vehicle to a halt. This is where high-performance brake upgrades come into play, and RacingLine is a name synonymous with quality and innovation in this sector, particularly for VWG (Volkswagen Group) vehicles.

Understanding RacingLine's Monoblock Brake Upgrade

RacingLine's Monoblock Performance Brake Upgrade is a meticulously engineered solution designed to significantly enhance a vehicle's stopping power and feel. Developed with decades of motorsport experience, these kits are not mere bolt-on accessories; they are a comprehensive system aimed at delivering consistent, reliable performance for both fast-road use and track days. The core of this upgrade lies in its 'monoblock' construction, a hallmark of high-end braking systems.

What is Monoblock Construction?

Monoblock calipers are machined from a single piece of metal (typically aluminium). This contrasts with multi-piece calipers, which are bolted or bonded together. The single-piece construction offers several significant advantages:

• Stiffness: Being a single, solid piece, monoblock calipers are inherently much stiffer than their multi-piece counterparts. This increased rigidity means less flex under heavy braking loads, leading to a more direct and responsive pedal feel.
• Weight: While seeming counterintuitive, the sophisticated machining processes used for monoblock calipers often result in a lighter overall component compared to older, more complex multi-piece designs. This reduction in unsprung weight is beneficial for both handling and acceleration.
• Durability: The lack of joints and fasteners means fewer potential points of failure and greater resistance to the extreme temperatures generated during hard braking.

RacingLine specifically highlights that their monoblock calipers utilise construction techniques typically reserved for top-tier motorsport applications, underscoring the quality and performance focus of their products.

The RacingLine Monoblock Brake Kit - 345mm Explained

This particular kit is a popular choice for owners of MQB platform VWG vehicles, including the Golf 7, Audi S3/TT, Seat Leon III, and Skoda Octavia III. It represents a significant step up from factory braking systems.

Key Components and Features:

A typical RacingLine Monoblock Brake Kit for the MQB platform includes the following:

Technical Advantages:

• Lightweight Monoblock Design: Weighing just 4.4kg per side (combined caliper, pads, and bracket), these are significantly lighter and stiffer than OEM equivalents.
• Larger 345mm Discs: The increased diameter provides greater surface area for heat dissipation, significantly reducing the likelihood of brake fade during prolonged or aggressive use.
• Triple-Groove Discs: This design isn't just for aesthetics. The grooves help to keep the pads clean, degas the disc surface, and improve initial bite by clearing away dust and debris. They also help to manage thermal expansion.
• 'Tru-Loc' Hub Adapter System: A smart design feature that ensures precise centering and secure mounting of the brake disc to the hub.
• Brake Pad Wear Indicator: A practical feature allowing drivers to easily monitor the condition of their brake pads.
• Optimised Piston Sizes: RacingLine's extensive development program focuses on selecting the ideal piston sizes within the calipers. This ensures a beautiful, progressive pedal feel, allowing for precise modulation of braking force.

Important Considerations:

When fitting this kit, it's important to note that wheel spacers may be required with most original equipment (OE) wheels and potentially some aftermarket wheels to ensure adequate clearance between the caliper and the wheel spokes.

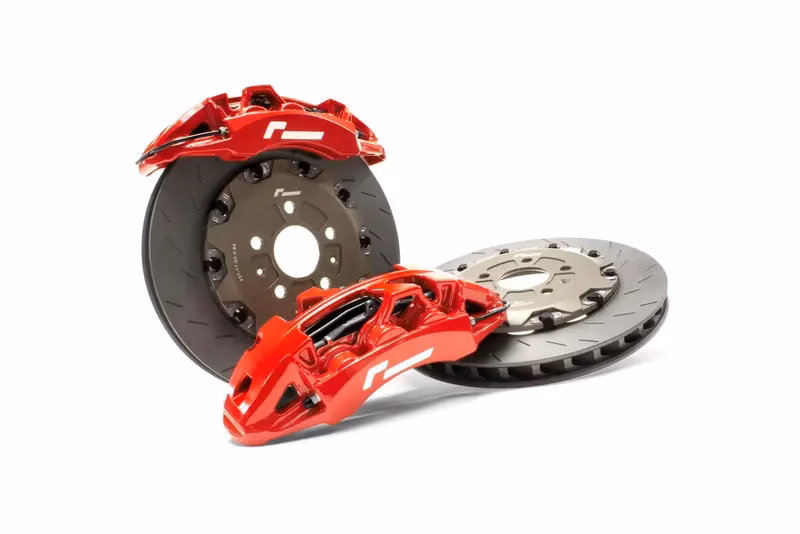

The RacingLine Stage 3 Forged Monoblock Brake Kit

For those seeking the absolute pinnacle of braking performance, RacingLine offers the Stage 3 Forged Monoblock Brake Kit. This kit represents an even more extreme evolution, pushing the boundaries with advanced manufacturing and materials.

Elevating Performance with Forging:

The key differentiator here is the use of forged aluminium billets for the calipers. Forging is a metalworking process where metal is shaped by localised compressive forces, often involving hammering or pressing. This process realigns the grain structure of the metal, resulting in components that are significantly stronger and more durable than those made from cast or machined billets alone.

RacingLine leverages advanced 5-axis CNC machining techniques on these forged billets. This allows for incredibly complex shapes and precise tolerances, resulting in calipers that are:

• Ultra-strong: Benefiting from the forged base material.
• Lightweight: Despite their strength, careful machining removes excess material.
• Stiff: The monoblock design combined with forged strength minimizes flex.
• Aesthetically Pleasing: The attention to detail in the machining process results in a visually stunning component.

Advanced Disc Technology:

The Stage 3 kit often features 2-piece brake discs. This design offers further advantages:

• Floating Disc Design: The disc is mounted to a separate 'bell' or carrier using floating hardware. This allows the disc to expand and contract freely with heat cycles without inducing stress or cracking in the disc or bell. This is crucial for longevity under track conditions.
• Material Choice: Often utilising cast carbon or high-carbon iron materials for superior thermal capacity and wear resistance.
• Disc Sizes: Available in larger diameters such as 355mm and 380mm, catering to a wider range of wheel sizes and performance requirements.
• Triple Groove Design: Carried over from other RacingLine kits, providing the benefits of improved bite, debris clearance, and reduced vibration.

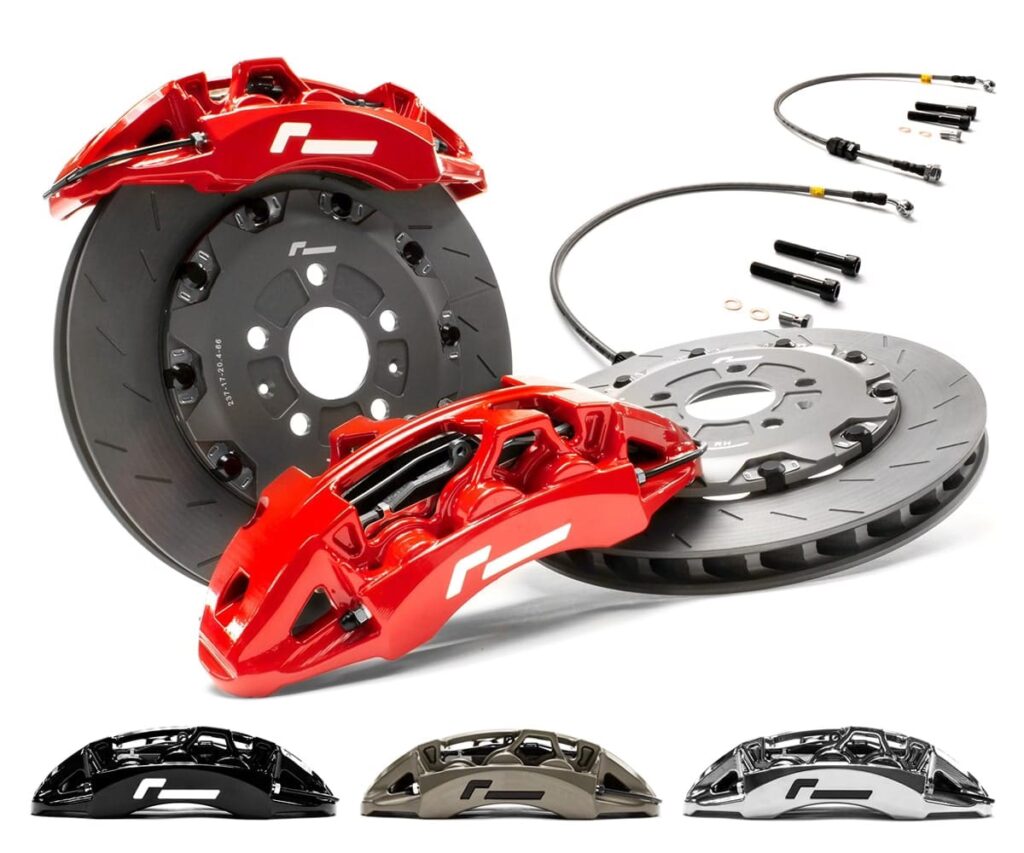

Stage 3 Kit Inclusions:

The Stage 3 kit typically includes:

• Forged Monoblock Brake Calipers (Pair)
• Caliper Mounting Brackets (Pair)
• Full Bolt Mounting Kit
• Braided Steel Brake Line Set
• Fast-Road Brake Pad Set (upgradeable options often available)
• Triple Groove 2-Piece Brake Discs (Pair)

Wheel Fitment for Stage 3:

Due to the larger disc sizes and caliper profiles, a minimum 18-inch wheel diameter is generally required for the Stage 3 kit. Compatibility with specific OE or aftermarket wheels should always be confirmed.

Why Upgrade Your Brakes?

Upgrading your braking system with a kit like RacingLine's offers numerous benefits:

• Improved Stopping Power: Shorter stopping distances, especially under demanding conditions.
• Enhanced Fade Resistance: The ability to brake hard repeatedly without the system losing effectiveness due to heat. This is critical for track use and spirited driving on winding roads.
• Better Pedal Feel: A firmer, more progressive pedal provides greater confidence and control, allowing for finer adjustments to braking force.
• Increased Durability: Performance brake components are built to withstand higher temperatures and stresses than standard parts, leading to longer service life.
• Reduced Unsprung Weight: Lighter calipers and discs can contribute to improved handling and suspension response.
• Aesthetics: High-performance brake kits often feature striking designs and colours that enhance the visual appeal of the vehicle, especially when fitted with larger or open-spoke wheels.

Frequently Asked Questions

Q1: Are RacingLine brake kits difficult to install?

A1: While the installation is a mechanical process that requires appropriate tools and knowledge, it is generally considered a straightforward upgrade for experienced mechanics or those with a good understanding of vehicle maintenance. Professional installation is recommended if you are unsure.

Q2: Will I need to replace my master cylinder or brake booster?

A2: Typically, RacingLine's kits are designed to work with the OE master cylinder and brake booster. The focus is on improving the caliper, disc, and fluid performance, rather than fundamentally changing the hydraulic system's capacity. However, always check the specific kit's documentation.

Q3: Can I use these kits for daily driving?

A3: Yes, the 'Fast Road' pads included in many kits are designed for excellent performance in daily driving conditions, offering good cold performance and street manners, alongside improved durability under spirited use. For more extreme track use, alternative pad compounds may be recommended.

Q4: How often do I need to replace the brake pads and discs?

A4: This depends heavily on driving style and conditions. Performance pads and discs are often made from harder compounds that can wear faster than standard components, especially under aggressive use. Regular inspection is key, and replacement intervals will be shorter than OEM parts if subjected to frequent hard braking or track use.

Q5: Do RacingLine kits come with everything needed for installation?

A5: The kits are comprehensive, typically including calipers, brackets, mounting hardware, brake lines, and pads/discs. However, as noted, wheel spacers might be an additional requirement depending on your wheels.

In conclusion, a RacingLine Monoblock Performance Brake Upgrade is a substantial investment in your vehicle's safety, performance, and driving enjoyment. By incorporating advanced materials, motorsport-derived designs, and meticulous engineering, these kits provide a tangible improvement in braking capability, offering peace of mind and a more engaging driving experience.
