Brake Pad Evaluation: AP Racing's Dynamometer Insights

Choosing the right brake pads for your vehicle isn't merely about finding a friction material; it's a complex engineering challenge that significantly impacts safety, performance, and driving dynamics. With countless options available, each boasting unique characteristics, discerning the most suitable pad can feel like navigating a maze. Factors such as temperature, speed, pressure, and energy levels constantly influence a pad's performance, meaning that no two dynamometer programmes will ever yield identical results. To demystify this critical decision-making process, AP Racing, a leader in braking technology, has developed a sophisticated in-house dynamometer evaluation system. This system, built upon years of accumulated engineering expertise and utilising state-of-the-art facilities, provides a comprehensive rating for the principal characteristics of brake pads, helping enthusiasts and professionals alike make informed choices.

The AP Racing dynamometer brake pad evaluation is a rigorous process designed to simulate the full spectrum of conditions a brake pad might encounter during real-world use. It’s based around a meticulously designed series of stops, which allows for a detailed analysis of the friction material's behaviour under varying stresses. This comprehensive assessment goes far beyond simple friction coefficient measurements, delving into nuanced aspects that define a pad's true performance envelope. Below, we'll explore the key characteristics evaluated and how AP Racing's rating system provides invaluable insights for optimising your vehicle's braking system.

Understanding the Key Performance Characteristics

AP Racing's evaluation methodology breaks down brake pad performance into several critical characteristics, each rated to provide a clear comparative guide. Understanding these metrics is crucial for selecting a pad that aligns perfectly with your specific driving demands and vehicle application.

Average Friction (µ)

The average friction coefficient (µ) is often the first metric people consider, representing the overall mean friction generated over the complete test cycle. While a higher average friction generally translates to more stopping power, it's vital to understand that this is just one piece of the puzzle. A pad with a high average friction might still be challenging to control if other characteristics, such as "bite" or "plot shape," are unfavourable. AP Racing's evaluation provides a precise measurement, allowing for direct comparisons between different materials under a standardised test protocol.

"Bite" (Initial Friction)

Often overlooked by the casual observer, "bite" refers to the initial friction generated at the very start of a brake application. This characteristic is critical for driver confidence and control, particularly in high-performance or emergency braking scenarios. A pad with strong "bite" provides immediate feedback through the pedal, giving the driver a feeling of instantaneous stopping power. AP Racing rates "bite" on a scale of 1 to 5, where 5 indicates excellent initial friction and 1 signifies poor. This rating helps differentiate pads that might have similar overall friction but vastly different initial responses.

Fade Resistance

Brake fade is the dreaded reduction in braking effectiveness due to excessive heat build-up, a common issue during very hard or prolonged braking. AP Racing's evaluation meticulously measures fade by analysing the drop-off in friction coefficient from stop to stop, particularly during the most demanding phases of the test cycle. Rated on a scale of 1 to 5 (with 5 meaning no significant fade), this characteristic is paramount for track day enthusiasts and racing drivers where consistent performance under extreme thermal loads is non-negotiable. Pads with high fade resistance maintain their stopping power even when pushed to their limits, offering crucial safety and performance advantages.

Average Pad Wear

While performance is often the primary concern, the longevity of your brake pads also plays a significant role, especially for road applications and in competitive environments where every cost counts. Average pad wear provides a comparative rating of how quickly the pad material abrades across all tested conditions. Rated on a scale of 1 to 5, with 1 being the best (least wear) and 5 being the worst (most wear), this metric helps balance performance with durability and running costs. A pad that offers excellent stopping power but wears out prematurely might not be the most economical choice for regular use.

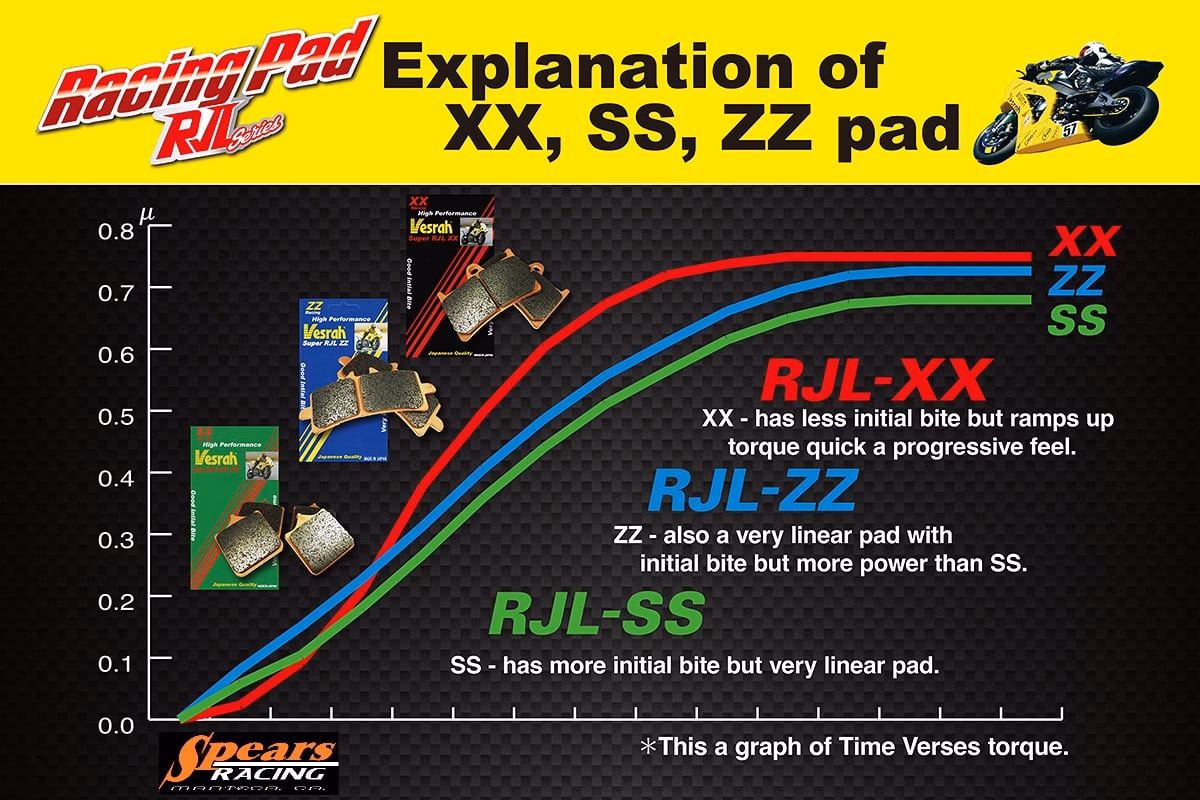

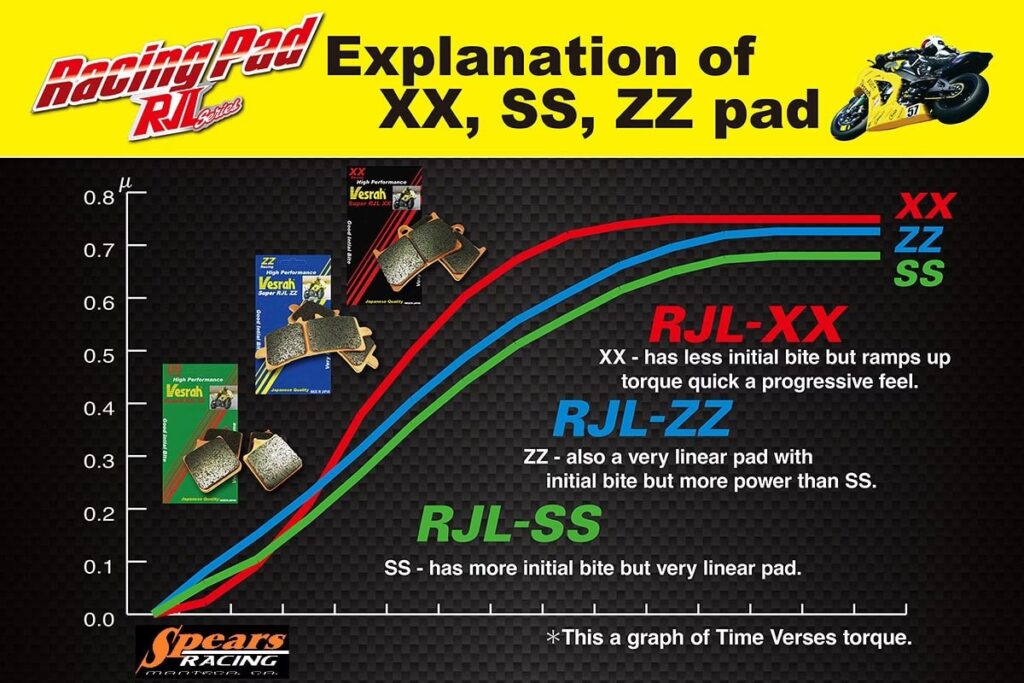

Plot Shape (Friction Profile)

The "plot shape" describes how the friction level changes during a single brake application as the vehicle's speed decreases. This characteristic profoundly influences the driver's ability to modulate braking force and maintain control. AP Racing assesses plot shape on a scale of 5 to 1:

• Type 5: High initial "bite" with friction gradually decreasing through the stop as speed drops off. This is generally considered the most "user-friendly" and easiest to control, offering predictable braking.
• Type 1: A climbing friction level through the stop. While some pads with this characteristic are popular due to their high overall friction and fade resistance, they are generally considered the most difficult to control or "least user-friendly," requiring more precise pedal modulation from the driver.

Understanding the plot shape helps drivers choose a pad that matches their driving style and preference for brake feel.

Comfort / Noise

For road car applications, comfort and noise levels are significant considerations. Does the pad promote judder (vibration) or brake squeal? While often disregarded in racing, where performance trumps comfort, these factors are crucial for the everyday driving experience. AP Racing's evaluation considers these aspects, providing insights into the pad's propensity for noise and vibration, ensuring a pleasant driving experience for road vehicle owners.

Disc Life

Just as important as pad wear is disc life. Certain friction materials can be abrasive and promote high disc wear or even cracking, particularly under extreme conditions. AP Racing rates disc life on a scale of 1 to 5, where 5 indicates the best (least disc wear) and 1 indicates the worst (most disc wear). This characteristic is especially vital for road car applications where disc replacement can be costly and inconvenient. Choosing a pad that is kind to your discs helps extend the lifespan of your entire braking system.

Effective Temperature Range

Brake pads are designed to operate optimally within a specific temperature window. The effective temperature range indicates the temperatures within which the pad material can be considered effective. This should be used as a comparative guide only, as temperature measurement techniques can vary, and the true picture must always include the energy level (quantity of heat absorbed). Pad temperatures are also significantly affected by disc mass and cooling efficiency. AP Racing provides a rating from 1 to 5, corresponding to different temperature thresholds:

• 1 = up to 200°C
• 2 = up to 350°C
• 3 = up to 500°C
• 4 = up to 650°C
• 5 = up to 800°C

Selecting a pad with an effective temperature range suitable for your intended use prevents performance degradation and premature wear caused by operating outside the optimal window.

Suitable Area of Use

This is a subjective assessment, yet one of immense value, relying on the pooled experience and expertise of AP Racing engineers gathered over many years. It indicates the specific applications for which a particular pad material is considered most suitable. From road use to light competition, Formula 3, touring cars, sports cars, rally, hill climb, and even motorcycles, this guide helps narrow down choices based on real-world performance expectations. For bespoke guidance, contacting AP Racing's Technical Section is always recommended.

AP Racing Pad Material Performance Characteristics

The following table presents the comprehensive ratings for various brake pad materials, determined by AP Racing’s in-house dynamometer testing. These results are proprietary to AP Racing and may differ from manufacturers' own specifications, offering an unbiased and consistent comparison across brands and compounds. A 'Y' denotes suitability, while an 'X' denotes unsuitability for a given application.

Frequently Asked Questions About Brake Pad Performance

What exactly is brake fade and why is it so dangerous?

Brake fade is a critical phenomenon where the braking power of a vehicle significantly diminishes due to excessive heat build-up in the braking system. As brake pads and discs get extremely hot during prolonged or aggressive braking, the friction material can start to break down, releasing gases that form a layer between the pad and the disc. This gas layer, combined with a reduction in the friction coefficient of the overheated material, drastically reduces the pad's ability to grip the disc, leading to a noticeable loss of stopping power. It's dangerous because it can occur unexpectedly, especially during track driving or descending long hills, making it difficult for the driver to slow or stop the vehicle effectively. High fade resistance, as measured by AP Racing, ensures consistent performance even under the most demanding conditions.

Why is "bite" such an important characteristic for brake pads?

"Bite," or initial friction, refers to how quickly and effectively a brake pad generates friction the moment the brake pedal is pressed. It's crucial because it dictates the immediate responsiveness and feel of the braking system. A pad with good "bite" gives the driver immediate confidence and a strong sense of control, allowing for precise modulation of braking force, especially in critical situations or during high-speed corner entry on a race track. Conversely, a pad with poor "bite" can feel unresponsive or "wooden," requiring more pedal effort to achieve the desired initial deceleration, which can be unsettling and less effective.

How does temperature affect brake pad performance, and why is the effective temperature range important?

Temperature is perhaps the single most influential factor affecting brake pad performance. Every friction material is designed to perform optimally within a specific temperature window. Below this range, the pad might not generate enough friction, leading to poor stopping power. Above this range, the material can overheat, leading to brake fade, accelerated wear, and even damage to the brake discs. The effective temperature range specified by AP Racing indicates the optimal operating temperatures where the pad delivers its intended performance characteristics without significant degradation. Operating outside this range compromises safety and reduces the lifespan of both pads and discs.

Are racing brake pads suitable for everyday road use?

Generally, no. While racing brake pads offer exceptional performance under extreme conditions, they are typically designed for high temperatures and aggressive use found on race tracks. When used on the road, where braking events are less frequent and less intense, racing pads often fail to reach their optimal operating temperature. This can result in poor cold "bite," excessive noise (squealing), increased disc wear, and reduced comfort. They might also be less effective in wet conditions or at lower temperatures. AP Racing's "Suitable Area of Use" classification is invaluable here, clearly indicating whether a pad is appropriate for road, light competition, or dedicated racing applications, helping drivers avoid unsuitable choices.

What does "plot shape" tell me about a brake pad's feel?

The "plot shape" describes the friction profile of a brake pad throughout a single braking event, from high speed down to a stop. It's essentially a graphical representation of how the friction level changes as speed decreases. A "user-friendly" plot shape (Type 5) typically starts with high initial bite and then sees friction gradually decrease as the vehicle slows. This provides predictable, progressive braking that is easy to modulate. In contrast, a "climbing" plot shape (Type 1), where friction increases as speed drops, can be more challenging to control. While such pads might offer very high ultimate friction and fade resistance, they demand more precise pedal modulation from the driver to avoid locking up wheels or over-braking, making them less suitable for inexperienced drivers or everyday use.

Why is average pad wear an important consideration alongside performance?

Average pad wear quantifies how quickly a brake pad material wears down over its operational life. While high performance is often prioritised, excessive wear can lead to significantly higher running costs due to frequent pad replacements. For road cars, this translates to more maintenance and expense. For racing teams, rapid wear means more frequent pit stops or component changes, impacting budget and logistics. AP Racing's wear rating helps strike a balance between aggressive friction and durability. A pad rated '1' for wear will last considerably longer than one rated '5', offering a cost-effective solution without necessarily compromising essential performance for its intended application.

In conclusion, the AP Racing dynamometer brake pad evaluation is a testament to their commitment to precision engineering and performance. By providing a detailed, multi-faceted assessment of friction materials, they empower consumers, from daily drivers to professional racing teams, to make highly informed decisions. This comprehensive rating system moves beyond simple marketing claims, offering objective data on average friction, critical "bite," fade resistance, wear rates, and even the nuances of brake feel through plot shape. Leveraging this invaluable information ensures that your vehicle is equipped with the optimal brake pads, delivering superior stopping power, consistency, and safety tailored precisely to your specific driving requirements. Always consult the ratings and, if in doubt, reach out to AP Racing's technical experts for personalised guidance, ensuring you unlock the full potential of your braking system.
