Brake Pad Wear: Symptoms & Fixes

Understanding Your Brake Warning Lights

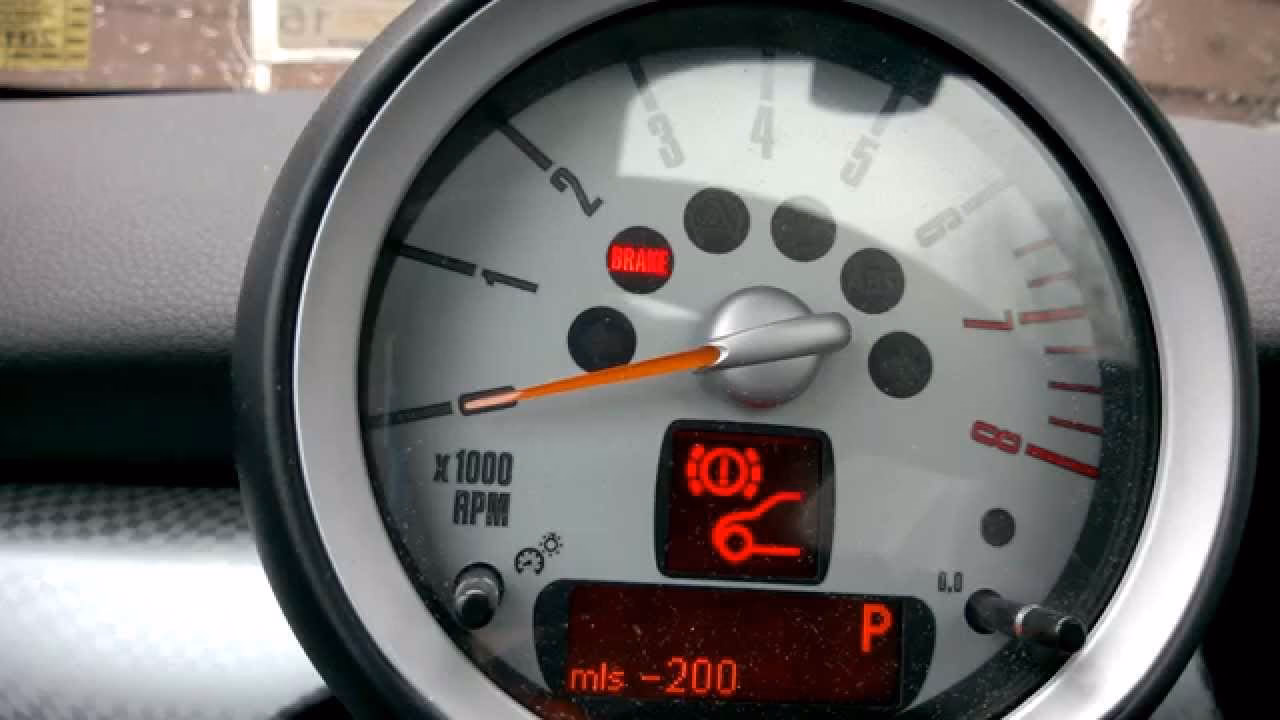

The familiar red warning light, often accompanied by a symbol of a car with jacks underneath, is a clear indicator that your vehicle's brake pads may be reaching the end of their lifespan. While this is a general warning, specific models, like the Mini R56, can have more nuanced interpretations of these signals. Ignoring these warnings can lead to compromised braking performance and potentially more extensive damage to your braking system. It's crucial to address these indicators promptly to ensure your safety and the longevity of your vehicle.

Common Causes of Brake Pad Warning Lights

When that red light illuminates, it's natural to assume worn brake pads. However, the issue might be more complex, especially if you've recently replaced the pads and sensors. Here are the most common culprits:

• Worn Brake Pads: This is the most straightforward reason. Modern vehicles often have sensors embedded in the brake pads. When the pad material wears down to a certain level, it triggers the sensor, which in turn activates the warning light.
• Faulty Brake Pad Sensors: Even with new pads, a faulty sensor can send incorrect signals to the car's computer. These sensors are wear items themselves and can be damaged during installation or simply fail over time.
• Incorrect Sensor Installation: If the new sensors weren't seated correctly or were damaged during the replacement process, they might not function as intended, leading to a persistent warning light.
• Issues with the Wiring Harness: The wiring that connects the sensors to the car's computer can become damaged due to road debris, corrosion, or general wear and tear. A break or short in this wiring will prevent the system from correctly reading the sensor status.
• Faulty Control Module: In rarer cases, the issue might lie with the electronic control module responsible for monitoring the braking system. This is less common but can occur.
• Incorrect Reset Procedure: Modern cars have sophisticated electronic systems that often require a specific reset procedure after maintenance. Simply replacing parts won't always clear the warning light; the system needs to be told that the maintenance has been performed.

Diagnosing the Problem with an OBD2 Reader

The use of an OBD2 reader, such as an Autel, is an excellent step in diagnosing the issue. The fault code 5E5D, specifically pointing to a "rear brake pad indicator," confirms that the car's computer is detecting a problem with the rear brake pad wear sensors. The fact that this code won't erase suggests that the system is still detecting the fault, even after a reset attempt. This reinforces the possibility of a faulty sensor, incorrect installation, or a wiring issue. It's important to note that some OBD2 readers may not be able to clear manufacturer-specific fault codes related to service indicators, requiring a more advanced diagnostic tool or the correct reset procedure.

The Crucial Reset Procedure: A Step-by-Step Guide

As you've discovered, simply replacing parts isn't enough; you need to reset the service indicators. The procedure for resetting service lights, particularly for the Mini R56, often involves navigating a hidden service menu. Here's a breakdown of the process, as commonly understood for this model:

Important Note: It's strongly advised not to reset service lights if your vehicle is covered under a maintenance plan that includes this work. Always refer to your vehicle's specific owner's manual for the most accurate procedures.

1. Enter the Service Menu:
   • Insert the key into the ignition.
   • Do not press the clutch or brake pedal.
   • Press the Start button.
   • Wait until the "Car on Jacks" symbol (or relevant service symbol) on the rev counter display disappears. This usually takes a few seconds.
   • Immediately after the symbol disappears, press and hold the BC button (located on the indicator stalk) and the trip reset button (usually a small button on the instrument cluster itself) simultaneously.
   • Continue to hold both buttons. The system will initiate a dashboard light check, illuminating various warning lights.
   • Keep holding the buttons until the display shows your VIN (Vehicle Identification Number) or the main service menu.
   • Continue to hold until the time is displayed on the instrument cluster.
2. Navigate and Reset:
   • Once the time is displayed, release both buttons.
   • Press and hold the trip reset button again for approximately one second.
   • After another second or two, the display should show the service items you can reset.
   • Use the BC button to scroll through the menu until you reach the relevant symbol, such as "Rear Brakes" or "Brake Pads."
   • Once the correct symbol is highlighted, press and hold the BC button again until a "reset" or "accept" message appears, or until a progress bar completes. This indicates the reset process is finished.
3. Final Steps:
   • Turn the ignition off and then back on again.

If successful, the warning light should now be extinguished. If the light persists, it strongly suggests a hardware issue, such as a faulty sensor or a problem with the wiring.

When to Suspect a Faulty Sensor

Given that you've replaced both front and rear pads and sensors, and the warning light and fault code remain, a faulty new sensor is a strong possibility. It's not unheard of for new parts to be defective. Additionally, consider these points:

• Sensor Quality: Ensure you used reputable, OEM-quality replacement sensors. Cheap aftermarket parts can sometimes fail prematurely or not function correctly with your vehicle's system.
• Damage During Installation: Even with new parts, they can be damaged. Check the sensor and its connector for any visible signs of stress, kinks, or breaks.
• Wiring Integrity: The wiring harness leading to the sensor is a vulnerable point. Inspect the entire length of the wire from the sensor to its connector for any signs of damage, chafing, or corrosion. A loose connection at the sensor or further up the harness can also cause this issue.

Table: Common Brake Warning Light Scenarios

Frequently Asked Questions (FAQs)

Q1: My brake warning light is on, but my brakes feel fine. Should I worry?
Yes, you should still be concerned. The warning light indicates a potential issue with the braking system's sensors or monitoring system, which could affect its ability to alert you to actual braking problems. It's best to get it checked out promptly.

Q2: Can I drive with the brake warning light on?
It's generally not recommended to drive for extended periods with a brake warning light illuminated. While your brakes might feel operational, the underlying issue could compromise their effectiveness. If the light is accompanied by any changes in braking feel (spongy pedal, reduced stopping power), you should avoid driving the vehicle and seek immediate professional assistance.

Q3: How often should brake pads be replaced?
This varies greatly depending on driving style, vehicle type, and the quality of the brake pads. However, a typical lifespan for front brake pads can range from 25,000 to 70,000 miles, and for rear pads, it can be similar or slightly longer. Always rely on the wear indicators and regular inspections.

Q4: If I replaced the sensors, why is the code still there?
This usually means the system hasn't been properly reset after the parts were changed, or one of the new sensors is faulty, or there's an issue with the wiring connecting the sensor to the car's computer.

Q5: What does the "Car on Jacks" symbol specifically mean?
This symbol is commonly used in many vehicles to indicate a problem with the brake pads. It's a visual cue that the brake pad wear sensors have detected that the pads are worn down to their minimum thickness.

Conclusion

Addressing brake warning lights is paramount for your safety. While the initial assumption is worn brake pads, the persistence of the warning light after replacement often points to the need for a proper electronic reset or a fault with the replacement parts or wiring. Carefully follow the reset procedure for your specific vehicle, and if the problem continues, it's advisable to have a qualified mechanic inspect the sensors, wiring, and the braking system as a whole. Don't compromise on your braking system's integrity – ensure it's always in top condition.
