Maintaining Your Mercedes ABC Suspension

The Active Body Control (ABC) suspension system in Mercedes-Benz vehicles, particularly models like the 2003 W220 S-Class, is a sophisticated electro-hydraulic marvel. It aims to provide an unparalleled ride quality by actively counteracting body roll and pitching motions. However, like any complex system, it requires diligent maintenance to ensure longevity and prevent catastrophic failures. Many owners, unfortunately, neglect this crucial aspect, leading to a notorious reputation for the ABC system being unreliable and expensive to repair. This article delves into the 'how' and 'why' of maintaining your ABC fluid, drawing from expert insights and owner experiences.

Understanding the ABC System

At its core, the ABC suspension is an electro-hydraulic system that works in conjunction with traditional coil springs. It uses sensors to detect body movements and hydraulic actuators to adjust the suspension in milliseconds. This active compensation means that when you're cornering, braking, or accelerating, the system actively works to keep the car level. This is a significant advancement over conventional air suspension systems, offering a superior level of comfort and control.

The Critical Role of ABC Fluid

The lifeblood of the ABC system is its specialized hydraulic fluid, often referred to as Pentosinöl (Mercedes part number A00198924003-10, or Pentosin CHF 11S). This fluid is not merely a lubricant; it's the medium through which the system operates, providing hydraulic pressure, lubrication, and cooling. Unfortunately, this fluid degrades over time, especially when subjected to the high pressures and temperatures within the system.

Cleanliness and quality of the ABC fluid are paramount. As the fluid ages, it can become contaminated with microscopic metal particles shed from internal components. This contaminated fluid acts like liquid sandpaper, circulating through the system and causing wear on vital parts such as the hydraulic pump, struts, and valve units. Furthermore, like brake fluid, Pentosinöl is hygroscopic, meaning it absorbs moisture from the atmosphere. This moisture can lead to corrosion within the system, further exacerbating wear and tear.

How Often Should ABC Fluid Be Changed?

While Mercedes-Benz may not explicitly state a fixed interval for ABC fluid changes in all documentation, practical experience and specialist advice strongly suggest regular replacement. Based on extensive experience and observations:

• For vehicles with lower engine power, the fluid might start to turn a dark brown to black colour after approximately 18,000 to 25,000 miles.
• For higher-performance models, like the S55 AMG Kompressor or CL 65 AMG, the fluid can degrade more rapidly, potentially showing signs of browning after as little as 6,000 miles and becoming dark brown by 12,000 miles.
• A general recommendation, therefore, is to change the ABC fluid every 15,000 to 30,000 miles or roughly every 2 to 3 years, whichever comes first.
• Additionally, due to its hygroscopic nature, even if mileage is low, the fluid should be replaced at a maximum of 5 years to prevent internal corrosion.

Ignoring these intervals can lead to the premature failure of expensive components. A 2003 W220 S55 AMG driven approximately 250,000 miles with fluid changes every 18,000 miles reportedly had all original suspension components intact, a testament to the importance of regular maintenance.

Checking Your ABC Fluid Quality

You can perform a simple visual inspection of your ABC fluid:

1. Locate the ABC fluid reservoir, typically found on the passenger side of the engine bay.
2. The reservoir cap usually has the ABC filter attached to it. Remove the cap and carefully extract the dipstick.
3. Wipe a small amount of fluid from the dipstick onto a clean, lint-free white towel.
4. Observe the colour:
• Green: Indicates clean, good condition fluid.
• Light Brown: The fluid is in fair condition but nearing the end of its service life.
• Dark Brown or Black: The fluid is severely degraded and must be replaced immediately to prevent damage. If it's black and smells burnt, you're likely already causing damage.

Some owners also opt for an aftermarket magnetic pre-filter that can be installed in the return line. This clear-cased filter can trap metallic debris, providing a visual indicator of wear and protecting the system from circulating metal shavings.

The Fluid Replacement Process

Replacing the ABC fluid is a multi-step process that requires careful attention. While a full system flush and clean is ideal, a partial fluid replacement can be done by the DIY enthusiast.

What You'll Need:

• ABC filter (new style, 3 micron, e.g., part # 0031846101)
• 13mm to 13mm hose connector
• 2-3 meters of 13mm clear hose
• Bucket or fluid catcher
• Approximately 8-12 litres of Pentosin CHF 11S (or approved equivalent)
• Clamps for hoses
• Clean funnel (optional)
• Clean oil pump/extractor (optional)
• An assistant

Steps for a Partial Flush:

1. Prepare the System: Ensure the engine has been run to warm the fluid. Driving for about 30-45 minutes, cycling the suspension up and down periodically, is recommended.
2. Access the Reservoir: Locate the ABC reservoir cap. Remove the old filter.
3. Disconnect Return Line: Unclamp and remove the return hose from the reservoir cap.
4. Connect New Hose: Attach the 13mm hose connector to the end of the return hose, securing it with a clamp. Connect the clear plastic hose to the other end of the connector and clamp it. Run this hose into your fluid catcher bucket.
5. Prepare New Fluid: Have your new Pentosinöl ready.
6. Begin the Flush: Start the engine. Your assistant should be ready to monitor the fluid level in the reservoir. As the engine runs, fluid will be pumped out through the clear hose into the bucket. Simultaneously, you or your assistant must continuously top up the reservoir with fresh fluid through the reservoir opening. Crucially, never let the reservoir run dry, as this will immediately destroy the hydraulic pump.
7. Cycle the Suspension: While flushing, have your assistant periodically raise and lower the suspension using the interior controls. This helps to circulate the new fluid throughout the system and flush out the old fluid from all components.
8. Monitor Fluid Colour: Continue the process, topping up the reservoir and cycling the suspension, until the fluid exiting into the bucket is clean and green. This will likely require 5 litres or more of new fluid.
9. Stop and Refill: Once satisfied with the fluid colour, turn off the engine.

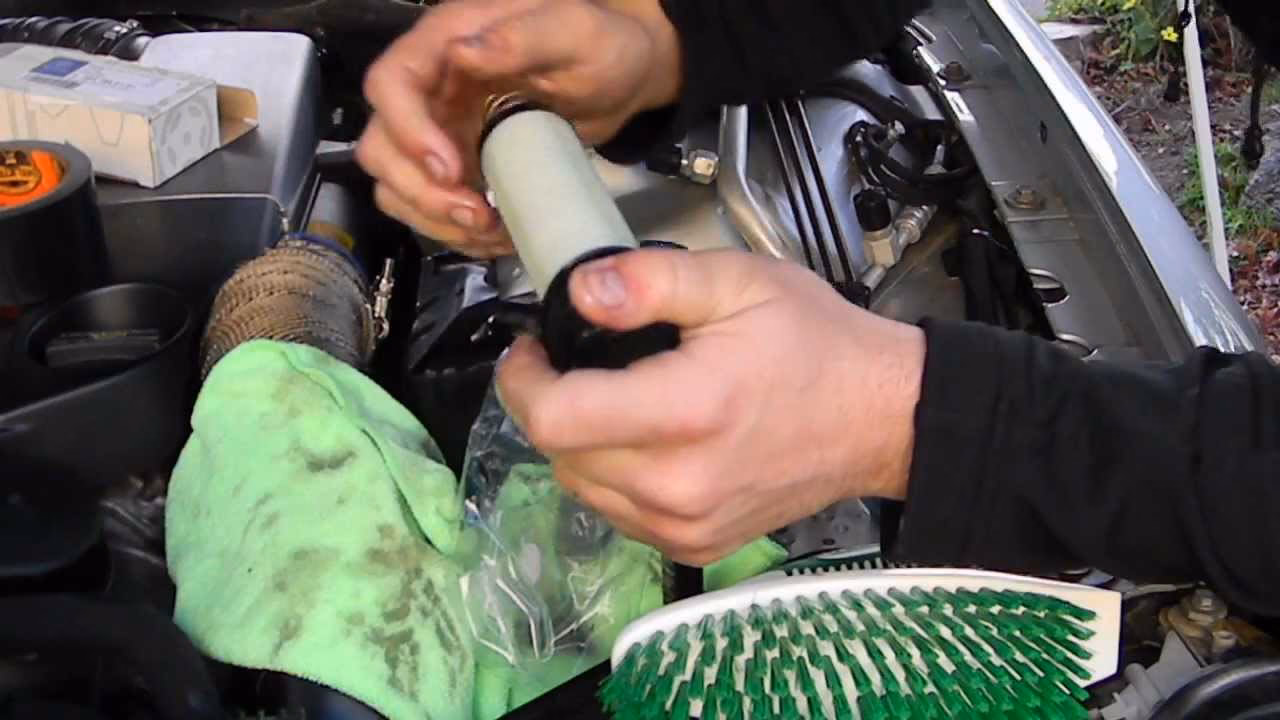

10. Replace Filter: Install the new ABC micro filter into the reservoir cap, ensuring the spring and seal are correctly positioned.
11. Reconnect and Top Up: Reattach the original return hose to the reservoir cap and secure it with the clamp. Top up the reservoir to the correct level.
12. Check Fluid Level: Use the dipstick to check the fluid level. There are markings for 'engine off' (Aus) and 'engine on' (Auf). Ensure the level is correct according to the dipstick's instructions (usually the lower mark when the engine is running).
13. Final Bleed: Cycle the suspension up and down several times to bleed any air from the system. If you have access to diagnostic tools like SDS, perform a 'Rodeo' function.
14. Final Check: Recheck the fluid level after the system has settled and again after a short drive.

Important Considerations:

• Full System Flush: The method described is a partial flush. For the absolute best results, a complete system flush involving draining the accumulators and struts, followed by a professional cleaning and refilling, is recommended. This ensures all old, contaminated fluid is removed.
• Fluid Choice: Always use Pentosin CHF 11S or a fluid specifically approved by Mercedes-Benz for ABC systems. Using the wrong fluid can cause immediate and severe damage. Febi-Bilstein is a known supplier of MB-approved fluids at a more accessible price point.
• Hygiene: Keep all tools, containers, and the work area meticulously clean. Any contamination introduced into the system can be detrimental.

Consequences of Neglect

Failing to maintain the ABC fluid can lead to a cascade of problems:

• Pump Failure: Dirty fluid obstructs micro-sieves within the pump, reducing pressure and lubrication. This leads to bearing wear, noise, overheating, and eventual pump failure. The pump is designed to operate at 200 bar; reduced pressure (e.g., below 160 bar) can trigger a white "ABC defective" warning.
• Strut and Valve Body Damage: Abrasive fluid wears down seals and internal components in the struts and valve units, leading to leaks and operational faults.
• System-Wide Contamination: If a major component like the pump fails, metal debris is distributed throughout the system. Mercedes-Benz often recommends replacing all ABC components in such cases, as even a single metal chip can destroy a new pump. A complete, manual disassembly and cleaning of the entire system is the only guaranteed way to remove all contaminants after a catastrophic failure.
• "Limp Home" Mode: If pump pressure drops critically low (below 100 bar), the system will display a red "ABC defective" warning and engage a failsafe mode, severely limiting the vehicle's handling. Driving in this state is strongly discouraged and will likely cause further damage.

FAQ

Q1: Can I use a generic hydraulic fluid?
A: Absolutely not. The ABC system requires a specific type of fluid (Pentosin CHF 11S or MB-approved equivalent). Using the wrong fluid will cause immediate and severe damage to the pump, seals, and other components.

Q2: My ABC fluid looks okay, do I still need to change it?
A: Yes. Fluid can degrade chemically and absorb moisture even if it appears clean. Regular replacement based on mileage or time (whichever comes first) is crucial for preventative maintenance.

Q3: Is the Febi fluid as good as the dealer fluid?
A: Febi-Bilstein is a reputable manufacturer that supplies fluids approved by Mercedes-Benz. If the Febi fluid is specifically listed as approved for your vehicle's ABC system, it should be a suitable and often more cost-effective alternative to the dealer-branded fluid, which is frequently a rebranded product from a major supplier.

Q4: What does the red "ABC defective" warning mean?
A: This warning indicates a critical failure within the ABC system, most commonly a significant drop in hydraulic pressure, often due to pump failure or a major leak. The vehicle should be stopped immediately and towed to a qualified workshop. Driving with this warning can cause extensive and very costly damage.

Q5: How important is the ABC filter?
A: The ABC filter is vital for removing contaminants from the fluid. The newer 3-micron filters are much finer than older ones. It should be replaced during fluid changes to help maintain fluid cleanliness and protect the system.

In conclusion, the ABC suspension is a remarkable piece of engineering, but it demands respect and regular maintenance. By understanding the importance of fluid quality and adhering to a consistent replacement schedule, you can ensure your Mercedes-Benz continues to offer its signature ride comfort and handling for many miles to come, avoiding the potentially devastating costs associated with neglecting this critical system.
