When discussing the BMW R1100S, it's impossible to do so without immediately focusing on its distinctive engine. This isn't just any motorcycle powerplant; it's the very heart of what makes the R1100S such a unique and enduring machine. A hallmark of BMW Motorrad engineering, the R1100S engine represents a significant evolution of their legendary boxer-twin layout, blending traditional design with modern technology to deliver a truly engaging riding experience. But what exactly is an R1100S engine, and what makes it so special?
The BMW R1100S engine is an 1,085 cc (66.2 cu in) air/oil-cooled, four-stroke, flat-twin (or 'boxer') engine. It was a key component of BMW's 'Oilhead' generation, a term used to distinguish it from the earlier 'Airhead' models that relied solely on air cooling. This particular engine, specifically designed for the R1100S sport-tourer produced between 1998 and 2005, delivered a robust 98 horsepower (73 kW) at 7,500 rpm and 97 Nm (72 lb-ft) of torque at 6,500 rpm. Its defining characteristic is the horizontally opposed cylinders, which protrude prominently from either side of the motorcycle, giving it an unmistakable profile and contributing significantly to its unique handling dynamics and low centre of gravity.
The Core: Boxer Configuration and Oilhead Technology
The boxer engine configuration is synonymous with BMW motorcycles, and the R1100S iteration brought it firmly into the modern era. In this design, the pistons move horizontally, opposing each other, which inherently balances primary vibrations. This results in a remarkably smooth power delivery, especially noticeable at cruising speeds, though riders will feel a characteristic 'rocking' motion when blipping the throttle at a standstill. This is part of the charm and character of these machines.
The 'Oilhead' designation is crucial. While still predominantly air-cooled, these engines incorporate an oil cooler and strategically routed oil passages to cool critical areas like the cylinder heads and pistons, which are subjected to the highest thermal loads. This hybrid cooling system allowed for higher compression ratios and greater power output compared to the older 'Airhead' designs, while retaining the simplicity and robustness associated with air-cooled engines. It's a clever compromise that provides efficient cooling without the added complexity and weight of a full liquid-cooling system, contributing to the engine's longevity and relatively straightforward maintenance.
Advanced Features and Performance Characteristics
Beyond its unique cooling and layout, the R1100S engine integrated several advanced features for its time. It utilised BMW's Motronic engine management system, a sophisticated electronic fuel injection and ignition control unit. This system precisely managed fuel delivery and spark timing, optimising performance, fuel efficiency, and emissions. The Motronic system allowed the engine to adapt to varying conditions, ensuring smooth running across the rev range and improved cold starting.
Power delivery from the R1100S engine is characterised by a strong, linear surge of torque from low RPMs, building progressively through the mid-range. While 98 horsepower might not sound astronomical by today's superbike standards, the way it's delivered makes the R1100S a highly effective and enjoyable road bike. It's not about outright top-end rush but rather usable power that makes overtakes effortless and long-distance cruising comfortable. The shaft drive, another BMW hallmark, transmits power smoothly to the rear wheel, eliminating chain maintenance and contributing to the bike's refined feel.
The engine's inherent design also influenced the motorcycle's acclaimed chassis. The R1100S famously employed BMW's Telelever front suspension and Paralever rear suspension systems. The Telelever, with its unique A-arm design, separates braking and steering forces, virtually eliminating dive under braking. This allows the rider to brake harder and later into corners, maintaining composure. The Paralever system, on the other hand, counters the shaft-drive reaction forces, preventing the rear end from 'lifting' or 'squatting' under acceleration or deceleration, ensuring consistent handling. These suspension systems work in harmony with the engine's low centre of gravity to provide a stable, predictable, and confidence-inspiring ride.
Maintenance and Reliability Considerations

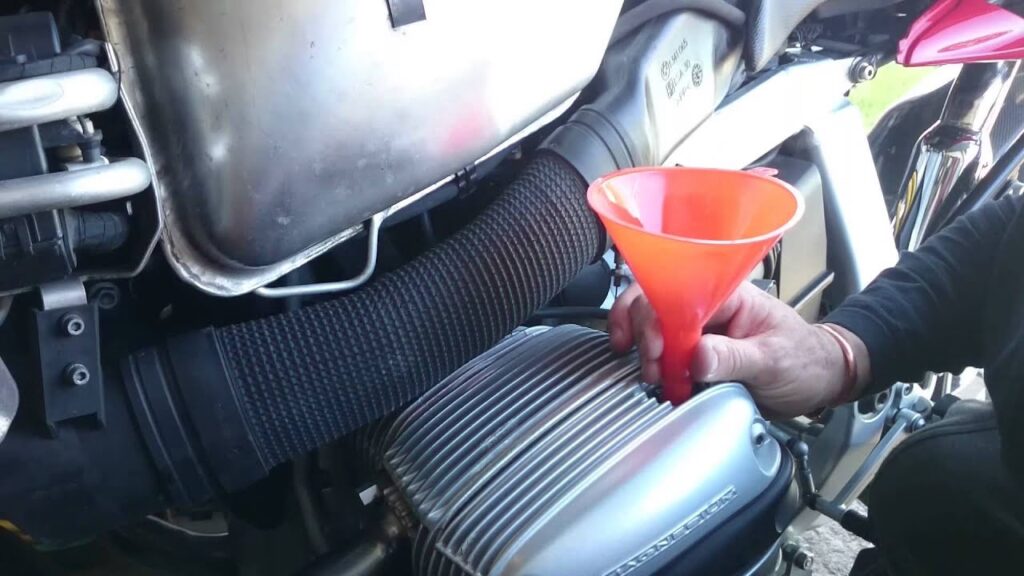

Like any sophisticated piece of machinery, the R1100S engine requires diligent maintenance to ensure its longevity and performance. Its design, however, makes many routine tasks surprisingly accessible for the home mechanic. Valve adjustments, for instance, are relatively straightforward due to the exposed cylinder heads, and regular oil changes are simple. The engine's robust construction generally means it's capable of high mileages if properly cared for.
However, no engine is entirely without its quirks. Common areas of attention for the R1100S engine and its associated systems include potential issues with the Hall sensor (which provides crankshaft position information), which can lead to intermittent starting problems or stalling. The final drive unit, while generally robust, can occasionally develop leaks or wear if not serviced correctly. Some owners have also reported wear to the clutch splines over very high mileages, though this is less common. Despite these minor points, the R1100S engine is widely regarded as a reliable and durable Oilhead powerplant that, with consistent maintenance, will provide many years and miles of enjoyable riding.
Comparison with Contemporary Engines
To truly appreciate the R1100S engine, it's helpful to compare it with other engines prevalent in the sport-touring segment during its production years. This highlights its unique position and design philosophy.
| Feature | BMW R1100S Engine (Boxer) | Typical Japanese Inline-Four (e.g., Honda VFR800) | Typical Italian L-Twin (e.g., Ducati ST2) |
|---|---|---|---|
| Configuration | Flat-Twin (Boxer) | Inline-Four | L-Twin (90° V-Twin) |
| Cooling | Air/Oil-Cooled | Liquid-Cooled | Liquid-Cooled |
| Power Delivery | Strong low-mid range torque, linear | Smooth, rev-happy, strong top-end | Punchy, characterful, strong mid-range |
| Vibrations | Characteristic rocking motion, well-balanced primary | Very smooth, high-frequency buzz at high RPM | Distinctive thrum, can be buzzy at certain RPMs |
| Maintenance Access | Good for valve adjustments, basic tasks | Often requires fairing removal, more complex | Can be challenging due to compact design |
| Drivetrain | Shaft Drive | Chain Drive | Chain Drive |
| Sound | Deep, throaty rumble | Smooth, high-pitched whine/howl | Loud, characteristic V-twin bark |
As the table illustrates, the R1100S engine stands apart. Its air/oil-cooled boxer design offers a unique blend of character, accessible torque, and relative simplicity compared to the liquid-cooled, higher-revving inline-fours or the more temperamental, though equally characterful, L-twins. This distinctiveness is a major part of its appeal.
Frequently Asked Questions About the R1100S Engine
- Is the BMW R1100S engine reliable?
- Yes, generally it is considered a very reliable engine. With regular maintenance, including oil changes and valve adjustments, many R1100S engines have covered well over 100,000 miles without major issues. Like any engine, neglect will lead to problems, but the fundamental design is robust.
- What kind of oil does an R1100S engine use?
- BMW typically recommends a high-quality 20W-50 motorcycle oil for the R1100S engine, especially one suitable for air/oil-cooled engines. Always check your owner's manual for the precise specifications and viscosity grades recommended by the manufacturer.
- Is it expensive to maintain an R1100S engine?
- Maintenance costs can be reasonable if you perform some tasks yourself. Routine servicing like oil changes and valve adjustments are relatively easy for a competent DIY mechanic. Parts availability is generally good, though some specific BMW components can be pricier than aftermarket alternatives for other brands. Specialist labour costs for complex repairs can add up.
- What are the common issues with the R1100S engine?
- While reliable, some known issues include potential Hall sensor failure (leading to misfires or no-starts), occasional final drive fluid leaks, and in rare cases, wear on the clutch splines. These are not universal, and many bikes run flawlessly for years. Regular inspection and preventative maintenance help mitigate these risks.
- Is the R1100S engine good for long trips?
- Absolutely. The R1100S engine's strong torque, smooth power delivery, and excellent fuel efficiency (for its era) make it an ideal companion for long-distance touring. Its inherent balance and the bike's comfortable ergonomics contribute to reduced rider fatigue on extended journeys. The shaft drive is also a significant benefit for touring, eliminating chain maintenance on the road.
In conclusion, the BMW R1100S engine is far more than just a power unit; it's the very soul of the motorcycle. Its air/oil-cooled boxer configuration, combined with advanced features like Motronic fuel injection and integrated chassis technologies like Telelever and Paralever, creates a riding experience that is distinctly BMW. It offers a unique blend of character, reliable performance, and surprising ease of maintenance for its class. For those who appreciate robust engineering, a distinctive feel, and a motorcycle built for both spirited riding and long-distance comfort, the Oilhead R1100S engine remains a truly compelling and enduring piece of motorcycling history.
