VAG KKL Cable & Windows XP: A User's Guide

For many automotive enthusiasts and DIY mechanics, the VAG KKL USB interface cable has been a gateway to understanding and maintaining their Volkswagen, Audi, Skoda, and Seat vehicles. A common question that often arises, especially with older but still perfectly functional operating systems, is whether this essential diagnostic tool plays nicely with Windows XP. This article aims to thoroughly explore the compatibility of the VAG KKL cable with Windows XP, delving into the software it works with, the installation process, and what to do if you encounter any snags. We'll also touch upon its broader capabilities and why it remains a relevant tool for many.

Understanding the VAG KKL Cable

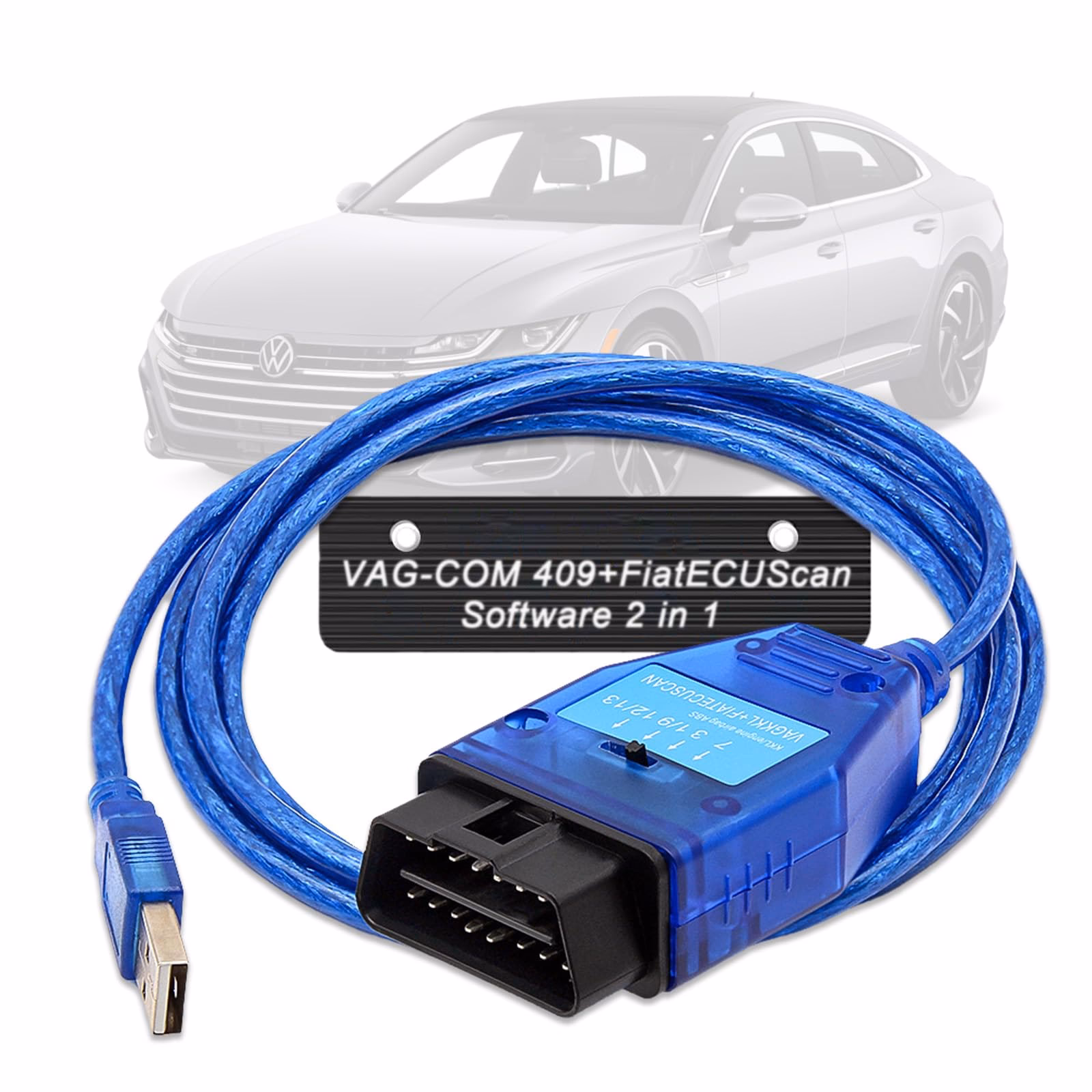

The VAG KKL USB interface cable acts as a bridge between your car's onboard diagnostic (OBD) port and your computer. It allows diagnostic software to communicate with your vehicle's various control modules, enabling you to read and clear fault codes, view live sensor data, and perform other diagnostic functions. This specific type of cable is particularly well-suited for the VAG group of vehicles, covering a wide range of models from the mid-1990s up to the early 2000s, and even some later models depending on their diagnostic protocols. The 'KKL' designation refers to the K and L lines used in the OBD-II standard for communication.

VCDS-Lite: The Software Companion

The VAG KKL cable is most commonly associated with the VCDS-Lite software, a powerful yet accessible diagnostic tool developed by Ross-Tech LLC. VCDS-Lite is a shareware version of the more comprehensive VCDS software, offering a robust set of features for free, with an option to upgrade for advanced functionality. It's designed to work with the KKL interface and supports a wide array of diagnostic tasks:

• Reading and Clearing Fault Codes: This is perhaps the most crucial function. You can identify issues within various systems like the engine management, ABS, airbags, and more, and then reset the warning lights once the problem is resolved.
• Viewing Live Data: Monitor real-time sensor readings from your engine, such as RPM, coolant temperature, throttle position, and oxygen sensor data. This is invaluable for diagnosing performance issues.
• Monitor Test Status: Check the status of various onboard diagnostic monitors.
• Basic Settings: Some versions of VCDS-Lite may allow for basic adjustments or resets.

It's important to note that the VAG KKL cable itself does not come with software. You will need to download VCDS-Lite separately. The product details often provide download instructions for the necessary drivers and recommend obtaining the VCDS-Lite software from the official Ross-Tech website.

VAG KKL Cable and Windows XP Compatibility

The direct answer to whether the VAG KKL cable works with Windows XP is yes, it generally does. As indicated in the product information, the cable is supplied with download instructions for drivers that are compatible with all versions of Windows from XP through to Windows 10. This broad compatibility is a significant advantage, allowing users with older operating systems to still leverage this diagnostic tool.

However, as one user review highlights, sometimes the drivers provided directly might not be the ones that work seamlessly with Windows XP. In such cases, the user found success by downloading a previous version of the driver (specifically version 2.08.24) directly from the FTDIChip.com website. FTDI is the manufacturer of the USB-to-serial chip commonly found in these KKL cables. This approach often resolves issues with driver recognition and COM port creation.

Driver Installation on Windows XP

Installing the drivers correctly is paramount for the VAG KKL cable to function on Windows XP. Here's a general outline of the process:

1. Download the Drivers: Obtain the latest drivers from the manufacturer's website (as suggested, FTDIChip.com might be a good source if the provided ones don't work) or the seller's recommended download link.
2. Install the Drivers: Run the driver setup executable. Follow the on-screen prompts. You may need to agree to terms and conditions and select an installation directory.
3. Connect the Cable: Once the driver installation is complete, connect the VAG KKL USB cable to your computer's USB port.
4. Hardware Detection: Windows XP should detect the new hardware. It might prompt you to install the drivers automatically. If you've already installed them, it should recognize the device.
5. COM Port Assignment: The driver installation should create a virtual COM port. You can check this in the Device Manager under 'Ports (COM & LPT)'. Note the assigned COM port number, as you'll need this in VCDS-Lite.
6. Restart Your PC: It's often recommended to restart your computer after driver installation to ensure all changes are applied.

Troubleshooting Common Issues on XP

While generally compatible, you might encounter a few hurdles when using the VAG KKL cable with Windows XP:

• Driver Not Found: If Windows XP doesn't recognize the device, the drivers might not have installed correctly. Try reinstalling them, perhaps using the alternative FTDI driver version. Ensure you're not using a generic USB hub that might interfere.
• Incorrect COM Port: VCDS-Lite needs to be configured with the correct COM port. If the detected COM port (e.g., COM1, COM2) is not the one assigned to the KKL cable in Device Manager, you'll need to change it within VCDS-Lite's options. Sometimes, older systems might default to COM1, which can cause conflicts.
• VCDS-Lite Configuration: Within VCDS-Lite, navigate to the 'Options' menu. Select the 'Interface' tab and choose 'VAG-COM' as the interface type. Then, select the correct COM port that was assigned to the KKL cable. You can also run the 'Test' button to verify the connection.
• 'Aftermarket Radio Problem': Some older vehicles might have issues with aftermarket radios that can interfere with OBD communication. The VAG KKL cable often features electronic protection against over-current conditions to mitigate this.
• Software Version Mismatch: Ensure you are using a compatible version of VCDS-Lite. While the cable is generally compatible with VCDS-Lite, very old or very new versions of the software might have slight compatibility quirks. Version 409.1 is often cited as a reliable version for older vehicles and interfaces.

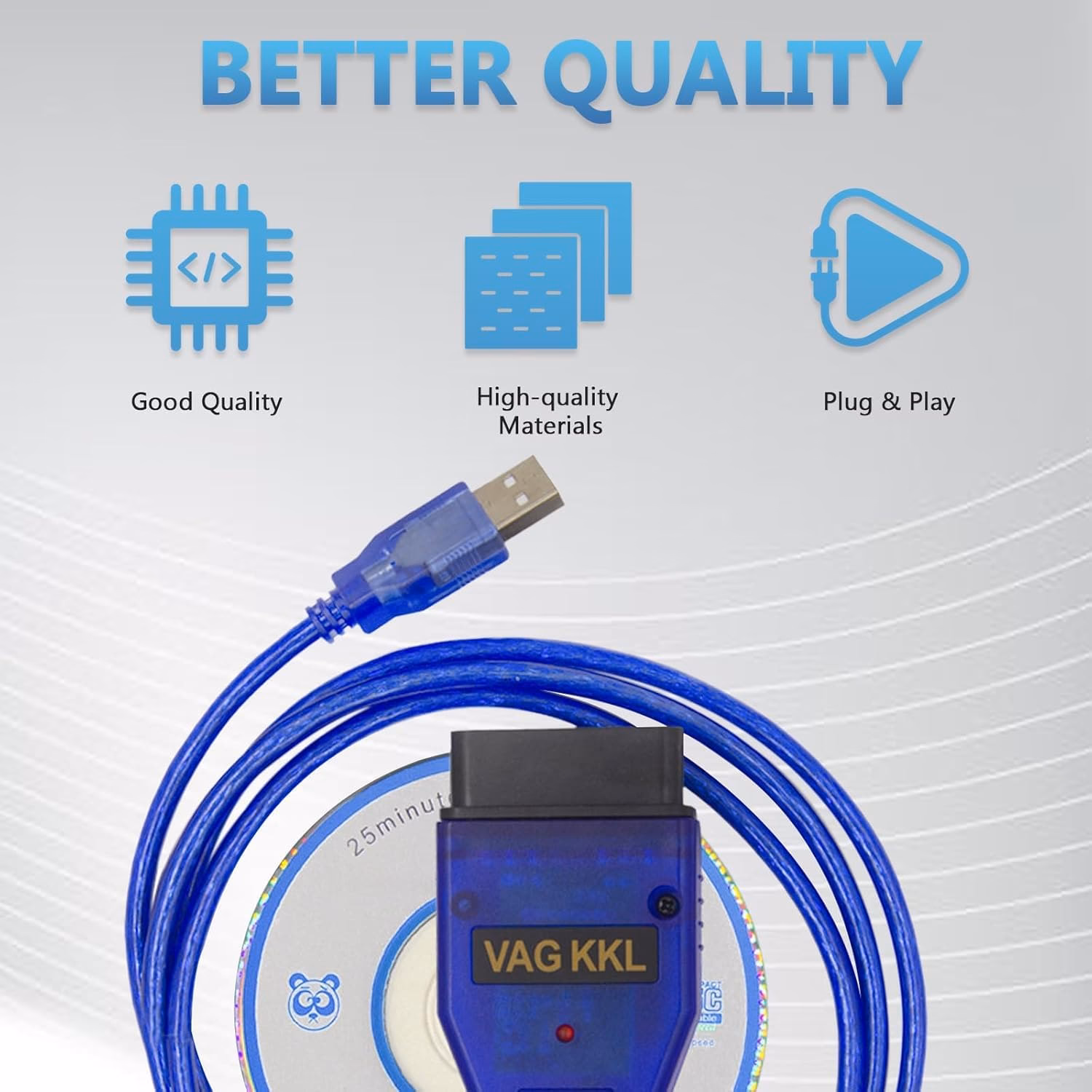

Vehicle Compatibility with VCDS-Lite 409.1

The VCDS-Lite 409.1 software, often bundled or recommended with the VAG KKL cable, is typically compatible with:

• Most 1995-2003 VW cars with the 16-pin diagnostic socket.
• Most 1996-2003 Audi cars with the 16-pin diagnostic socket.
• Most Skoda and Seat models up to 2003 with the 16-pin diagnostic socket.

The cable also features automatic support for both single and dual K-lines, which is important for certain models like the Audi A4 (B6/8E chassis) and Audi A6 (2002+). This means you don't need to manually switch anything; the cable handles it automatically.

Beyond VCDS-Lite: Other Compatible Software

While VCDS-Lite is the primary software, the VAG KKL cable, being an 'opto-isolator' interface, is also known to be compatible with other diagnostic programs. Although support and help for these are not typically provided by the cable manufacturer, they include:

• Subaru ECU Explorer
• MultiECUScan
• AlfaDiag

This versatility means the cable can potentially be used for diagnostics on other vehicle makes as well, though its primary design and support are for the VAG group.

Why Choose the VAG KKL Cable for Windows XP?

In an era of increasingly complex vehicle electronics and cloud-based diagnostics, sticking with an older operating system like Windows XP might seem unusual. However, there are reasons:

• Resource Efficiency: Windows XP is lightweight and can run smoothly on older hardware, which might be all that's available or desired for a dedicated diagnostic machine.
• Cost-Effectiveness: The VAG KKL cable is a budget-friendly option for accessing essential diagnostic functions, especially when paired with the free VCDS-Lite software. This avoids the cost of more modern, proprietary diagnostic systems.
• Specific Needs: For older vehicles (pre-2004 models), the diagnostic protocols used might be better supported by older software versions like VCDS-Lite 409.1, making a Windows XP setup a practical choice.
• Simplicity: For basic fault code reading and clearing, the combination offers a straightforward and understandable workflow.

Comparison Table: VCDS-Lite Shareware vs. Full Version

To help you decide if upgrading from VCDS-Lite is worthwhile, here's a general comparison:

Frequently Asked Questions

Q1: Can I use the VAG KKL cable with Windows 7 or Windows 10?

A: Yes, the drivers provided for the VAG KKL cable are generally compatible with Windows 7, 8, and 10. You might need to ensure you download the correct drivers and potentially run VCDS-Lite in compatibility mode for older versions of Windows if issues arise.

Q2: Which specific car models are most compatible with this cable and VCDS-Lite 409.1?

A: The cable and software are best suited for VAG group vehicles (VW, Audi, Seat, Skoda) manufactured roughly between 1995 and 2003. Newer models often use different communication protocols (like CAN bus) that might not be fully supported by this older KKL interface and VCDS-Lite 409.1.

Q3: Do I need to buy VCDS-Lite?

A: No, VCDS-Lite is a shareware version, meaning you can download and use its core features for free. Upgrading to the full VCDS software is optional and unlocks more advanced diagnostic capabilities for a fee.

Q4: What if the cable doesn't get recognized by Windows XP?

A: This usually points to a driver issue. Try downloading drivers directly from FTDIChip.com (look for the VCP drivers, version 2.08.24 or similar for XP). Also, ensure you connect the cable before launching VCDS-Lite and that the correct COM port is selected in the software's options.

Q5: Is this cable compatible with OBD-II scanners that work on other car brands?

A: While the cable uses the OBD-II connector and standard protocols, it is specifically designed and optimized for the VAG group's proprietary implementation of these protocols. It may not work reliably, or at all, with diagnostic software for other car manufacturers.

Conclusion

The VAG KKL USB interface cable, when paired with VCDS-Lite, remains a highly capable and cost-effective diagnostic tool, even for users running older operating systems like Windows XP. While driver installation might occasionally require a bit of troubleshooting, such as sourcing drivers from FTDI directly, the compatibility is well-established. For owners of older VAG vehicles, this combination provides an accessible route to maintaining their cars, diagnosing faults, and understanding vehicle performance, proving that even with an older OS, your diagnostic capabilities don't have to be compromised.
