MOT Safety Gear: What's Checked & Why It Matters

When it comes to your vehicle's annual MOT test, safety isn't just a buzzword; it's the bedrock upon which the entire inspection is built. While many aspects of your car are meticulously checked, the integrity and functionality of its safety equipment are paramount. These components are designed to protect you and your passengers in the event of an incident, and their condition can be the difference between a near miss and a serious injury. This comprehensive guide delves deep into the crucial safety features examined during an MOT, explaining what inspectors are looking for and why their findings are so important.

Understanding the specifics of these checks can help you pre-empt potential issues, ensuring your vehicle not only passes its MOT but, more importantly, keeps you safe on the road. We'll explore everything from the humble seat belt to the sophisticated supplementary restraint systems, providing clarity on common defects and the implications of a 'Major' or 'Dangerous' categorisation.

Seat Belt Security: Anchoring Your Safety

The seat belt is arguably the most fundamental safety device in your car, and its effectiveness hinges entirely on its secure attachment to the vehicle's structure. During an MOT, inspectors pay extremely close attention to the

anchorage points

for all fitted seat belts.

This inspection isn't limited to standard adult seat belts. It extends to any child seats and restraints that are securely attached to the vehicle using methods like Isofix, carabiners, ratchet straps, nuts, and bolts. Furthermore, belts or restraints designed for disabled persons, including those securing wheelchairs, also fall under this critical scrutiny. The 'prescribed area' for seat belt anchorage includes the seat mounting points where the seat belt is directly attached to the seat frame itself. This area is vital because it's where the force of an impact is transferred to the vehicle's chassis, and any weakness here could have catastrophic consequences.

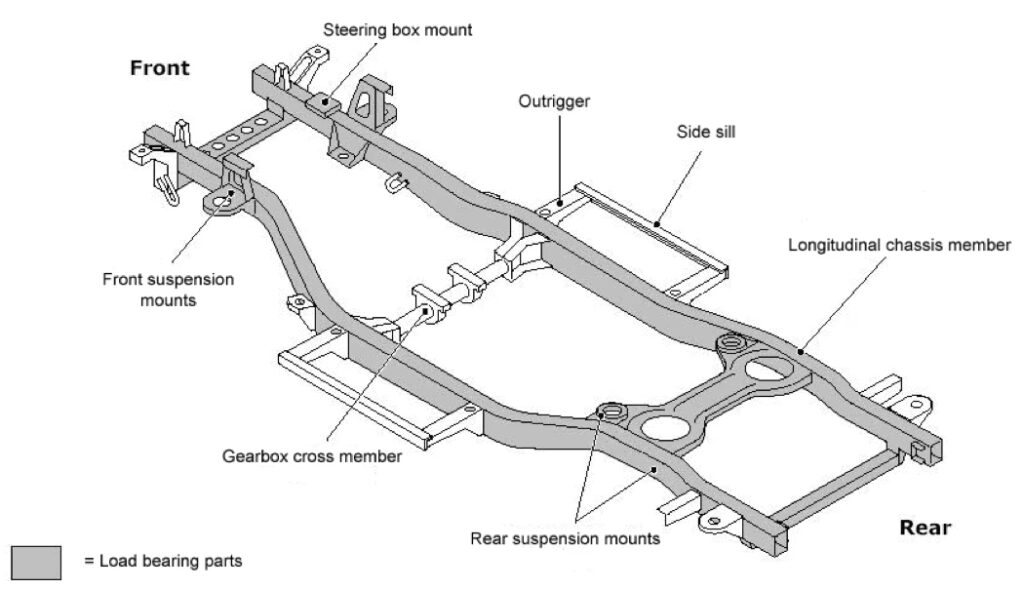

Inspectors will be looking for any significant reduction in the strength or continuity of the load-bearing structure within 30cm of these anchorage points. This could be due to severe corrosion, damage, or inadequate repairs. If the strength is significantly compromised or the anchorage is likely to become detached in a collision, it's classified as a 'Dangerous' defect. A loose seat belt anchorage, while not immediately life-threatening, is still a 'Major' defect, indicating a serious issue that needs immediate attention.

It's worth noting that testers are not required to inspect a belt fitted with no corresponding seat, nor a buckle or stalk that doesn't have a belt attached to it. The focus is squarely on functional, installed safety systems.

Seat Belt Fitment and Condition: The Lifeline Itself

Beyond the anchor points, the condition and proper fitment of the seat belt itself are paramount. Inspectors will visually check all visible parts of every fitted seat belt, as well as any child seat restraints. Again, a belt without a corresponding seat or a buckle/stalk without a belt are not part of this inspection.

Testers are expected to lift folded seats to inspect hidden parts of seat belts, though they are not required to use tools to do so. If seats cannot be lifted due to heavy or fragile items, the tester may refuse to conduct the MOT, as a thorough inspection is impossible. If a child seat is fitted and prevents access to the seat belt buckle, the tester will check as much of the belt as possible and issue an advisory note that the buckle could not be fully checked.

The functionality of the buckle is rigorously tested. The belt locking mechanism is fastened, and the tester attempts to pull the locked sections apart to ensure a secure connection. The release mechanism is also tested by pressing it while pulling on the belt, verifying it releases correctly when required. For retracting seat belts, the tester checks that excess webbing is properly wound into the retracting unit when the mechanism is fastened and the seat is unoccupied, typically with the seat base in its rearmost position. Some retracting belts might need manual assistance to retract, which is acceptable, and any temporary devices preventing retraction can be removed by the tester.

Seat belts are not universally required for all seats. For instance, seats used only when the vehicle is stationary (like a sofa in a motor caravan's living area), side-facing seats, or occasional seats that fold down when not in use, do not mandate a seat belt. This is an important distinction to avoid unnecessary concern.

Common Seat Belt Defects and Categories:

A 'Major' defect requires immediate repair and a re-test, while a 'Dangerous' defect means the vehicle cannot be driven until repaired due to immediate risk.

Seat Belt Load Limiters: Mitigating Impact Force

Modern seat belts are engineering marvels, and load limiters are a key component in their ability to protect occupants. Fitted as original equipment (excluding Class 3 vehicles), load limiters are designed to minimise seat belt-inflicted injuries during violent collisions. They work by allowing a controlled amount of belt webbing to be released under extreme force, reducing the peak load exerted on the occupant's chest and shoulders, thus preventing more severe injuries.

The simplest type is a fold sewn into the belt webbing, which pulls apart when a high amount of force is applied. More complex mechanical load limiters often use a torsion bar within the retractor mechanism, which are generally not easily visible or inspectable. During the MOT, the tester will check for any obviously missing load limiters or if a folded webbing type has already deployed. A deployed or missing load limiter is categorised as a 'Major' defect, as it compromises the belt's ability to safely manage collision forces.

Seat Belt Pre-tensioners: Taut Before Impact

Complementing load limiters, seat belt pre-tensioners are another sophisticated safety feature designed to enhance protection. Also fitted as original equipment (excluding Class 3 vehicles), pre-tensioners activate in certain violent collisions, typically just milliseconds before the full force of impact. Their purpose is to rapidly tighten the seat belt, removing any slack and pulling the occupant firmly back into the seat. This ensures that the occupant is in the optimal position for the airbag to deploy effectively and reduces the distance the body moves forward before the belt restrains it, thereby significantly reducing injury potential.

Once activated, a pre-tensioner often triggers a warning device, such as a light on the dashboard, indicating that it has deployed and needs replacement. During the MOT, the inspector will check if a seat belt pre-tensioner fitted as original equipment is obviously missing or has deployed. Either scenario constitutes a 'Major' defect, as the system's critical function in a collision is compromised.

Airbags: The Supplemental Shield

Airbags are a critical part of a vehicle's passive safety system, providing a cushioning effect in a collision. The MOT inspection for airbags covers all airbags fitted as original equipment, again excluding Class 3 vehicles. The check is primarily visual and system-based.

It's important to note that a passenger airbag that has been deliberately switched off (e.g., to allow for a rear-facing child seat in the front) is not considered a defect. This is a user-controlled feature. However, if an airbag fitted as original equipment is obviously missing, or if an airbag is obviously inoperative (e.g., a visible fault or a clear system malfunction), these are classified as 'Major' defects. An inoperative airbag means a crucial safety device will not deploy as intended, significantly increasing the risk of injury in an accident.

Supplementary Restraint System (SRS): The Brains Behind the Safety

The Supplementary Restraint System (SRS) is the overarching electronic control unit that manages and monitors airbags and pre-tensioners. Its proper functioning is vital for the entire system to work correctly. The primary indicator of an SRS issue is the Malfunction Indicator Lamp (MIL) on the dashboard.

During the MOT, the SRS MIL should only result in a failure if it is actively indicating a system malfunction. For example, if the light is continuously illuminated when it shouldn't be, signalling a fault within the SRS. Crucially, a lamp illuminated specifically to indicate that the passenger airbag is disabled (as mentioned above) is not considered a defect. This is a status indicator, not a malfunction.

Similarly, general warning messages on dashboard displays are not defects in their own right. However, they can assist the tester in determining that a warning lamp is illuminated because a genuine malfunction exists within the SRS, leading to a 'Major' defect if a malfunction is confirmed.

Frequently Asked Questions (FAQs)

Q1: What happens if my seat belt doesn't retract fully?
A1: If your seat belt does not fully retract, it will likely be a 'Major' defect during the MOT. This is because a slack belt cannot provide adequate restraint in a collision. It can also be a nuisance for daily use. This issue often points to a faulty retractor mechanism that needs to be replaced.

Q2: Can my car fail the MOT because of a child seat being present?
A2: No, the presence of a child seat itself will not cause an MOT failure. However, if the child seat prevents the tester from adequately inspecting the seat belt buckle, they will issue an advisory note indicating that the buckle could not be fully checked. This means while not a fail, it highlights a potential uninspected area.

Q3: Is a warning light for my airbag or SRS system an automatic MOT fail?
A3: Yes, generally, if the airbag or SRS Malfunction Indicator Lamp (MIL) is illuminated on your dashboard, indicating a fault, it will result in a 'Major' defect and an MOT failure. The exception is if the lamp is specifically indicating that the passenger airbag has been deliberately switched off, which is not a defect.

Q4: Do side-facing seats in my motorhome need seat belts for the MOT?
A4: No, side-facing seats do not typically require seat belts for the MOT. The regulations specify that seat belts are not needed for seats that are only used when the vehicle is stationary, such as a sofa in a motor caravan's living area, or for side-facing seats, or occasional seats that fold down when not in use.

Q5: What's the difference between a 'Major' and 'Dangerous' defect for safety equipment?
A5: A 'Major' defect means your vehicle has a significant fault that could affect its safety or environmental impact, and it requires repair before a re-test. A 'Dangerous' defect, however, means the vehicle poses an immediate and direct risk to road safety or causes serious harm to the environment. If your vehicle has a 'Dangerous' defect, you cannot drive it on public roads until the fault has been rectified. For seat belt anchorage, for example, a loose anchorage is 'Major', but one likely to detach in a collision is 'Dangerous'.

Ensuring your vehicle's safety equipment is in top condition is not just about passing the MOT; it's about protecting lives. Regular checks of your seat belts, ensuring they retract properly and are free from damage, and paying attention to any warning lights on your dashboard, can go a long way in maintaining your vehicle's safety integrity. If in doubt, always consult a qualified mechanic or an authorised MOT test centre.
