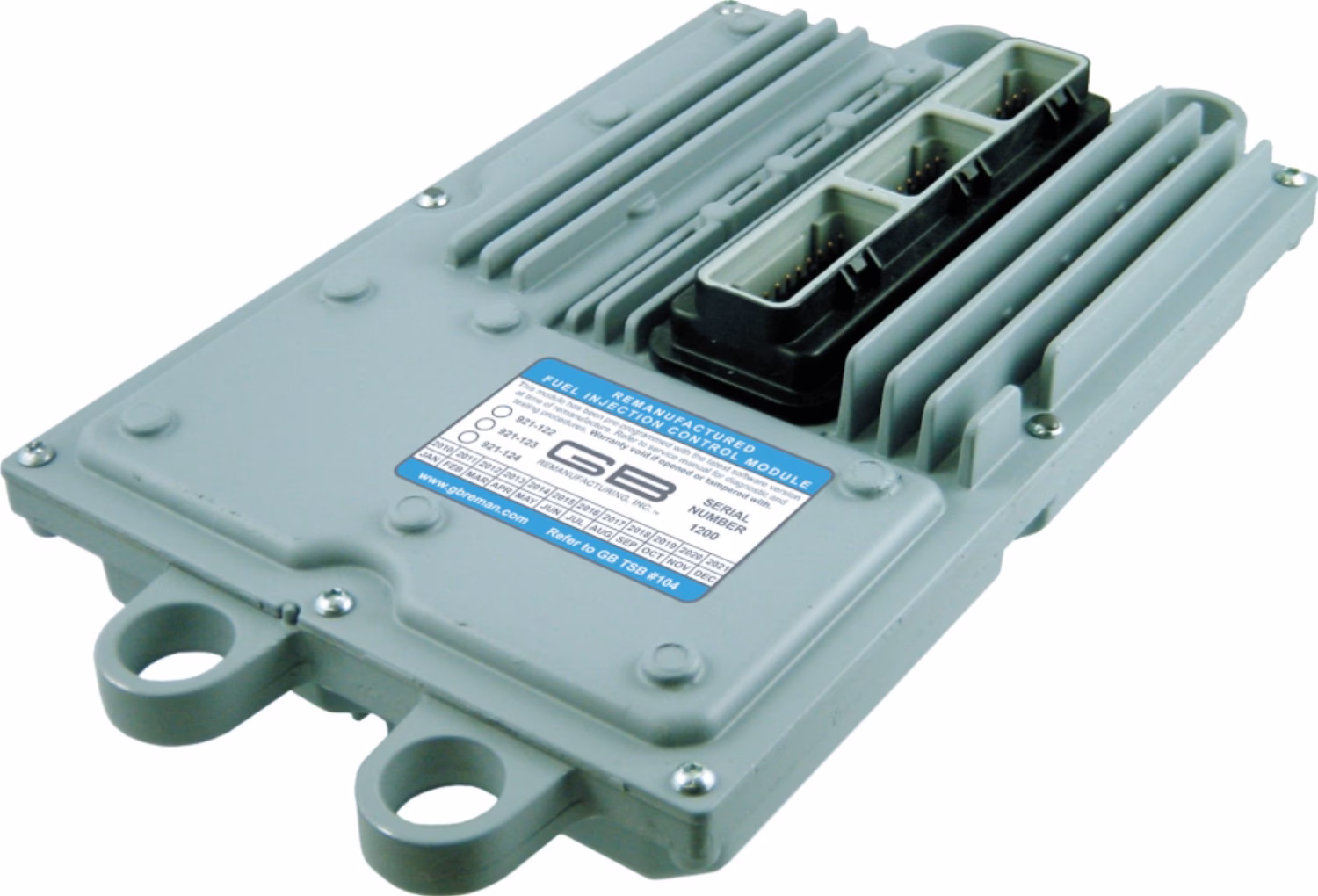

Ford 6.0L Power Stroke FICM: Your Diesel's Lifeline

When Ford introduced the 6.0-litre Power Stroke V8 in 2003, it was heralded as a more advanced successor to the venerable 7.3-litre. Both engines relied on electronic fuel injection, but while the earlier 7.3L engines (1994-2003) utilised an Injector Control Module (ICM), the new 6.0L engine introduced a sophisticated new component: the Fuel Injection Control Module, or FICM. This module quickly became a cornerstone of the 6.0L’s operation, responsible for a critical function that directly impacts engine performance and reliability. Understanding the FICM, its role, and common issues is paramount for any owner of a 6.0L Power Stroke.

The FICM's primary function is to step up the vehicle's standard 12-volt electrical supply to the 48 volts required to operate the fuel injectors. Without this precise and consistent high-voltage signal, the injectors cannot open and close correctly, leading to a myriad of engine problems. Every 6.0L Power Stroke engine built from 2003 until 2010, whether in an F-Super Duty truck, an Excursion, or an E-Series van, relies on a FICM. While Ford did use both four-pin and seven-pin FICM designs, the differences are primarily internal, and both types are generally interchangeable across the 6.0L Power Stroke platform. This critical component is also found in the Navistar VT365 and LCF 4.5L V6 diesel engines, highlighting its widespread application in heavy-duty diesel vehicles of that era.

The Critical Role of the FICM in Your 6.0L Power Stroke

The Fuel Injection Control Module is far more than just a simple relay; it's a sophisticated electronic component that acts as the brain for the 6.0L's injectors. It receives signals from the engine's main computer (PCM – Powertrain Control Module) and then rapidly converts the vehicle's 12-volt power to the necessary 48 volts for the injectors to fire. This high voltage is crucial for the rapid and precise opening and closing of the injectors, which is essential for proper fuel atomisation and combustion. Any deviation from this required voltage or any delay in the signal can severely impact engine performance.

Think of the FICM as an amplifier for your injectors. If the amplifier isn't getting enough power, or if it's faulty, the sound (or in this case, the fuel injection) will be weak, distorted, or non-existent. This direct relationship between the FICM and injector operation means that even minor degradation in the FICM's performance can lead to noticeable and frustrating issues for vehicle owners.

Common Symptoms of a Failing FICM

Unfortunately, the FICM has gained a reputation as a common source of problems for owners of the 6.0L Power Stroke. Its failure can manifest in a range of symptoms, from minor annoyances to complete engine immobilisation. Recognising these signs early can save you significant time and money.

• Hard Starting: One of the most prevalent complaints is difficulty starting the engine, especially when cold. The engine might crank for an extended period before finally catching, or it may not start at all. This is often due to the FICM not consistently delivering the full 48 volts to the injectors during startup.
• Poor Cold-Weather Starting: This is a specific subset of hard starting. In colder temperatures, the engine's starting demands are higher, and a weakened FICM struggles even more to provide the necessary voltage, making cold starts particularly problematic.
• Loss of Power: A failing FICM can lead to inconsistent fuel delivery, resulting in a noticeable reduction in engine power, especially under acceleration or when carrying a load. The engine may feel sluggish or unresponsive.
• Excessive Smoking: While some diesel smoke is normal, excessive black or white smoke from the exhaust can indicate incomplete combustion, which often stems from improper fuel injection due to a faulty FICM.
• Rough Idle: If your engine idles erratically, shudders, or feels like it's misfiring, a FICM that isn't providing consistent voltage to all injectors could be the culprit.
• No Start Condition: In severe cases, a completely failed FICM will prevent the engine from starting altogether, as the injectors simply won't receive the necessary power to operate.
• Check Engine Light: While not always the first symptom, a failing FICM can eventually trigger a 'Check Engine' light, often accompanied by specific diagnostic trouble codes (DTCs) related to injector voltage or circuit malfunction.

What Kills a FICM? Understanding the Root Causes

The primary reason for FICM failure often boils down to one critical factor: insufficient input voltage. The FICM is designed to step up 12 volts to 48 volts. However, if the input voltage from the vehicle's electrical system drops significantly below 12 volts, the FICM has to work much harder to achieve its target output. This excessive workload generates undue heat within the module's sensitive electronic components, leading to premature wear and eventual failure.

Ford and other experts consistently warn that weak batteries or alternators supplying insufficient voltage are major contributors to early FICM demise. It's a vicious cycle: weak batteries put more strain on the alternator, and if either is underperforming, the FICM suffers. Regular maintenance of your vehicle's charging system is therefore not just good practice for overall reliability, but specifically vital for the longevity of your FICM. Over time, even slight, consistent undervoltage can degrade the internal circuitry of the FICM, leading to the problems described above.

The OEM Replacement Dilemma and Superior Solutions

The obvious solution to a failing FICM might seem to be a direct replacement from Ford. However, standard OEM FICMs, while initially functional, have historically been prone to the exact same problems as the units they replace. This is largely because Ford never fundamentally altered the original design to address the inherent weaknesses that made them susceptible to voltage-related failures.

This is where aftermarket solutions come into play, offering significantly enhanced reliability and performance. Companies like Bullet Proof Diesel have made a business out of engineering robust fixes for the notorious issues of the 6.0L Power Stroke, and the FICM is no exception. They offer several innovative approaches to not only replace a failing FICM but to upgrade it, ensuring greater longevity and improved engine operation.

Upgrade Option 1: The Replacement FICM Power Supply

For a more cost-effective repair, one popular solution involves replacing only the FICM's power supply board. This component plugs directly into the original control board. The significant advantage of this method is that it preserves any FICM flash updates that may have been installed by a dealer during previous service visits. These flashes contain crucial software calibrations for your engine's specific characteristics. If the entire FICM unit is replaced, it typically requires flashing with the latest updates, which adds an extra step and cost to the process. A power supply replacement offers a robust fix without losing existing calibrations.

Upgrade Option 2: Complete Replacement FICMs (4-Phase vs. 6-Phase)

If a full FICM replacement is necessary, upgraded units offer substantial improvements over the factory design. For instance, enhanced four-phase units are available that provide a more robust power supply than the original OEM four-phase design, even while maintaining a similar architecture.

However, for the ultimate in reliability and performance, a six-phase power supply unit is often recommended. This design incorporates two additional and redundant circuits, which effectively spread the electrical workload across more components. This redundancy significantly enhances reliability, as the module can continue to function effectively even if one circuit experiences a minor issue. It's a fundamental improvement in design that directly addresses the heat and voltage stress issues common in OEM units.

Furthermore, some advanced six-phase versions offer user-selectable voltage settings, allowing the output to be increased from the standard 48 volts to either 53 or 58 volts. The theory behind higher voltage output is improved starting, particularly in cold weather, and potentially enhanced engine performance due to more efficient injector operation. While 58 volts can offer noticeable improvements, there have been reports of the Engine Control Unit (ECU) occasionally logging 'soft codes' for FICM over-voltage at this setting. Many owners find that setting the FICM to 53 volts strikes an optimal balance, providing significant benefits in starting and performance without triggering any diagnostic codes.

Installation and Post-Installation Considerations

While the actual installation process of a FICM or its power supply can vary, it generally involves accessing the module, disconnecting wiring, and replacing the unit. It is a task that can be undertaken by a competent DIY mechanic, but ensuring all connections are secure and the vehicle's battery system is in top condition afterwards is paramount. After any FICM replacement, it is good practice to clear any old fault codes and ensure the engine starts and runs smoothly. Monitoring voltage levels at the FICM, especially during cold starts, can provide valuable insight into its operation and the health of your charging system.

Comparative Overview: OEM vs. Upgraded FICM

To help illustrate the benefits of an upgraded FICM, consider the following comparison:

Preventative Maintenance for FICM Longevity

Understanding what kills a FICM is the first step; taking proactive measures is the next. Proper maintenance of your vehicle's electrical system is the best defence against premature FICM failure:

• Regular Battery Checks: Ensure your batteries are healthy, fully charged, and capable of holding a strong charge, especially in cold weather. Weak batteries are the number one enemy of the FICM.
• Alternator Health: Have your alternator tested regularly to ensure it is consistently supplying adequate voltage (typically 13.5-14.5 volts) to the electrical system. An underperforming alternator will starve the FICM of necessary input voltage.
• Clean Connections: Ensure all battery terminals, ground straps, and alternator connections are clean, tight, and free of corrosion. Poor connections can lead to voltage drops.
• Monitor Voltage: Consider installing a digital voltage gauge or using a diagnostic tool to monitor your vehicle's charging system voltage, particularly during starting and under load. This can provide early warnings of potential issues.

Frequently Asked Questions About the Ford 6.0L FICM

Here are some common questions vehicle owners have about their Ford 6.0L FICM:

Q: What does FICM stand for?
A: FICM stands for Fuel Injection Control Module.

Q: Can I drive with a failing FICM?
A: While you might be able to limp along with a weak FICM, it's highly unadvisable. A failing FICM can cause rough running, loss of power, and eventually lead to a complete no-start condition, potentially leaving you stranded. Continued operation with an undervolting FICM can also put undue stress on your expensive fuel injectors.

Q: How do I know if my FICM is failing?
A: Common symptoms include hard starting (especially when cold), extended crank times, rough idle, excessive smoke, reduced engine power, and sometimes a check engine light. A diagnostic scan can often reveal specific FICM-related fault codes.

Q: Is a higher voltage FICM better?
A: For many, yes. Increasing the voltage output (e.g., to 53V or 58V) can significantly improve cold starting and overall engine performance. However, going too high (like 58V) can sometimes trigger soft codes in the ECU, even if there's no actual problem. 53V is often considered a safe and effective upgrade.

Q: Will upgrading my FICM void my warranty?
A: If your vehicle is still under its factory warranty, installing aftermarket parts like an upgraded FICM could potentially affect your warranty coverage related to the engine or fuel system. It's always best to check with your dealership or warranty provider beforehand. For most older 6.0L vehicles, factory warranty is no longer a concern.

Q: What is the typical lifespan of an OEM FICM?
A: The lifespan of an OEM FICM can vary wildly, from just a few years to over a decade. However, they are known failure points, particularly when the vehicle's charging system is not in perfect condition. Upgraded FICMs are designed to offer a significantly longer and more reliable service life.

Q: Can a bad FICM damage other engine components?
A: While a failing FICM primarily affects injector operation, consistent under-fuelling or inconsistent firing can put additional strain on other engine components over time, potentially leading to carbon build-up or accelerated wear on parts not receiving optimal lubrication or cooling due to poor combustion.

Conclusion

The Fuel Injection Control Module is an indispensable component of the Ford 6.0L Power Stroke diesel engine. While the original design had its vulnerabilities, leading to widespread issues, the aftermarket has responded with robust and effective upgrade solutions. By understanding the FICM's critical role, recognising the symptoms of its failure, and implementing preventative maintenance, particularly concerning your vehicle's electrical system, you can significantly enhance the reliability and longevity of your 6.0L Power Stroke. Investing in a high-quality, upgraded FICM is often one of the most impactful improvements you can make to ensure your diesel continues to run smoothly and reliably for years to come.
