Unlock Your Engine's Potential: Power Commander Tuning

Modern motorcycles and ATVs are sophisticated machines, finely tuned for a balance of performance, emissions, and fuel efficiency. However, for enthusiasts seeking to push the boundaries of what their vehicle can achieve, the stock tuning often leaves untapped potential. This is where aftermarket tuning devices, such as the Dynojet Power Commander, come into play. These innovative modules offer a way to precisely adjust your engine's fuel and ignition parameters, unlocking significant gains in power, throttle response, and overall performance.

Understanding the Dynojet Power Commander Ecosystem

Dynojet is a well-respected name in the performance tuning industry, and their Power Commander series has been a go-to solution for riders and racers for decades. The core principle behind these devices is to intercept and modify the signals sent to and from your vehicle's stock Engine Control Unit (ECU). This allows for customised fuel mapping and, in some cases, ignition timing adjustments, without the need for a full ECU reflash, making it a more accessible and reversible tuning option.

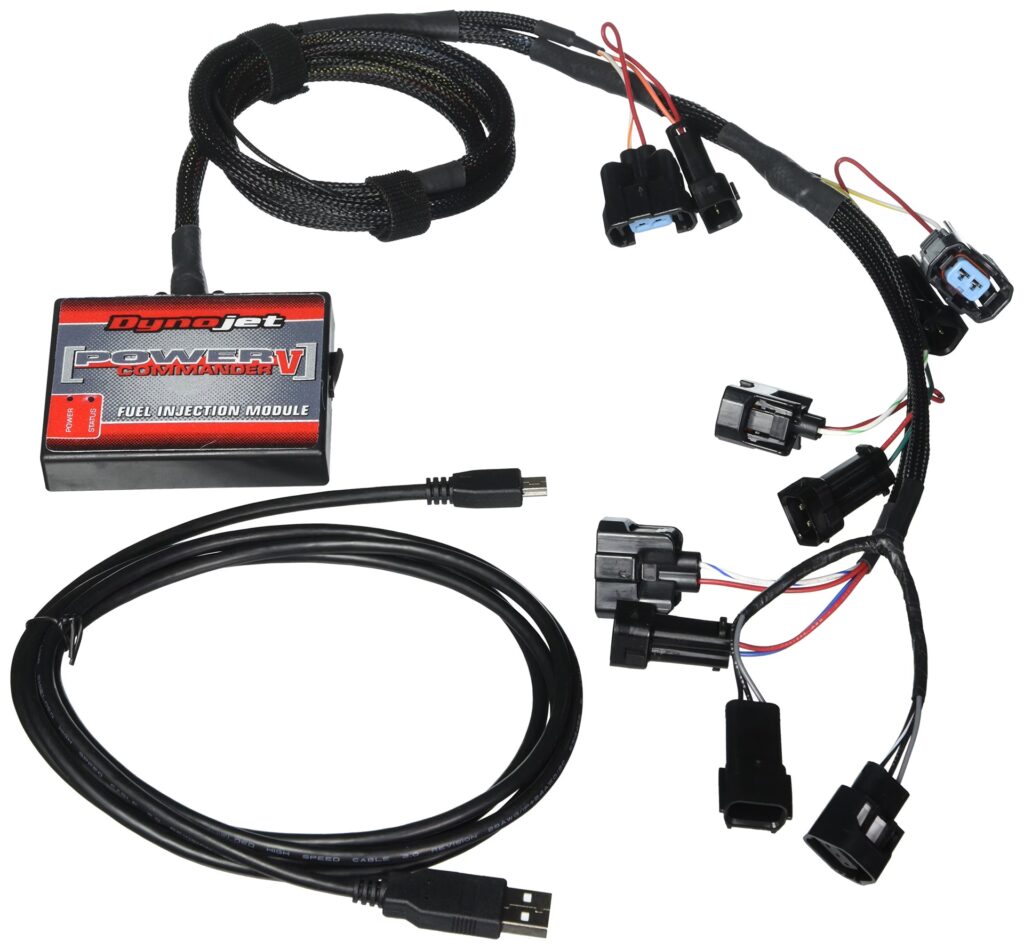

The Power Commander V (PCV): A Versatile Performance Tool

The Power Commander V is a highly popular and versatile fuel injection module. It provides the ability to either load a pre-programmed map tailored to your specific vehicle and exhaust system, or to create a completely custom map. This custom mapping is often done on a dynamometer (dyno) by a professional tuner, allowing for precise adjustments to the air-fuel ratio across the entire RPM range and throttle position. Some PCV models also offer the capability to adjust ignition timing, further optimising performance and power delivery.

Key features of the Power Commander V often include:

• Easy Installation: Designed as a plug-and-play unit, connecting directly to your vehicle's existing wiring harness.
• Fuel Control: Adjusts fuel delivery in 250 increments across the RPM and throttle position range.
• Ignition Timing Control (on select models): Allows for advancements or retardations of spark timing.
• Expansion Port: Accepts accessory modules like the Ignition Module, Quick Shifter, and LCD Expansion Module.
• Map Switching: Enables the rider to switch between multiple fuel maps on the fly.

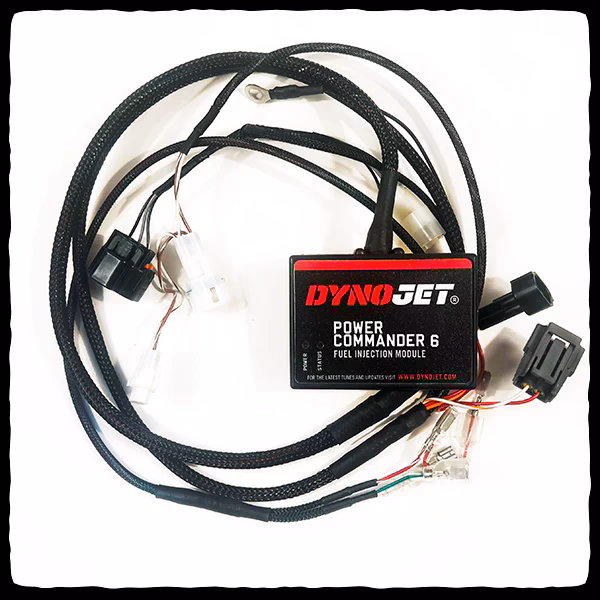

Power Commander 6 (PC6): Evolution in Simplicity and Performance

Building on the legacy of its predecessors, the Dynojet Power Commander 6 represents an evolution in user experience and tuning capability. The PC6 is engineered to simplify the process of choosing and tuning maps, making it more accessible for the average user while retaining the core benefits that Dynojet is known for. It continues to offer the ability to optimize the air/fuel ratio without directly altering the stock ECU, providing a user-friendly way to boost your ride's speed, power, and overall performance.

The Power Commander 6 aims to provide:

• Enhanced User Interface: A more intuitive software and hardware design for easier map management.
• Improved Connectivity: Potentially faster data transfer and easier integration with accessories.
• Continued Reliability: The same trusted performance and durability that users expect from Dynojet.

It's important to note that specific models, like the PC6-17076, may have specific California Air Resources Board (CARB) Executive Orders (EO), which dictate their legality for use on pollution-controlled motor vehicles in California. These EOs often have specific model year ranges, and using a device outside of these approved ranges in California can lead to legal issues.

The Ignition Module: Fine-Tuning Spark Advance

While fuel mapping is crucial for performance, ignition timing plays an equally vital role. The Dynojet Ignition Module complements the fuel controller by allowing you to optimise your vehicle's spark advance curve. By changing the timing in each individual cylinder, you can achieve a more precise combustion event, leading to increased power and improved throttle response. This module is typically easy to install and offers another layer of performance enhancement.

Power Commander Fuel Controller: The Essential Tuning Solution

For those who need fundamental fuel tuning capabilities without the advanced features of the PCV or PC6, Dynojet also offers a simpler Power Commander Fuel Controller. This option provides basic fuel tuning in a plug-and-play package. It often comes with preloaded maps that can be modified on the fly, without the need for a computer, making it a convenient choice for riders who want a straightforward performance upgrade.

How Dynojet Power Commanders Work: The Technology Behind the Power

Dynojet Power Commanders operate by intercepting the stock fuel injector and ignition coil signals. They then modify these signals according to the programmed fuel map and ignition map, sending the altered signals to the injectors and coils. This allows for precise control over the air-fuel ratio and ignition timing at any given engine speed and throttle position. The beauty of this system is that it doesn't permanently alter the stock ECU. Once the Power Commander is removed, the vehicle reverts to its original factory settings, which is a significant advantage for warranty purposes or if you decide to sell the vehicle.

The process generally involves:

1. Installation: Connecting the Power Commander harness to the fuel injectors, throttle position sensor, and other relevant engine sensors.
2. Map Selection: Loading a pre-made map from Dynojet's extensive library or a custom map created by a tuner.
3. Tuning (Optional but Recommended): Using a dynamometer to fine-tune the air-fuel ratio for optimal performance and safety. This ensures the engine is running efficiently and not too lean, which could cause damage.
4. Monitoring: Some Power Commander models allow for real-time monitoring of engine data and AFR, which is crucial for understanding how the tuning is affecting the engine.

Benefits of Power Commander Tuning

Upgrading your vehicle with a Dynojet Power Commander can yield a variety of benefits:

• Increased Horsepower and Torque: By optimising the air-fuel ratio and ignition timing, engines can produce significantly more power.
• Improved Throttle Response: A well-tuned engine will feel more responsive to throttle inputs, making the ride more engaging.
• Smoother Power Delivery: Eliminates flat spots or dips in the powerband, providing a more linear and enjoyable power curve.
• Better Fuel Efficiency (in some cases): While performance is the primary goal, precise fuel control can sometimes lead to improved fuel economy, especially under light throttle conditions.
• Adaptability to Modifications: Essential for vehicles with aftermarket exhaust systems, air filters, or engine modifications, ensuring they run correctly and safely.
• Reversibility: The ability to easily remove the device and return the vehicle to stock settings.

Cost Considerations

The cost of a Dynojet Power Commander can vary depending on the specific model and its features. For example, a Power Commander V might cost around $359.95, while other models or packages could be priced differently. It's important to factor in the potential cost of professional dyno tuning if you're aiming for maximum performance and safety, as this is an additional expense.

Frequently Asked Questions

Q1: Do I need a Power Commander if I only have an aftermarket exhaust?

A1: While not always strictly necessary for just an exhaust, an aftermarket exhaust often changes the airflow characteristics of your engine. A Power Commander allows you to tune the fuel delivery to match the new exhaust, ensuring optimal performance and preventing the engine from running too lean, which can cause damage.

Q2: Can I tune my bike without a dyno?

A2: Yes, you can use pre-programmed maps provided by Dynojet or the map manufacturer. However, for the best and safest results, especially with significant engine modifications, dyno tuning by a qualified technician is highly recommended.

Q3: Will a Power Commander void my warranty?

A3: Installing a Power Commander does not permanently alter your ECU. If you need to service your vehicle under warranty, you can typically remove the Power Commander, and the vehicle will revert to its stock settings. However, it's always wise to check your manufacturer's specific warranty policy regarding aftermarket tuning devices.

Q4: Is the Power Commander legal for street use?

A4: This depends on local regulations and the specific device. As mentioned, in California, devices must have a CARB EO for use on street-legal, pollution-controlled vehicles. For other regions, it's essential to check your local emissions laws. Many Power Commanders are intended for closed-course racing or off-road use only.

Q5: How easy is it to switch between maps on a Power Commander?

A5: Models like the PCV often support map switching, either via a handlebar-mounted switch or an LCD screen. This allows you to select different performance maps based on your riding conditions (e.g., different fuel grades, different riding modes).

In conclusion, Dynojet Power Commanders offer a powerful and flexible solution for enthusiasts looking to unlock the true potential of their vehicles. Whether you choose the versatile PCV, the user-friendly PC6, an Ignition Module, or a basic Fuel Controller, these devices provide the tools to achieve enhanced performance, better throttle response, and a more exhilarating riding experience.
