Porsche 911 Clutch Replacement Guide

Owning a Porsche 911 is a dream for many, and while these vehicles are renowned for their engineering prowess, even the most robust machines require maintenance. One of the more involved, yet achievable, maintenance tasks for the home mechanic is the replacement of the clutch. This guide is designed to walk you through the process, offering insights and detailed steps to help you tackle this job on your late model Carrera, and by extension, other 911 models with similar transmissions. While it might seem daunting, with the right preparation and a methodical approach, you can save a significant amount of money and gain a deeper understanding of your beloved 911. It's important to note that this article draws parallels with the 914 clutch replacement procedure, borrowing some imagery for illustrative purposes. However, the core instructions are tailored for the 911, specifically focusing on the 901 and 915 transmissions, with relevant considerations for the later G50 gearbox found in models like the late model Carrera.

Gathering Your Arsenal: Parts and Tools

Before you even think about getting your hands dirty, the first crucial step is to assemble everything you'll need. Cutting corners here is a false economy; a comprehensive approach will ensure a successful and lasting repair. Pelican Parts, a well-respected supplier for Porsche components, offers complete clutch replacement kits that include all the essential items. Additionally, they provide supplemental packages with parts that, while not always necessary, are prudent to have on hand given the age and nature of these cars. It's far better to have a spare seal or bolt and not need it, than to be halfway through the job and discover you're missing a critical component. Essential Parts for a 915 Transmission (1972-86) Clutch Replacement:* Pressure Plate * Clutch Disc (consider a spring-type over a rubber-centred one for durability) * Throw-out Bearing * Replacement Throw-out Fork & Bushings * Pilot Bearing (for the flywheel) * Resurfaced Flywheel (a good core is usually required) * New Flywheel Bolts * Clutch Cable * Flywheel Seal * Clutch Helper Spring * Transmission Fluid * 901 TO Bearing Guide Clips * 901 Retainer Clips * 901 Fork Arm Bushing Beyond the consumable parts, certain specialised tools are indispensable for this task: Specialised Tools Required:* Clutch Alignment Tool * Heavy Duty Torque Wrench * 911 Flywheel Bolt Removal Tool * Flywheel Lock Tool Having these tools readily available will not only make the job easier but also ensure that components are fitted correctly and to the manufacturer's specifications.

Understanding Your 911's Transmission

Porsche has employed different transmission types in the 911 lineage since 1965. This guide primarily covers the 901 and 915 transmissions. The 901, used from 1965 to 1971, initially featured a push-type flywheel, transitioning to a pull-type later. A pull-type system means the throw-out bearing actively pulls the pressure plate away from the flywheel to disengage the clutch. The 915 transmission, introduced in 1972 and used until 1986, also employs a pull-type pressure plate, similar in principle to the later G50 transmission found in models like the late model Carrera, C2, and C4. While the G50 has its own nuances, the fundamental steps for clutch replacement share significant overlap with the 915.

The Crucial First Step: Engine Removal

To access the clutch, the engine must be removed from the vehicle. This is a significant undertaking in itself, and detailed, step-by-step instructions can be found in dedicated technical articles on engine removal. It is generally not advisable to attempt a clutch replacement without first removing the engine, as it dramatically increases the difficulty and risk of damage.

Dismantling the Old Clutch Assembly

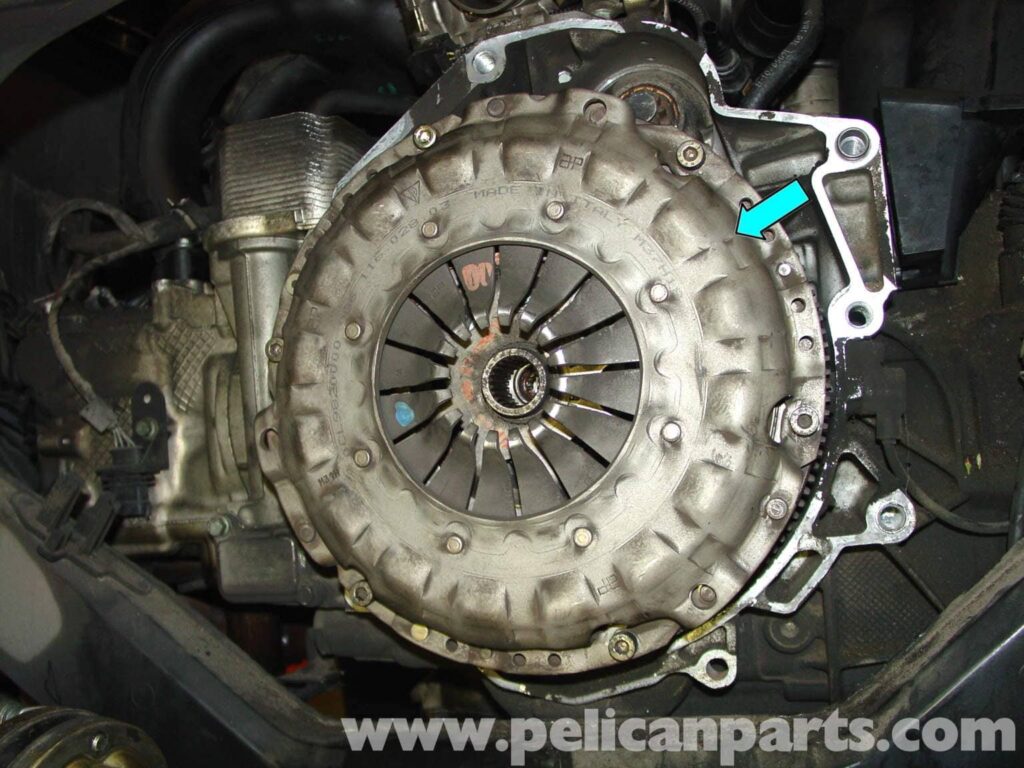

Once the engine is out and safely supported, you can begin the clutch replacement. The process involves carefully dismantling the existing clutch assembly. First, the pressure plate needs to be removed from the flywheel. You can achieve this without the flywheel spinning by using a breaker bar to brace against a stud on the engine case while loosening the pressure plate bolts. Once partially loosened, a flywheel lock tool becomes essential. This tool, often a metal plate with holes, secures the flywheel to the engine case, preventing it from turning. With the flywheel secured, proceed to remove the remaining pressure plate screws. If you intend to reuse the pressure plate (which is generally not recommended unless it's very new and you're addressing a different issue), loosen the bolts uniformly. After removing all screws, the pressure plate can be gently pried away from the flywheel using a screwdriver. The clutch disc should then come out easily. This is a good opportunity to use a vacuum cleaner to remove any accumulated clutch dust, being mindful of older clutch materials that may contain asbestos.

Addressing the Flywheel and Seals

With the pressure plate and clutch disc removed, the flywheel is exposed. Re-secure the flywheel lock tool, as you'll need to apply considerable force to remove the flywheel bolts. For 915 transmissions, you'll first remove the three bolts holding the pilot bearing. Removing the flywheel bolts themselves can be a challenging task. The inner bolts, in particular, require a special flywheel bolt removal tool due to their extremely tight torque settings. It's not uncommon for these bolts to resist even with the correct tool, and in some cases, they can strip, necessitating drilling and grinding them out – a highly undesirable outcome. Ensure the flywheel is securely locked and use a good quality breaker bar with the specialized tool. Using inferior tools risks breakage and the dreaded stripped bolt. Once the bolts are out, the flywheel should detach from the crankshaft. With the flywheel removed, you'll see the end of the crankshaft and the crankshaft seal. Inspect this area for any signs of oil leaks. If oil seeps out when the seal is touched, or if the area is heavily contaminated, it's a strong indicator that the seal needs replacement. Seals can degrade with age or even melt if a slipping clutch overheats the flywheel. It is highly recommended to replace the flywheel seal every time you perform a clutch job. The cost and effort of replacing a $10 seal are negligible compared to the cost and effort of removing the engine again for an oil leak. To remove the old seal, use a screwdriver and a small plate (like the flywheel lock) to gently pry it out, taking care not to scratch or damage the sealing surfaces on the crankshaft or the engine case. Clean the area thoroughly, ensuring any degreasing solvents used do not come into contact with the new seal once installed.

Installing New Components: Seals, Bearings, and Flywheel

Installing the new flywheel seal requires care. Position the new seal against the case and gently tap it into place using a rubber mallet or, if necessary, a regular hammer combined with a socket extension to ensure even pressure. Avoid metal-to-metal contact where possible to prevent damage. Next, install the pilot bearing. For 915 transmissions, this is straightforward; the bearing is attached using the same three bolts that held the old one. For the 901 transmission, the pilot bearing is pressed into the newly resurfaced flywheel. Tap it gently with a hammer, ensuring it goes in straight to avoid damaging the bearing. Now, it's time to refit the flywheel. Always use a new or, at the very least, a freshly resurfaced flywheel. A damaged or worn flywheel will significantly compromise clutch performance. On 915 transmissions, the starter ring gear is a separate component. Ensure you transfer the starter ring from the old flywheel to the new one before installation. A common oversight is forgetting to install the starter ring, leading to a frustrating situation later.

The New Clutch Assembly

With the flywheel securely bolted back in place (using new bolts torqued to specification), you can now install the new clutch disc and pressure plate. Use the clutch alignment tool to centre the clutch disc on the flywheel. This tool is crucial for ensuring the input shaft of the transmission can be easily aligned with the clutch splines during reassembly. Once the clutch disc is aligned, position the pressure plate over it and loosely thread in the pressure plate bolts. Tighten these bolts gradually and evenly in a star pattern to ensure the pressure plate seats correctly against the flywheel. Finally, torque these bolts to the manufacturer's specified values.

Reassembly and Final Checks

With the new clutch assembly in place, the process of reassembling the engine and transmission can begin. Refer back to your engine removal guide for the reverse procedure. Once the engine is reinstalled, reconnect all linkages, lines, and electrical connectors. Refill the transmission with the correct type and amount of transmission fluid. Before taking the car for a spirited drive, perform a thorough check of all work. Ensure there are no fluid leaks, and that all components are securely fastened.

Frequently Asked Questions:

• Can I replace the clutch on a late model Carrera myself? Yes, with the right tools, knowledge, and patience, a DIY clutch replacement on a late model Carrera (typically with a G50 transmission) is achievable, though it shares many principles with the 915 transmission procedure outlined here.
• How long does a clutch replacement take? For an experienced mechanic, it might take a day. For a home mechanic tackling it for the first time, expect it to take a full weekend or longer, especially considering the engine removal.
• What are the most common mistakes? Forgetting to replace the flywheel seal, not using a flywheel lock tool, overtightening or unevenly tightening pressure plate bolts, and damaging the pilot bearing or crankshaft seal during installation.
• Should I replace the flywheel? It's highly recommended to at least have the flywheel resurfaced. If it shows signs of significant wear, heat spots, or cracks, replacement is necessary for optimal clutch performance and longevity.
• Is the clutch cable important? Yes, the clutch cable (or hydraulic system on later models) is a critical part of the clutch system. It's often recommended to replace it during a clutch job, especially if it shows signs of wear or stretching, to ensure proper clutch operation. Replacing the clutch on your Porsche 911 is a rewarding experience that can save you considerable expense. By following these steps, preparing thoroughly, and using the correct tools, you can successfully complete this vital maintenance task and keep your iconic machine performing at its best.
