Perfecting Your Porsche 944: Alignment and Clutch Essentials

The Porsche 944, a true icon of the 1980s and 90s, remains a cherished classic for enthusiasts. Maintaining its superb handling characteristics and reliable operation is paramount to enjoying this rear-engined marvel. Two critical aspects of keeping a 944 in top form are its wheel alignment and the proper functioning of its clutch system. This guide delves into achieving optimal alignment settings and demystifies the workings of the 944's hydraulic clutch, providing you with the knowledge to keep your beloved Porsche performing at its best.

Understanding Porsche 944 Wheel Alignment

Wheel alignment, often referred to as tracking, is the adjustment of your vehicle's suspension components to ensure the wheels are positioned correctly relative to each other and the road surface. Proper alignment is crucial for several reasons:

• Tyre Wear: Incorrect alignment is a leading cause of premature and uneven tyre wear. This can significantly shorten the life of your tyres and lead to costly replacements.
• Handling and Stability: Correct alignment ensures your 944 tracks straight, maintains stability during cornering, and responds predictably to steering inputs.
• Fuel Efficiency: Misaligned wheels create unnecessary drag, forcing your engine to work harder and consuming more fuel.
• Driving Comfort: A properly aligned vehicle will feel more stable and predictable, enhancing the overall driving experience.

Recommended Alignment Settings for a Porsche 944

Achieving the perfect alignment for your 944 involves considering several factors, including how you typically drive and any modifications made to the suspension. The general consensus among 944 owners, as highlighted in enthusiast forums, suggests the following:

Nominal Driving Condition: A key principle for setting up your alignment is to mimic your car's usual driving weight. This means ensuring the car is loaded with the typical items you carry, including a driver of average weight (around 75kg or 165lbs) in the driver's seat, and approximately a half-tank of fuel. This approach sets the alignment in a 'nominal' or middle-ground condition, optimising it for the widest range of driving scenarios.

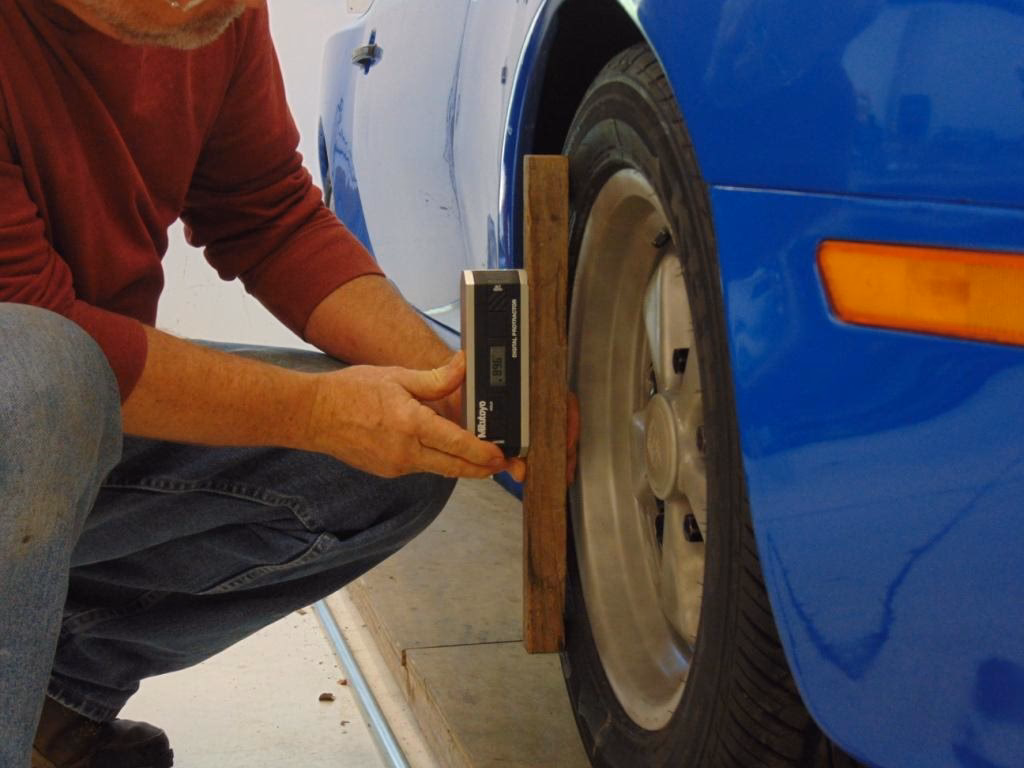

Front Camber: A slight negative camber is generally beneficial for the 944, improving cornering grip. A common recommendation is around -0.5 to -1.0 degrees.

Front Castor: Castor contributes to steering stability. A positive castor angle, typically between 5 to 7 degrees, is desirable.

Front Toe: For the front wheels, a slight toe-in is often recommended for stability. A setting of 0.05 to 0.10 degrees total toe-in is a good starting point.

Rear Camber: The rear suspension of the 944 is designed to provide stability. A slight negative camber, around -1.0 to -1.5 degrees, can aid in cornering grip without compromising straight-line stability.

Rear Toe: A small amount of rear toe-in, typically 0.10 to 0.20 degrees total, enhances straight-line stability, especially under acceleration.

Ride Height: It's crucial that the ride height is correct at all four corners. If the rear springs have settled or been replaced, ensure the car sits level. For a standard 944, the factory ride height specifications should be adhered to unless a specific performance setup is intended.

Tyre Pressures: Always ensure your tyre pressures are set to the manufacturer's recommendations before an alignment. This is a fundamental step that many overlook. The pressures should be set according to the load in the car, ideally reflecting the 'nominal' condition mentioned earlier.

Addressing Shimmy and Shake

It's important to distinguish between alignment issues and other common causes of shimmy and shake. While severe alignment problems can manifest as vibrations, they are more often related to:

• Wheel Balance: Unbalanced wheels are the most frequent culprit behind steering wheel vibrations, especially at higher speeds.
• Bent Wheels or Components: Damaged wheels, suspension arms, or driveshafts can induce wobbles.
• Worn Suspension Components: Worn ball joints, tie rod ends, or wheel bearings can lead to imprecise steering and vibrations.
• Tyre Issues: Besides uneven wear, manufacturing defects or damage to the tyre itself can cause shaking.
• Shock Absorbers/Struts: Worn shocks or struts can contribute to poor tyre contact with the road, exacerbating vibrations and leading to premature tyre wear.

If you experience shimmy or shake, it's wise to have your wheels balanced and inspected for damage before focusing solely on alignment. Significant tyre wear on the sides, even if the centre tread is even, can sometimes indicate underlying suspension geometry issues that may affect alignment.

Fuchs Wheels for Your Porsche 944

Fuchs wheels are synonymous with Porsche heritage and performance. Their distinctive design and lightweight construction make them a highly sought-after upgrade. Fortunately, Original Fuchs Wheels are indeed a perfect fitment for the Porsche 944. They are also compatible with a range of other Porsche models, including the 911, 964, 981, 987, 991, 993, 996, and 997. When purchasing Fuchs wheels, it's advisable to source them from an authorized dealer to ensure authenticity and correct fitment.

The Porsche 944 Hydraulic Clutch System

The Porsche 944 employs a hydraulic clutch system, a design that offers a smoother and more progressive engagement compared to older cable-operated systems. This system relies on brake fluid to transmit force from the clutch pedal to the clutch mechanism.

How it Works:

When you press the clutch pedal, the master cylinder, located in the engine bay, pressurises the brake fluid. This fluid travels through a hydraulic line (either metal or rubber) to the slave cylinder, which is mounted on the transmission. The slave cylinder then actuates a release fork, disengaging the clutch. This system requires less physical effort from the driver, making clutch operation more comfortable.

Common Issues and Symptoms:

While generally reliable, the hydraulic clutch system can develop issues over time:

• Spongy Pedal: This often indicates air in the hydraulic lines or a leak in the master or slave cylinder.
• Grinding Gears: If the clutch doesn't fully disengage, you might experience difficulty shifting or grinding noises.
• Long Pedal Travel: Similar to a spongy pedal, this can point to air or fluid loss.
• Hydraulic Leaks: Visible fluid leaks under the car, particularly near the transmission or firewall, are a clear sign of component failure.

Replacing the Clutch Master Cylinder:

Replacing the clutch master cylinder is a task that requires precision and patience. The process involves:

1. Accessing the Pedal Area: You'll need to work under the dashboard to disconnect the master cylinder pushrod from the clutch pedal arm using a spring clip.
2. Clearing the Engine Bay: Vacuum components and lines around the master cylinder need to be removed for access. Disconnecting electrical connectors and removing protective covers will also be necessary.
3. Disconnecting the Hydraulic Line: The clutch hose connecting to the master cylinder must be carefully disconnected.
4. Removing the Cylinder: Two 13mm nuts secure the master cylinder to the firewall. A universal joint and extension on your socket wrench will be invaluable here.
5. Transferring the Pushrod Assembly: The pushrod and its mounting block need to be transferred from the old cylinder to the new one, ensuring the same thread exposure for proper pedal engagement.
6. Installation: Position the new cylinder, reconnect the hydraulic line (ensuring it's properly sealed), and re-secure the mounting nuts. Reconnect the pushrod to the pedal arm.

Replacing the Clutch Slave Cylinder:

It's highly recommended to replace the slave cylinder concurrently with the master cylinder, as a failure in one often precedes or accompanies failure in the other. The process typically involves:

1. Accessing the Starter: The slave cylinder is located above the starter motor on the transmission housing. You'll need to jack up the car and disconnect the battery for safety.
2. Removing the Starter: Unbolt and remove the starter motor to gain access to the slave cylinder.
3. Disconnecting the Hydraulic Line: Use a flare nut wrench to disconnect the clutch hose from the slave cylinder.
4. Removing the Slave Cylinder: Two 13mm bolts secure the slave cylinder to the clutch housing.
5. Installing the New Cylinder: Ensure the piston rod of the new slave cylinder is correctly seated in the throwout arm. Compress the piston as needed to align the mounting bolts.
6. Replacing the Fluid Hose: It's also prudent to replace the rubber fluid hose connecting the master and slave cylinders, as these can degrade over time.

Bleeding the Hydraulic System:

After replacing components, the hydraulic system must be bled to remove any air. This can be done using a pressure bleeder or the traditional two-person method:

Pressure Bleeding: Attach a pressure bleeder to the master cylinder reservoir (do not exceed 1 bar/14psi). Open the bleeder screw on the slave cylinder, allowing fluid to flow until no air bubbles are present. Keep the reservoir topped up throughout the process.

Two-Person Method: One person operates the clutch pedal while the other opens and closes the slave cylinder bleeder screw. Ensure the reservoir remains full to prevent reintroducing air.

Frequently Asked Questions

Q1: What are the standard alignment specifications for a Porsche 944?
A1: While specific numbers can vary slightly by model year and individual preference, a good starting point for a nominal alignment is around -0.75 degrees of front camber, 6 degrees of castor, and 0.08 degrees of front toe-in. For the rear, aim for -1.25 degrees of camber and 0.15 degrees of rear toe-in. Always consider your typical driving load.

Q2: Can I adjust my own 944 alignment?
A2: While some minor adjustments might be possible with the right tools and knowledge, achieving a precise four-wheel alignment typically requires specialized equipment found in professional workshops. It's generally recommended to have a professional alignment performed.

Q3: How often should I check my Porsche 944's alignment?
A3: It's advisable to check your alignment annually, or whenever you notice uneven tyre wear, the car pulling to one side, or after any significant suspension work or impact.

Q4: What is the typical lifespan of a clutch master and slave cylinder?
A4: The lifespan can vary greatly depending on usage and maintenance. However, it's common for these components to require replacement between 80,000 to 150,000 miles, or if symptoms of failure appear.

Q5: Should I replace the clutch fluid regularly?
A5: Yes, it's good practice to flush and replace the clutch hydraulic fluid periodically, similar to brake fluid, to maintain system performance and prevent internal corrosion.

By understanding and maintaining these critical aspects of your Porsche 944, you can ensure it continues to deliver the exhilarating driving experience it was designed for. Regular attention to alignment and the health of your clutch system will pay dividends in handling, tyre life, and overall reliability.
