DIY: Ranger Parking Brake Pad Replacement

Few things are as frustrating, or indeed as potentially hazardous, as a parking brake that simply refuses to do its job. For owners of pre-2007 Polaris Ranger models, this is an all too common predicament. The Ranger's design, featuring a foot pedal-operated E-brake with a pull-handle release, lacks the electronic cutout found in many modern vehicles. This means it's surprisingly easy to inadvertently drive off with the parking brake engaged. Given the Ranger's robust engine and significant torque, this oversight quickly grinds down the brake pads, rendering the system ineffective and leaving your vehicle vulnerable on inclines. But fear not, this comprehensive guide will walk you through the process of restoring your Ranger's parking brake to full functionality, including a remarkably simple and budget-friendly DIY fix that could save you a considerable sum.

Understanding Your Ranger's Parking Brake System

Before diving into the repair, it's crucial to grasp how your Ranger's parking brake operates. Unlike the main hydraulic braking system, the parking brake on these models is a separate, cable-operated mechanical caliper system. It clamps onto a dedicated brake rotor mounted directly to the driveshaft. This mechanical nature is key to understanding why worn pads cause such an issue: it lacks the automatic self-adjustment capabilities of a hydraulic system. When the pads wear thin, the mechanical caliper simply cannot push them far enough to create sufficient friction against the rotor, regardless of how hard you press the pedal.

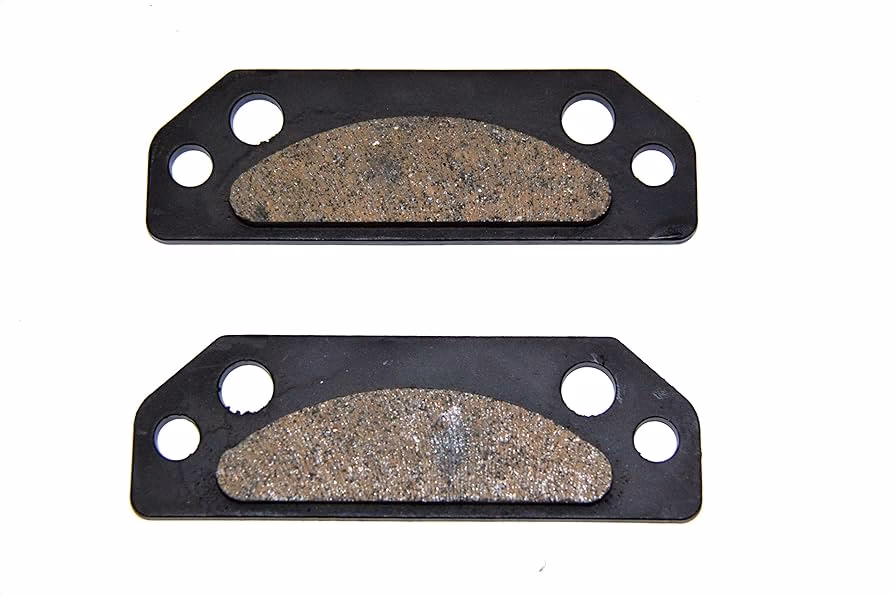

Polaris, recognising this common wear issue, offers replacement E-brake pads, often priced around £35-£45, or a more comprehensive kit including special shims for about £60-£75. These Polaris-supplied shims are designed to be stacked behind the pads as they wear, compensating for the lost material and allowing the caliper to effectively grip the rotor again. However, if your pads still possess a reasonable amount of material, you might not need to shell out for new pads or the full, expensive kit. This is where a clever, cost-effective alternative comes into play.

The Budget-Friendly DIY Shim Solution

Many Ranger owners discover their pads still have plenty of life left, yet the brake fails to hold. This is precisely when the DIY shim solution becomes invaluable. For a mere fraction of the cost of official Polaris parts, you can achieve the same effect using a common hardware store item: a 1-inch diameter washer with a 1/4-inch hole. These are typically available for pennies, and acquiring a couple of the thinnest ones provides you with flexibility to achieve the correct spacing. This simple addition behind your existing pads can provide just enough extra thickness to allow the mechanical caliper to regain its grip, saving you significant time and money.

Cost Comparison: Official Kit vs. DIY Fix

As you can see, the potential savings with the DIY approach are substantial, making it an attractive first step for many Ranger owners.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient:

• 14mm socket
• 14mm wrench
• Cotter key tool or pliers
• Clean rags or shop towels
• Brake cleaner (optional, but recommended for dirty areas)
• Automotive disc brake grease (small packet will suffice)
• For the DIY fix: One or two 1-inch diameter washers with 1/4-inch holes (thinnest available)
• For pad replacement: New Polaris E-brake pads or the full kit with shims (if your old pads are too worn)
• Wheel chocks
• Clean work surface (workbench, large tray)

Step-by-Step Guide to Parking Brake Pad Replacement and Adjustment

Step 1: Preparation and Initial Inspection

Safety is paramount. Begin by parking your Ranger on a flat, level surface. Engage the main brakes and place wheel chocks firmly around the wheels to prevent any accidental movement. Crucially, release the parking brake pedal. This ensures the caliper is in its open position. Now, pull the lever to open the tilt bed. Carefully locate the retaining clips and pins that secure the bed struts. Using appropriate pliers or a cotter key tool, gently remove these, ensuring they are placed in a safe spot. This allows the bed to tilt fully, providing unimpeded access to the parking brake assembly located near the driveshaft. A fully raised bed prevents accidental closure and provides ample working space. With the bed up, visually inspect your E-brake pads. If they appear to have a reasonable amount of material left, you can proceed with the DIY shim method. If they are severely worn, nearly gone, or completely missing, you will need to replace them with new pads (and potentially the Polaris shims).

Step 2: Cleaning the Caliper Area

Before disassembling anything, take a moment to clean the area around the parking brake caliper. Over time, dirt, dust, and debris can accumulate here, making disassembly difficult and increasing the risk of contamination. Use a brush, compressed air, or brake cleaner to thoroughly clean the caliper and surrounding components. A clean workspace not only makes the job easier but also prevents grit from entering critical brake components.

Step 3: Disconnecting the Parking Brake Cable

With the bed securely tilted upwards and the area clean, locate the cotter key that secures the pin attaching the parking brake cable to the caliper lever. Using your cotter key tool or a small pair of pliers, carefully remove this cotter key. Once removed, gently pull the pin out from the caliper lever. Ensure both the cotter key and the pin are placed immediately onto your clean work bench or in a designated container to prevent loss. This disconnects the cable, allowing the caliper to be removed freely.

Step 4: Removing the Caliper from the Frame Bracket

Next, you'll need to unbolt the caliper from its frame bracket. This typically involves two bolts. Use a short 14mm socket on one side to hold the bolt head and a 14mm wrench on the other side to loosen the corresponding nut. Once loosened, slide the bolts out just far enough to free the caliper from the frame bracket and the brake rotor. Carefully remove the complete caliper assembly and place it onto your clean, flat work surface. Take care not to let it hang by the brake line, although in this case, it's a cable, so there's no fluid line to worry about.

Step 5: Disassembling the Caliper Mounting Bolts

With the caliper now on your workbench, you'll need to remove the bolts that secure the mounting pins. These are often collared pins. Remove the nuts and washers from these mounting bolts/pins. It is absolutely critical to keep all these small parts – the nuts, washers, pins, and bolts – in their respective order. Lay them out neatly on your workbench in the sequence they were removed. This meticulous organisation will make the reassembly process significantly easier and prevent misplacement of components.

Step 6: Separating the Caliper Halves

Now, you'll separate the two halves of the caliper assembly. Using the same 14mm wrench and ratchet setup, locate and remove the two bolts that hold the caliper assembly together. As you loosen the second bolt, be prepared: the assembly is spring-loaded. Keep a firm hand on the caliper, squeezing the halves together, to prevent the internal springs from suddenly expanding and causing parts to fly off. With the pads facing upwards, carefully remove the nuts from these bolts, then gently lift off the first brake pad.

Step 7: Inspecting and Removing Remaining Components

Once the first pad is removed, take a moment to inspect both pads thoroughly. Our example showed pads barely thinner than new ones, yet they failed to hold the Ranger on even a slight incline – a clear sign that the issue was insufficient thickness, not necessarily worn-out material. If your pads are truly worn down to the metal or have very little material left, this is the point where you would definitely swap them for new ones. With the caliper assembly still oriented pads-up, carefully remove the springs, and then the second pad. Again, ensure everything is neatly set aside in the order it came apart. It is vital to keep the caliper facing up in this direction, as beneath the shims (if present) lie small ball bearings that you absolutely do not want to lose; they are essential for the caliper's proper function.

Step 8: Testing and Installing Your Shims/Washers

If you're opting for the DIY washer shim method, now is the time to test fit your washer or washers onto the central shaft of the caliper. The centre stud needs to protrude through the shim/washer just slightly to keep it securely in place. If your Ranger already has Polaris shims present, you might only need one additional washer to achieve the correct thickness. Experiment with one or two thin washers until you find the ideal fit that provides just enough extra material without making the assembly too tight. Remember, the goal is to compensate for wear, not to over-thicken the pad assembly.

Step 9: Greasing the Shims and Washers

Once you've determined the correct number of washers (or if you're reusing existing shims), it's time to apply automotive disc brake grease. This specific type of grease, often sold in small packets at automotive stores for a minimal cost, is designed to prevent brake squeal and facilitate smooth movement of components. Lightly coat both the pre-existing shims (if any) and any new washers you are adding with this grease. A thin, even layer is all that's required.

Step 10: Reassembling the Caliper Halves

With the greased washer (or shims) installed onto the central shaft, carefully set the first brake pad against it. Then, install the springs onto both shafts. Place the second pad against the springs. At this point, you'll need to apply pressure to the pad set, squeezing the caliper halves together, while you carefully install the washers and start the nuts onto the bolts by hand. Ensure the nuts are threaded correctly to avoid cross-threading. Once both nuts are started by hand, use your ratchet to securely tighten them. Do not overtighten, but ensure they are firm enough to hold the caliper assembly together without play.

Step 11: Preparing the Caliper Mounting Pins

Before remounting the caliper, use the disc brake grease again. Lightly coat the outer shafts of the caliper mounting pins. This lubrication will ensure smooth movement and proper seating when you reinstall the caliper onto the frame bracket. With the pins greased and installed into the caliper, slide the bolts most of the way through, so they are ready to align with the frame mount and rotor.

Step 12: Reinstalling the Caliper and Final Checks

Carefully position the caliper assembly onto the brake rotor, ensuring it is correctly aligned. Push the mounting bolts fully through the frame bracket. Install the washers and nuts onto these bolts, then tighten them to the manufacturer's specified torque. If you don't have a specific torque value, tighten them firmly, ensuring they are secure but not excessively so. With the caliper securely mounted, reattach the parking brake cable clevis to the caliper lever. Insert the pin and secure it with the cotter key you removed earlier. Before lowering the bed, test the E-brake operation. Engage the pedal, then release it. You should feel a firm engagement and a smooth release. Finally, reinstall the bed struts, securing them with their respective pins and cotter keys. Double-check all connections and fasteners. You should now enjoy having a fully functional parking brake again, potentially for less than £3.00!

Frequently Asked Questions (FAQs)

Q: My parking brake still isn't holding after following these steps. What could be wrong?

A: If the brake still doesn't hold, first re-check that the pads are indeed thick enough with the added shims/washers. Ensure the caliper reassembly was correct and all internal components (especially the ball bearings) are in place. Also, inspect the parking brake cable for excessive slack, fraying, or seizing. A worn or stretched cable might not be pulling the caliper lever far enough. Lastly, verify the brake rotor itself isn't severely grooved or warped, which can also impede proper brake function.

Q: How often should I inspect my Ranger's parking brake pads?

A: It's good practice to inspect your parking brake pads as part of your regular maintenance routine, perhaps every 100-200 hours of operation or annually, whichever comes first. Given the pre-2007 Ranger's tendency for accidental engagement, more frequent checks are advisable if you often use the parking brake or operate in challenging terrain.

Q: Can I use any type of washer for the DIY shim fix?

A: No, it's crucial to use a washer of the specified dimensions: 1-inch outer diameter with a 1/4-inch inner hole. The inner hole size is particularly important as it needs to fit snugly over the caliper's central stud. Additionally, opt for the thinnest washers available to allow for fine-tuning the thickness and to prevent over-compressing the pads.

Q: Why is a mechanical caliper different from a hydraulic one in terms of wear compensation?

A: Hydraulic brake systems use fluid pressure to push pistons, which in turn push the brake pads against the rotor. As pads wear, the fluid simply fills the increased space, automatically compensating for the wear. A mechanical caliper, however, relies on a direct physical linkage (like a cable and lever) to apply force. It has no fluid to compensate for material loss, meaning if the pads get too thin, the mechanical linkage can no longer push them far enough to make sufficient contact with the rotor, even if the lever is fully engaged.

Q: What kind of grease should I use, and why is it important?

A: You should use automotive specific disc brake grease. This is typically a high-temperature, synthetic grease designed for brake components. It's crucial because it prevents squealing, allows for smooth movement of the caliper's internal parts, and protects against corrosion. Do not use general-purpose grease, as it may not withstand the heat or be compatible with brake materials.

Conclusion

A fully functional parking brake is not just a convenience; it's a critical safety feature for your Polaris Ranger. By understanding the common pitfalls of the pre-2007 models and applying this detailed guide, you can quickly and effectively address worn parking brake pads. Whether you opt for new replacement pads or the ingenious washer shim trick, the satisfaction of having a reliable parking brake, especially for such a minimal investment, is immense. Regular inspection and prompt attention to any signs of wear will ensure your Ranger remains safe and dependable for all your adventures.
